Product Overview

Description

How to choose wisely

You may have no ideas how to choose a right water treatment system from right company, follow my lead, you will find the perfect one.

Client: I want to get pure water for DRINKING, and my source water is BOREHOLE water. Can you suggest me a good system?
David：Do you have a source water analysis report?
Client: (1) Yes, we have. I show you now.
             (2) No, we donot have one, it's just normal BOREHOLE water.
David: (1) Based on your water analysis, we suggest single pass RO system.
             (2) According to our experience, single pass RO system will work.
Client: Can you introduce this system to me?

How this system work

20T/h all stainless steel RO water treatment system

Single pass RO system working process

                                                                                                             antiscallant dosing unit

Raw water- - -booster pump- - -quartz sand filter- - - active carbon fitler- - - micro filter- - - high pressure pump- - - RO unit- - - -pure water - - - UV sterilizer(ozone generator)

Single pass RO system suits for water EC under 1000μS/cm(TDS 1600mg/L ), output water EC is about 1-10μS/cm(TDS under 20 mg/L )

Quartz  sand filter

Quartz sand filter is to remove the suspended solids, big particle matters, water SDI after sand filter will be less than 4, turbidity less than 1NTU
Active carbon filter
Active carbon filter can absorb bad smell, some
germs, and free chlorine.
Both filters are automatic control with auto control valve or electric valves, automatically running,
wash and backwash.

Antiscallant dosing unit

Antiscalant is a specially prepared chemical solution by

ourselves for RO membrane, it will prevent dissolved

inorganic salts scaling on RO membrane, guarantee high

quality output water.

Antiscallant solution is dosed into pipe by dosing pump at a certain fruquency, which can be adjusted by client.

It also can be replaced by resin filter.

Micro filter
It's cartridge filter with PPF filter element to protect RO membranes by removing all the possibly residual impurities,
filtration precision is 5 μm.
Usually change filter elements every 3-4 months.

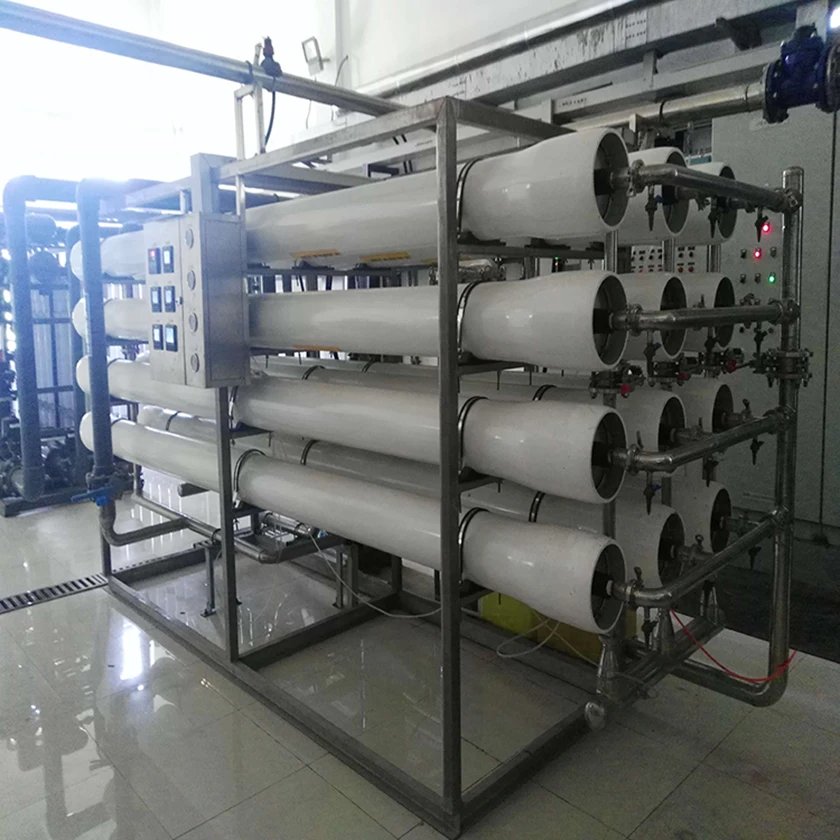

RO membranes

RO membrane filtration precision is 0.0001micron, desalination rate is 98-99%, all the salts and germs are removed.  Output water conductivity can be 10μS/cm. It also need to clean after running a while. We design a Cleaning In Place system for RO unit, clients donot need to remove all membranes to clean.

Brand: USA DOW,  Hydranautics;

             Korea Saehan;

             China Vontron

electric control system

Full automatic control with PLC and touch screen

Manual control by buttons

Showing system working status

One-key start system

Is this company OK

Client:  This company is new, can they be trusted?

David:   Hailian water treatment equipment technology co.,ltd is new established in 2014, produces RO system, UF

system, Softener water system, EDI system, mixed-bed system and many other water filters, provides fully water

solutions for customers from different industries, like food & beverage, pharmaceuticals, chemical and electron

industry.
             Halian company is new, but people in Hailian is not new to water treatment equipment. Our engineers have more than 15years experiences in water treatment field, and our manager David has sold water treatment equipment to many countries. At its very beginning, Hailian has decided to focus on oversea market, provide one-stop shopping and turn-key service for customers from whole world.
           Also as company is new, so every customer is important to us, each customer will receive our 100% respect and

full heart service.

How we cooperate

Client: Ok. They how we cooperate? What service can you provide?

David: We provide turn-key service, all what you need do is to Choose us and Trust your decision.

Pre-Sales Service

* Inquiry and consulting.

* Design appropriate system according to water quality and applicaton.

* Equipment testing before delivery


After-sales Service

* Provide all needed technical drawings,( layout drawing, P&I drawing, electric drawing, etc)

* Engineers available to service machinery overseas

* Training how to instal the machine, training how to use the machine

when will i get it

Client: If I place order now, can you supply this system in time and in good packing?

David: For a small system, it only takes one week to produce, 5weeks at most for bigger system. But shipping and customos clearance take longer time, usually 5-7weeks. Please take this into consideration.

All equipment are packed with wooden box or wrapping

film.

All parts are fastened in container, guarantee that no

demage while shipping.
