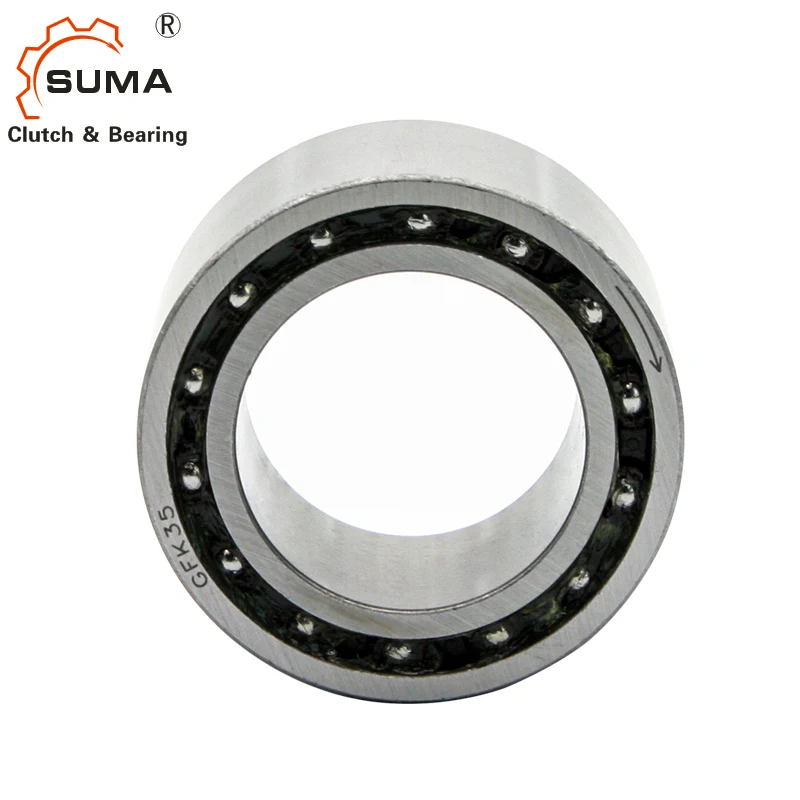

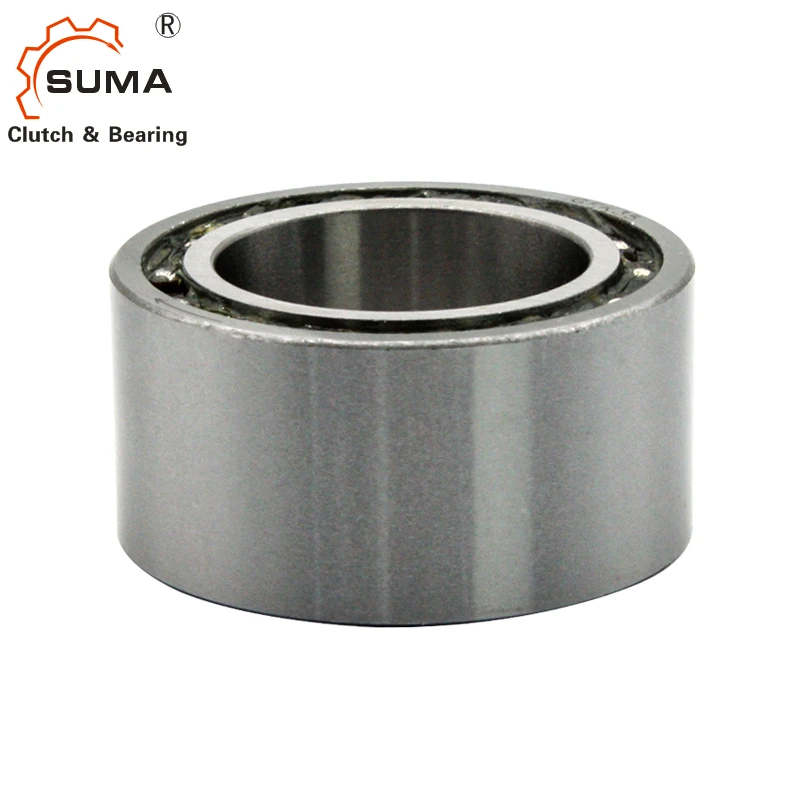

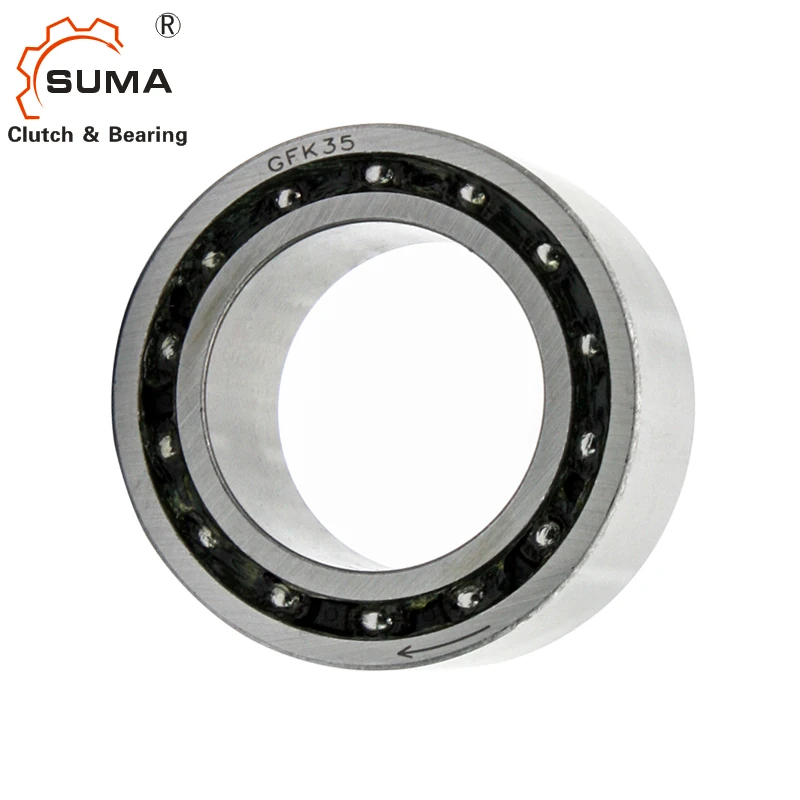

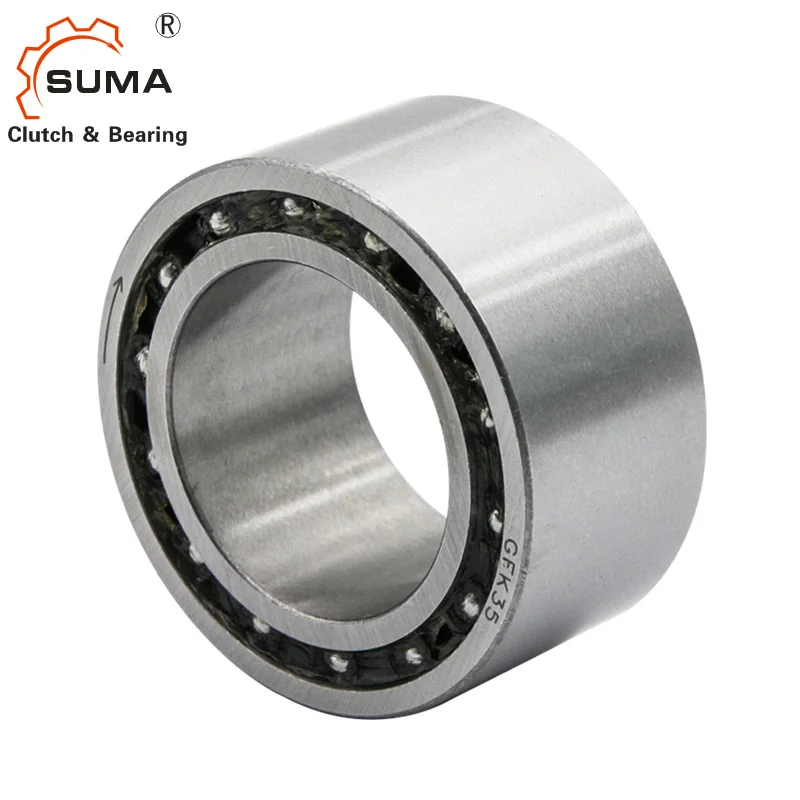

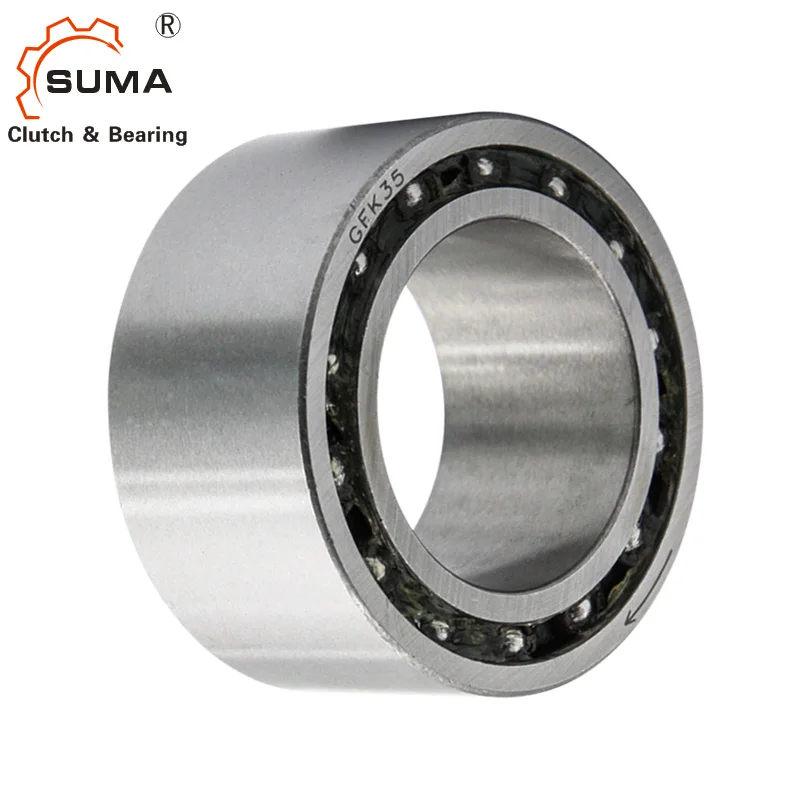

FGK 40 Sprag Freewheel Bike Bearing One Way Clutch
Product Description
Internal Freewheels FGK
for press fit on the outer ring
with sprags and bearing
Data Sheet
Item
FGK
Material
GCr15
Outer Diameter
62 mm
Inner Diameter
40 mm
Width
30 mm
Weight
0.30 kg
Norminal Torque
310 Nm
Delivery Time
7-10 days
Features
Internal Freewheels FGK are sprag freewheels with bearing support in the dimensions of the
needle bearing series 59. The freewheels are supplied grease-filled for normal operating
conditions and are maintenance-free. The outer ring is pressed into the customer housing. This makes compact, space-saving fitting solutions possible. The freewheels FGK are used as
Backstops
Overrunning Clutches
Indexing Freewheels
Nominal torques up to 460 Nm. The torque is transmitted on the outer ring by press fit. Bores up to 50 mm.
Different Freewheel Sizes Of FGK Series You May Choose
Freewheel Size
Nominal t orque
Max. speed
Outer ring freewheels/
dynamic C
Load rating of bearing support
sta
tic C
Bore d
D
K
L
Weight
MN
Inner ring freewheels/
overruns min-1
Roller
Ball
Roller
Ball
mm
mm
mm
mm
kg
Nm
overruns min-1
N
N
N
N
FGK 20
50
5 500
4 000
5 600
4 400
2 900
2750
20
37
42
23
0,09
FGK 25
70
5 300
3 800
6 300
5 300
3 450
3 350
25
42
48
23
0,11
FGK 30
95
5 000
3 500
7 700
5 500
4 600
3 650
30
47
54
23
0,13
FGK 35
200
4 600
3 200
8 200
8 500
5 200
5 700
35
55
63
27
0,20
FGK 40
310
4 200
3 000
8 650
8 300
5 750
5 700
40
62
70
30
0,30
FGK 45
370
3 800
2 500
9 200
9 650
6 350
7 200
45
68
76
30
0,34
FGK 50
460
3 400
2 200
9 650
10 000
6 950
7 800
50
72
80
30
0,36
Application example
Internal Freewheel FGK 35 as an indexing freewheel in a circular knitting machine. Set-up in order to change material or after breakdown requires a sensitive, manual adjustment of the
rotary table. Therefore the rotary table is moved per hand lever via the freewheel which is working in driving operation. After set-up, the drive is carried out via the main motor and the
freewheel outer ring overruns.
Mounting
The torque is transmitted on the inner and outer ring by press fit. In order to transmit the
torques specified in the table, the outer ring must be accommodated in a housing with an
external diameter K. The housing is made of steel or grey cast iron in minimum quality GG-
20. When using other housing materials or smaller external diameters, we urge you to contact
us regarding the transmissible torque. The tolerance of the housing bore D must be ISO R6 and the tolerance of the shaft must be ISO p5. With these fits, normal bearing clearance is achieved in a built-in state. The permissible operating temperature of the freewheel is - 40°C to 80°C.
Lubrication
The freewheels are supplied grease-filled for normal operating conditions. However, the
freewheels can also be connected to the customer’s oil lubrication systeem; this is particularly
recommended in the case of higher speeds.
Example for ordering
Freewheel size FGK 40, standard type:
• FGK 40

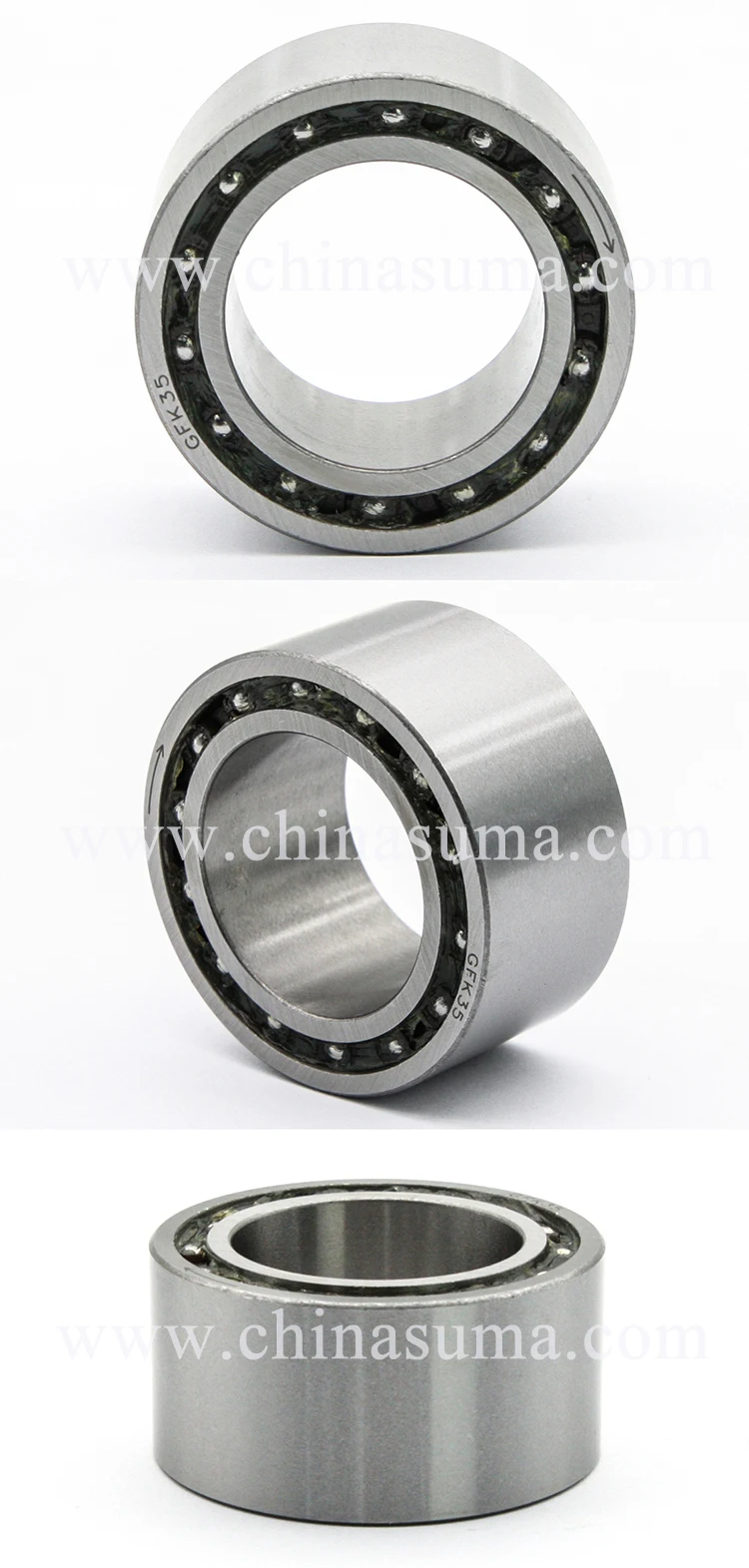

Detailed Image
