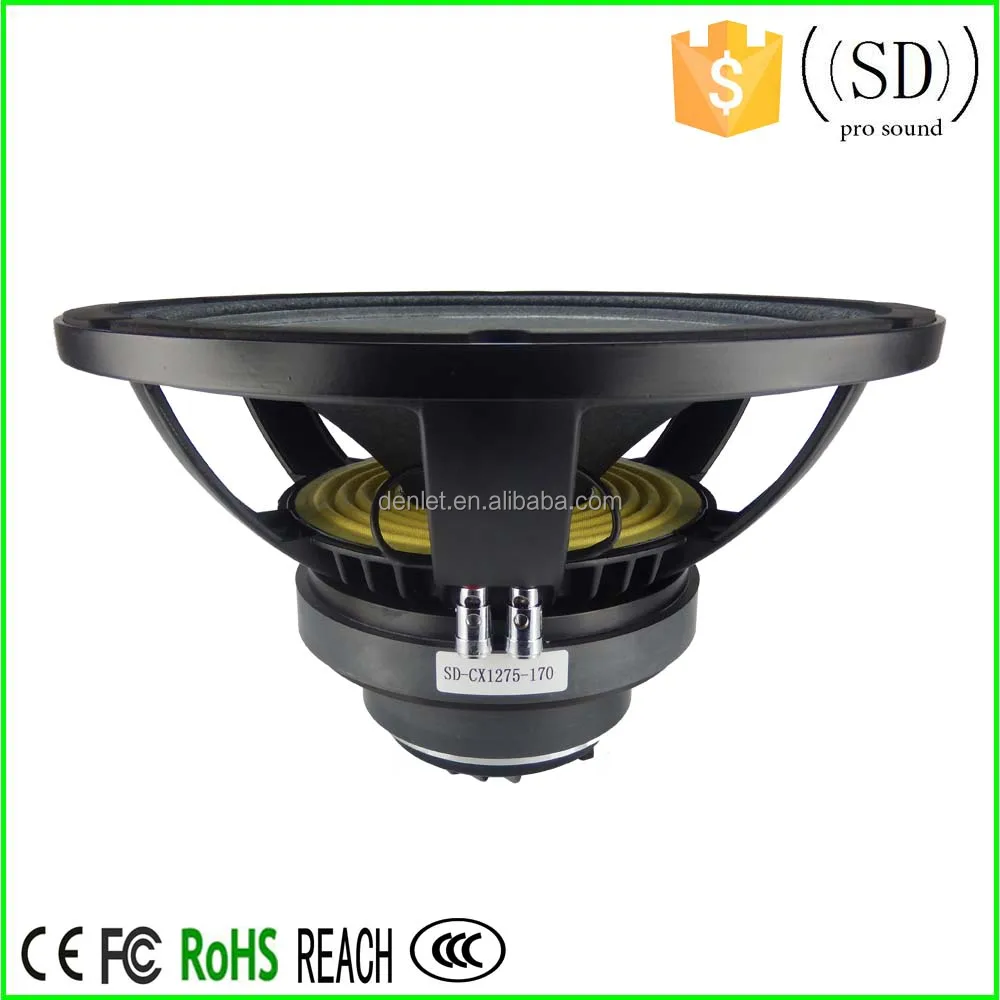

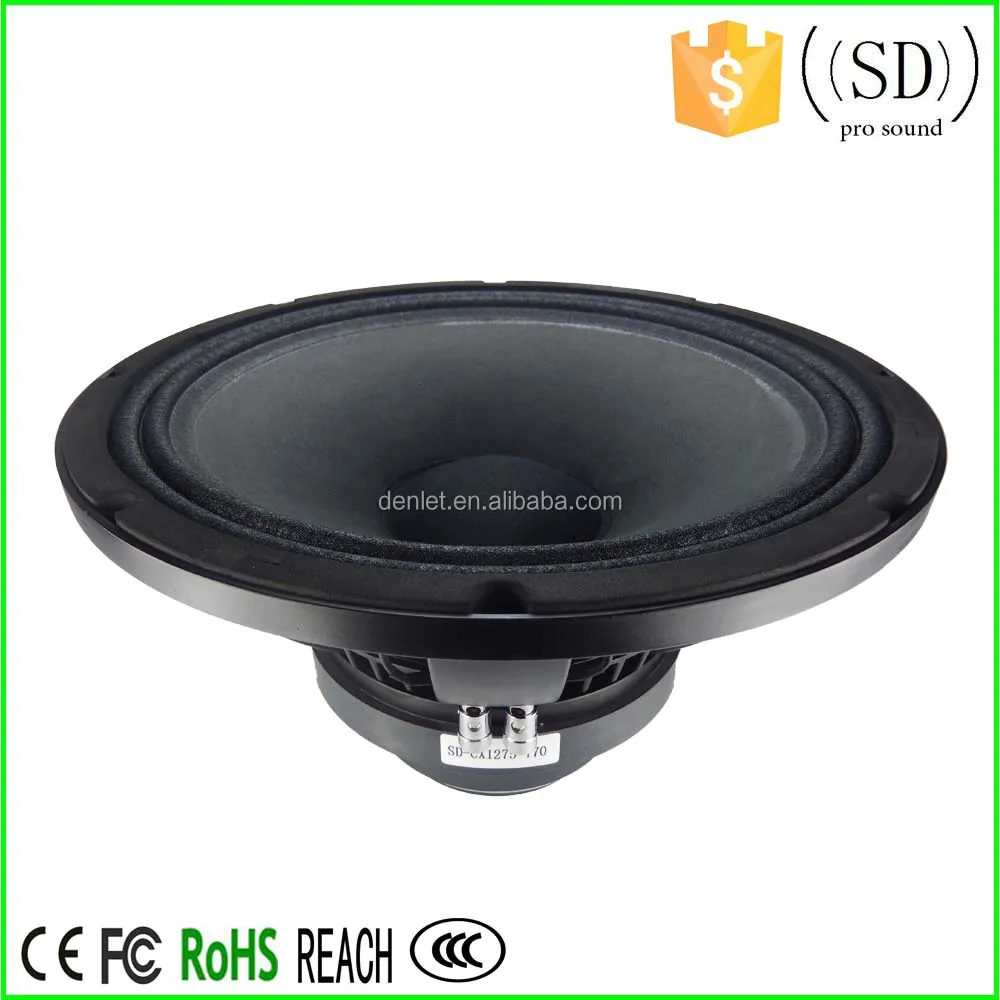

Model: Coaxial Ferrite Driver SD-CX1275-170
| Specification | Thiele&Small Parameters | ||
| Nominal Diameter | 12''/305mm | FS | 53.0HZ |
| Nominal Impedance | 8Ω | Re | 5.3 Ω |
| Minimum Impedance | 4.2 Ω (LF), 5.2 Ω (TW) | Qms | 4.15 |
| Frequency Range | 53-18000HZ | Qes | 0.42 |
| HF Unit | Qts | 0.38 | |
| Sentitivity(1W/1M) | 110db | Mms | 40.0G |
| AES Power | 60W | Cms | 0.21mm/N |
| Program Power | 120W | BL | 11.7T-M |
| Voice Coil Diameter | 1.7''/44mm | Sd | 522cm² |
| Magnet Diameter | 120mm | Vas | 83.0L |
| Winding Material | Aluminium | Mounting&Packing Information | |
| Diaphragm Material | Polyester | Overall Diameter | 313mm/12.23'' |
| LF Unit | Bolt Circle Diameter | 297mm/11.7'' | |
| Sentitivity(1W/1M) | 98.0db | Baffle Cutout Diameter | 279mm/10.9'' |
| AES Power | 400W | N.Of Mounting Holes | 8 pcs |
| Program Power | 450W | Mounting Holes Diameter | 6.7mm |
| Flux Density | 1.05T | Depth | 203mm/8'' |
| Voice Coil Diameter | 3''/75mm | Net Weight | 7.85kg |
| Magnet Diameter | 170mm | Shipping Weight | 32.6kg |
| Winding Material | Copper Clad Aluminium | Shipping Box | 610*330*440mm/4pcs |




![]()
Standard Package:
Plastic bag + specialized inner box + shipping carton(print product model, shipping mark, and customer requested logo....)

Mass production: by sea,by air or by train.....
Sample: express courier services,like DHL,UPS,TNT,FEDEX....
