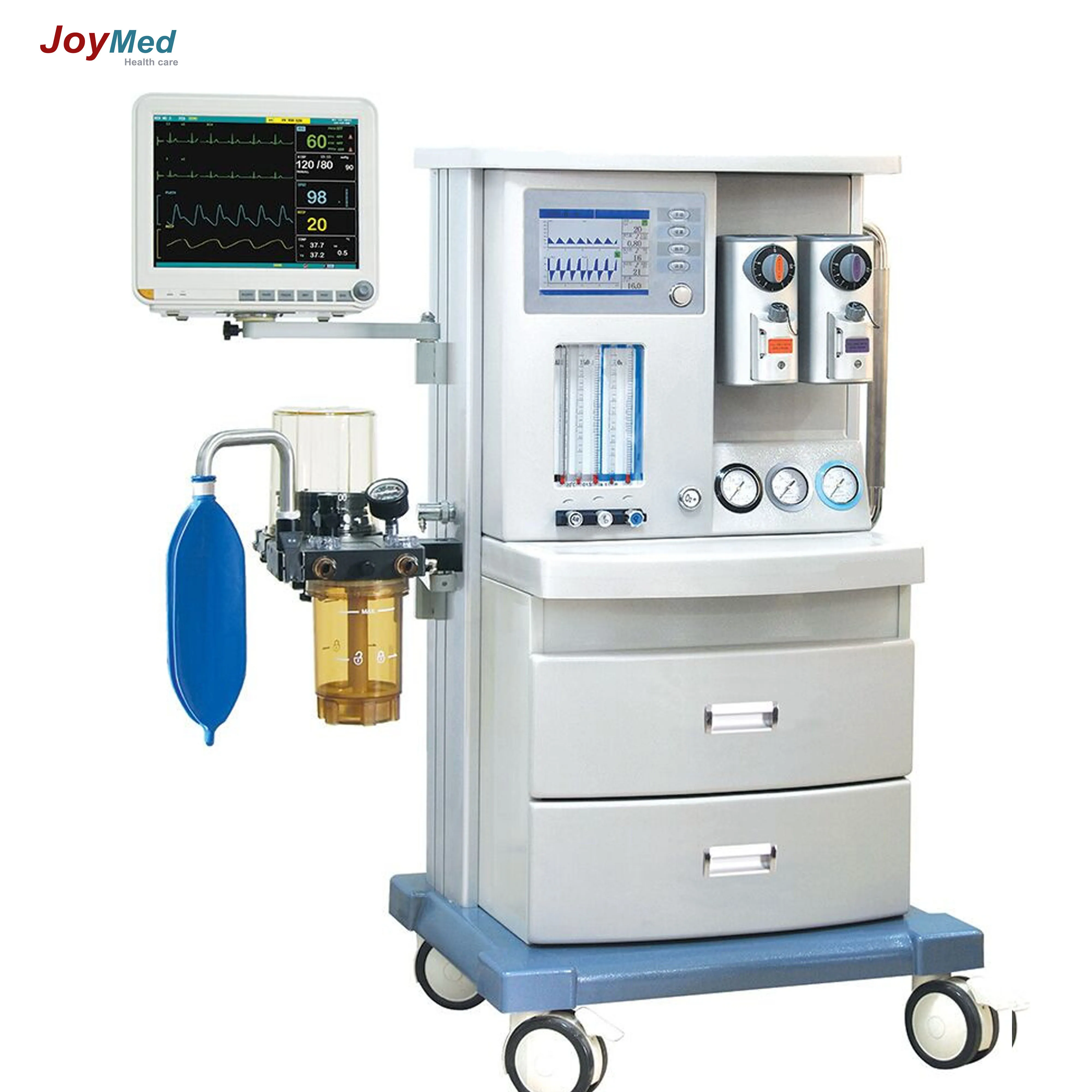

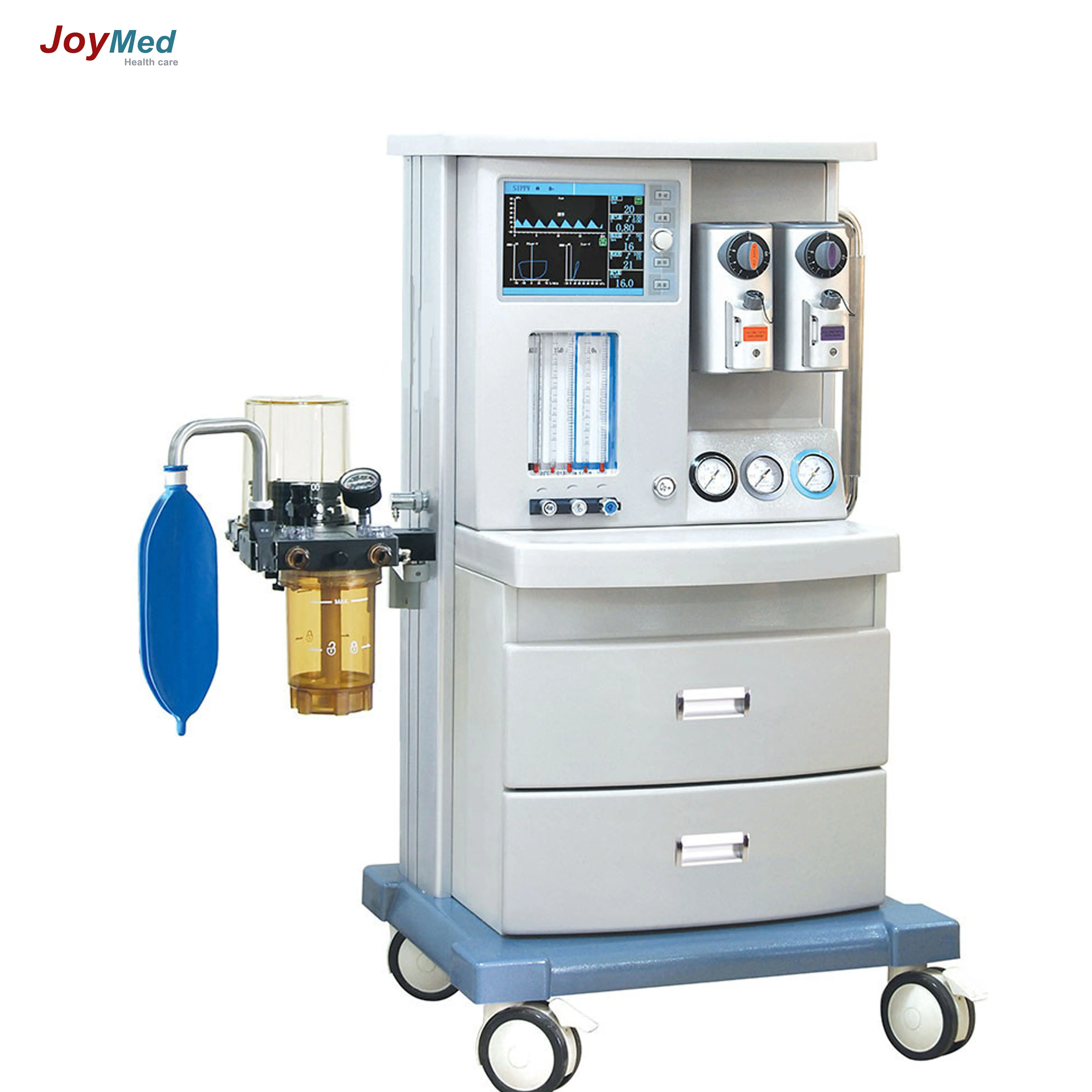

JM 580 medical Anesthesia machine equipment
- Category: >>>
- Supplier: Jiangsu Joymed Tech Co. Ltd.
Share on (60469477231):
Product Overview
Description
JM-580 Anethesia Machine
Anesthesia ventilator
Pneumatically driven electronically controlled system
Built-in ventilator, 10.4” LCD display
With 1 patient circuit for adult (Optional:patient circuit for children)
5-tube flowmeters, O2 & N2O & Air;0.1L/Min ~ 10 L/Min;
Two vaporizers
(Optional: Halothane)
Oxygen Flush: 25~75 L/Min;
Respiration Mode: IPPV, SIPPV(VCV), IMV,SIMV, PEEP, Manu, Sigh
Tidal Volume: 0~1500 mL;
I:E: 8:1~1:10
Respiration Frequency: 1~99bpm;
PEEP: 1~10 hPa;
Ptr: -10~10 hPa;
CO2 absorber capacity: 1 kg
Lung compliance: ≤ 30mL/kPa;
IMV frequency: 1~12bpm
Inspiratory Plateau: 0~1S;
O2 Concentration: 21%~100%
Alarm parameter: upper /lower limit ofairway pressure, tidal volume exceed limitation, no tidal volume output, apnea,AC power malfunction, battery low power
Loop part:
Integrated design, integrated breathingcircuit
Evaporator:
High-precision double evaporators configuration
Concentration adjustment range: 0.5 ~ 5%VOL
Evaporator flow, pressure, and automatictemperature compensation function
Self-locking feature
Configuration:
Vaporizer
Anesthesia gas concentration range: 0.5~5%
Soda lime absorption system: resistance tohigh temperature of 176 degrees Celsius.
CE & ISO certificates approved
Company Information
JIANGSU JOYMED TECH CO.,LTD focusing on R&D, manufacture and distribution of medical devices, laboratory equipments and beauty equipments was founded in 1996 as a state owned high-tech enterprise.(In the name of XUZHOU Medical &Optical Instrument General Factory),After enterprise restructuring, It was reorganized as aCompany Limited ,and officially renamed to JIANGSU JOYMED TECH CO.,LTD.(hereinafter referred to as JOYMED)
JOYMED locates in Xuzhou city which is one of the largest bases for R & D and production of medical devices in China. We are proud to have a team of experienced technical expertise who have rich research and development experience.
Since its foundation, JOYMED has established its quality management system according to ISO 9001 & ISO 13485 standards. With a strict control of quality management, most of its products have been CE marked.
Today,JOYMED ‘s distribution network covers more than 80 countries all over the world. With more than 20 years experience and successful practice, JOYMED has turned out to be one of the leading manufacturers for medical devices in China.
Our Mission:
Be a trusted partner to all of our customers
Supporting safe, high quality and affordable products to accelerate customer’s ability to grow business !To make healthcare more affordable to the people worldwide
JOYMED will be your sincere and faithful partner and warmly welcome you to join us for mutual benefits!
