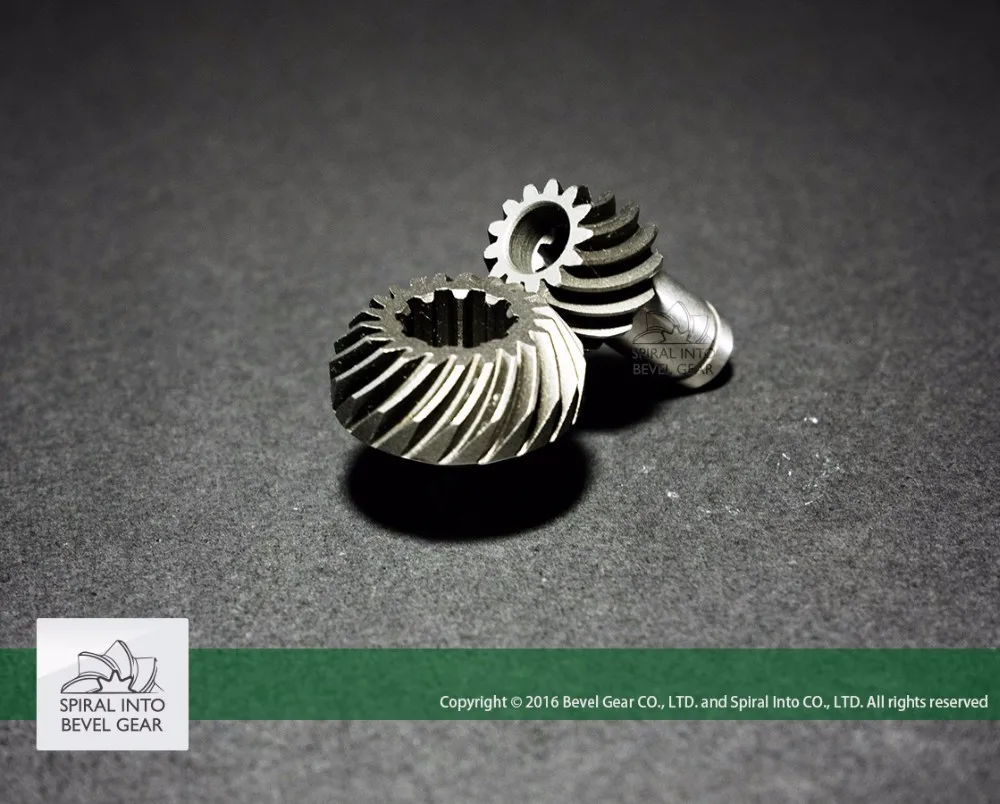

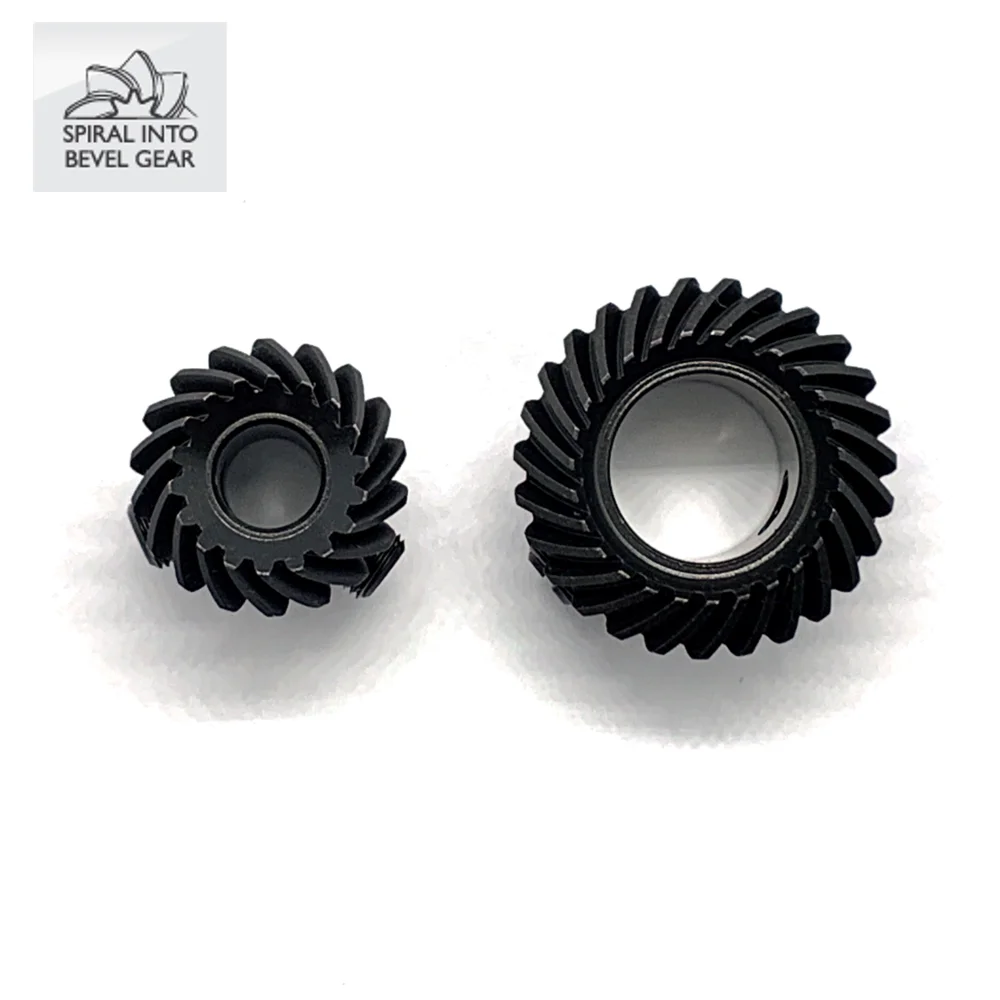

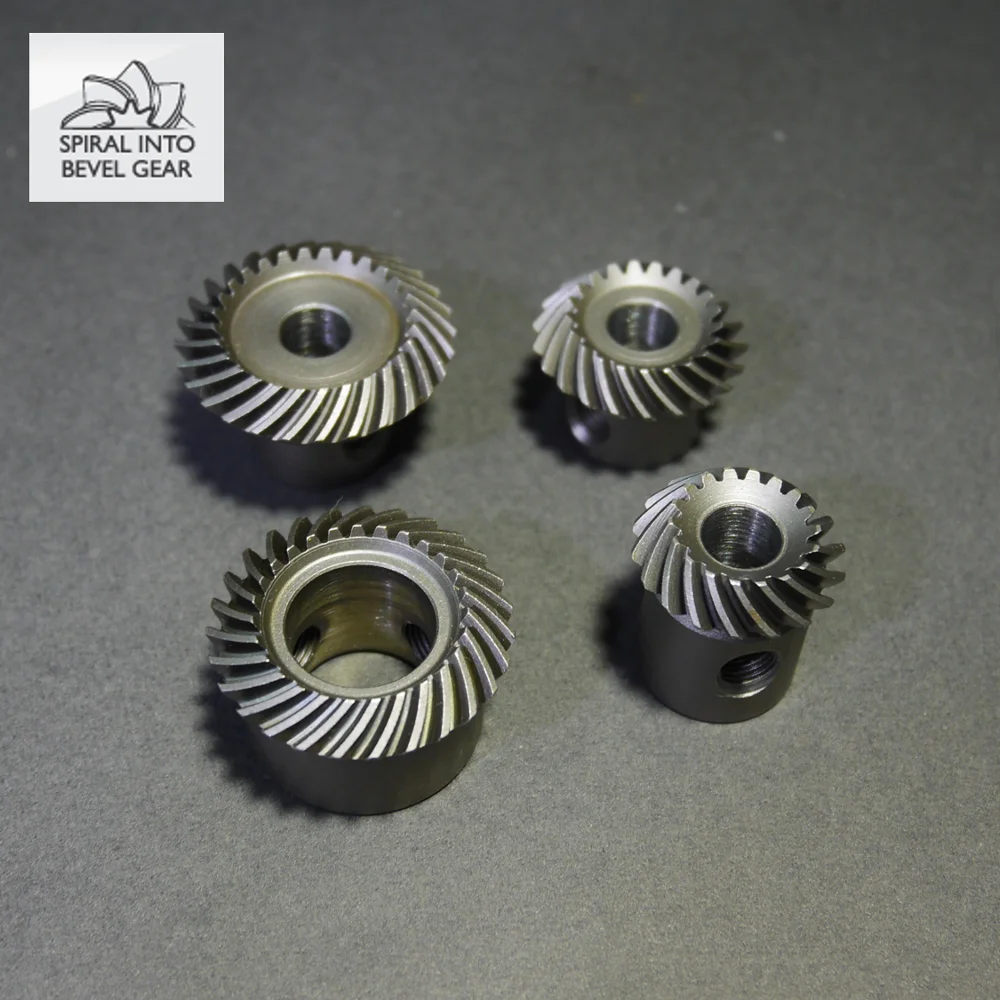

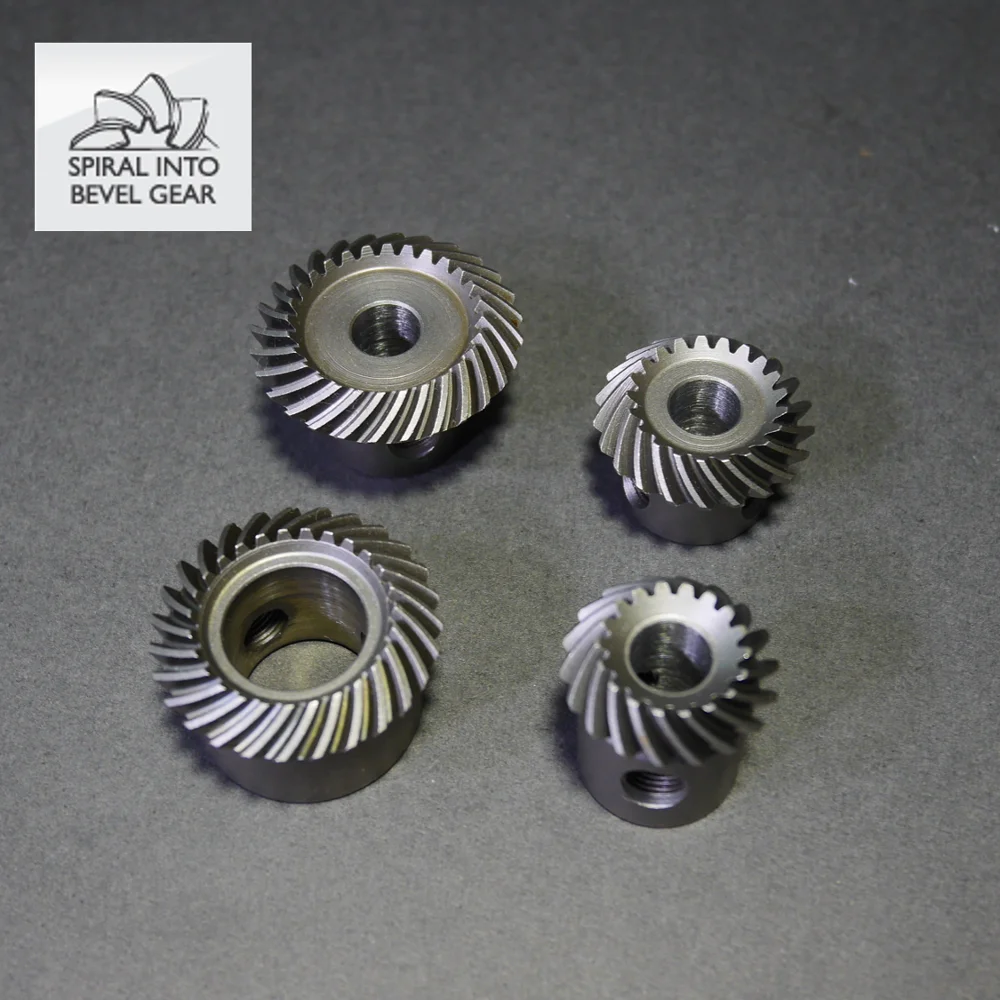

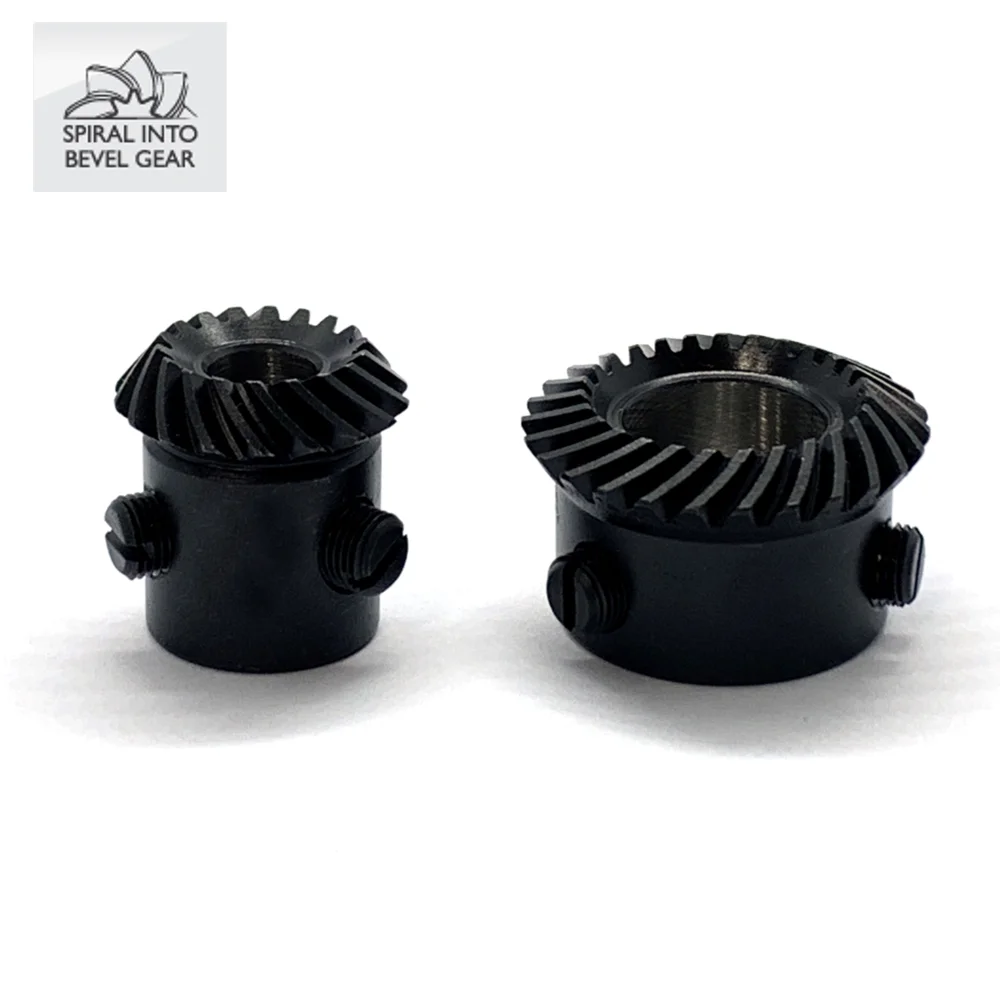

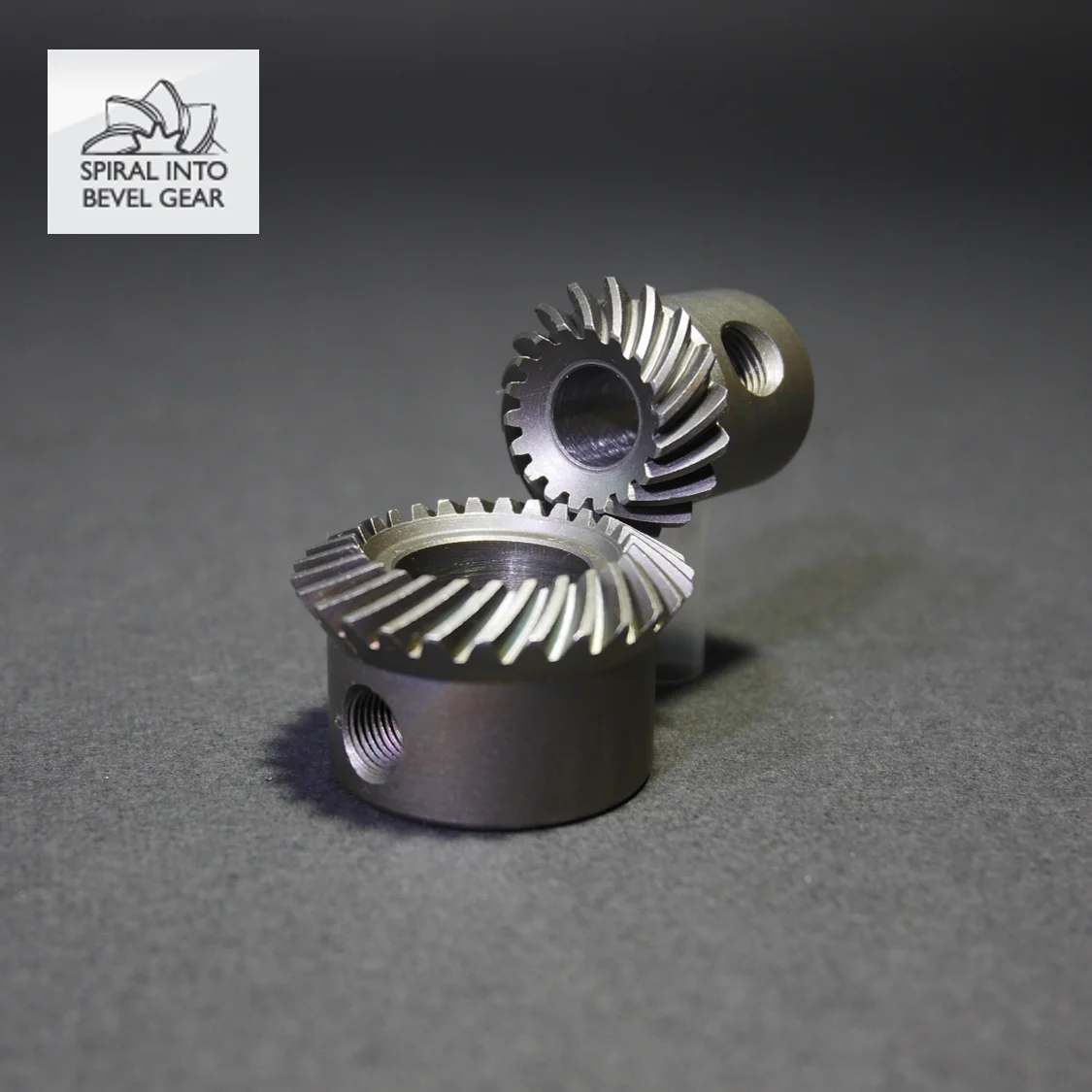

Taiwan High Quality Customized Spiral Bevel Gear Manufacturer for sewing machine

Material

Alloy Steel: AISI 8620, SCM415, SCM420, SCM440...etc.
Carbon Steel: S35C, S45C…etc
Stainless Steel: 304, 306, 316, 416…etc
Brass/Bronze: CAC703, CAC704, ALBC2…etc
Plastic: ABS, POM, Nylon, PP...etc.
Other Specific Materials by Customer

Module

0.3, 0.4, .....1.0, 1.25, 1.5, 1.75, 2.0, 2.25, 2.5, ......6.0 or other specific modules

Tolerance Control

Outer Diameter: Min. ±0.005 mm, Length Dimension: Min. ±0.01 mm or Customer's SPEC

Teeth Accuracy

JIS Class 0, DIN Class 4, AGMA Class 13, ISO Class 4

Heat Treatment

Quenching, Tempering, Annealing, Gas/Vacuum Carburizing, Nitriding, Austempering, ADI, Precipitation hardening, cryogenic treatment...etc.

Surface Treatment

Zinc plating, Nickel Plating, ,Trivalent chromium plating, Oxide black, Anodizing process, Electroplating, Sandblasting...etc.
