Product Overview

Description


Specification

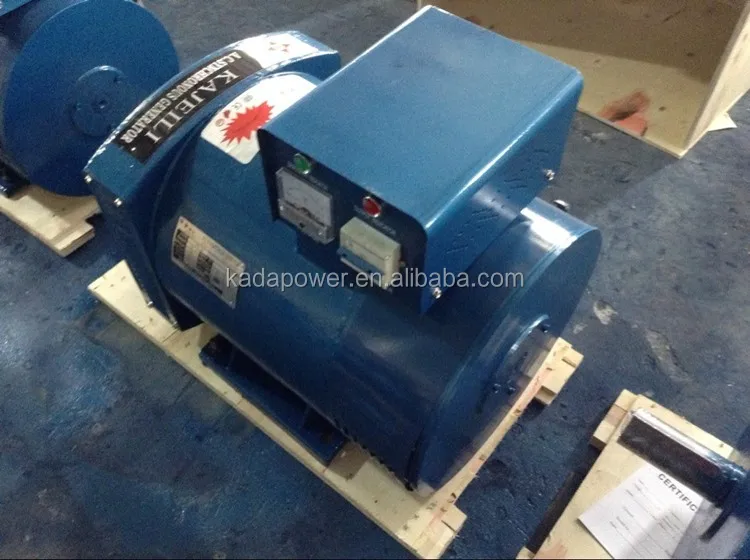

Model: STC-15KW/18KVA

3-PH, 50HZ@1500RPM, 380V
(Also can be made as per customer's requirements)
Power: 15kw/18.75kva Power factor: 0.8 Pole: 4
Voltage/Frequency: 50Hz/1500RPM
Weight: 135kg Packing: 73*45*64cm
Exciter type: Brush, Harmonic excitation system
Voltage adjust range: ≥3%
Voltage regulation NL-FL: ≤±0.3%
Insulation Grade: B Protection Grade : IP21

Description

The generator are to be used in town, the countryside, work sites, mountain and pasture lands as a electric power source for lighting purpose, it can also be used as a reserved power source for emergent case. The generators are of drip-proof with rotary field type and with the adoption of harmonic excitation system, that allow your easy operation and simple maintenance.

\t

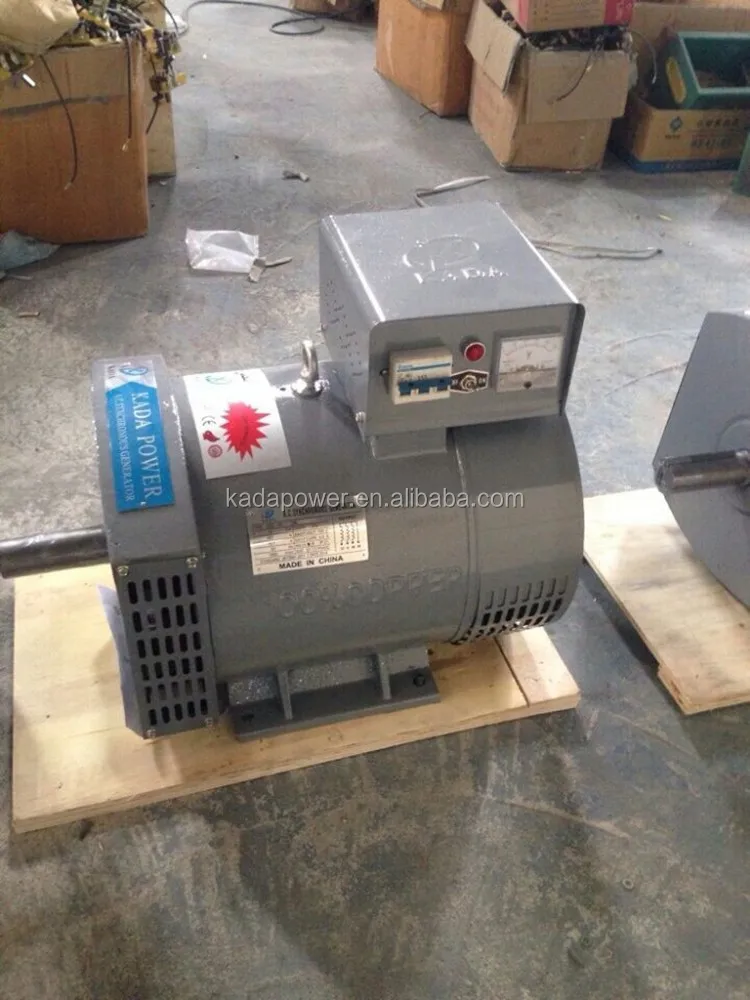

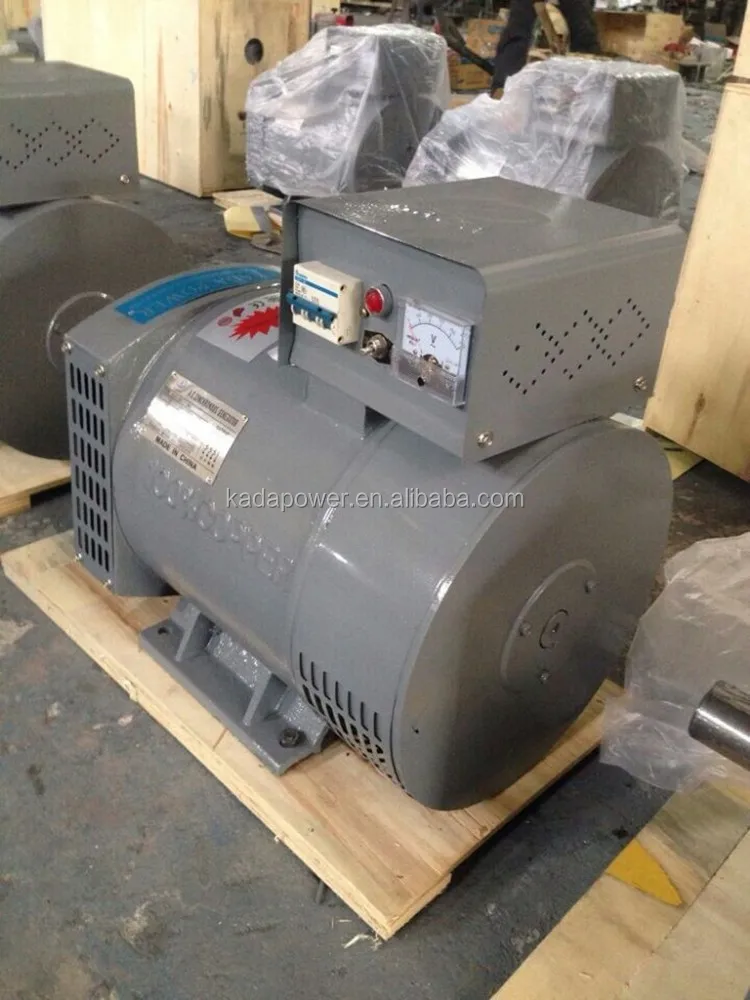

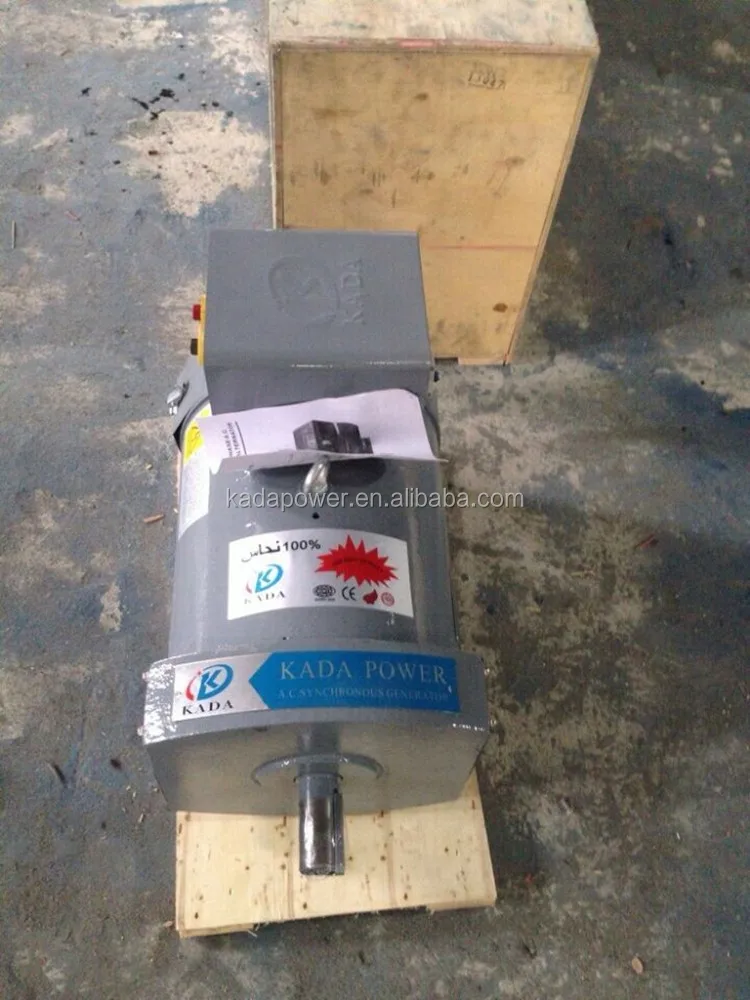

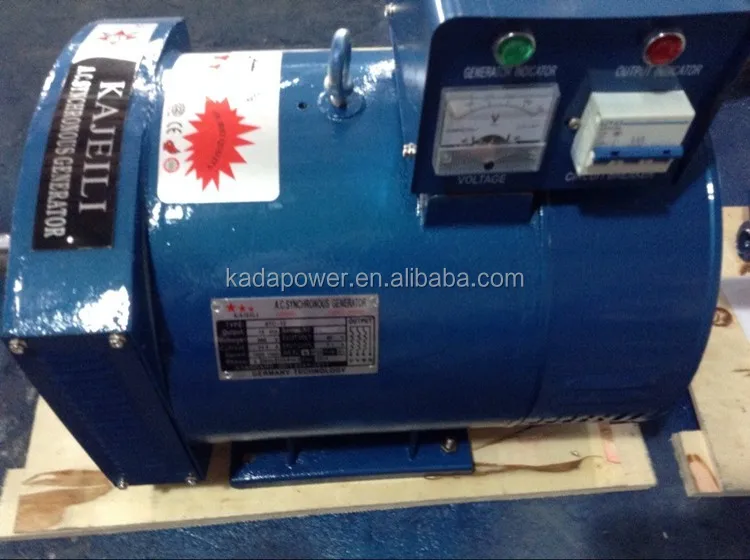

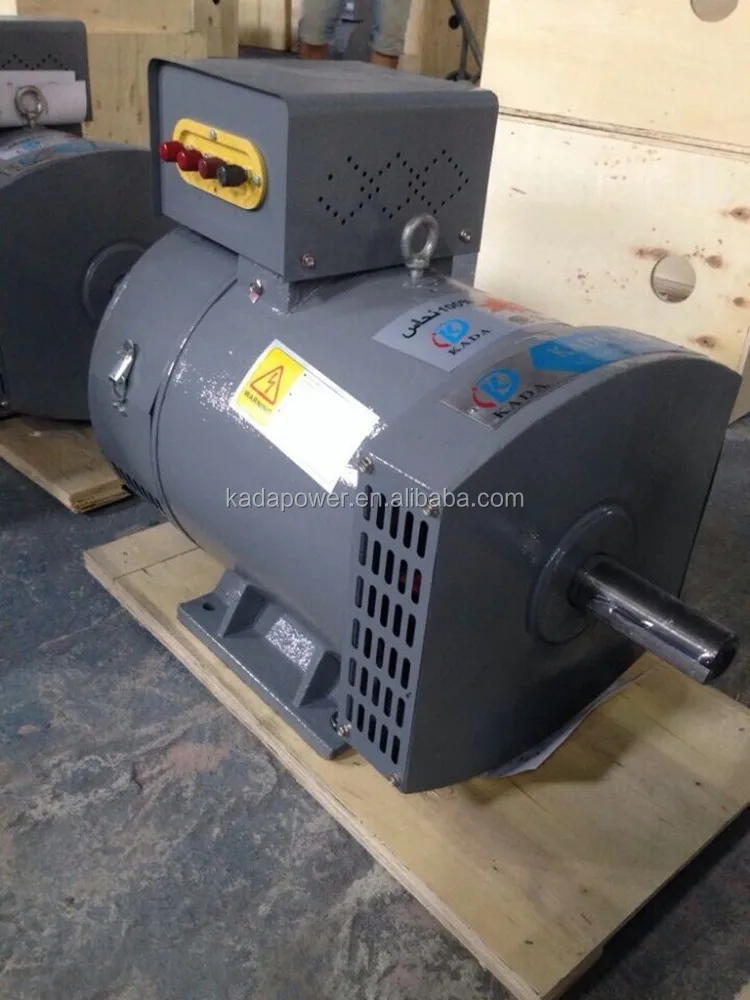

STC serise Three Phase A.C. 100% Copper Brush Synchronous Alternator
\t
Model
\t
Rated Output (KW)
\t
Rated capacity (KVA)
\t
Rated Current (A)
\t
Rated Voltage
(V)
\t
Polo Number
\t
Rated Speed (R/Min)
\t
STC-3
\t
3
\t
3.8
\t
5.4
\t








380
\t








4
\t








1500
\t
STC-5
\t
5
\t
6.3
\t
9
\t
STC-7.5
\t
7.5
\t
9.4
\t
13.5
\t
STC-10
\t
10
\t
12.5
\t
18.1
\t
STC-12
\t
12
\t
15
\t
21.7
\t
STC-15
\t
15
\t
18.8
\t
27.1
\t
STC-20
\t
20
\t
25
\t
36.1
\t
STC-24
\t
24
\t
30
\t
43.3
\t
STC-30
\t
30
\t
37.5
\t
54.1
\t
STC-40
\t
40
\t
50
\t
72.2
\t
STC-50
\t
50
\t
62.5
\t
90.2
\t
ST serise Single Phase A.C. 100% Copper Brush Synchronous Alternator
\t
Model
\t
Rated Output (KW)
\t
Rated capacity (KVA)
\t
Rated Current (A)
\t
Rated Voltage
(V)
\t
Polo Number
\t
Rated Speed (R/Min)
\t
ST-1
\t
1
\t
1
\t
4.2
\t






220
\t






4
\t






1500
\t
ST-2
\t
2
\t
2
\t
8.7
\t
ST-3
\t
3
\t
3
\t
13
\t
ST-5
\t
5
\t
5
\t
21.8
\t
ST-7.5
\t
7.5
\t
7.5
\t
32.6
\t
ST-10
\t
10
\t
10
\t
43.7
\t
ST-12
\t
12
\t
12
\t
52.2
\t
ST-15
\t
15
\t
15
\t
65.2
\t
ST-20
\t
20
\t
20
\t
87
\t
ST-24
\t
24
\t
24
\t
107
Detailed

Each spare parts will be pay speical attention to every details

Each stator and rotor will be winded with B class insulation, no over heat

Each alternator will be tested before packing

Strong body, no damage while transporting and assembling

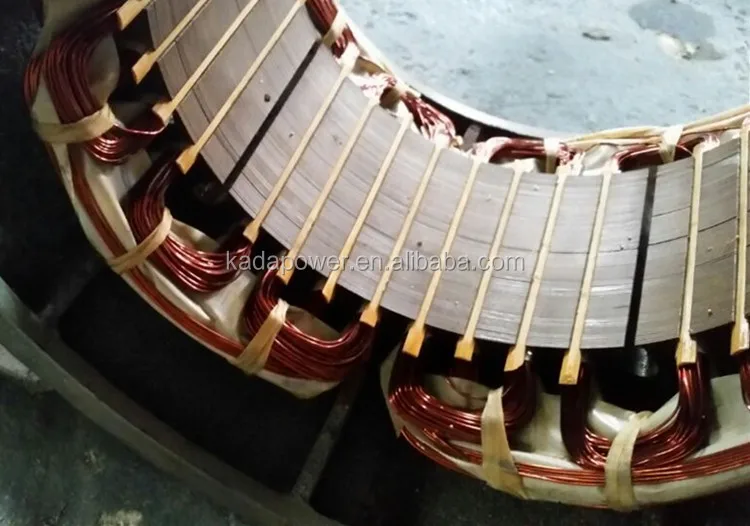

High quality stator with 100% pure copper wires

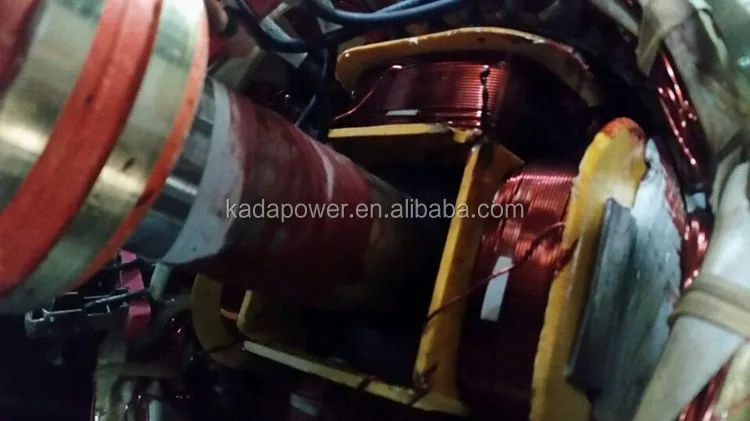

Good performance rotor with pure copper wires


Package
\t
Packaging
\t
Size
\t
1kw/2kw/3kw: 51*30*45CM
\t
      Size
\t
5kw/7.5kw: 62*35*53CM
\t
Size
\t
10kw/12kw:68*42*58CM
\t
      Size
\t
15kw/20kw/24kw:73*45*64CM
\t
      Size
\t
30kw/40kw/50kw: 92*55*72CM
\t

Details
\t

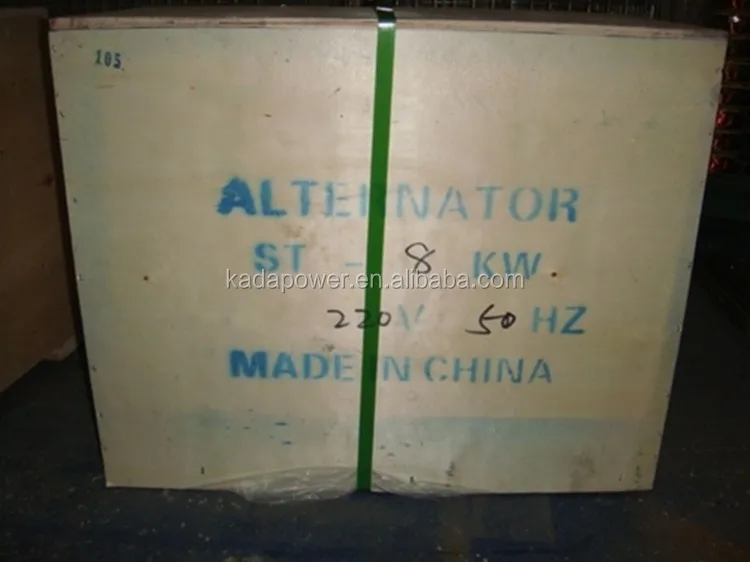

The normal package is plywood case, can fix 4 or 8 steels at the case edge as per customer requirement.
Certification
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t

1.What's your power range of the ST/STC alterantor ?
Answer: We can offer the range from 1kW~50kW.
2.What's your delivery time?
Answer: Generally,we can delivery in 25-30days after we get the deposit.
3.What's your payment?
Answer: We accept T/T , L/C at sight and Assurance payment from alibaba.

4.What's your warranty?
Answer:KADA product has guarantee for one year or 1000 hours which ever reach first from exfactory date. During the guarantee period, our will provide the free easydamageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

5.What's your MOQ?
Answer: We accept the MOQ is 1 set.

Contact

Contact:  Ms Pansy Peng


QQ:1321347017              TM: cn1001436710
Skype: churrosy1988     Wechat:churrosy
Email: sales2 AT kadapower.com
Mobile: 0086-18065935766
Whatspp: 0086-13559613115
Office tel: 0086-593-2723299
Office fax: 0086-593-2723066
