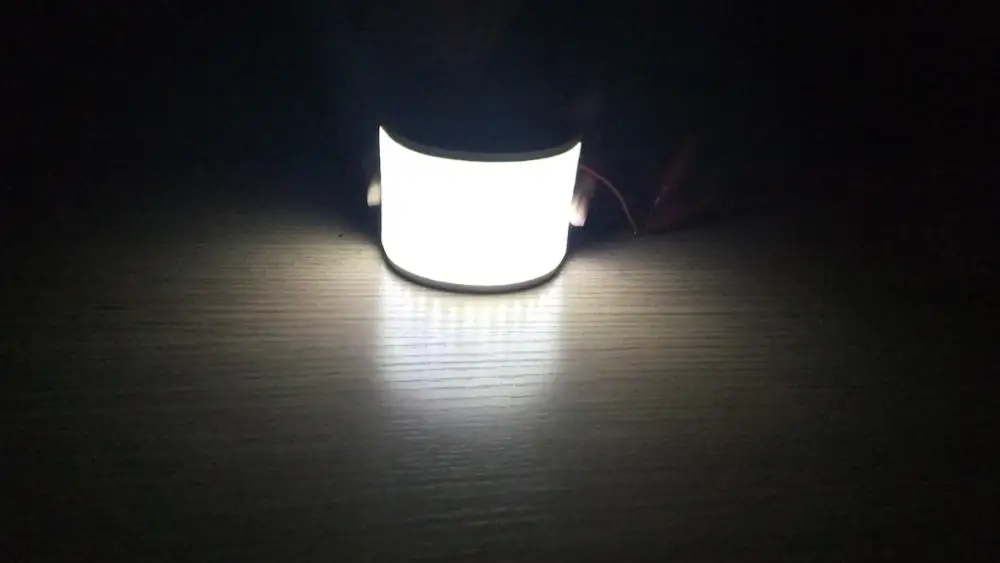

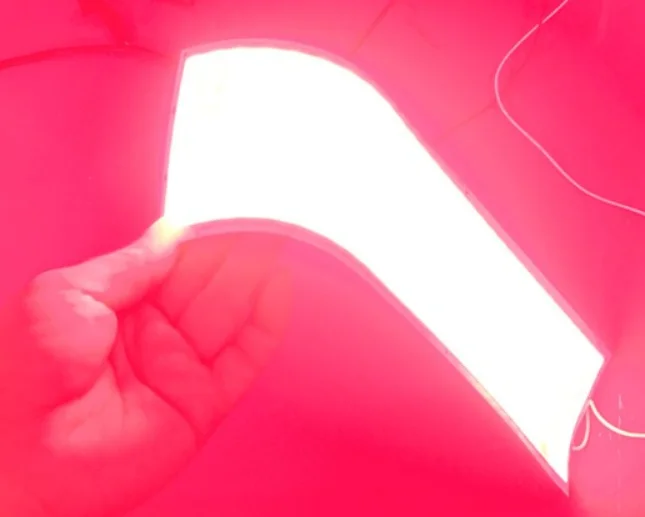

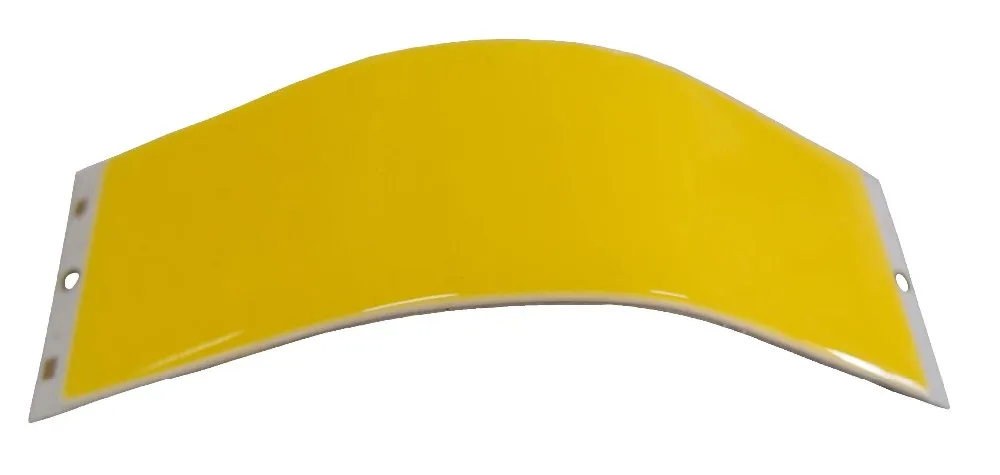

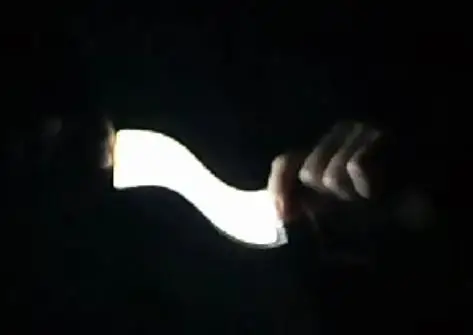

Customized High Brightness 1W 3W 5W 7W 8W 10W 15W 20W 50W100w Flexible COB LED For DRL Daytime Running Light
Device Selection Guide
Part No.
Chip
Lens color
Material
Emitting color
AL-FLA120X36P160-12V
InGaN
White
Yellow Diffused
Parameter
item no
lighting area(mm)
pcb type
lighting source type
color temperature range(K)
AL-FLA120X36P160-12V
L110*W36
Aluminium
upper lighting
2700~6500
Optical Characteristics
Symbol
Parameter
Min
Type
Max
Unit
If
Operating current
-
1300
-
mA
Vf
Forward Voltage
11.2
12
12.8
V
Φ
Luminous Intensity
1700
-
Lm
Tc
Color temperature
-
3000
-
K
Ra
color rendering index
-
65
-
Absolute maximum ratings
Symbol
Parameter
Min
Type
Max
Unit
P
power dissipation
-
16
-
W
To
junction temperature
-40
-
65
℃
Tstg
storage temperature range
-40
-
85
℃
Rth
thermal resistance
-
-
0.8
℃/W
Note: the condition of the test result data in the diagram above is Tc=25 degree ,the product of Light Panel with color temperature is 3000k.
The Same Series COB
Part No.
Power
Forward Voltage
Material
pcb type
Emitting color
Lumen output
CCT
CRI
AL-FL105x9P50-3V
5w
3-3.5v
InGaN
Aluminium
White
100-120lm/w
2700~6500K
80/90
AL-FLA104x8P30-3V
3w
3v
AL-FLA250x10P150-12V
15w
12v
AL-FLA120X36P160-12v
16w
12v
Related Products
Click the picetures below! Samples are waiting for you!
COB Rectangle Type
COB Round Type
Customized COB LED
Features
1. LED chip is fixed on the aluminium layer of PCB, the heat can be spread out through aluminium layer rapidly.
2. Low light decay: decay rate is less than 3% after 1000 hours and less than 30% after 35000 hours.
3. Equable and soft irradiancy, no glaring and eye protection.
4. Good reliable, no dead bulb, no dark space, uniform spherical scattering.
5. COB LED encapsulation lighting can be multi-functionally used in variety lighting products.
6. Highly color-rendering index and lighting effect, no ultraviolet and infrared rays, no attraction to mosquitoes.
7. Low voltage work to ensure the products safety used.
8. No contain mercury, lead and other heavy metals, environment friendly.
Application
1. Round COB module: LED bulb, LED cup, LED spotlight, LED downlight, LED grow light.
2. Flat COB module: LED tube(such as T5,T8,T10), LED rigid bar, LED desk lamp.
3. High power LED COB module: LED street light, LED tunel light, LED flood light.
Our Services
1) Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM, and your costumed lighting we can help you to design and put into produce.
3) Distributorship are offered for your unique design and some our current models.
4) Protecting your selling areas, idea of design and all your private information.
Packaging & Shipping
Tips:
1.Price term: EXW.
2. Payment: West Union, T/T.
3. Warranty: 3 years.
4. Lead Time: 15-30 working days after the orders are confirmed.
5. Transportation: express, air or sea.
6. Valid period: 30 days
