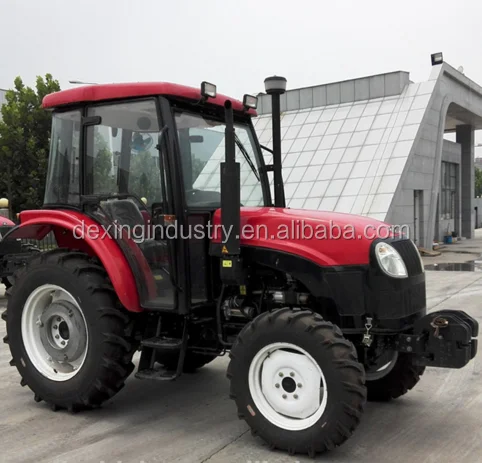

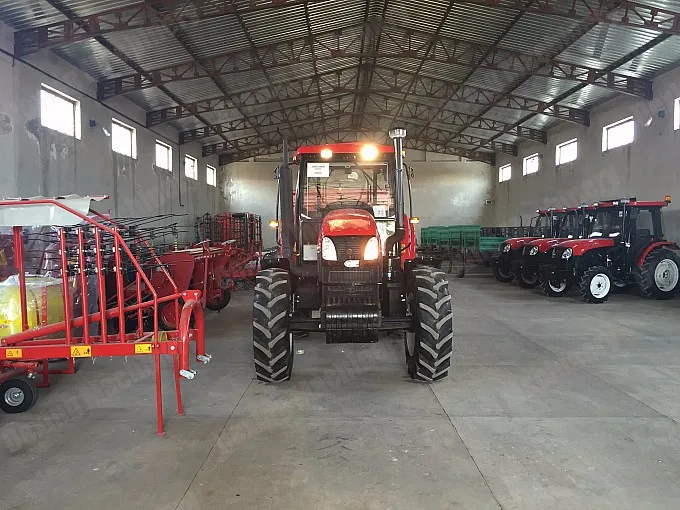

Best Chinese Quality And Price 4WD 60 hp Real YTO 604 Wheeled Tractor
- Category: >>>
- Supplier: Henan Dexing Machinery Equipment Co. Ltd.
Share on (60469739837):
Product Overview
Description
Product Description
Specification
The YTO-MG604 wheel tractor has the following features:
1.Our wheeled tractor has multiple gears and a wide speed range
2.Hydraulic steering, small turning radius, good maneuverability.
3.The wet disc brake is equipped for reliable braking performance
4.External double acting cylinder helps achieve large lifting force
5.Double action clutch can manipulate the power output without shutdown
6.Adjustable ground clearance makes our wheeled tractor suitable for operations in paddy fields
7.Streamlined enclosed cab is optional.
1.Our wheeled tractor has multiple gears and a wide speed range
2.Hydraulic steering, small turning radius, good maneuverability.
3.The wet disc brake is equipped for reliable braking performance
4.External double acting cylinder helps achieve large lifting force
5.Double action clutch can manipulate the power output without shutdown
6.Adjustable ground clearance makes our wheeled tractor suitable for operations in paddy fields
7.Streamlined enclosed cab is optional.
Model | YTO-MG604 | |
Tractor | ||
Type | 4x4 | |
Overall dimensions (LxWxH) (mm) | 3997x1784x1727 | |
Wheelbase (mm) | 2155.6 | |
Min. ground clearance (mm) | 420 | |
Min. operating mass (with safety stand) (Kg) | 2800 | |
Tyre spec. front / rear | 8.3-24 / 14.9-28 | |
Wheel tread, front / rear | 1274-1770 / 1310-1806 | |
Steering | Full hydraulic | |
Brake | Oil immersed, disk type, mechanically actuated | |
Diesel engine | ||
Model | YT4A2-22 | |
Type | Four cylinder, vertical, water cooled, four stroke, direct injection combustion | |
Displacement (L) | 4.16 | |
Rated power / speed (Kw) / (r/min) | 45 / 2200 | |
Max. torque (N.m) / speed (r/min) | 234 / 1600-1800 | |
Bore x stroke (mm) | 105 x 120 / 105 x 125 | |
Transmission | ||
Gear shift, forward / backward | 10 / 2 | |
Speed range (Km/h), forward / backward | 2.29-30.98 / 3.05-12.20 | |
PTO power (Kw) | 40.5 | |
PTO rotation speed (r/min) | 540 / 720 / 1000 optional | |
Clutch | 11-inch, dry, double action | |
Implement | ||
Three-point linkage category | Three-point linkage category II | |
Tilling depth control mode | Height floating control | |
Lifting force (KN) | 15 | |
Options | ||
OECD anti-turnover bar | Optional | |
Cab | Optional | |
Paddy field tire | Optional | |

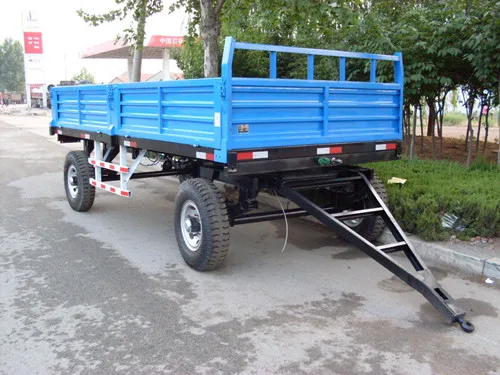

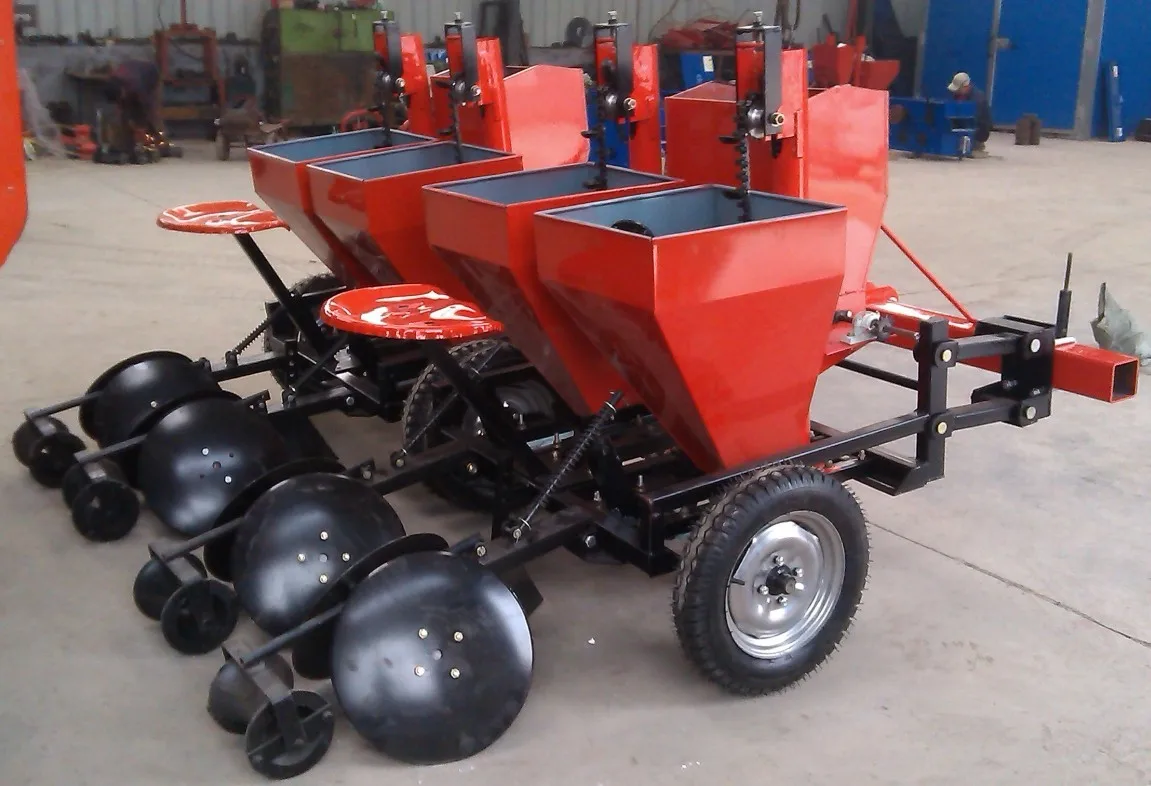

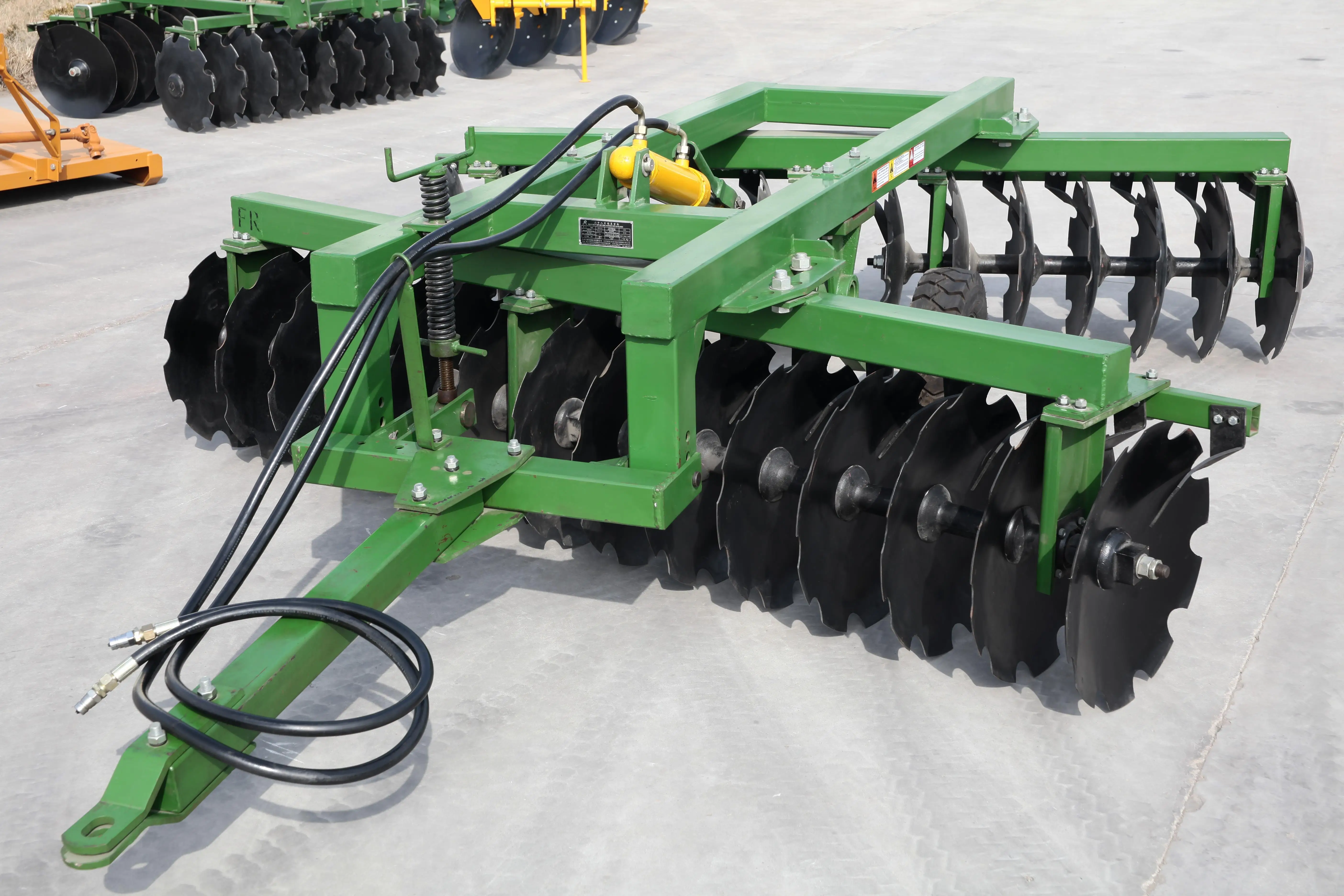

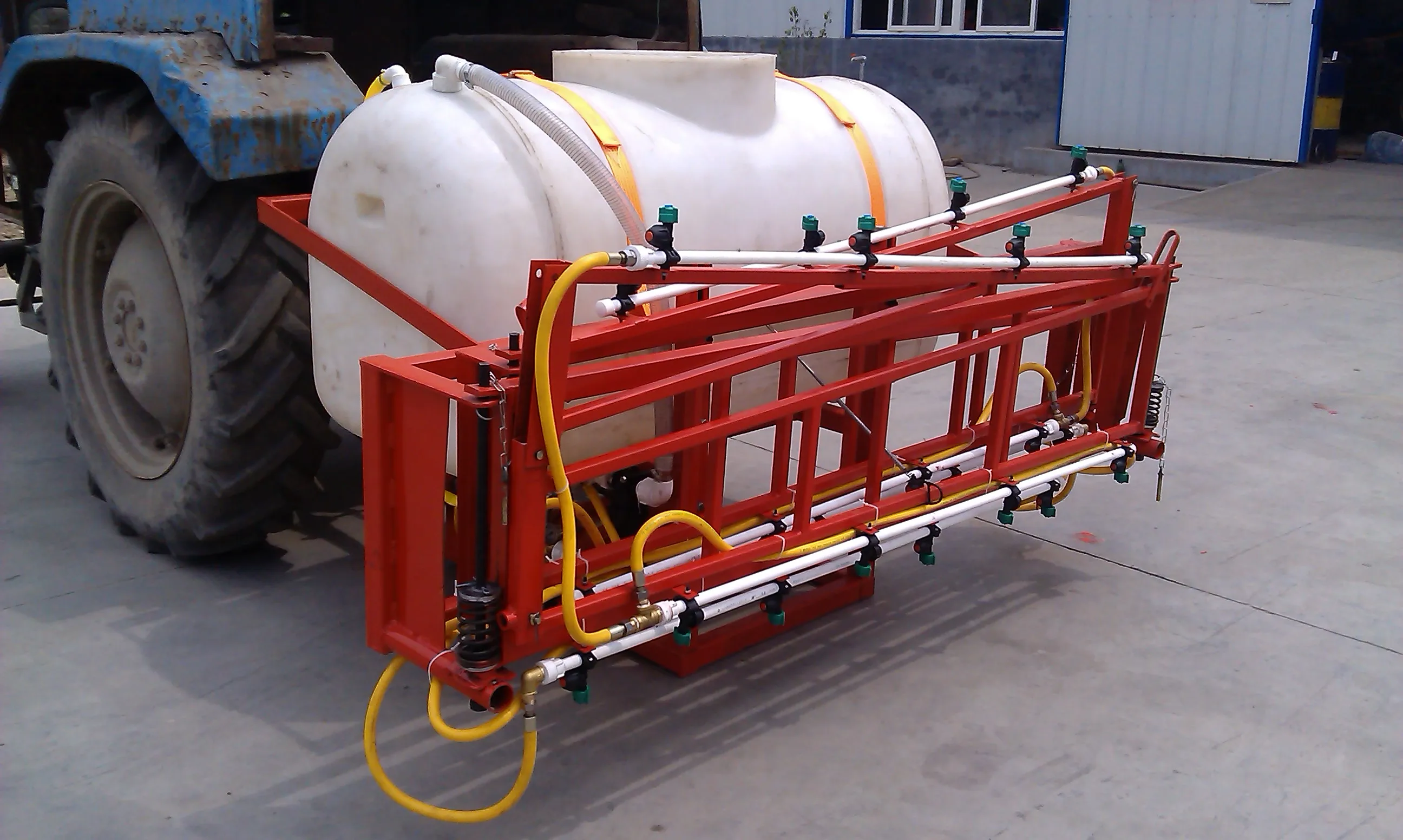

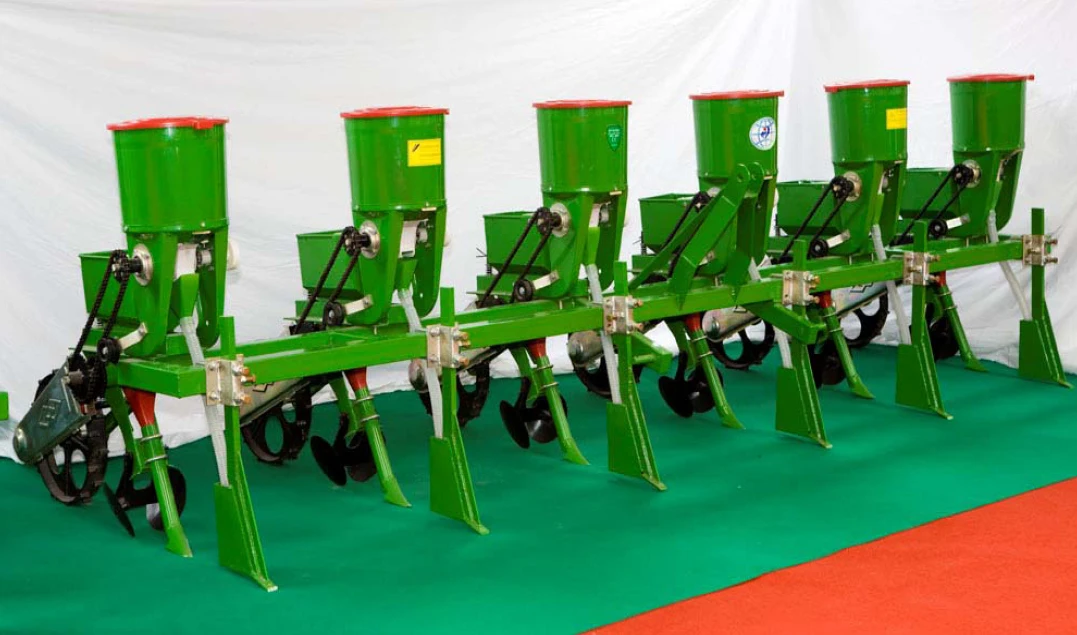

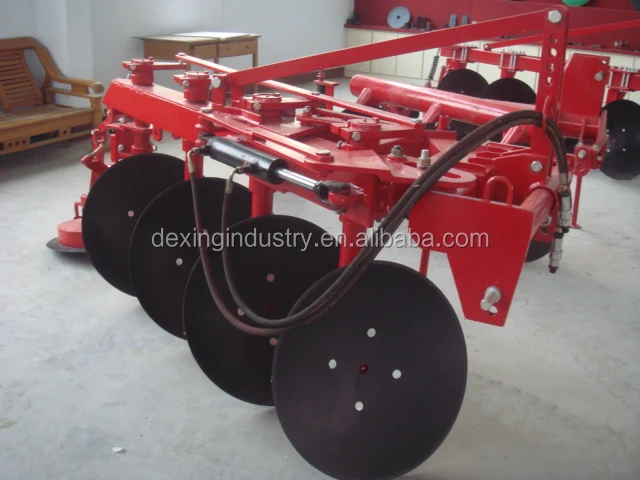

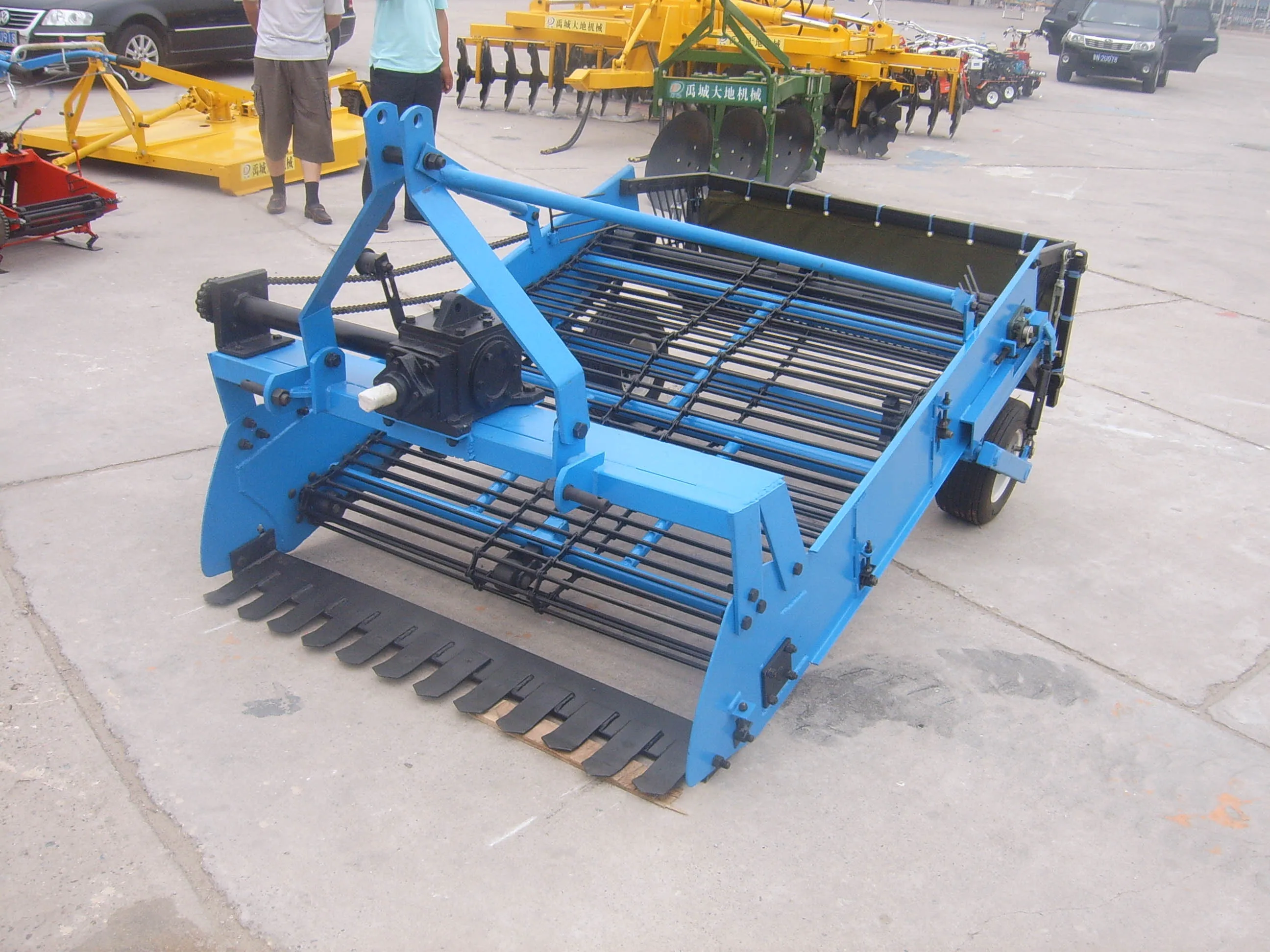

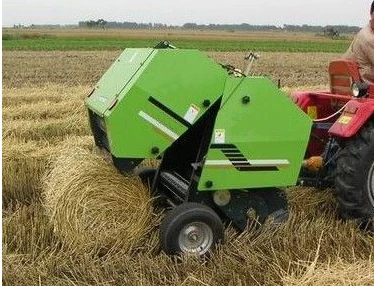

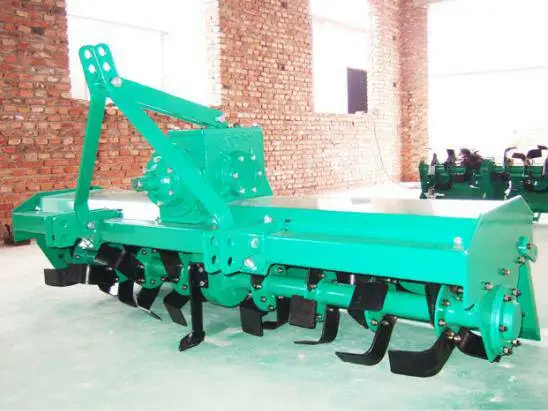

Tractor Implements
Recommend Products
Company Profile
Product packaging
FAQ
Q: Can you tell us the price level?
A: We offer wholesale price directly even if you buy one piece, so our price will be 5% to 10% lower than other suppliers with the same quality.
Q: How about the quality?
A: All our products are tested before shipping, and offer quality report,all are Guaranteed
Q:Do you accept to customize the products as the customer’s requirement?
A:Yes, we accept to customize. Such as color, size, logo,capacity, etc.
Q.How can I pay you?
A: After you confirm the order, we will send you the PI, you can pay to our company account directly; Or you make the payment by Alibaba according to the Alibaba trade assurance Contract.All are safe, Alibaba will protect your money until you receive the goods when you choose the payment by Alibaba.
Q: How many days it takes before you deliver the mini excavator china to us?
A:Generally, 20 days are ready.
Q: How should get the spare parts when we need in future?
A: We offer you directly at any time.
A: We offer wholesale price directly even if you buy one piece, so our price will be 5% to 10% lower than other suppliers with the same quality.
Q: How about the quality?
A: All our products are tested before shipping, and offer quality report,all are Guaranteed
Q:Do you accept to customize the products as the customer’s requirement?
A:Yes, we accept to customize. Such as color, size, logo,capacity, etc.
Q.How can I pay you?
A: After you confirm the order, we will send you the PI, you can pay to our company account directly; Or you make the payment by Alibaba according to the Alibaba trade assurance Contract.All are safe, Alibaba will protect your money until you receive the goods when you choose the payment by Alibaba.
Q: How many days it takes before you deliver the mini excavator china to us?
A:Generally, 20 days are ready.
Q: How should get the spare parts when we need in future?
A: We offer you directly at any time.
