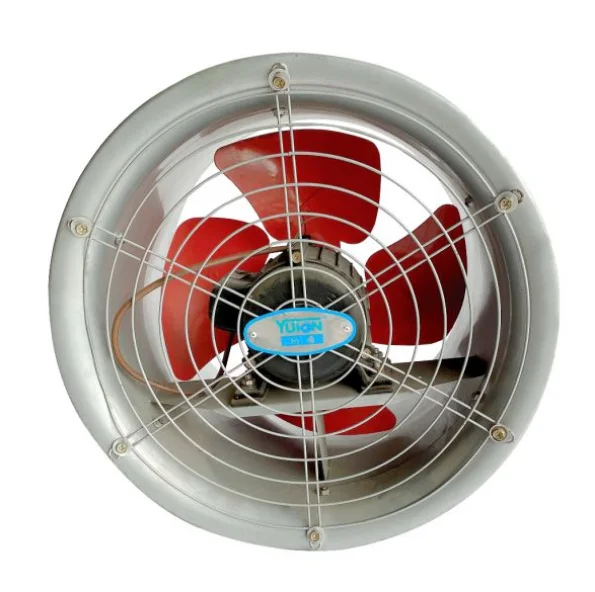

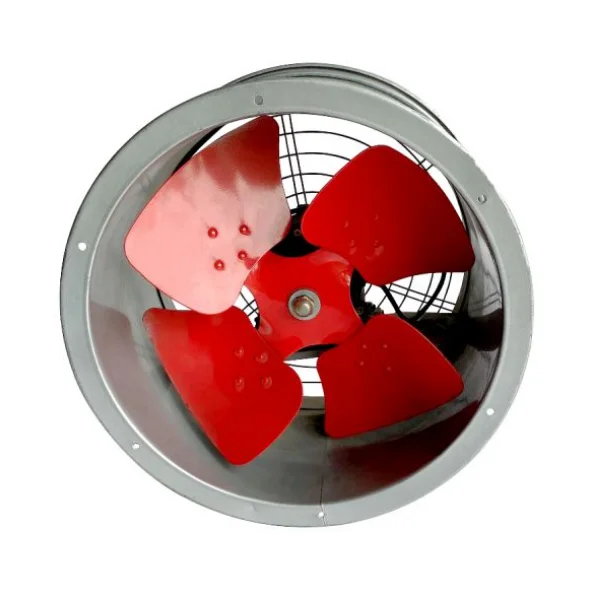

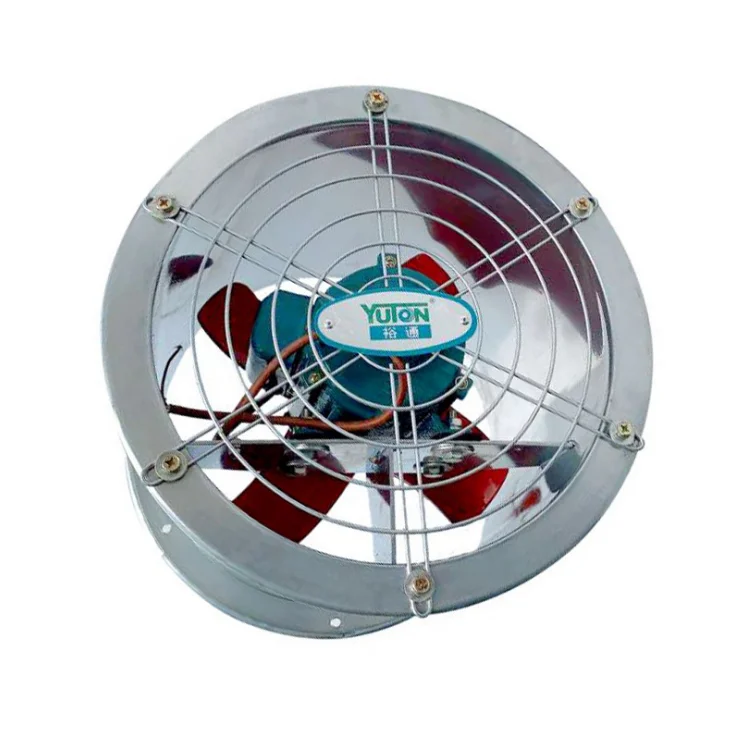

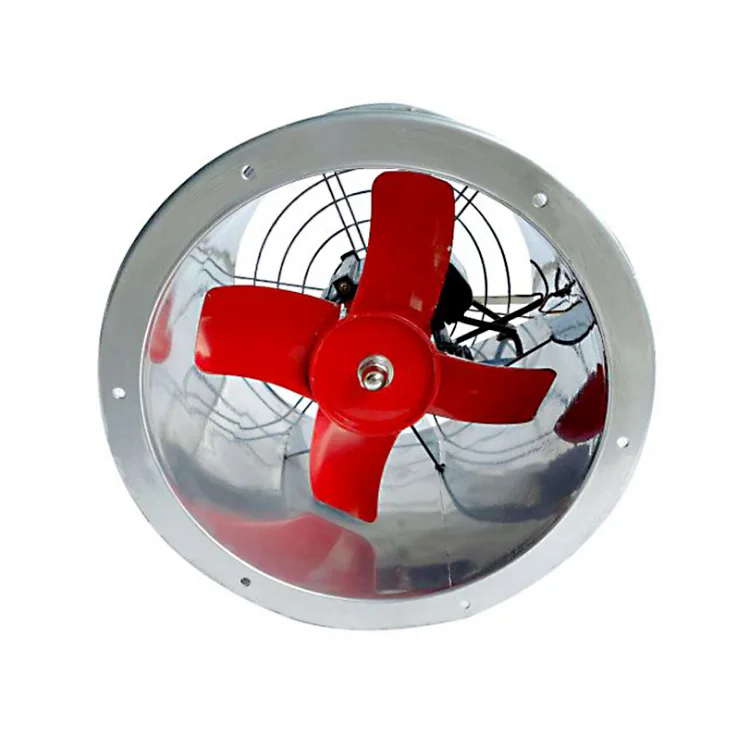

12 inch to 40 inch SF G Series Low Noise Axial Duct Fan with Explosion proof motor custom Aluminium Blade cooler fan blower
- Category: >>>
- Supplier: Guangdong Gaoze Ventilation Equipment Co. Ltd.
Share on (60469783129):
Product Overview
Description
header
Product Description
Long Case Axial Fan
1.Typical Feature and Application
1)Consist of forward ternary wrenched wide blade Low noise, large air volume, high efficiency and stable air pressure 2)Adopted advanced streamlined process to conduct the spray coat-ing in the appearance of housing, blade with soft and bright color, enduring colorful 3)Suitable for ventilation in industrial and mining enterprise, civil buildings |
2. Performance Range

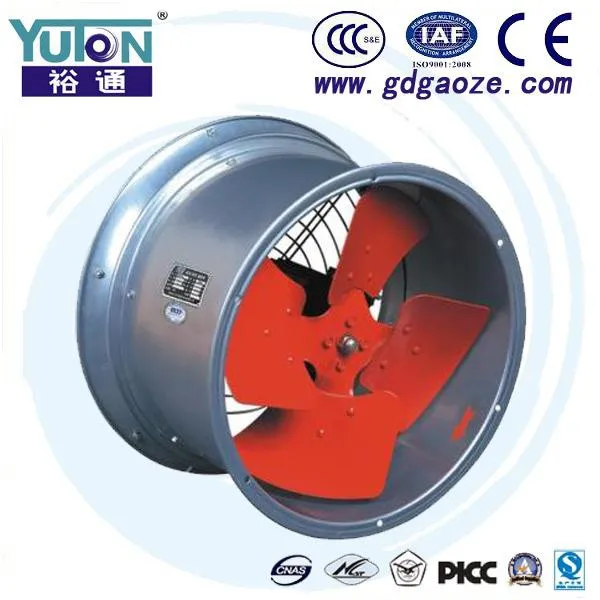

Fan Type | SF-G Series Low Noise Axial Duct Fan |
Certificate | CE,CCC |
Electricity Current Type | AC(Alternating Current) |
Voltage | 220/380V |
Frequency | 50HZ |
Power | 0.18KW-5.5KW |
Speed | 960-2900 RPM |
Air Volume | 1880m³/h up to 32000 m³/h |
Static Pressure | 80 Pa up to 350 Pa |
Motor | Standard Motor |
3.Composition
Fan Housing | fan housing, fan casing, Double flanged casing manufactured with mild steel or galvanized sheet steel. Casing covers the overall length of motor and impeller. It is welded with mild steel plate with connecting flanges at both ends. Casing can also provided with foot mounting arrangement to install fan on the ground. |
Impeller | the punch forming blades are made of aluminum or galvanized steel. The impellers also has manually adjustable pitch blades. |
Inlet and Outlet Ducts | Connect with flanges |
Motor | Standard Motor, cast Iron with pure copper |
4.Fan Operation
Before set up the fan,check gap sizes of all parts of the fan to make sure the rotating parts will not hit the fixed parts. |
When the fan is rotating,check the temperature of the bearing after the impellers reach normal speed. If there is no special request for the temperature of the bearing,it can not higher than ambient temperature 40 °c |
If the fan has very severe shock,hitting ,and bearing temperature rise rapidly,please stop the fan right away. |
5.Fan Certificate and Quality Control
By our efforts,our company Gaoze was selected as the member of China General Machinery Industry Association Ventilation Fan Branch. Our products enjoy good reputation among our customers . Our Products were awarded as "Brand-name and High Quality Products" by "China Quality Evaluation Center" &"Guangdong Branch of Social Servey Institute China"; Furthermore, a number of products are applied patents, which are up to the advanced standard. We are "Guangdong Private Scientific and Technological Enterprise" and past the "National Industrial Products License Certificate". Energy saving axial duct fan and multi-blade centrifugal fan developed by our company obtained the standard certification, most of our products past the certificate of "CCC" and "CE". We are fully implementing ISO 9001:2008 Quality System. |
6.Fan Maintain
Periodically clean the inner dust, dirt and other impurities |
Periodlically check the fan to avoid rusting |
Change the lubricating oil after opening the fan .The lubricating oil shall be changed according to the actual situation. |
7.Technical Specification
Modle No | Voltage | Power | Revolution | Wind Flow | Pressure |
(No) | (V) | (KW) | (rpm) | (m3/h) | (Pa) |
2G-2 | 220/380 | 0.18 | 2800 | 1880 | 160 |
2.5G-4 | 220/380 | 0.25 | 2800 | 3700 | 200 |
3G-4 | 220/380 | 0.25 | 1430 | 2600 | 85 |
3G-2 | 220/380 | 0.37 | 2800 | 3000 | 230 |
3.5G-4 | 220/380 | 0.35 | 1430 | 3700 | 130 |
3.5G-2 | 220/380 | 0.75 | 2800 | 6000 | 250 |
4G-4 | 220/380 | 0.55 | 1430 | 5300 | 166 |
4G-2 | 220/380 | 1.1 | 2800 | 8000 | 300 |
5G-4 | 220/380 | 0.75 | 1430 | 9300 | 196 |
5G-2 | 220/380 | 1.5 | 2800 | 14000 | 350 |
5G-4 | 220/380 | 1.5 | 1430 | 9800 | 210 |
5G-6 | 380 | 0.37 | 960 | 7700 | 98 |
6G-4 | 380 | 2.2 | 1430 | 18700 | 294 |
6G-6 | 380 | 1.1 | 960 | 13000 | 176 |
6G-4 | 380 | 3 | 1430 | 19500 | 300 |
6G-2 | 380 | 3 | 2800 | 20000 | 400 |
7G-4 | 380 | 3 | 1430 | 24500 | 315 |
7G-6 | 380 | 2.2 | 960 | 21500 | 235 |
8G-4 | 380 | 4 | 1430 | 30000 | 345 |
8G-6 | 380 | 2.2 | 960 | 25000 | 190 |
9G-4 | 380 | 5.5 | 1430 | 35000 | 295 |
9G-6 | 380 | 3 | 960 | 26000 | 251 |
10G-6 | 380 | 4 | 960 | 32000 | 280 |
8.Packing Detail
Bubble Packing: a cost-effective packing method, it is suggested when order is one full container |
Carton Packing: standard packing ,it is suggested when order is one full container |
Wooden pallet: more safe packing, it is suggested when order is not enough one full container |
