100 347v t8 led tube light 18w plug and play tube (60469800910)

Share on (60469800910):


Price:RUB 300.18

Quantity:


Product Overview

Description

100-347v t8 led tube light 18w plug and play tube

Product Description



990-400


An excellent replacement for 4’ T8 or T12 fluorescent tubes



Features:

1.100-347v Works with the vast majority of T8 and T12 ballasts.



2.Even light distribution with a 120 degree beam angle



3.50,000 hour lifespan, more than 10 years in most applications



4.Design Lights Consortium approved with 3 year warranty



5.Provides more light than a 32 watt fluorescent tube while reducing electrical consumption by 44%



6.Does not contain Mercury or other toxins



7.Avoid initial labor cost by replacing the fluorescent tube with this compatible tube. Once a fluorescent ballast fails, there is no need to install a new ballast.



8.This tube can simply work with direct A/C power. Ideal for offices, showrooms, refrigerators, cover lighting, etc.



9.T-8 LED lamp operates on line voltage with existing electronic ballast or without a ballast; one socket wired to line voltage, or both ends.

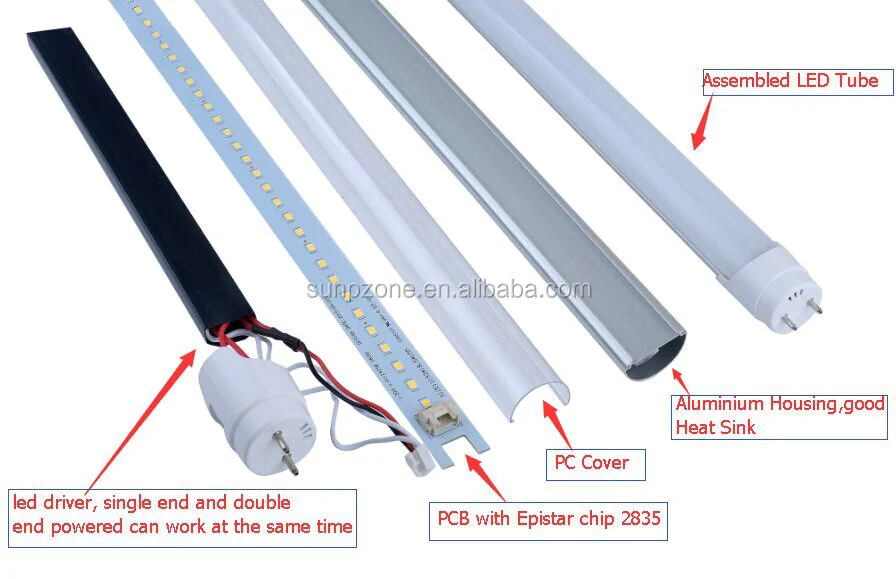

10.Heat sink: 6063 extruded aluminum with heat dissipation ribs for superior thermal management



specifications:

        1.Tube Power: 18W;



 2. Lube Luminous Flux(lm): 2160-2700LM;



 3. Lamp Luminous Efficiency(lm/w) :120-150LM/W.



 4. CRI(Ra>):>85;



 5. Input Voltage: 100-347Vac;

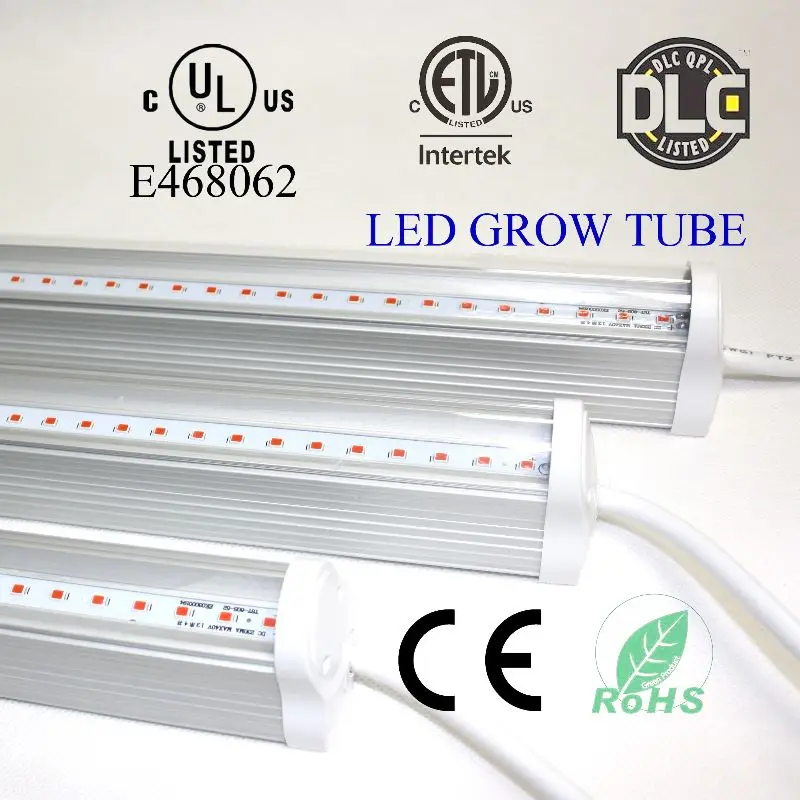

 6. Certification:UL DLC  ETL CE RoHS;



 7. Color Temperature(CCT): 2700K,3000-3500K, 4000-4500K, 5500-6000K;



 8. Base Type: G13/FA8/R17D

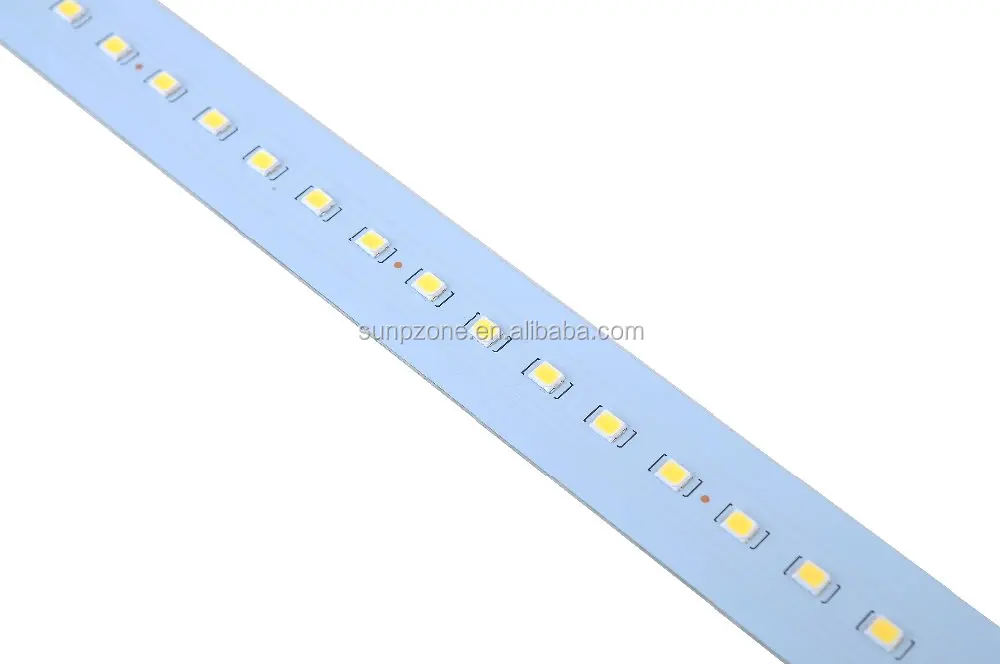

 9. LED Light Source: Epistar Chip.



10. Warranty: 3 years;



11. Working Lifetime(hour) 50000;



12. Working Temperature(°C): -40-50;



13: Lamp Body Material: Aluminum;



14: Cover : Clear or milk ;



15: Size: Diameter 25.4*1200mm.



DLC Model NO:SPZT8B418T






  1.jpg .png



Physical Specification





Light Source

 Epistar

Size

Diameter 25.4*00mm.

Weight

200g

Material

Aluminum Housing+ PC Lens(Transparent ,stripped or Milky)

Operation Temperature

(-20)~40°C (-4~104°F)

IP Grade

 IP44

Electrical Specification

LED Power(W)

18Watt

Suggested Replacement

18Watt Traditional Fluorescent Tube

Power Efficiency

>85%

Input Voltage

100-347V AC

Frequency Range

50 ~ 60 Hz

Life Span

>5years

Optical Specification

LED Luminous Efficacy

120-150lm/w

Total Lumen

WW:810 lm

PW:900lm

CW:980 lm

Color Rendering Index(CRI)

Ra >80

Luminous Decay

<4% at 3000 H

Beam Angle

The Horizontal Axis 120° The Vertical Axis 60°

Illumination ( E )

(Height=1 m ) = 121lux

(Height=2 m ) = 30.3lux

(Height=3 m ) =13.5lux

Effective Illuminated Area

(Height=1 m ) = 2.1 x 2.2m

(Height=2 m ) = 4.8 x 2.6m

(Height=3 m ) = 7.8 x 4.6m

Temperature Color

Warm White(WW): 2700~3500K

Pure White(PW): 4000~5500K

Cool White(CW): 6000~7000K

Packing Information

Packing

Foam Protection or paper box

Packing Quantity

40 pcs/carton

Carton Size

 125*27*17cm

Carton Gross Weight

13kg

Container Loading QTY

16000pcs/20'GP, 32000pcs/40'GP



100-347v t8 led tube light 18w plug and play tube


Packaging & Shipping

40pcs/carton ,carton size: 125*27*17cm   weight:13kgs

Container Loading QTY: 16000pcs/20'GP, 32000pcs/40'GP

.jpg



Our Services

100-347v t8 led tube light 18w plug and play tube






1. Promptly reply within 24 hours



2.Well-trained, professional and experienced salesmen with good English



3.OEM&ODM are welcomed



4. Factory offers 3-5 year warranty for our LED lights.



5. Factory will responsible to maintenance or replace any defective products within warranty period.



6. Factory will keep secret for your sales area, design ideas and all of your private information.










1. Payment terms: T/T 30% deposit in advance, the balance of 70% before delivery;



Western Union and Paypal for small amount are accepted also.



2. Delivery time: 3-5 days for samples, 7-12 days for normal order



3. Shipment: UPS/DHL/FEDEX/TNT or sea shipment.



4. Shipping port: Shenzhen



5. Discounts are offered based on order quantities.

 100-347v t8 led tube light 18w plug and play tube
