dpdt mini power slide switch 2 pole 4 position slide switch 2P4T 2P3T 2P2T

Product Overview

Description

dpdt mini power slide switch 2 pole 4 position slide switch 2P4T 2P3T 2P2T

Specification:



Items	standard	Items	Standard
Rating	30MA 6V DC	Operating temerature rage	-10℃ to +7℃
Insulation resistance	100MΩ min. 500V DC	Lifetime	10,000Cycles min.
Dielectric strength	500V AC for 1min	Operating force	120±50gf 2c-2p:200±50gf
Contact resistance	70mΩ max	Travel	1.5±0.2mm





Features:



• Thin type 1.5mm in height.
• SMT type and reflow-soldering for surface mounting.
• Available for tape and reel package.



Applications:

 Function and band selector switches for headphone stereo sets,liquid-crystal TV sets,car radios,camera VCRs,MP3,MEMORY CARDS,etc.

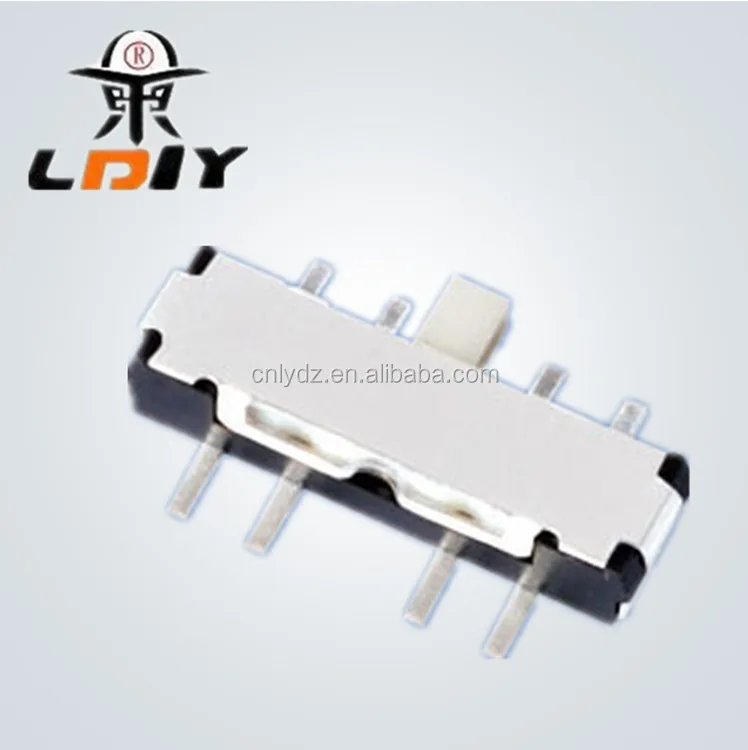

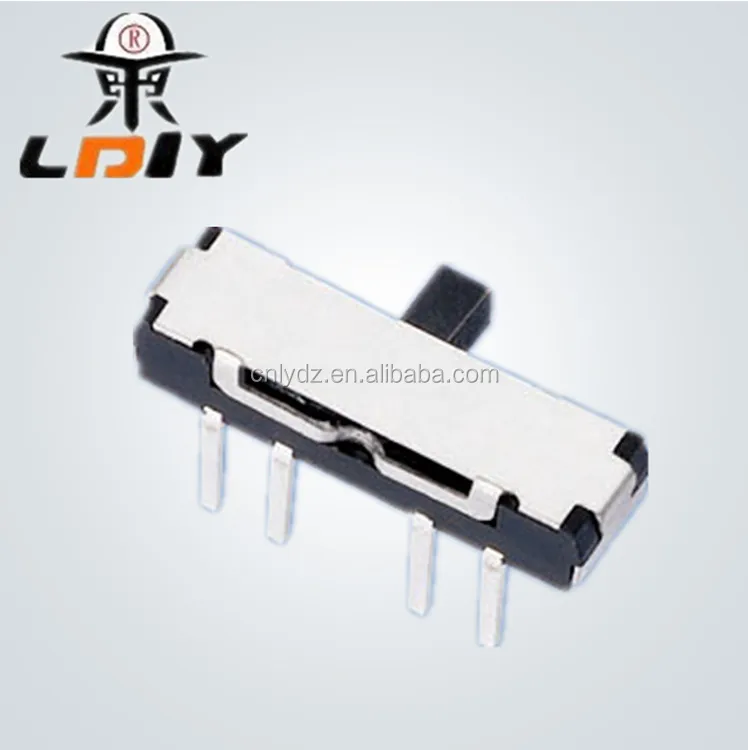

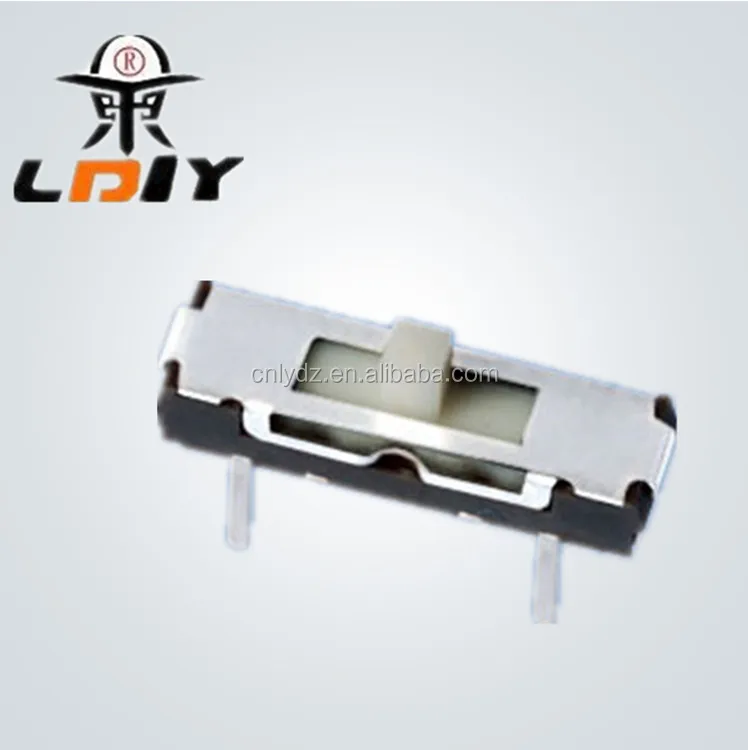

PRODUCT IMAGE:















 Packing detail





WHY CHOOSE US ?



1.Since 1989,more than 20years’experience of manufacture .



2.Variety of type.provide professional products with more than 2000 types



3.High standard management for quality control.



4.Small order acceptable:1000pcs



5.Safe payment terms:T/T and paypal are available .



6.Prompt delivery and lowest shipping cost:we can get low discount from DHL,Fedex,UPS,TNT,EMS,etc.



7.OEM,ODM available.



8.Got good reputation both at home and abroad.longterm supplier for customers reference.



9.Excellent After-sales service.when you found promblem about the

products ,contact us and we will respond in the first time.



10.We cherish and respect every each client ,so give us a chance to cooperation ,we will try our best to satisfy you .

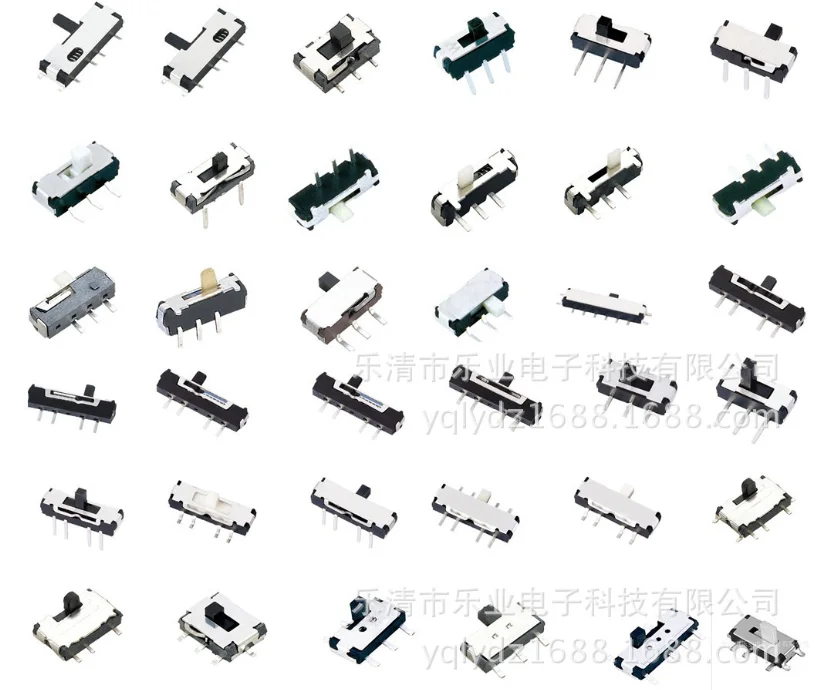

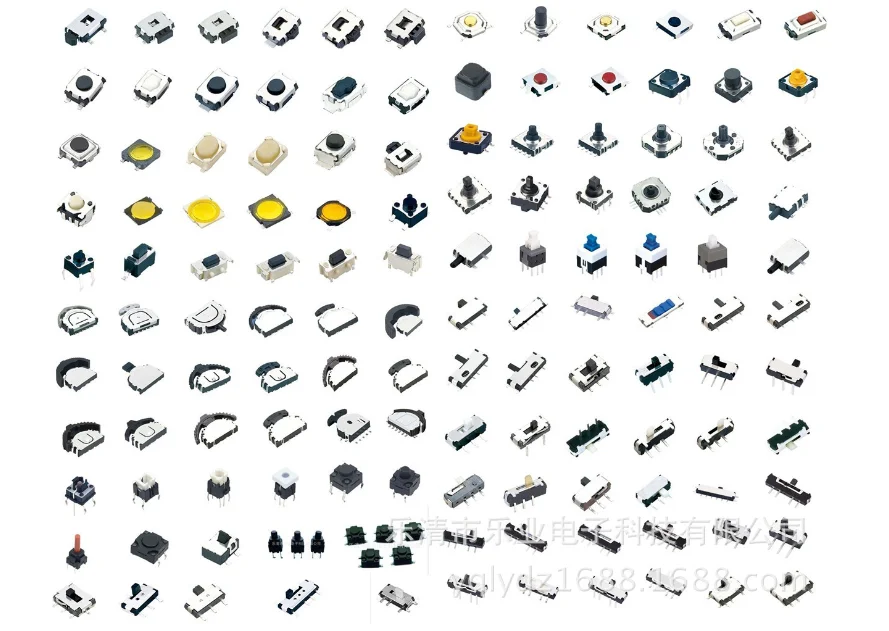

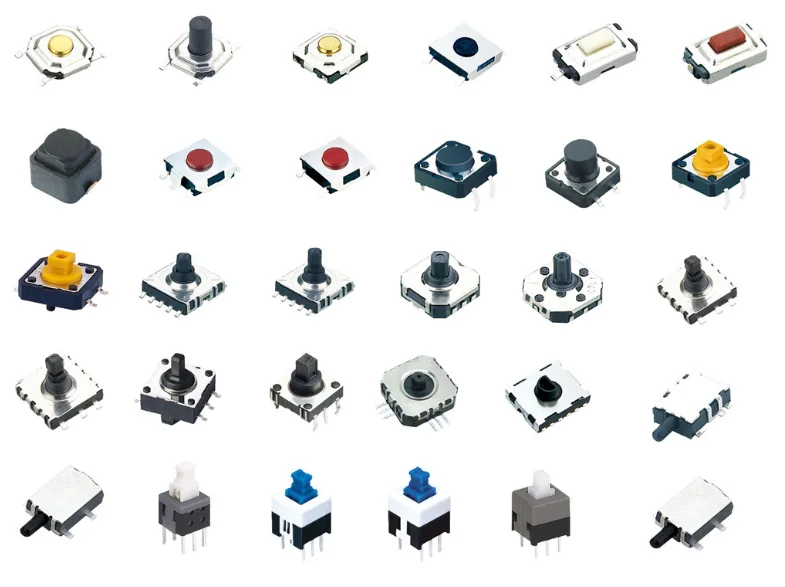

OHTE TYPES:
