Features
TIA/EIA-568B.2-1;ISO/IEO 11801;NEC/CEC
Fire protection – IEC60332-1 (CM)
Application: Horizontal communication cable; for indoor installation

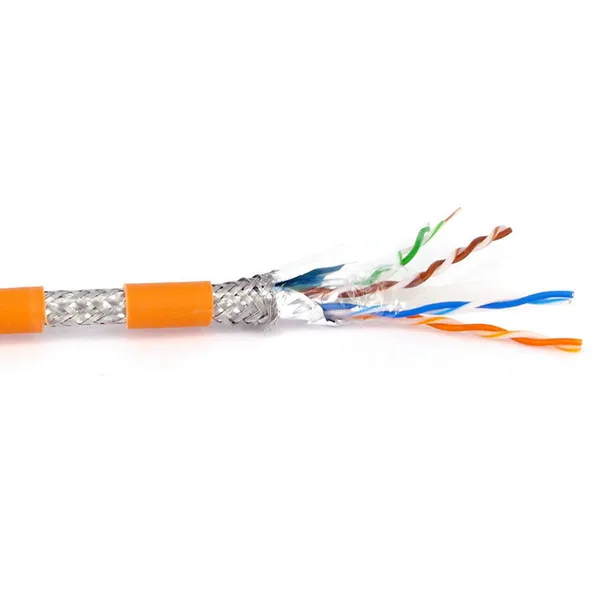

Construction

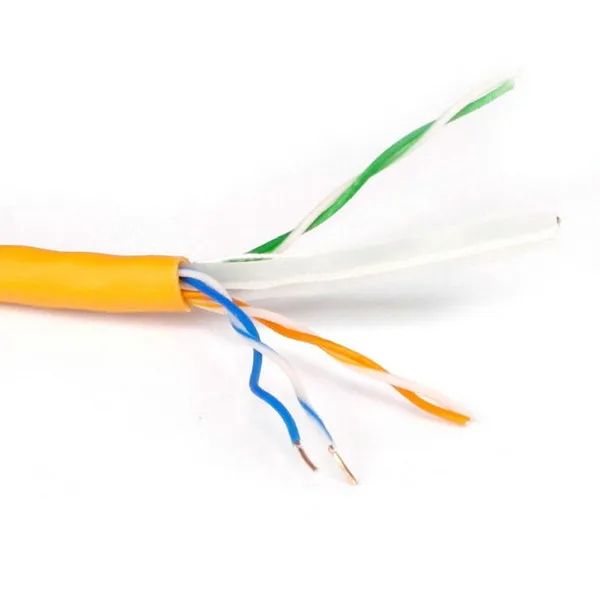

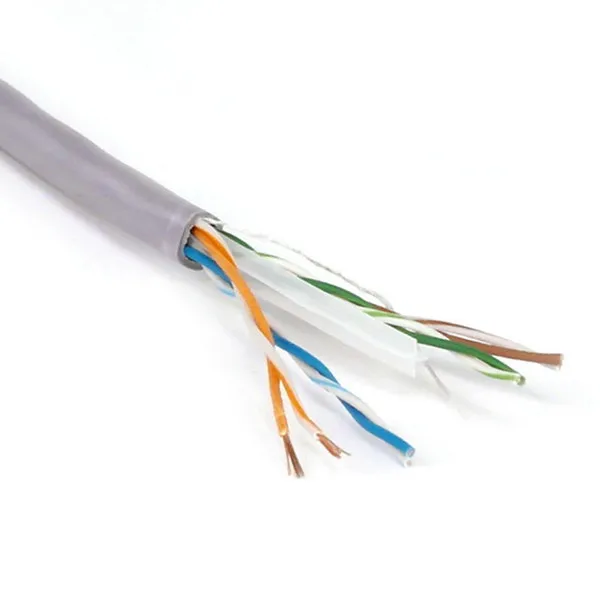

Conductor: Bare Solid Copper Pair Identification: Pair1= Blue/White Pair2= Orange/White
Conductor Dia.:0.57mm+0.05mm (23AWG) Pair 3= Green/White Pair4= Brown/White
Pair Indulation: Polyethylene
Outer Cable Diameter:6.2 ± 0.2mm
Outer Jacket: PVC/LSZH/CM/CMR/CMP Jacket
TECHNICAL MECHANICAL
Installation Temperature: 0°C to +60°C Pulling strength: 130 N
Operating temperature: -20°C to +75°C Minimum bend radius: 4 outer cable diameters
DC Resistance Unbalance :5% Dielectric Breakdown:1000 Volts DC Conductor to Conductor
Pair-to-Ground Capacitance Unbalance :330 pF/100 m Velocity of Propagation:PE=65%
Capacitance:14pF/ft nominal Maximum Skew:45ns@100 meters
PACKAGING

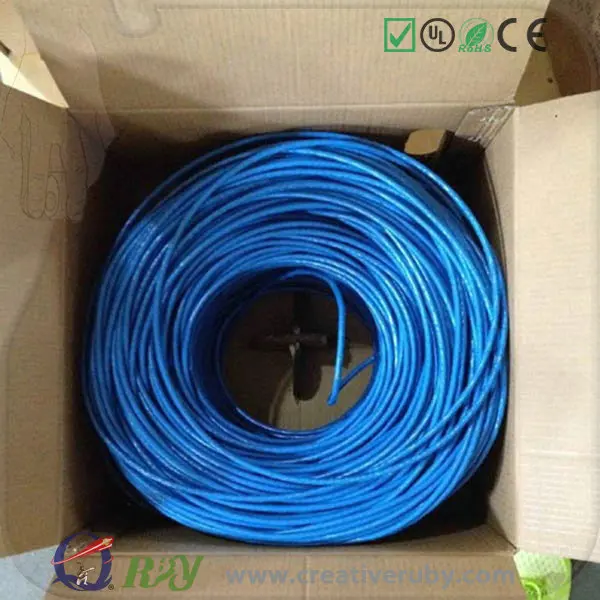

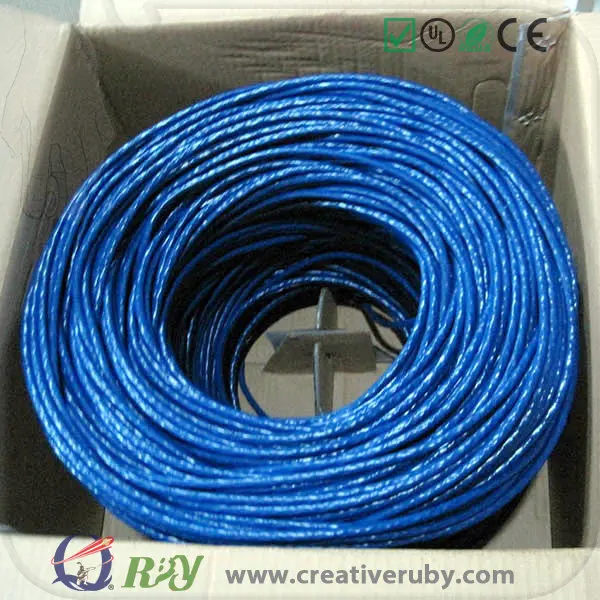

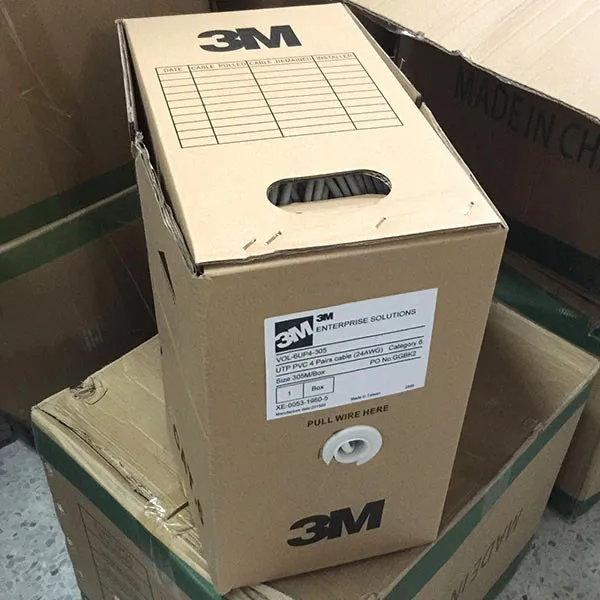

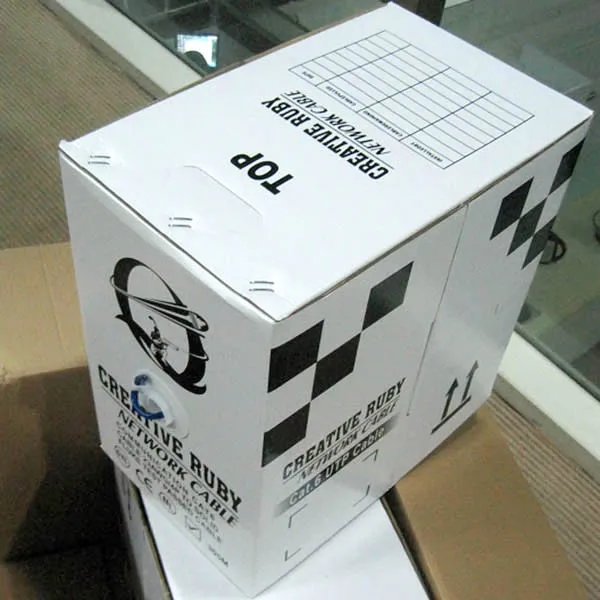

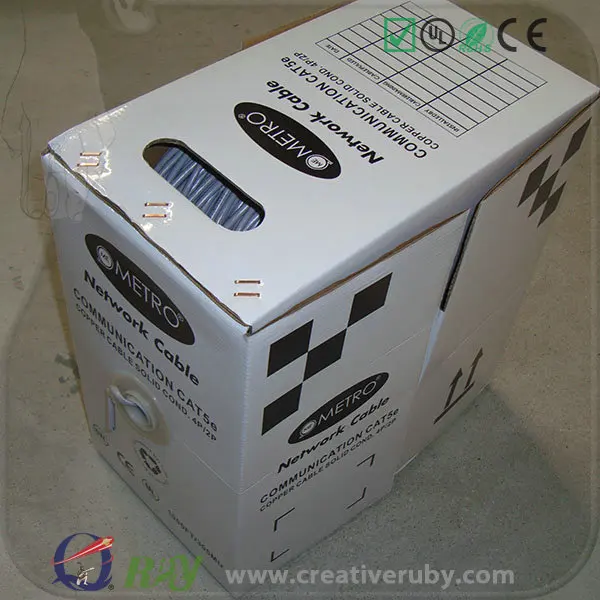

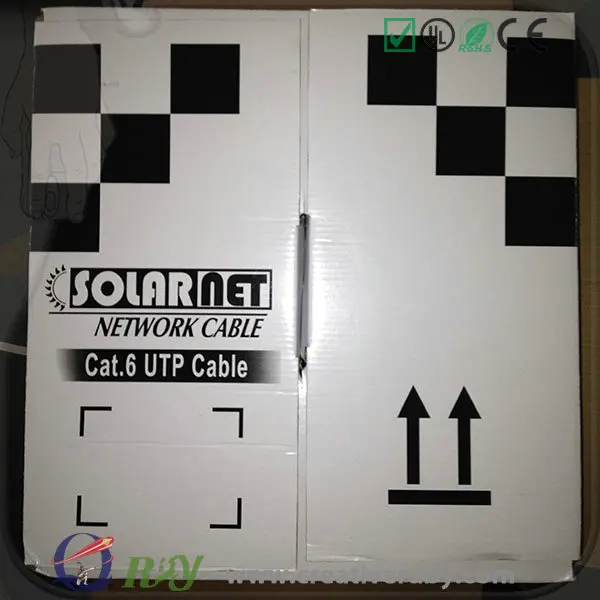

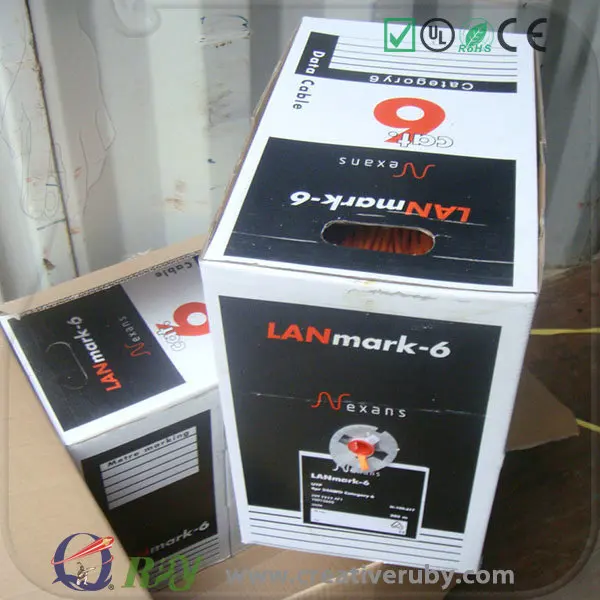

305m/1000ft Easy pulling box; 500m/wooden reel;1000m/wooden reel

| Frequency, MHz | RL | Attenuation, dB | NEXT, dB | PSNEXT, dB | ELFEXT, dB | PSELFEXT, dB |
| 1 | 20 | 2 | 74.3 | 72.3 | 67.8 | 64.8 |
| 4 | 20.3 | 3.8 | 65.3 | 63.3 | 55.8 | 52.8 |
| 8 | 24.5 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 |
| 10 | 25 | 6 | 59.3 | 57.3 | 47.8 | 44.8 |
| 16 | 25 | 7.6 | 56.3 | 54.3 | 43.7 | 40.7 |
| 20 | 25 | 8.5 | 54.8 | 52.8 | 41.8 | 38.8 |
| 25 | 24.3 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 |
| 31.25 | 23.6 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 |
| 62.5 | 21.5 | 15.4 | 47.4 | 45.4 | 31.9 | 28.9 |
| 100 | 20.1 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 |
| 200 | 18 | 29 | 39.8 | 37.8 | 21.8 | 18.8 |
| 250 | 17.3 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 |












Our Services:
1) Warranty year is 1 year under normal use! The warranty period is a year from the date of original purchase.
2) NOTE: Return policy is exchange only, buyer must pay return shipping fee for item.
3) All message will be replied within 48 hours.

Shenzhen Creative Ruby Co., Limited is a professional network products manufacturer with 6 years R&D production experience. We design and produce fiber optic cables, industrial cables, special cables, electronic cables and cable accessories. We have two factories for production and one design team for product integration.
Our products can meet different market demands in Europe, Southeast Asia and many other countries and regions around the world. Our products can reach and exceed National Standards, such as TIA/EIA 568B and EIV50173. We have got ISO9001, CE, RoHS and other certificates. We have our own design department, production lines, quality inspection, marketing integration and OEM/ODM Center. More and more worldwide partners have joined us.
