XG3-A elbow marking machine-combined with computer, electrical and precision machinery techniques. It is industrial marking equipment which can make logo (character, VIN code, serial number, date and graph) on workpiece (metal or no-metal materials) permanently. Computer controls the pin to move in X-Y plane and mark the logo on the certain location of workpiece.
Packaging & Shipping
1. Outside package : standard export polywood box . inside package : stretch film and foams
2. Delivery detail : 2 days after payments
HIGH PERFORMANCE
Marking contents: all kinds of logo (characters , Alphanumeric , date, numbers , serial NO, VIN codes, graph ,ect) on any metal or non-metal material.
support plane marking (curve or any angle)
support flat or regular convex surface marking
Support line and dot marking
Support Multi-lines content marking
Marking software
Support WINDOWS98/ME/XP
USB CONNECTION
Support multi-kinds fond
Support linear ,angular , radial , indination, inverted ,mirrored marking .
All the logo size could changeable as will
Marking speed is changeable as will
Support . wmf .plt format graph from CAD ,CORLEDRAW
ALL marking text could be saved as .xls format file.
Simple graph could draw directly by our marking software
support series No , VIN CODE marking one by one automatically
Tech-specification
Marking speed
2-3 character/S 5*7MM
Hitting frequency
300HZ
Marking depth
0.1-1mm(according to the workpiece material )
Marking accuracy
0.02mm
Marking scope
110*80mm (customrization any marking area )/360 degreen
Pinhead hardness
HRA92
Workpiece hardness allowed
≤HRC62
Inputting air pressure
0.3-0.6MPA
Power consumption
≤350W
Voltage
AC220V±10%,50Hz
Working Temperature
0-40
Relative humidity
≤90%
Marking head Dimension
240*200*150mm
Controller
280*180mm (2.5kg)

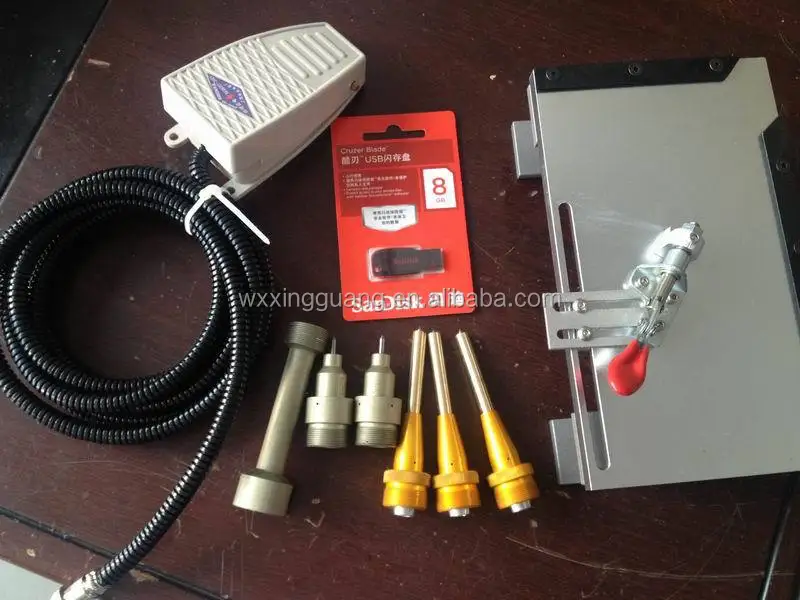

ACCESSORY :
APPLICATION

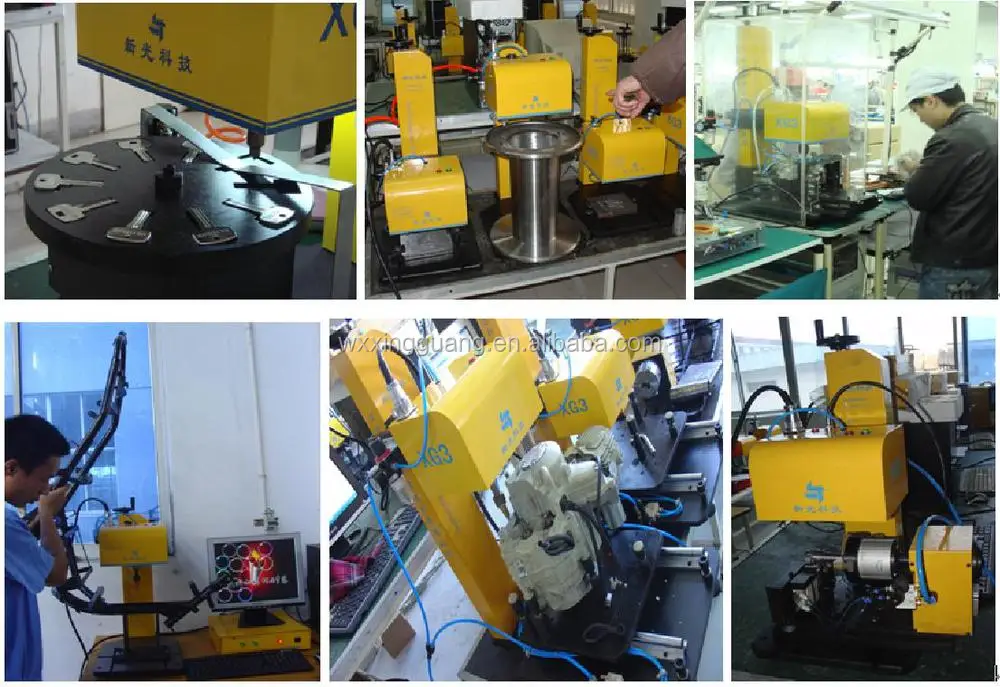

It is adequate for marking characters, serials numbers and VIN codes on automobile or bodywork of motorcycles, car frames, automotive chassis, connecting rods, engines, cylinder various stepper motors and mechanical parts, machine tools, metal pipes, pump bodies, valves and fastening pieces.
XG3 MARKING SAMPLE
others
Quality control :
we always pay more attention to quality of pin marker and laser marker .
OUR FACOTRY PHOTO
