HengYuan brand screw flight making machine
- Category: Rolling Mill >>>
- Supplier: Gongyi Hengyuan Industry Co. Ltd.
Share on (60469866495):
Product Overview
Description

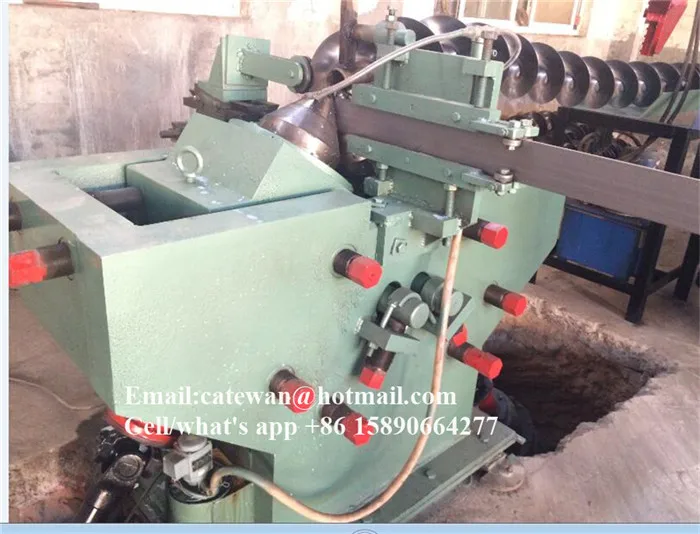

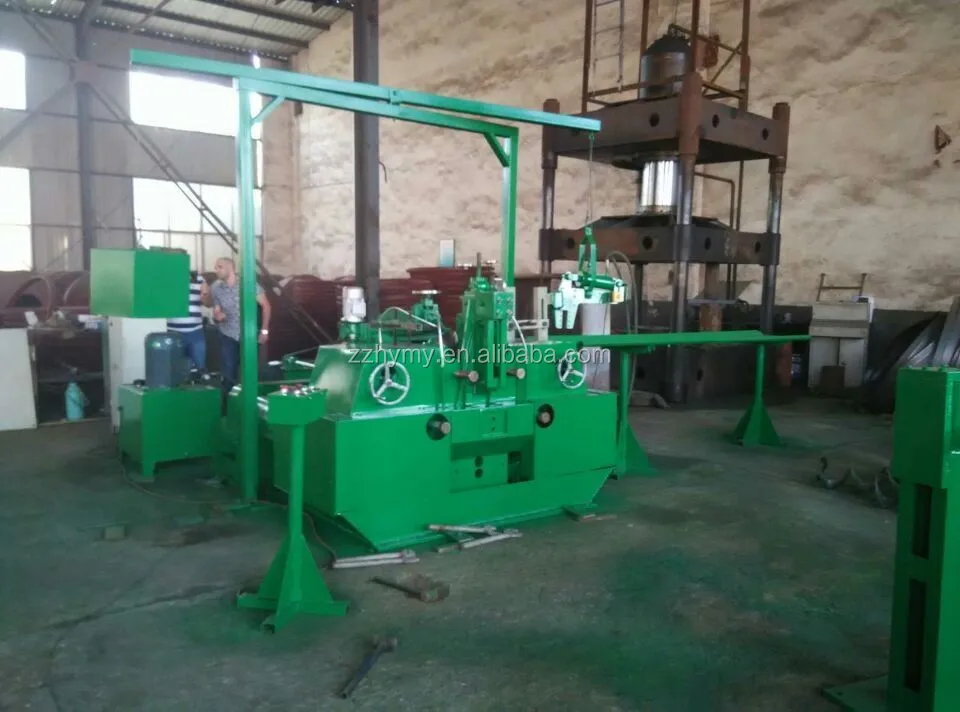

screw flight making machine
Introduction of screw flight making machine
Raw material: Strip steel
Final products: Spiral balde
Capacity:0.6-1t/h
Features: 1.Easy to operation and adjustment
2.Flexibility to adjust the production specification
3.High efficiency production
4.Saving raw materials
5.High leaf hardness
6.Good wear resistance
7.Could you produce many kinds of spiral baldes by adjust some adjustments on the machine's adjustable parts,such as device dials and pressaure gauages
Welcome to add my what's app:+8615890664277 for talking on line.
Main data of screw flight making machine
| Allows the thickness of rolled strip | 2mm ~ 6mm |
| The maximum width of the strip rolling | 110mm |
| The minimum diameter of the rolling leaf | 35mm |
| The maximum diameter of the rolling blade | 400mm |
| Maximum Efficient Rate of Production | 0.6 ~ 1t/h |
| Processing spiral outside diameter | ≤600mm |
| Roller speed | 1-8r/min |
| Machining strip width | ≤150mm |
| Main Power | 37kw |
| Gross Weight | 9500kg |

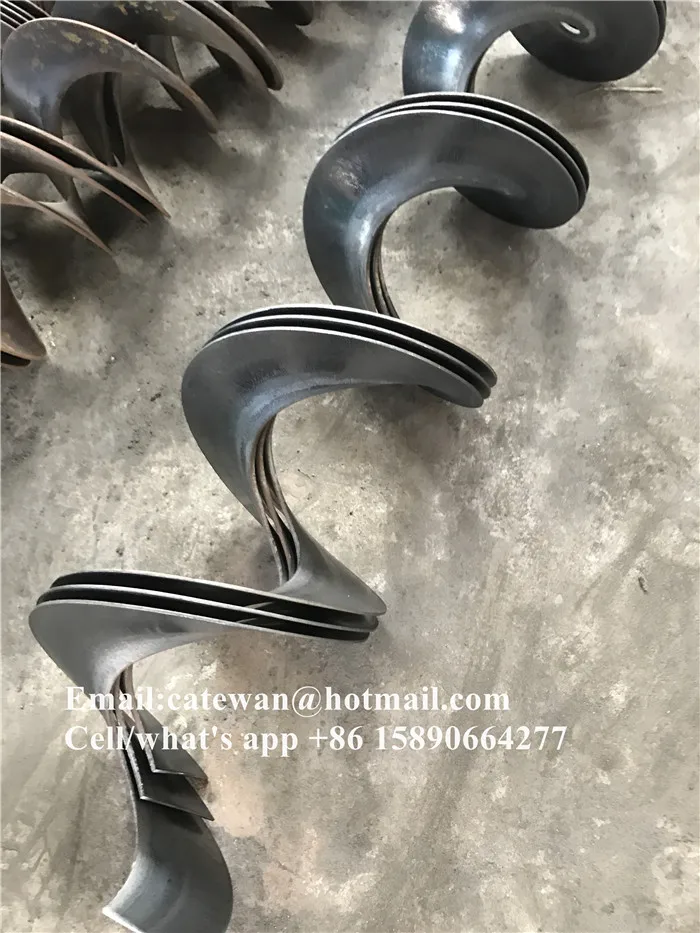

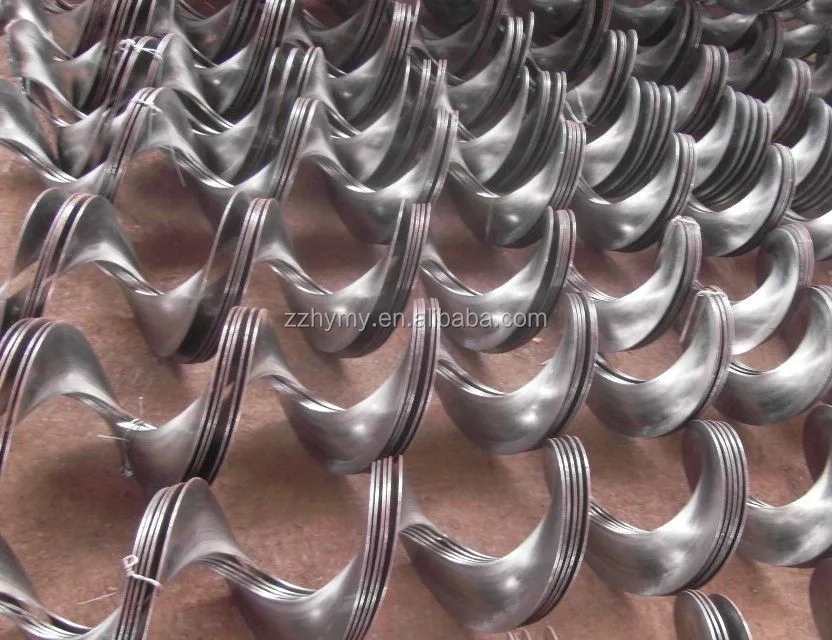

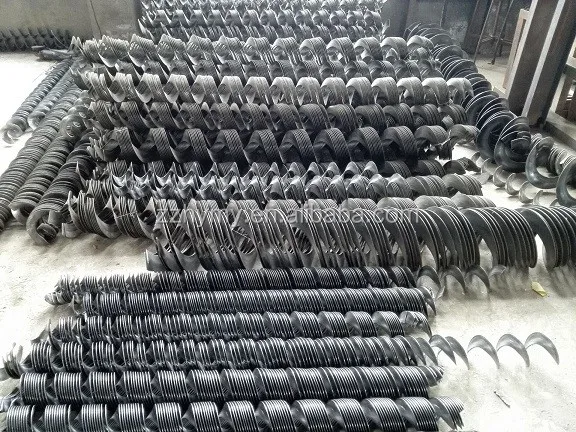

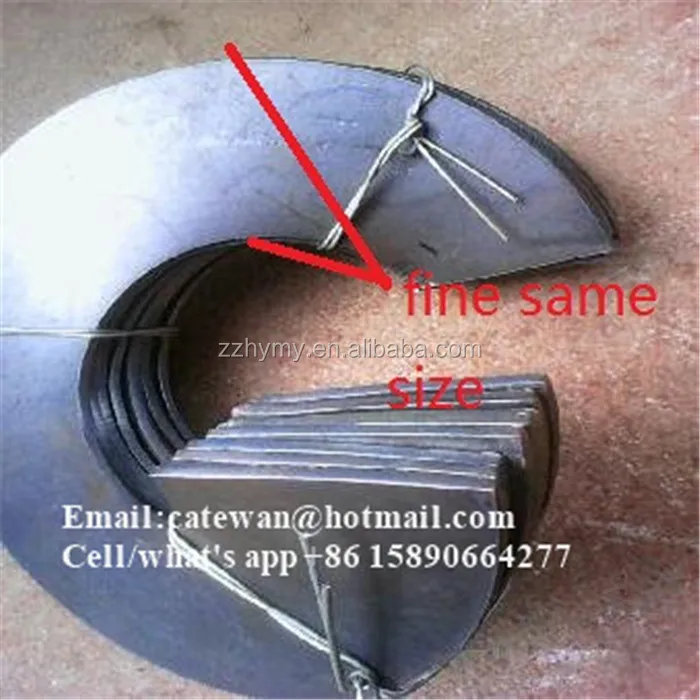

Final products of screw flight making machine

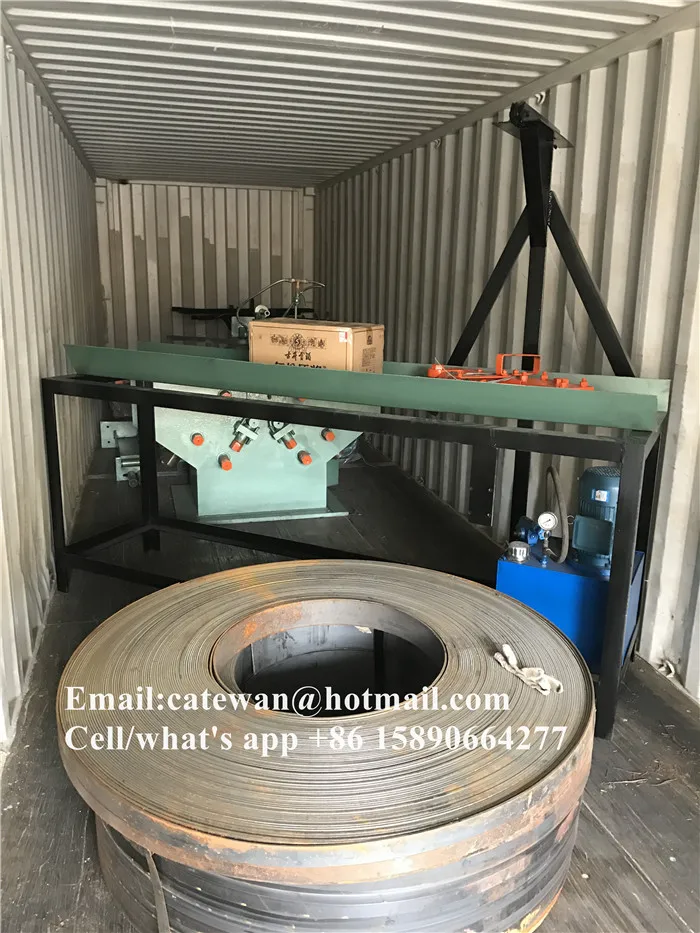

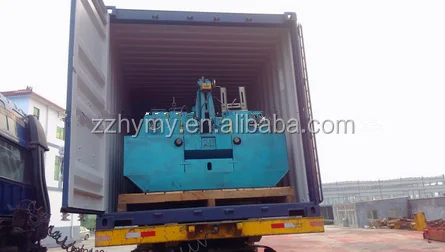

Packing and shipping
Packing:wooden case
Shipping:we also could use CIF terms,etc.
1. Other details info |
for screw flight making machine |
Steel strips strength | 250-350 Mpa
|
Steel strips width error | xxmm 0.8mm
|
Steel strips inside and outside thickness different size | xxmm 8-5mm
|
Suitable for raw materials | Carbon steel,stainless and manganese steel |
2.Helix blade making process | Uncoiling machine--guild plates --forming machine----hydraulic cutter--final helix blade |
3. Machine components and its specification |
|
1) uncoiling machine | Normally for steel strips inner diameter:450mm Steep strips outer diameter1200mm |

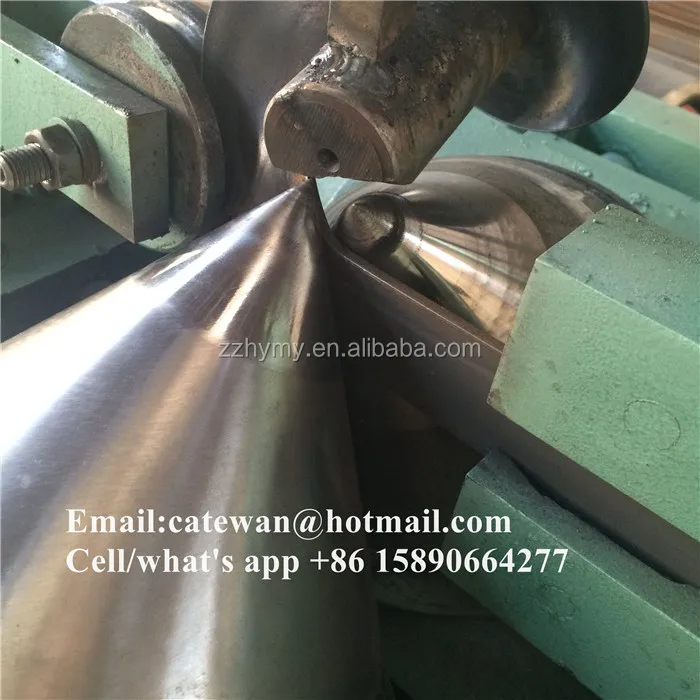

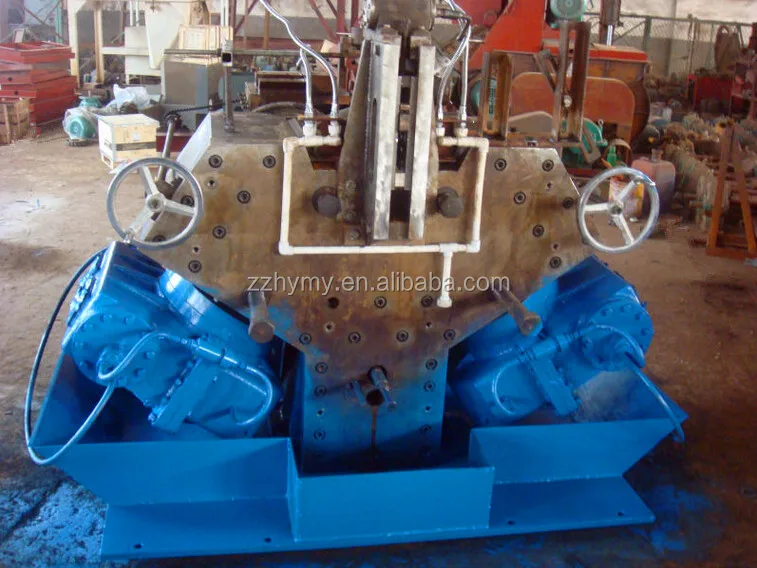

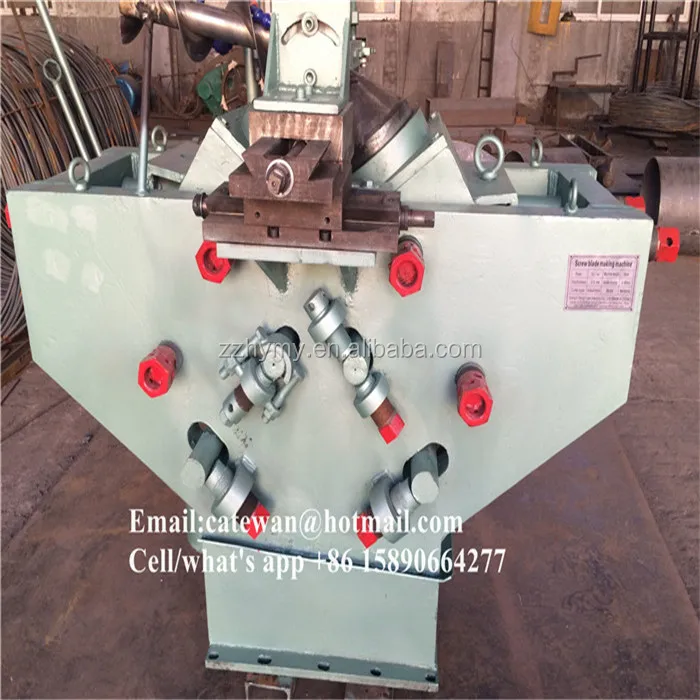

2) helix forming machine | Roller diameter:228mm, materials:9Cr2Mo Motor: Siemens Beide motor, PLC control parts:Siemens |

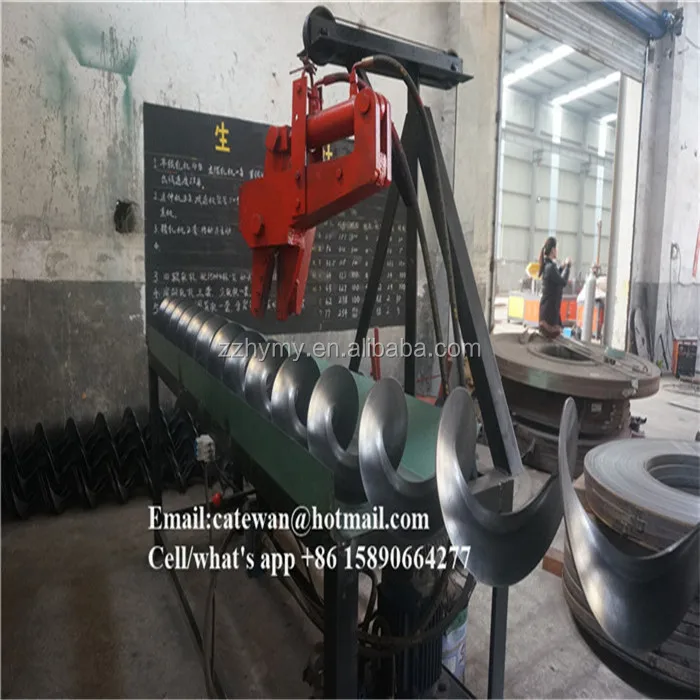

3) hydraulic system | With hydraulic system, oil valves, shanxi yuci brand
|
4) cutter materials | It is alloy materials, with heat treatment
|
5) materials shaft | It is 6meters long, with 3steps
|
4. free spare parts | 8m oil pipes, and one set cutter
|
5. shipment | It needs one 20ft for shipping all the items
|
6. Hs code | 8455229090
|

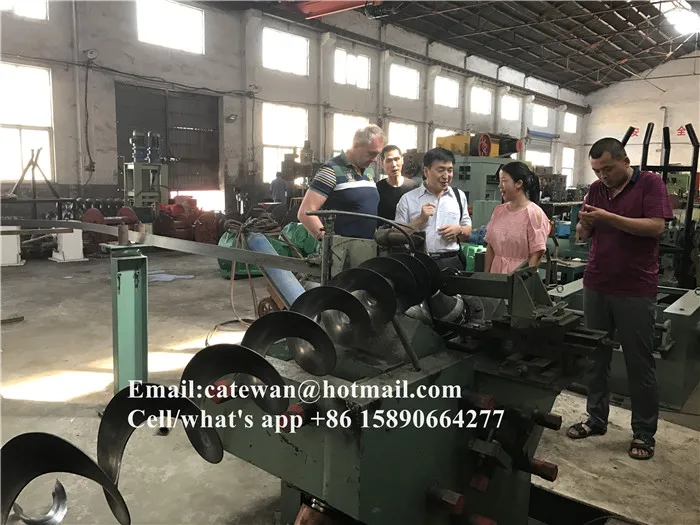

This is my Russia customer for screw flight making machine
Any questions welcome to contact me by following information
![N6Z]D_{ZB2`111NNDY(837.jpg](http://sc01.alicdn.com/kf/HTB1pPQoSpXXXXXNaXXXq6xXFXXXh/202663828/HTB1pPQoSpXXXXXNaXXXq6xXFXXXh.jpg)
