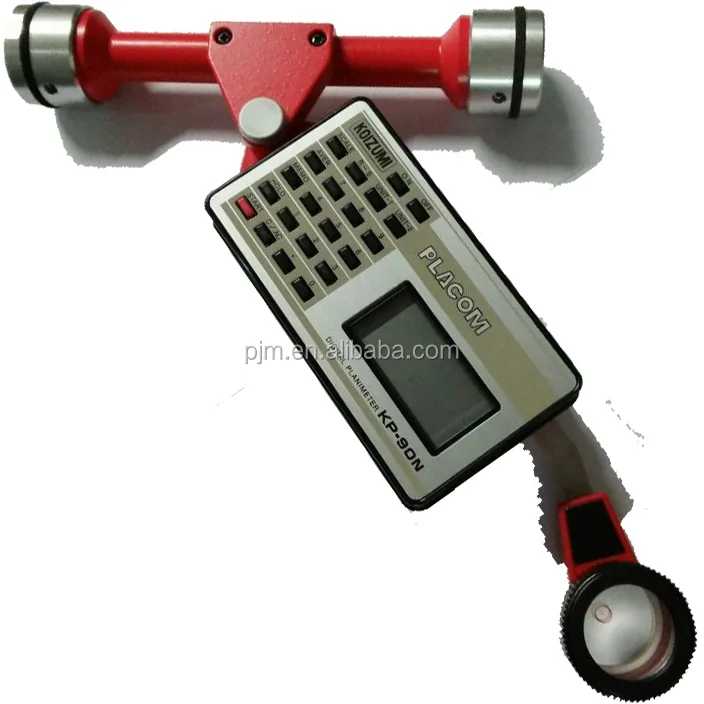

KOIZUMI LOW PRICE PLACOM KP90N DIGITAL PLANIMETER
KOIZUMI Planimeter KP-90N
Brand: Koizumi (JAPAN)
Top-bottom: max. 328mm
Left-right: 30m from moving side
Continuous working: 30 hours
Measurement functions: area, sum, average value.
Uses: construction, forestry, vessel design, agriculture estimation, teaching, research,
reallocation of land, machine design, medical science, data analysis and other activities.
Placom Digital Planimeter KP-90N-Series with the most advanced functions and perfect
The most standard model of “Koizuimi Placom” N-Series has made the excitingly highest
attainment in the history of Placom Digital Planimeter KP-90N ever made. Measuring
capacity is remarkably enlarged. Measuring by 6-digit pulse count enables to measure 100
times larger accumulative area than ordinary planimeters. Easy calculations of Cumulative
and Average Value Measurement.
1.Construction and civil engineering
2.Land developing planning
4.Datalanalysis in statistics
5.Architecture and interior designing
Special features of Koizuimi Placom Digital Planimeter N-Series
Measurement by 6 digit pulse count
This N-Series can measure the area by pulse count of 6-digits. This method enables a larger cumulative measurement of area (Up to 1Om2)
Maximum cumulative measurement value of 10m2
With the measurement by 6-digit pulse count, the N-Series Planimeter can measure a larger area by 100 times than ordinary Planimeter.
The conventional planimeter has a maximum cumulative area to measure only 0.1m2. If measurement value shows over 0.1m2 when measuring, the display is to be reset to “O”.
This requires to register the numbers of how many times these resettings are occurred. With the New PLACOM N-Series, there is no need of these troublesome procedures.
Easy conversion function of unit and scale
KP-90N and KP-80N can convert easily the measured area value into a new area value in a newly desired unit and with a newly desired scale value.
KP-92N and KP-82N can convert the unit between in2 and cm2
Hold memory function
In cumulative measurement, this Hold Memory function is effectively used. If an error occurs in measuring, press C/AC key. Then last measured value is appeared by pulse count. Since previous measured values before error are stored, there is no need to another measurements from the beginning.
Automatic shifting of unit to upper unit
When the measured area value overflows the displayed figures of 8 digits, the measured area value is calculated and displayed by an upper unit. When the overflows is occurred in the uppermost unit, km2, acre, the measurement can be continued by pulse count display.
Average value measurement
In order to get better result of measurement, Mean value measurement is recommended.
This measurement can be easily done on this N-Series.
Measurement of an area with different lateral and longitudinal Scale.
Auto-power-off function for energy saving
SPECIFICATION OF KP90N DIGITAL LANIMETER
|Specifications of placom N-Series|
|Model||Digital Parameter KP-90N|
|With Computing Function|
|Display||Liquid Crystal, 8-digit Figures|
|cm2, m2, km2, in2, ft2, acre etc.|
|Converting Function||Unit and Scale value|
|Accumulated Measuring Value||Maximum 10m2(Scale 1:1)|
|Measuring Range||Maximum vertical width: 325mm|
|Horizontal roller rotating length: 30m|
|Accuracy||Within +/-0.2%(Within +/-2/1000pluses)|
|Power Supply||Built-in NiCd Battery(rechargeable through AC Adapter)|
|AC Adapter 100-240V (Auto-power-off function is provided.)|
|Operating Duration||Approx. 30 hours of continuous operation|
|Battery Charging Time||Approx. 15 hours|
|Main Unit Weight||750g|
|Accessories||Supplied AC Adapter and Plastic Case|
Packing methods: Standard carton box
Packing weight: 2KG
