Display 16x2 blue big character 16*2 lcd 16 x 2 character lcd module
- Category: Character Display >>>
- Supplier: Changsha Sunman Electronics Co. Ltd.
Share on (60469977440):
Product Overview
Description
Display 16x2 blue big character 16*2 lcd 16 x 2 character lcd module
Product Description
Applicaion | Character,digit display for printer,equipment and so on |
| Backlihgtlight | White |
| Display Mode | Stn blue negative |
| Controller | HD44780 |
| OEM/ODM | Accecpted |
| System design | Lcd module related system software and hardware design accepted |
Warranty | 12 moths free, payed warranty lifttime |
Packaging | One module in a bag, bags in small carton foam protecting, small carton in big carton |
| carton size | 41.5x36x50cm |
| Sample lead time | 3-7 working days |
| Customize lead time | 15-30 working days |
| Production Lead time | 7 days for available designs,Customized: 35~40 days |
| Cetification | ISO,SGS |

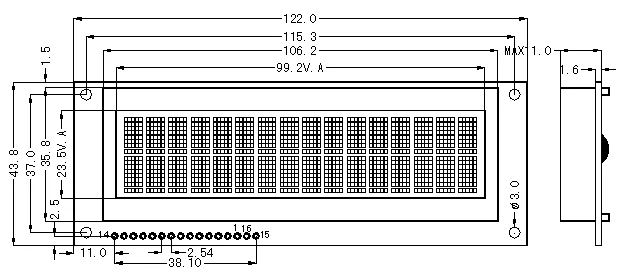

Mechanical Demesion
Pin Assignment
| Pin NO. | Pin Name | Pin Description |
| 1 | VSS | Negative power supply |
| 2 | VDD | Positive power supply |
| 3 | V0 | Lcd driving voltage input |
| 4 | RS | Command/data register selection |
| 5 | R/W | Read/write signal |
| 6 | E | Chip enable |
| 7-14 | D0-D7 | Data bus |
| 15 | BLA | Backlight positive power supply |
| 16 | BLK | Backlight negative power supply |

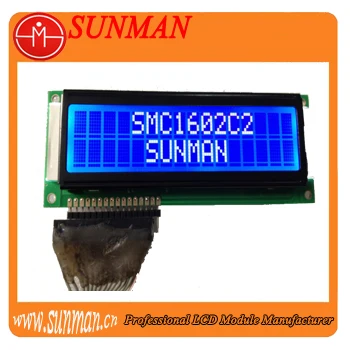

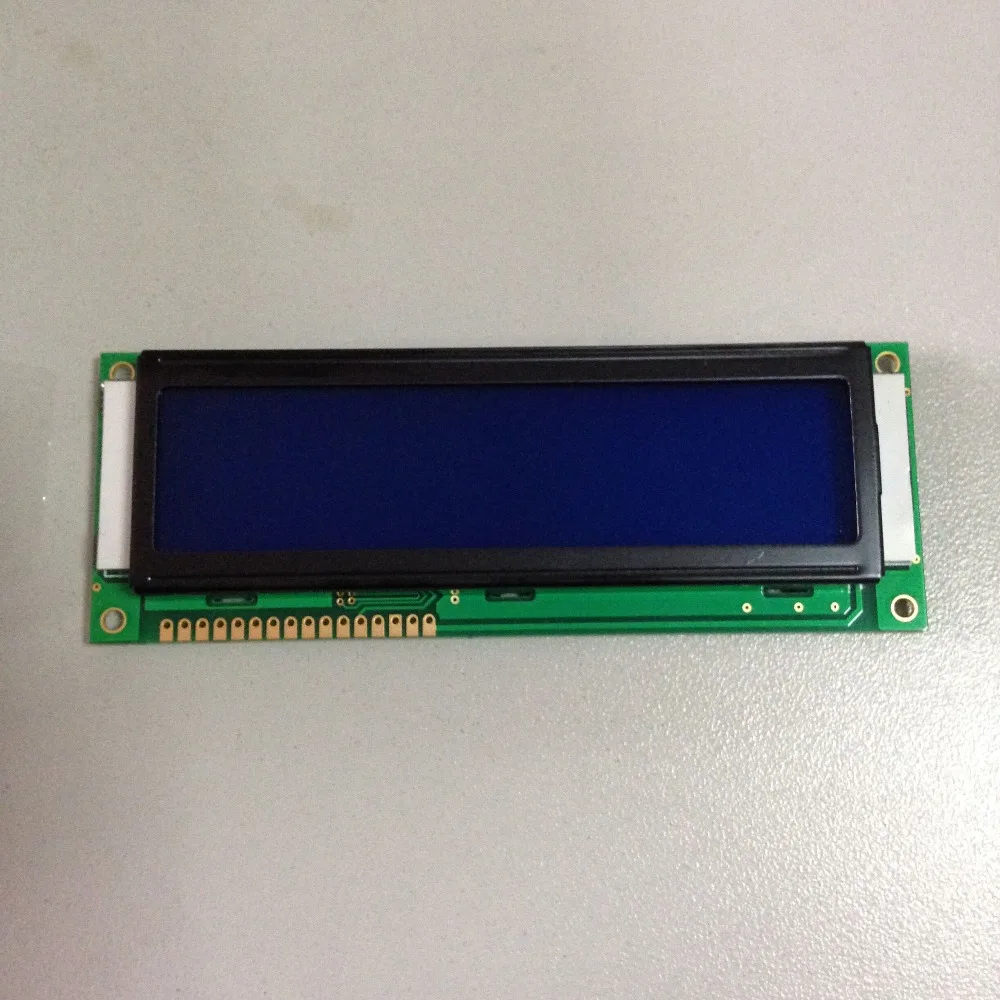

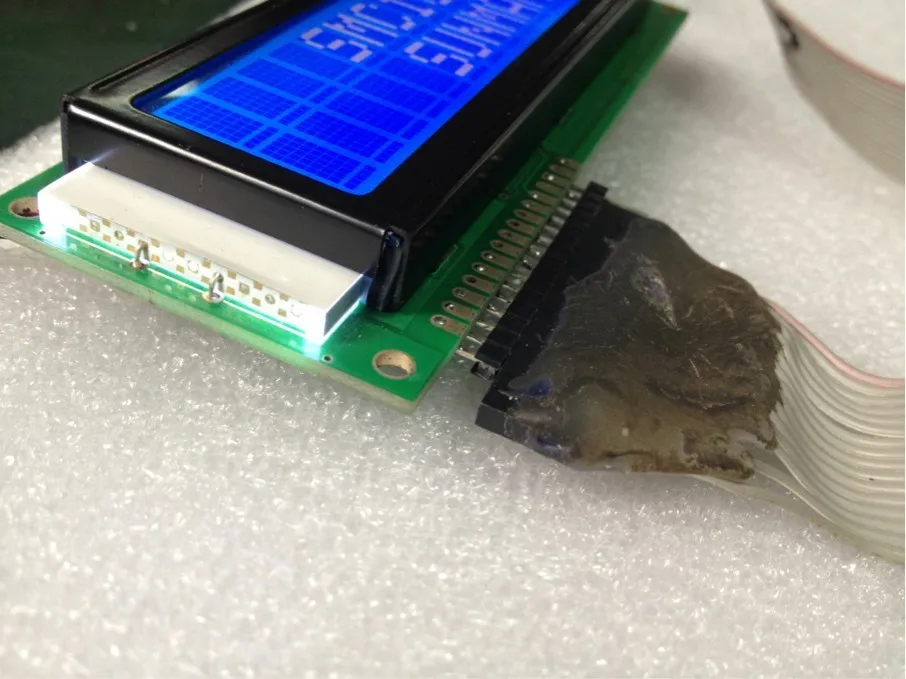

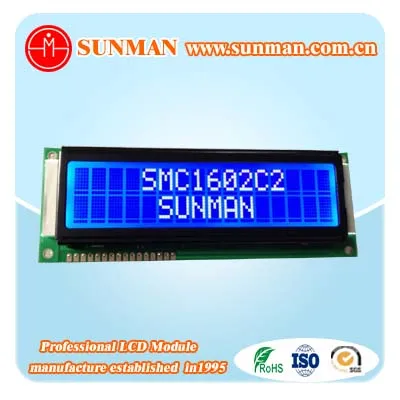

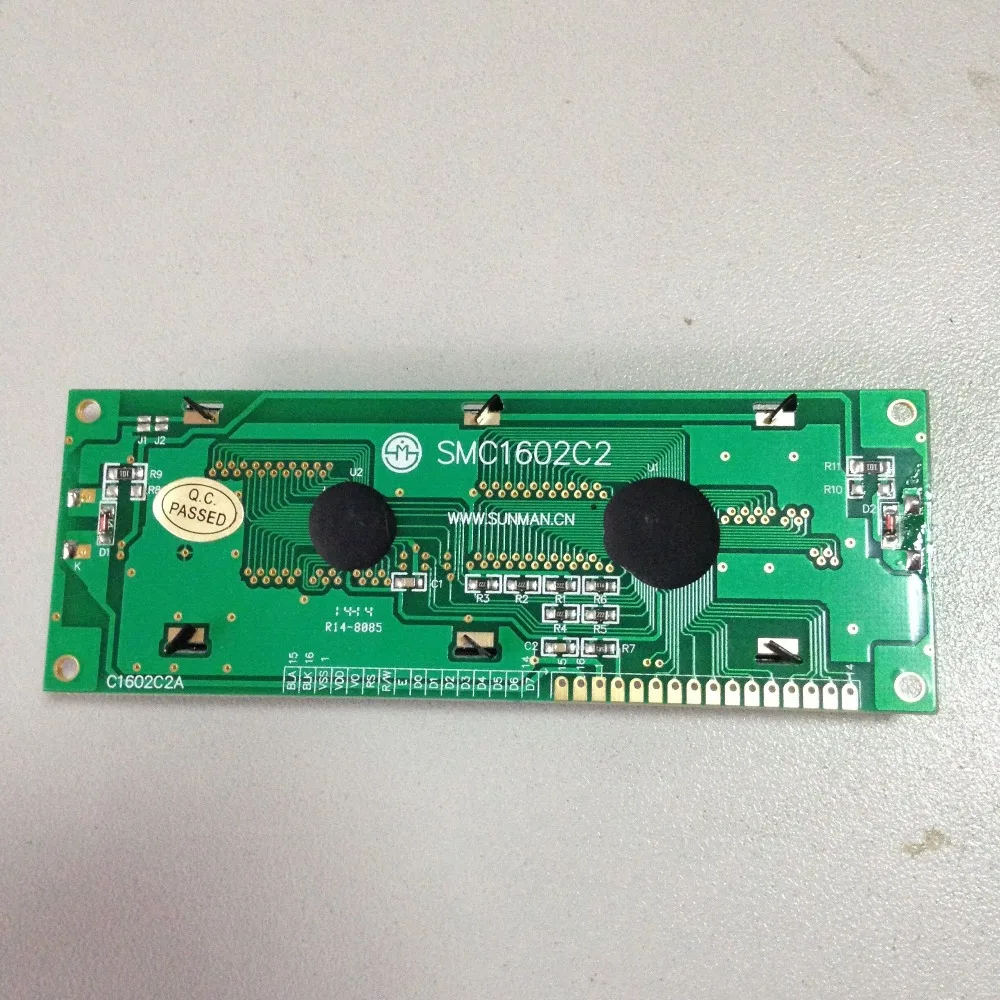

Product show
Click the picture up for more 16*2 lcd!
Related Product
Product Application
Buys' Feedback
More details of buys' feedback,click here!
Our Advantage
INSPECTION PROCESS
Customization
| Standard Set | |
| Display | segement,graphic,character monochrome lcd module&TFT accectpted |
| Display mode | TN,STN,FSTN,HTN,transflective,reflective,transmissive,yellow green,blue,gray optional |
| Display type | COB,COG,TAB |
| Lcd thikness(cm) | 0.11,0.14 |
| backlight thickness(cm) | 2.8,3.0,3.3 |
| Interface | Parallel(8bit,4bit,16 bit,80mode,68mode),serial(i2c,spi,uart,usb) |
| Controller | Optional |
| IC | Die or packaged optional |
| Hardware or software | All accepted |
| Information given | All idear,sample,photo,drawing,use manual and so on are OK |
Contact us for free designing!
LCD&COB&LCM designing/production all in one production

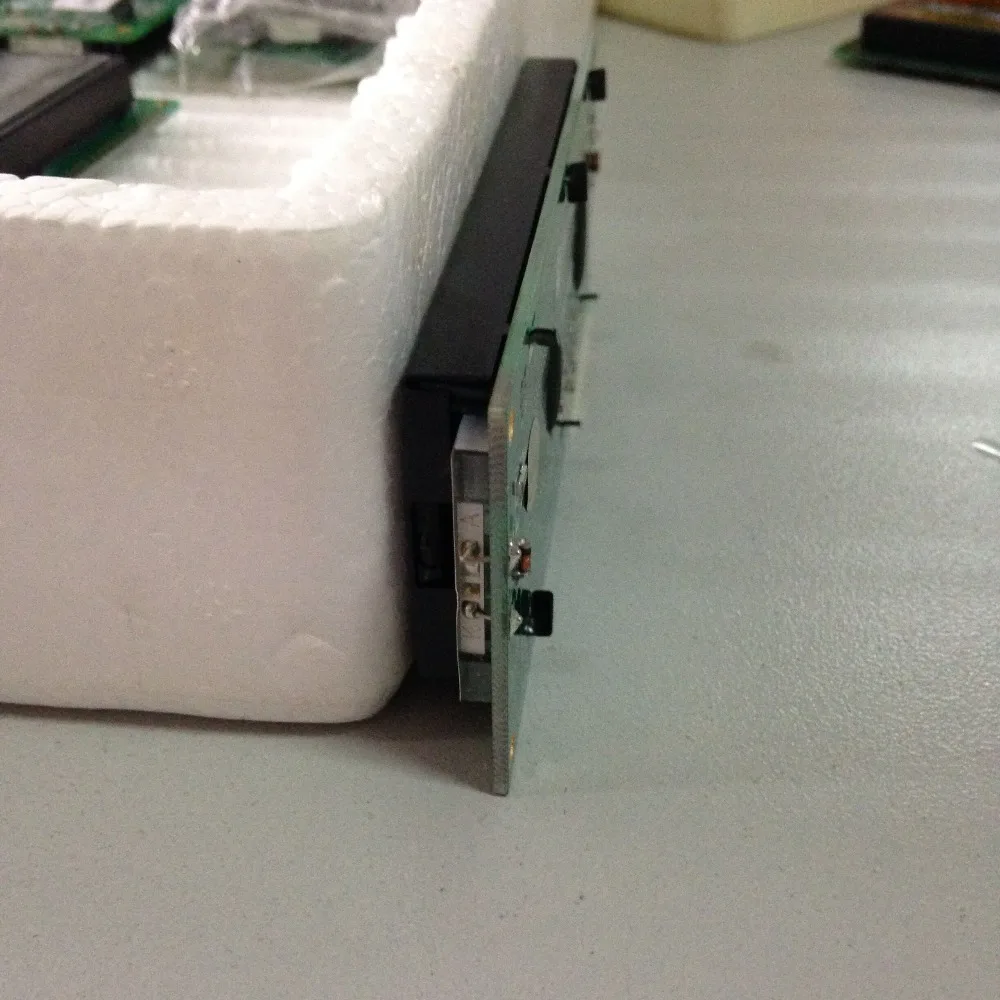

Packaging&shipping
| Packaging | Plastic bag +foam+cartom |
| Carton Size | 41.5cm*36.0cm*50cm or customized,100-300PCS/ carton |
| Gross weight | 15.0 -20KGS |
| MOQ | 1 PCS for 16*2 lcd smc1602c2 |
| Specitional packaging | negotiate |
Certifications
FAQ
- QWhat is the MOQ ?
- A No MOQ!
- QCan I get samples?
- A Yes,just give us sample orders,and free samples for custom
- QHow to customize an lcd module?
- A Give us messages to design lcd modules and comfirm the drawings
- QCan mould cost been returened ?
- AYes, if quantity satisfied.
- QCan I get a lower price if I order large quantities?
- AYes, cheaper prices with more bigger size orders.
- QWhen you ship my order?
- ANormally 30-45days after receiving your payment, but it can be negotiated based on order qty and production schedule.
- QHow about the quality guarantee period?
- AOne year!
- QHow can you guarantee the production quality ?
- AOur production quality follow ISO9000 standard system, stable design team,22 years experience of QC team and strictly quality control system guarantee the production quality. accept third part inspection,we have mechanical checking,display checking,high&low temperature storage&operating test during high humidity condition,EMC test(optional) for every design .
