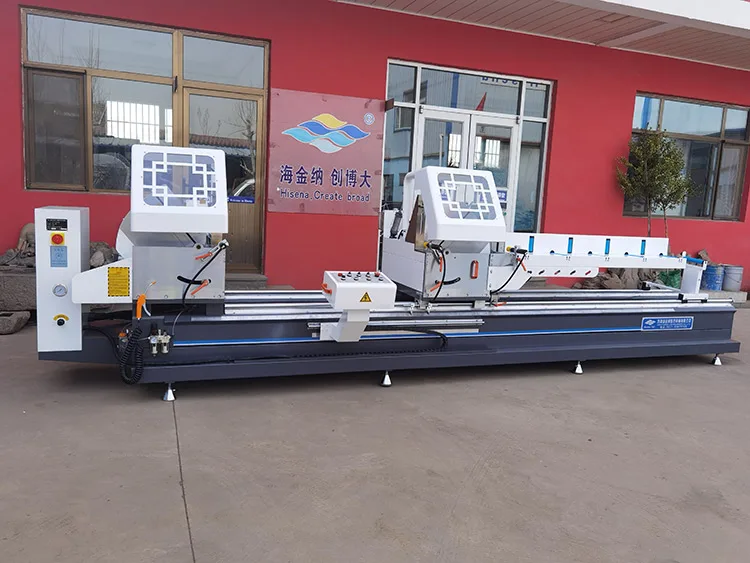

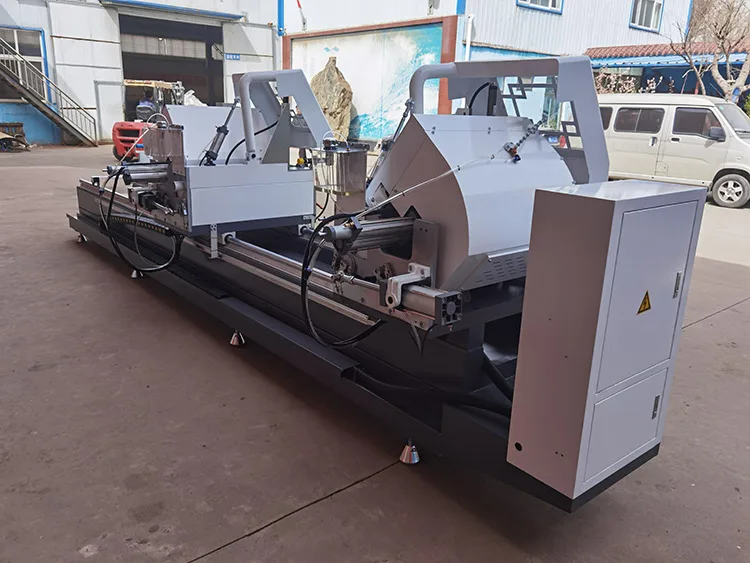

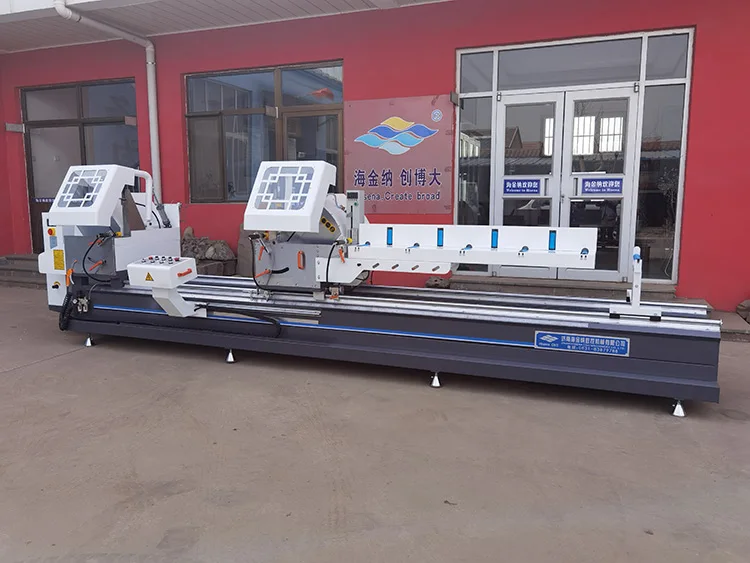

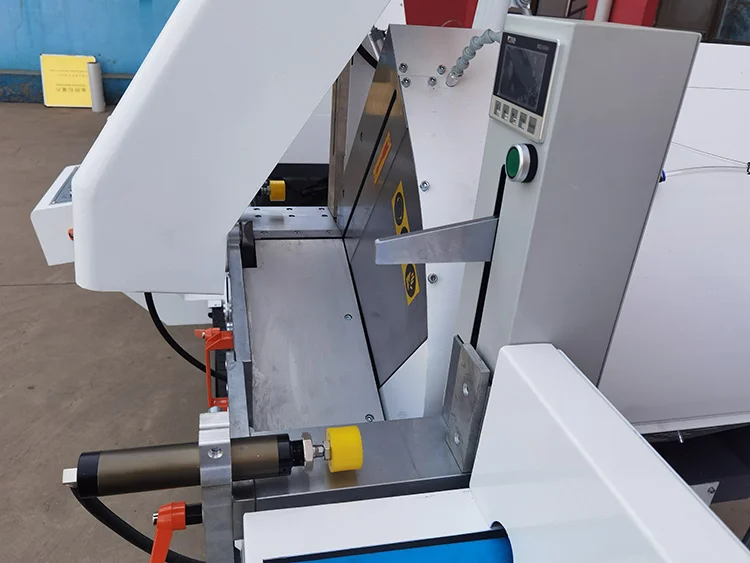

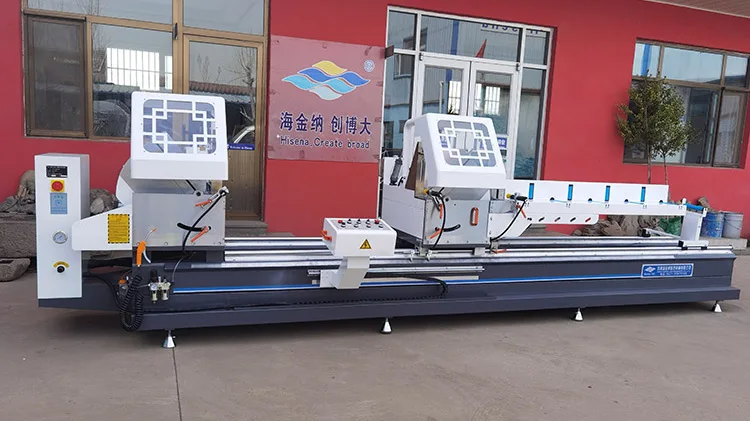

Aluminum profile digital display double mitre saw cutting machine two head window cutter 45/90 degree
- Category: >>>
- Supplier: Jinan Haijinna CNC Machinery Co. Ltd.
Share on (60470030242):
Product Overview
Description
Product Description
Main Features:
1.Used for Aluminum profile high accurate Cutting
2.Imported Linear bearing system in moving and feeding device ensures the accurate the machine running and cutting, and stableperformance.

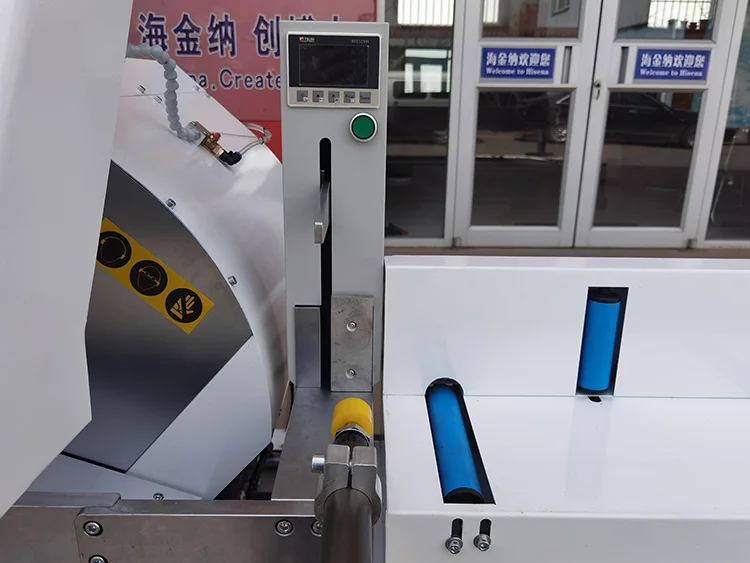

3.Digital display system equipped can be easy readout the accurate cutting length and quantity automatically, ensures a high accurate re-load position and easy operation .
4.Pneumatic -hydraulic damp device ensured the saw blade stable feeding and working.
5.cutting angle change Automatic between 45° (outward)and 90°.
6.Imported carbide saw blade for a high quality cutting and long service life.
7.Automatic Safety system of shield can ensure the safe operation .
8.Spraying cooling system, make sure carbide saw blade long service life
2.Imported Linear bearing system in moving and feeding device ensures the accurate the machine running and cutting, and stableperformance.
3.Digital display system equipped can be easy readout the accurate cutting length and quantity automatically, ensures a high accurate re-load position and easy operation .
4.Pneumatic -hydraulic damp device ensured the saw blade stable feeding and working.
5.cutting angle change Automatic between 45° (outward)and 90°.
6.Imported carbide saw blade for a high quality cutting and long service life.
7.Automatic Safety system of shield can ensure the safe operation .
8.Spraying cooling system, make sure carbide saw blade long service life
Specification
Power supply | 380v 50Hz | Blade | Φ500×Φ30×δ4.4mm Z=120 |
Motor power | 2*2.2KW | Max.cutting width | 145mm |
Motor rotary speed | 2800r/min | Cutting angle | 90° and 45° (outward) |
Operation air pressure | 0.5~0.8Mpa | Feeding speed | 0~3m/min |
Cutting length | 400~4300mm | Weight | 1400kg |
Air consumption | 60L/min | Dimension | 5900x1360x1720mm |
