Product Overview
Description

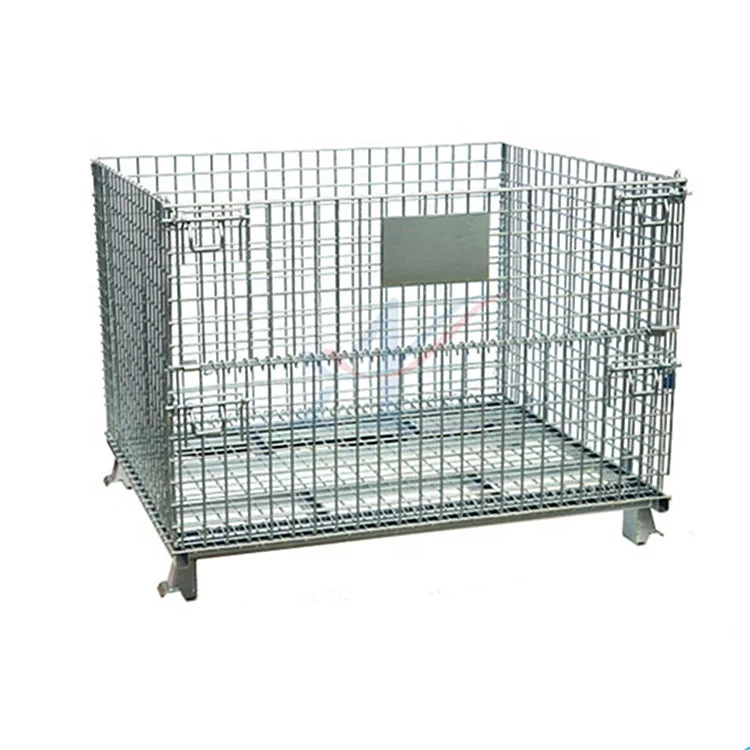

Customized Size Warehouse Steel Wire Mesh Pallet Cage
Brief Introduction:
Foldable rolling metal storage cage is a very important logistics storage and transportation of containers, and store items with fixed capacity, stacked neatly and stored at a glance, easy to the inventory, at the same time improve the effective utilization of warehouse space.When not used, can foldable and stackable to save storage space.
Storage cage commonly used three kinds: the first kind is storage cage with wheels ,the second
is storage cage with foot ,can stackable, the third is the combination of the wheels and foot.
Characteristic:
1. Made of high quality cold rolled steel welded together, high strength, large load capacity.
2. Sizes is unified, fixed capacity, storage of the goods at a glance, easy to inventory.
3. On the surface of galvanized, beautiful and oxidation resistance, long service life.
4. Can be stacked each other four levels, the realization of three-dimensional storage.
5. Surface treatment, environmental protection health immunization, flow, storage, recovery will not pollute the environment
6. Cooperate with forklift, elevator, crane equipment for efficient operation.
7. Folding structure, recovery of low cost, is the alternative products wooden packaging.
8. Can be installed the wheel at the bottom, the factory internal turnover is extremely convenient.
Standard Size:
| Item No | Wire Diameter ( mm) | Wire Mesh(Grid) (mm) | External Size (mm) | The Height of the foot (mm) | Capacity (kg) |
| ATG-7-1 | 6.0 | 50*50 | 800*600*640 | 100 | 800 |
| ATG-7-2 | 6.0 | 50*50 | 1000*800*840 | 100 | 1200 |
| ATG-7-3 | 6.0 | 50*50 | 1200*1000*890 | 100 | 1500 |
| ATG-7-4 | 6.4 | 50*50 | 1000*800*840 | 100 | 1500 |
| ATG-7-5 | 6.4 | 50*50 | 1200*1000*890 | 100 | 2000 |
| ATG-7-6 | 6.4 | 50*50 | 1000*800*500 | 100 | 1000 |
| ATG-7-7 | 6.4 | 50*100 | 1000*80*840 | 100 | 1000 |
| ATG-7-8 | 6.0 | 100*100 | 1200*1000*890 | 100 | 500 |
| ATG-7-9 | 6.4 | 50*100 | 1200*1000*890 | 100 | 1000 |
| ATG-7-10 | 4.8 | 50*50 | 1000*800*840 | 100 | 500 |
| ATG-7-11 | 4.8 | 25*50 | 800*500*540 | 100 | 500 |
Packaging and Shipping:
Company Information:
Suzhou ATOGGI Metal Product Co.,Ltd, which is located in Suzhou City,Jiangsu Province, is specializing in manufacturing the commercial and warehouse facilities.Our main products as below: wire shelf, storage shelf, storage cage , slotted angle shelf, supermarket shelf and OEM metal Products.Our main advantage: design products to reach the request of custom, provide design program about commercial and warehouse fast and accuracy.
We will requite customers with first-class products and service. Hope to create bright prospects with you!
