Description of Cheap price high quality Kurkure Cheetos making machine:
1.This line is characterized by unique technique, rational configuration, high automation and stable performance. It can finish steaming, extrusion and shaping in one step without boiler.
2.The line is a kind of extruded snacks, using corn grits as raw materials meanwhile mixing with water and oil,very crunchy and great in taste. Kurkure/Cheetos snack food is made by extrusion process. The snack food are moisturized in a vertical mixer with water, oil then feed to the Rotary Head Extruder. In the extruder, due to excess heat and pressure from the screws the meal gets heated and the moisture content gets reduced. The meal passes through the die and gets cut by the cutting knifes into required lengths. The kurkures/cheetos snacks food is fried in cooking oil and then cooled before flavoring. Seasonings are sprayed on the kurkures snack food to improve their taste.
3.Raw materials: adopts corn grits as raw materials meanwhile mixing with water and oil
4. Capacity: find attached below form.
5.The production process flow:
Mixing system---Extrusion system----Baking system (Frying System) ---Flavoring system---Packing system
6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
7. Machines Materials: All the machines are made by stainless steel
8. Technical Parameters.
Jinan Saibainuo Machinery Co., ltd for food machine manufacturering in China since 2004, offer competitibe advantage machines, so with us your money in safe, your business in safe.
Our fully automatic fryer.
Our DLG76 extruder.
Detailed Images
Name: high speed mixer
Dimension(m): 1.1×0.8×1.4
Motor Power: 4KW
Speed: 400rpm
Functions:
Mix the corn grains and water together with high speed.
Features:
1. stainless steel material
2.no material leak
3.High speed can mix material better.
Name: screw conveyor
Dimension(m): 3.2×0.6×0.7
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range: 1.5~2.5M
barrel diameter:\t Φ160mm
Function:
Power and grains material can be conveyed in the stainless steel roller to the feeder of extruder without leaking, dust and pollution; feed quantity is even and stable.

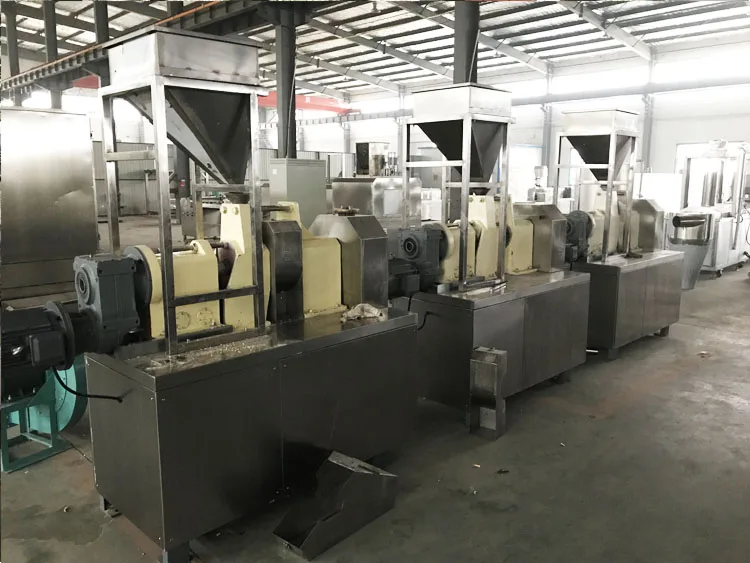

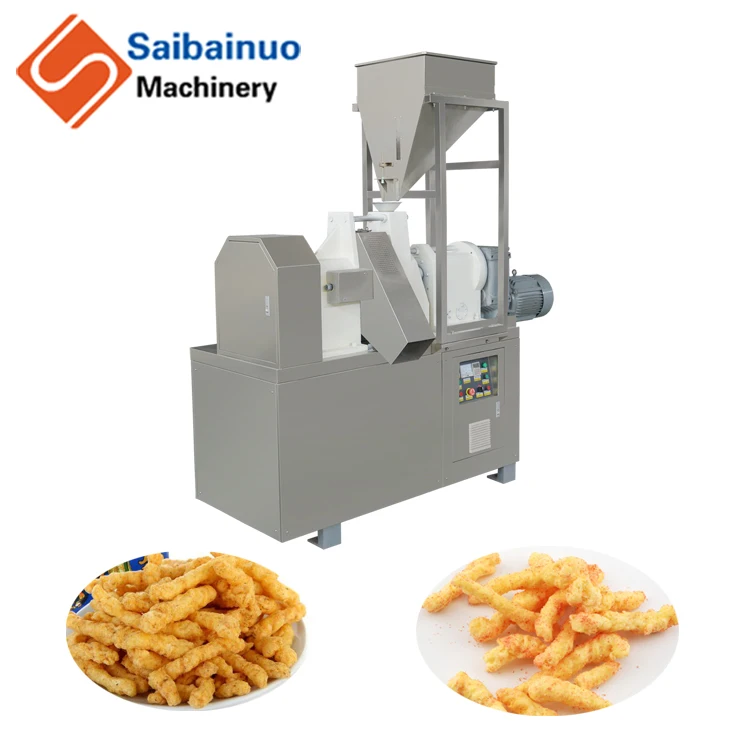

Name: DLG76 extruder
Dimension(m): 2.2×1.0×2.3
Total power: 23kw
Main Motor Power: 15KW
Cutting motor: 7.5kw
Extruder diameter: Φ76 mm
Function:
Extrude and cook raw material . Finally cut the product.
Features:
Screw material is 38CrMoAl with nitriding treatment, the hardness is 60HRC. The barrel also use good material, hardness is 55HRC.
All motors can be adjusted the speed by Inverter.

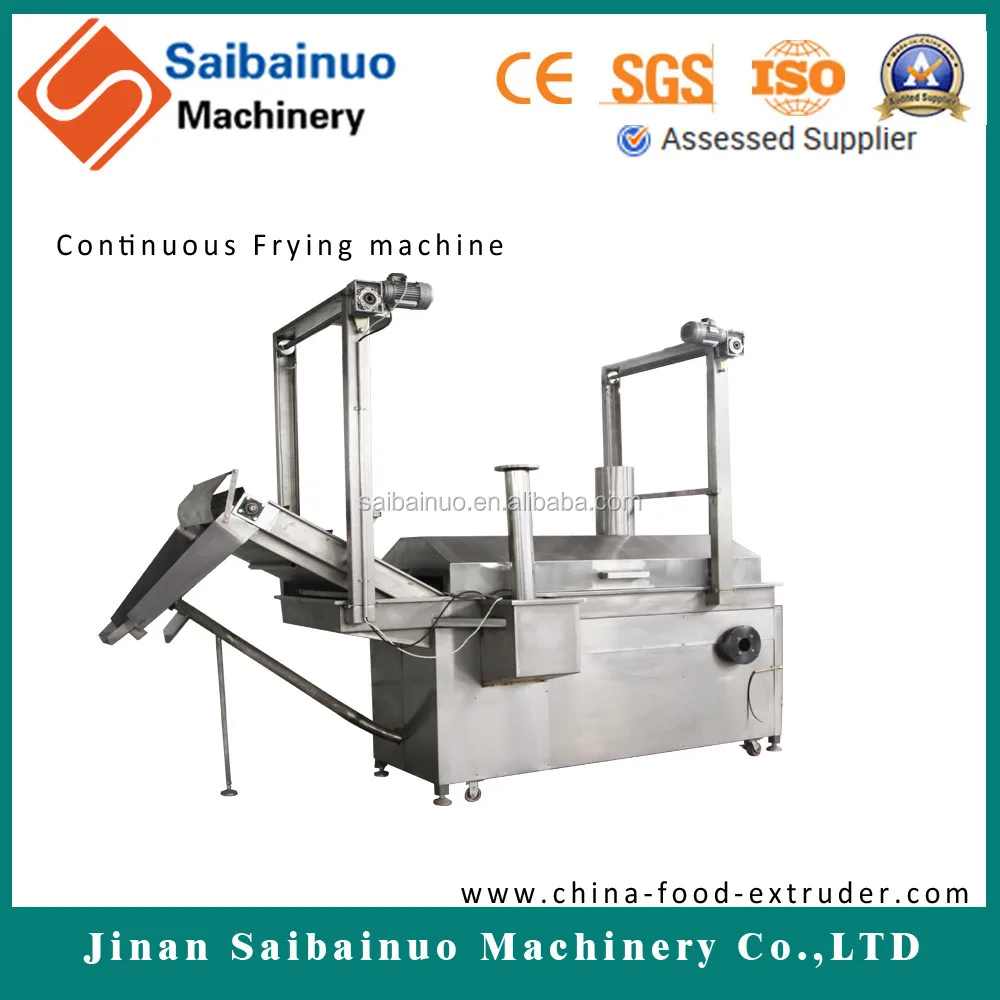

Name: fully automatic fryer
Dimension(m): 3.5×1.6×2.6
Heating Power: 40 KW
Temperature: 20℃-300℃
Feature:
The temperature can be controlled by the system automatically.
There is oil filtration system to clean the oil.

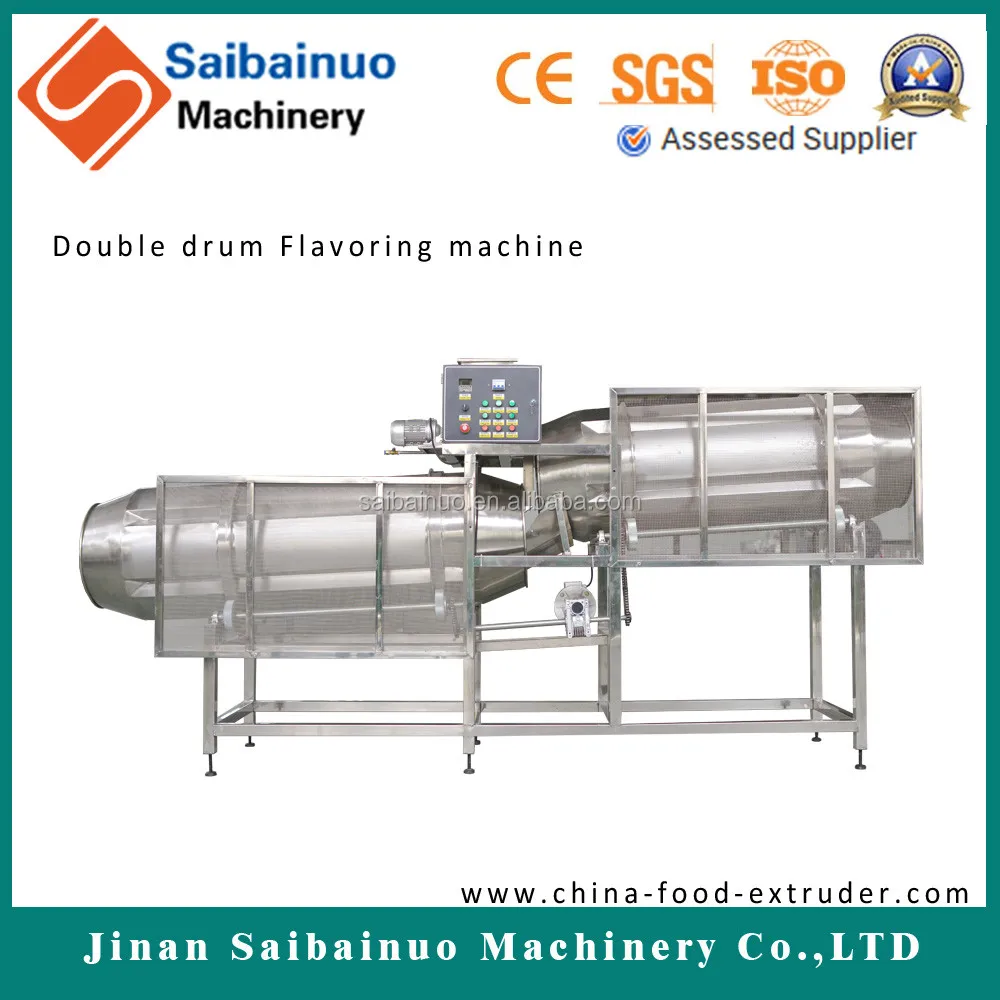

Name: flavoring line
Dimension(m): 2.6×0.85×1.85
Motor Power: 1.5KW
Function:
Scatter the seasoning powder on the surface of food, Make food nice taste.
Feature:
Stainless steel material.
Name: cooling conveyor
Dimension(m): 5.0×0.7×1.1
Power: 1.0KW
Function:
There are five fans on the top of the belt, they blow the food to make the temperature reduce to suitable for packing
Feature:
Stainless steel material.
Certifications
Our Service
Packing & Delivery
Welcome to contact to us!
Mr.Fred
Whatsapp:+0086 186 6898 8231
