Car Gps tracker with rfid reader, Camera, Fuel sensor, Temperature sensor

Product Overview

Description

Car gps tracker with rfid reader, Camera, Fuel sensor, Temperature sensor





1.  Specifications

 1. 10 PIN interface
2. 2G 3G 4G module(GSM  WCDMA  LTE )
3. Sirf4 GPS module
4. 5 input IO ports , 1 analog port, 2 output ports
5. 2 RS232& RS485 interface for camera / RFID reader/ LCD screen
6. Alarm buzzer
7. Inbuilt memory and backup battery
8. Position mode :GPS+LBS position
9. Size:142.5mm*75.5mm*24mm
10. Micphone&earphone interface:3.5mm
11. Support TCP/UDP/HTTP protocol
12. Optional:Fuel sensor / temperature sensor
13. Work voltage: 9V~ 60V
14. Operating Temperature:-45°C ~75°C
15. Working current:<110mA@12V,Standby current:<10mA@12V
16. Humidity: 5%~95%



2.  Main Functions

1. Realtime GPS location tracking by google maps

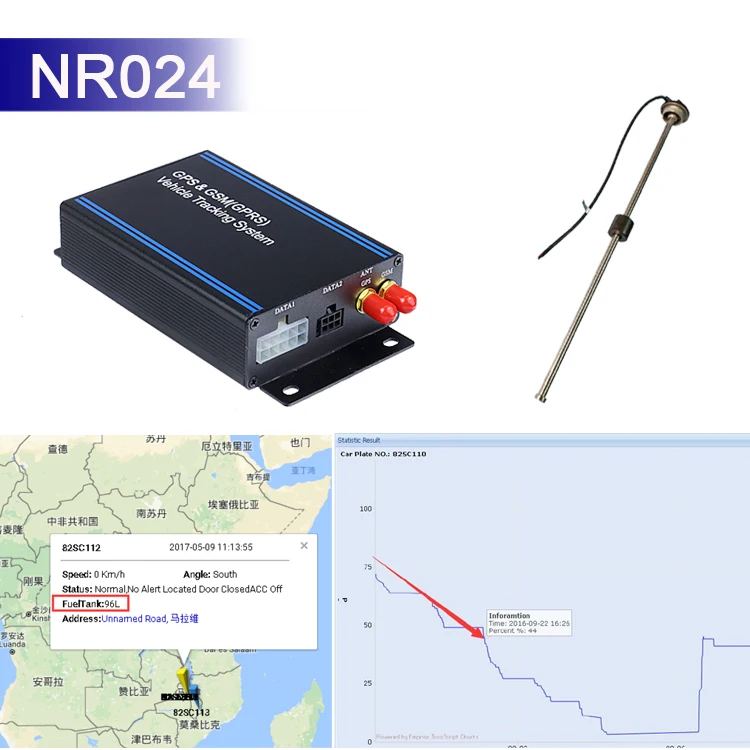

2. Fuel consumption monitoring and steal oil alarm

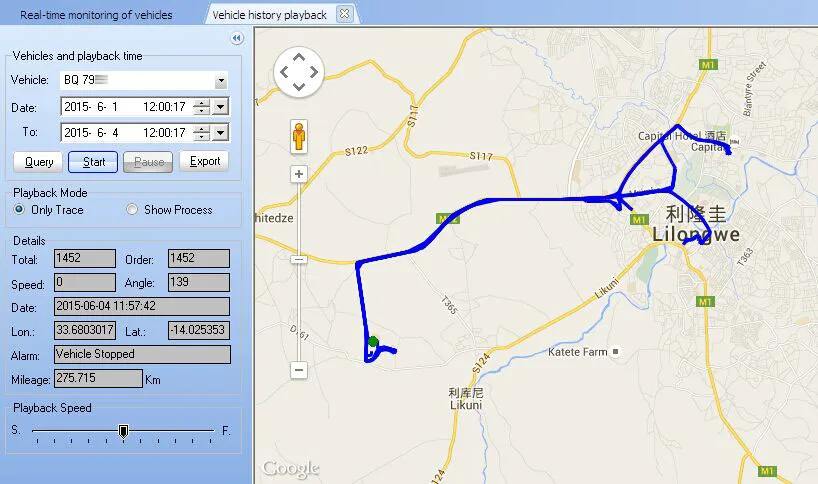

3. History track playback and Mileage statistics
4. Spy voice remotely,two ways audio communication
5. Take photo and view by mobile app and tracking system
6. Web tracking, android &IOS mobile APP tracking
7. Over speed alarm and limited by speed limiter
8. Engine control remotely by SMS/mobile APP/web tracking system
9. RFID Identity Authentication and engine control
10. Ignition/ACC detect ,door open/close remotely
11. SOS alarm by SMS/GPRS and calling
12. Alarm for illegal removing
13. Temperature monitor and alarm(optional)

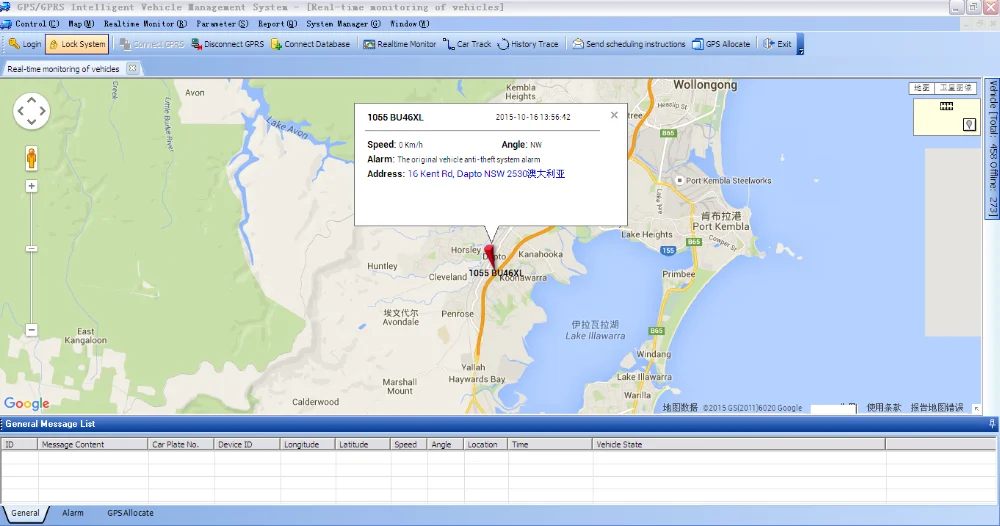

14. Compatible original alarm
15. History report statistics and export into excel file

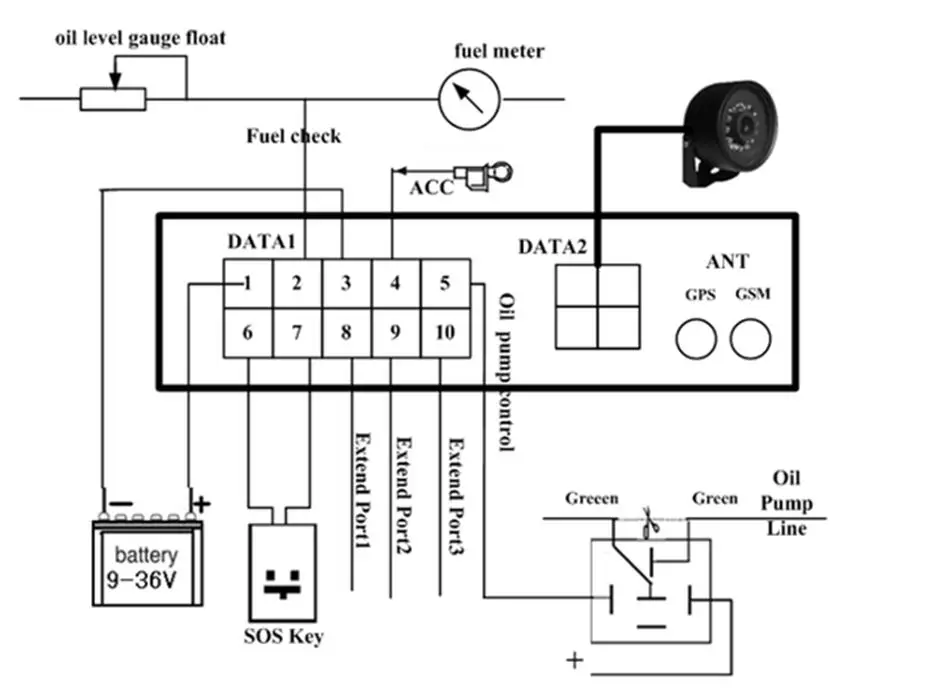

3.  Installation

  Step1: insert the simcard into the device

Step2: Connect the device into the vehicle by 10PIN cable









Step3: Set Parameters of GPRS, let the device connect to internet
Step4: Tracking on mobile app,website,fleet management



 4. Our services:

1. We provide web tracking system, Android APP and IOS App free
2. Our device can send data to your own server, we will provide SDK and API for integrate (sample source code:C/C++,Java,C#)
3. we will install the tracking system into your server if you have own server
4. We provide OEM and ODM services, it is free if you only add logo and company name
5. Warranty: 24-month
6. FAE online ( Skype:smartkw )

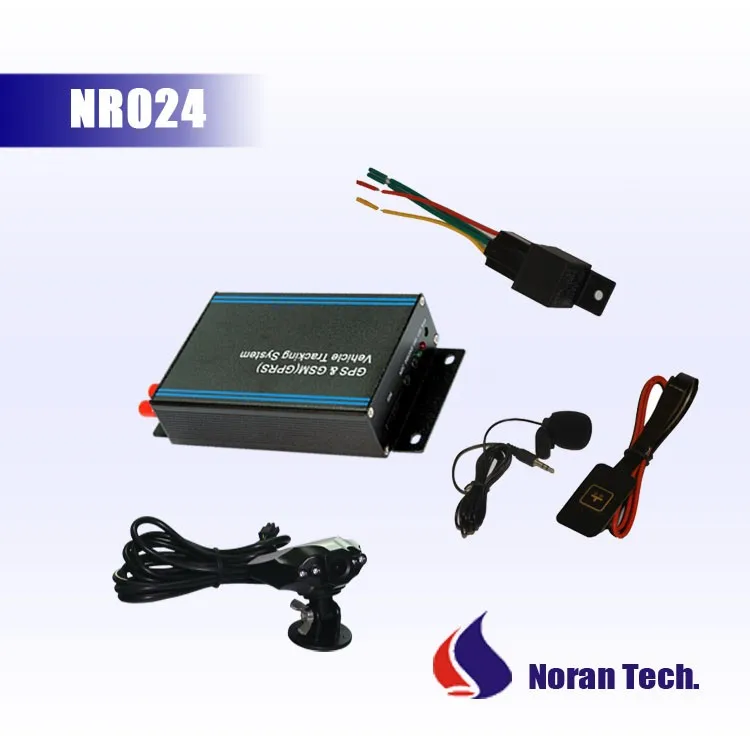

5.Packaging List
Main unit, 10PIN Connecting cable ,GPS antenna ,GSM antenna, Relay, SOS button, Microphone,
Optional:CCTV camera, RFID reader, UHF RFID reader, LCD screen,Humidity Sensor, Alarm Buzzer,
Fuel sensors ,temperature sensor, flash memory , speed limiter, Door sensor
