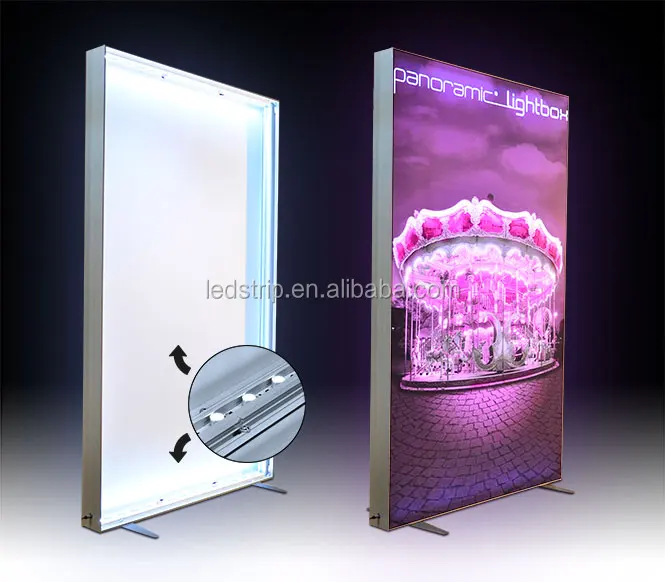

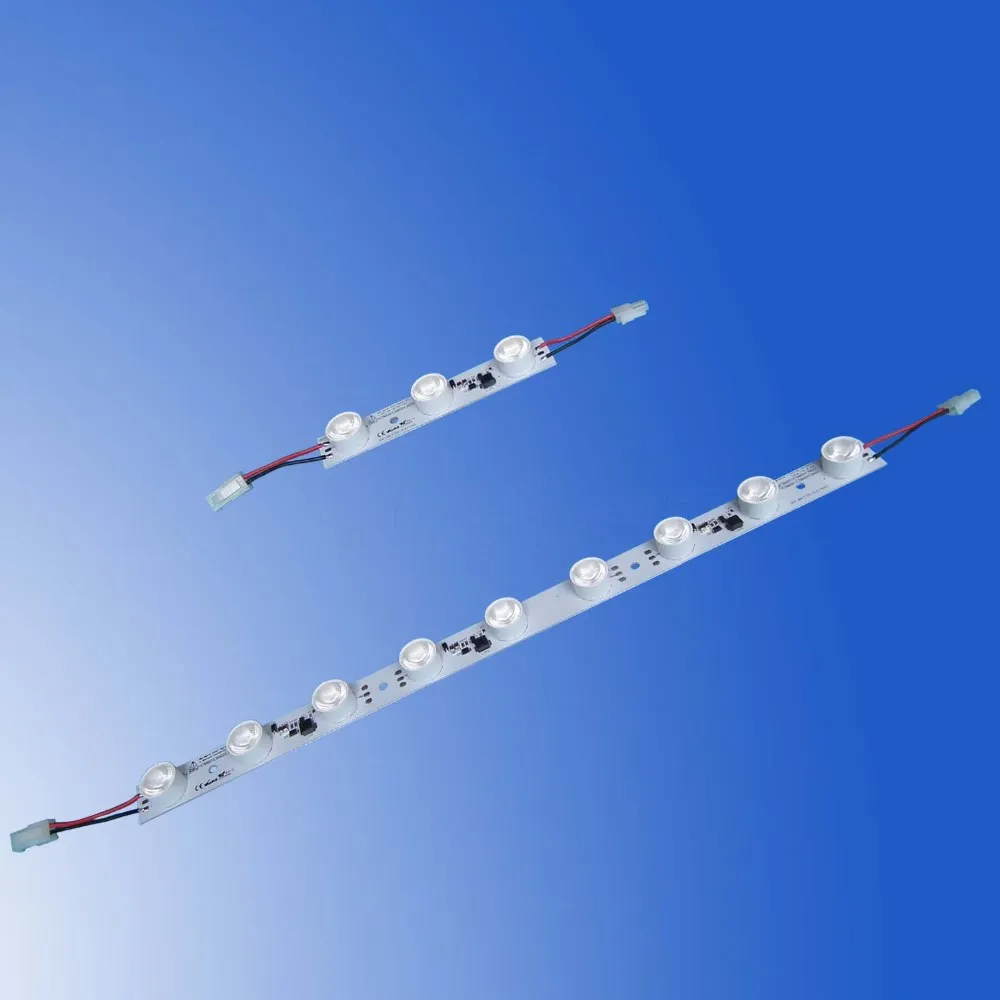

RX-BKT35-53 LED EdgeStrip Module (BoxLED Side/ Posterbox Module ) - 2016 new design high flux products.5W LED chip; Slim washes light across single-sided and double-sided displays using LED lens technology that optimizes the light inside the box. The result is uniform light without the stripes associated with fluorescent tubes. The narrow silhouette of the side mounted modules makes Poster-box Slim an excellent option for single-sided sign. LED modules for light advertising and backlighting.
1.New design LED edge-lit module,new lens
2.Works in single and double-sided box signs
3.HighPower:22.5W,High Luminous Flux;2400LM
4.Bijection Distance Max:5m
5.High power 5W LED chip
6.Viewing Angle:10*50
7.High efficiency 110LM/W,High CRI.80(4000K)
8.CE ROHS FCC
Model
Dimension
Net weight
CRI @
Color Tempe
Test Luminous Flux / Efficiency
Comment

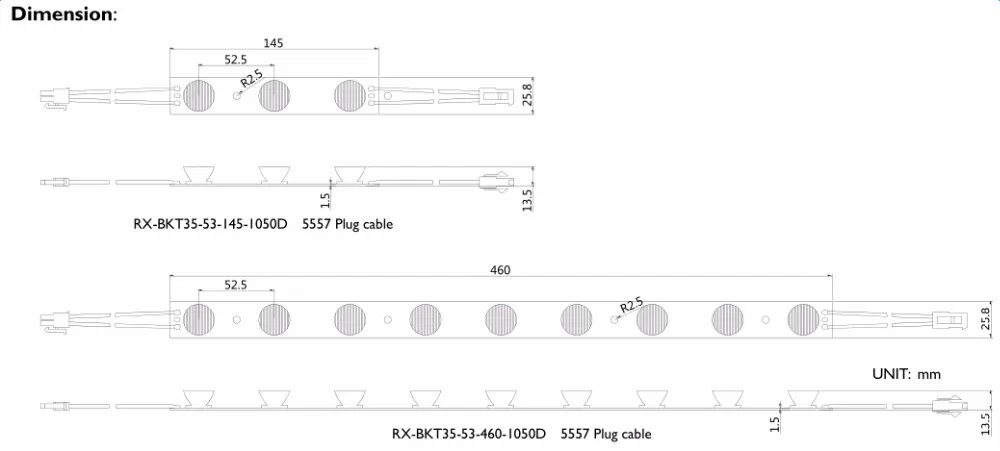

RX-BKT35-53-145-1050D-NW3
145x26x14mm
40g
Ra>80 4000K
705Lm 98Lm/W
DC24V 7.2W
Viewing Angle: 10x50°
Edge-lit, poster boxes
Non waterproof Tcp 70°C

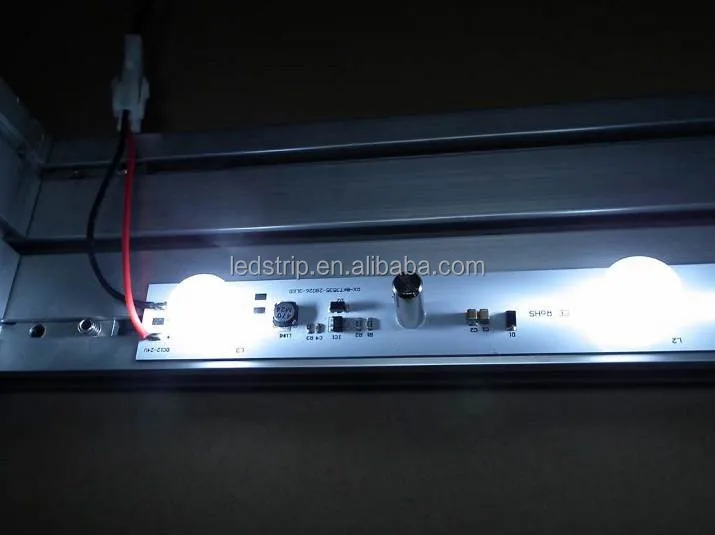

Please install and on aluminum to facilitate heat dissipation, is conducive to maintaining product life.
RX-BKT35-53-145-1050D-CW
Ra>70 6000K
810Lm 108Lm/W
DC24V 7.5W
RX-BKT35-53-460-1050D-NW3
460x26x14mm
100g
Ra>80 4000K
2178Lm 99Lm/W
DC24V 22W
RX-BKT35-53-460-1050D-CW
Ra>70 6000K
2450Lm 110Lm/W DC24V 22.3W
The above table data testing at room temperature is 25 °C, Cooling by free air convection. Operation Temperature: -25 °C ~ 90°C At the Tc point
Tolerance range for optical and electrical data: ±10 %. Lifetime: 50,000 hrs (Note: Tcp < 70 °C)
Series connection Max 4pcs; Parallel connection Max 5pcs; Series and Parallel Total: Max 8pcs
