SAE standard cast steel shot S330 S390 S460 S660 S930 for surface treatments and shot blasting

Product Overview

Description

steel shot and grits for shot blasting machine

Product name: steel shot
Product category: abrasive steel shot
Product specification: S70-S930
Operative standards:
In accordance with standards of GB/T18838.8 - 2008 Steel shot and Steel grit, SFSA20-60 Cast Steel Abrasive, SAE J827 Cast Steel Shot,
SAE J1993 High Carbon Steel Grit, YB/T5149-1993 Cast Steel Shot, YB/T5150-1993 Cast Steel Grit, ISO11124-3High carbon cast steel shot and grit.



2. Specification of steel shot

Name		cast steel shot
Chemistry	(C)	0.70~1.20%
	(Mn)	0.35~1.20%
	(Si)	0.40~1.20%
	(S)	≤0.05%
	(P)	≤0.05%
Average Hardness		40~50HRC (377-509HV) 52~56HRC (543-620HV) 56~60HRC (620-713HV)
Deviation		±3.0HRC(±40HV)
Micro structure		tempered martensite or tempered troostite
Density		7.2g/cm3
size		0.2, 0.3,0.5,0.6,0.8,1.0,1.2,1.4,1.7,2.0,2.5mm
SAE		S70, S110,S280 S330,S390,S460,S550, S660,S780,S930

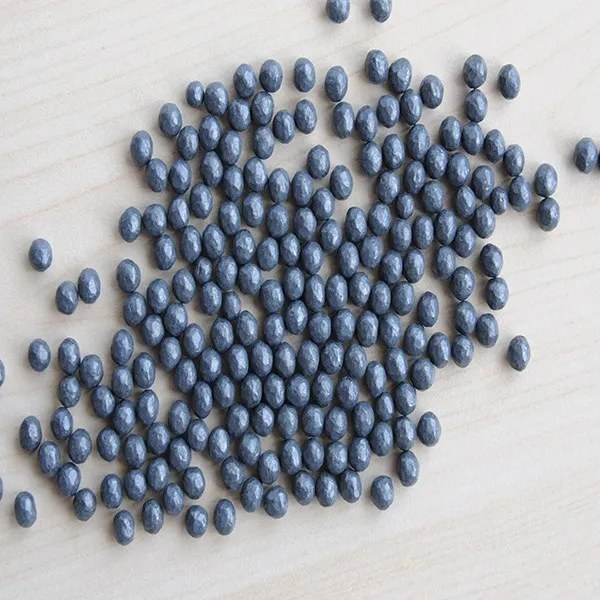

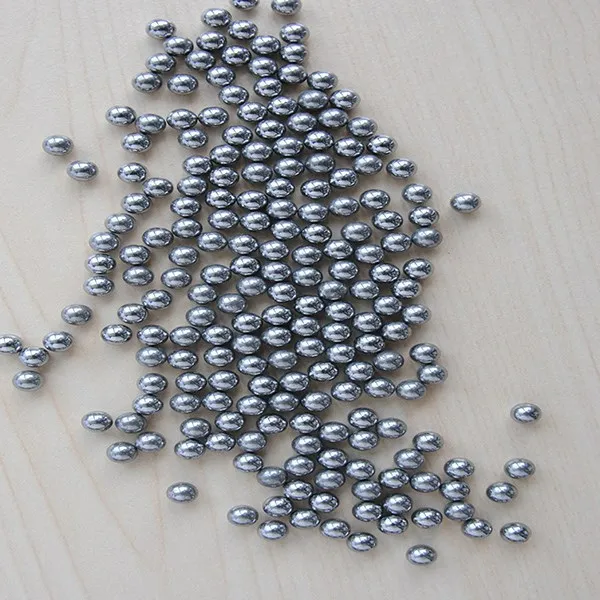

3. Photos of Steel shot





4.Application of Steel shot:



Blast cleaning of cast steel shot:Used for blast cleaning of casting, die-casting,forging,sand removal of casting, steel plate, H type steel, steel structure.

Shot blasting of cast steel shot:Shot blasting of profile steel,ship board,steel board,steel material.

Shot blasting of cast steel shot:Shot blasting of steel board, profile steel, steel structure.

Pre-treatment of cast steel shot:Pre-treatment of surface, steel board, profile steel, steel structure, before-painting.

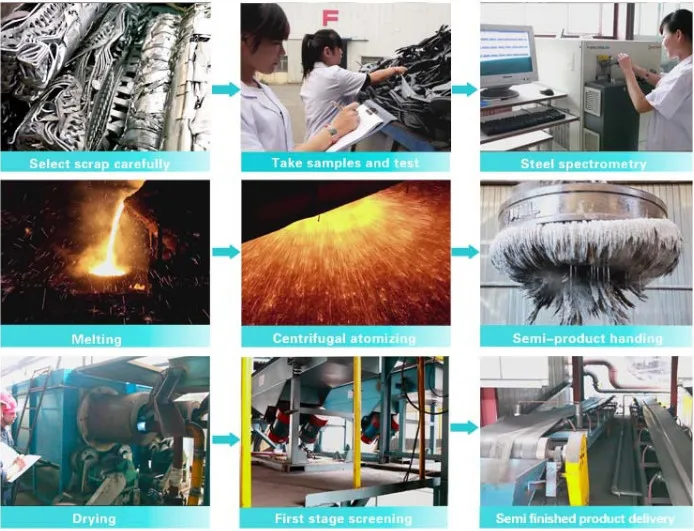

5.Production process:







Shandong Snder Metal Products Co., Ltd. is one of the biggest manufacturers of metal abrasive in China and we integrate technical research, development and production together. We are cooperating with Material Science & Engineering College of Shandong University and are guided by experts and professors in the metal abrasive field.

Our company has developed 8 series products including cast steel shot, cast steel grit, steel cut wire shot, stainless steel shot, stainless steel cut wire shot, aluminum shot, zinc shot, copper shot, and 80 kinds of abrasive products. Our company can produce 150,000 tons of metal abrasive per year. Relying on 200 million Yuan (RMB) of fixed assets, with a yearly turnover of 500 million Yuan (RMB), we are in charge of overseas sale of steel shot and steel grit.

Our main products are cast steel shot, cast steel grit, steel cut wire shot, stainless steel shot, stainless steel cut wire shot, aluminum shot, zinc shot, and copper shot.

Our main products are used in casting, forging, machinery, metallurgy, heat treatment, steel structure, network structure, containers, ships, repair, bridges, and mines, as well as in such areas as clearing sand, rust, and strengthen, shape, and the elimination of all kinds of stress-Materials on the surface of painting, cleaning, and electroplating before roughness (nap) pre-processing, stone cutting, magnetic cast pills. Our products are also used as heavy concrete blast furnace refractories and additives in order to increase wear resistance, high temperature, anti-erosion, electrostatic shielding, radiation protection, oil filter tank, and weight.

Steel Shot Model: S70, S110, S170, S230, S280, S330, S390, S460, S550, S660, S780, and S930

Steel Grit Model: G10, G12, G14, G16, G18, G25, G40, G50, G80, and G120
