PAINT THICKNESS GAUGE CM 8822 F & NFe range 0 1000 um micron
- Category: >>>
- Supplier: Guangzhou Landtek Instruments Co. Ltd.
Share on (60471012956):
Product Overview
Description
Product Description

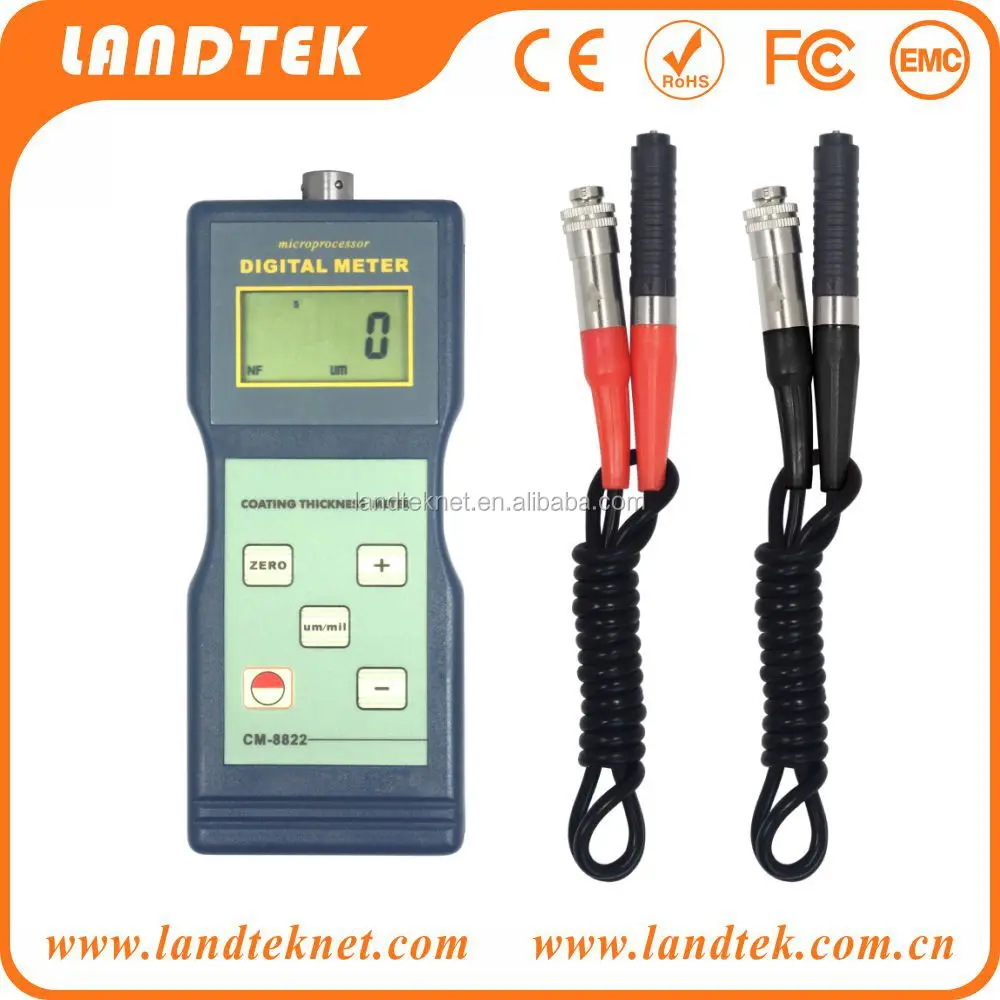

COATING THICKNESS METER CM-8822
Applications:
Measure the thickness of coating on the base.
Used for measuring thickness and corrosion of:
*Pressure vessels,chemical equipment,boilers.
*Oil storage tanks,etc.in industries of petroleum.
*Shipbuilding,power station,and machine manufacturing.
Features:
Measuring method:F probe
Coating:
*paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.(non-magnetic materials)
*alvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer,
copper tile, aluminium tile, some alloy tile, paper etc.
Base:iron, nickle etc.(magnetic materials)
Measuring method:N probe
Coating:anodizing, varnish, paint, enamel, plastic coatings, powder,etc.(non-conductive coatings)
Base:aluminum, brass, non-magnetic stainless steel, etc(non-magnetic materials)
Details:
| Operating Principle | Magnetic Induction / Eddy Current (F / NF) |
| Measuring Range | 0~1000 um / 0~40 mil |
| Resolution | 0.1 um / 1 um |
| Min. Radius Workpiece | F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm |
| Min. Measuring Area | 6 mm |
| Min. Sample Thickness | 0.3 mm |
| Accuracy | ± 1~3%n or ± 2.5 um |
| Auto Power Off | |
| Metric / Imperial | Convertible |
| Battery Indicator | Low Battery Indicator |
| Operating Conditions | Temp. 0~40 °C, Humidity: 10~90 %RH |

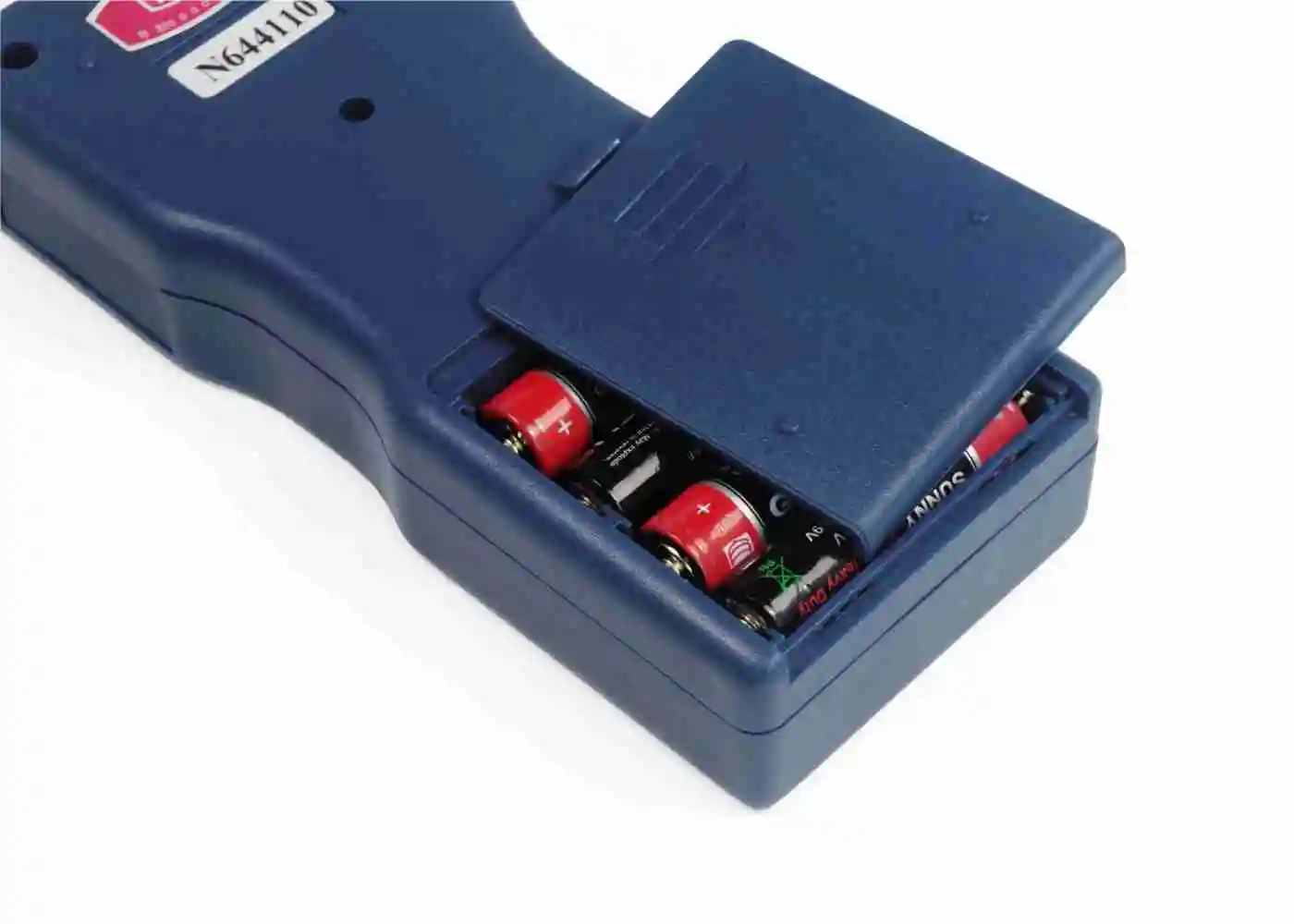

| Power Supply | 4 x 1.5 V AA (UM-3) Battery |
| Dimensions | 161 x 69 x 32 mm |
| Weight | 250 g (Not Including Batteries) |

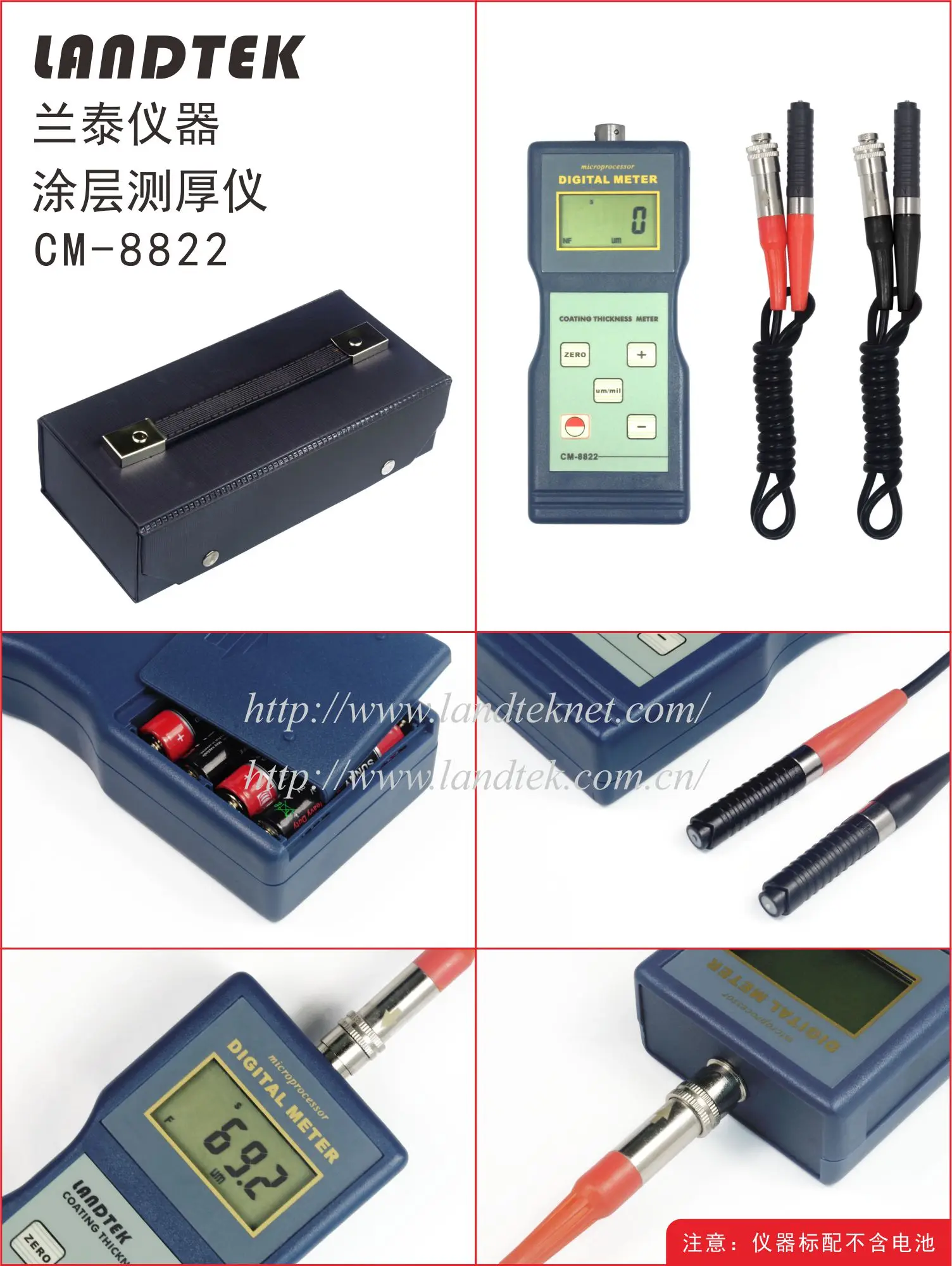

Accessories:
Standard Accessories:
1. Main Unit
2. Probe (F Type / NF Type)
3. Calibration Base Set (F Type / NF Type) CTG-BS
4. Calibration Foils CTG-CF (1 set, 4 pieces)
5. Carrying Case
6. Operation Manual
Optional accessories:
Other range 0~200um to 15000um
Packaging & Shipping
1 unit, the gross weight is 1.0kg. carton size: 27*23*8cm , the volume weight is 1.0kg.
10pcs, the gross weight is 8.0kg. carton size: 45*28*33cm , the volume weight is 9.0kg.
20pcs, the gross weight is 15.0kg. carton size: 45*28*58cm , the volume weight is 16.0kg.
ship by DHL, FEDEX , UPS, AIR, SEA
Our Services
Quality assurance for one year,and forever maintainence.
