LANDTEK Ultrasonic Thickness Tester , ndt equipment TM 8818
- Category: >>>
- Supplier: Guangzhou Landtek Instruments Co. Ltd.
Share on (60471220706):
Product Overview
Description
Product Description

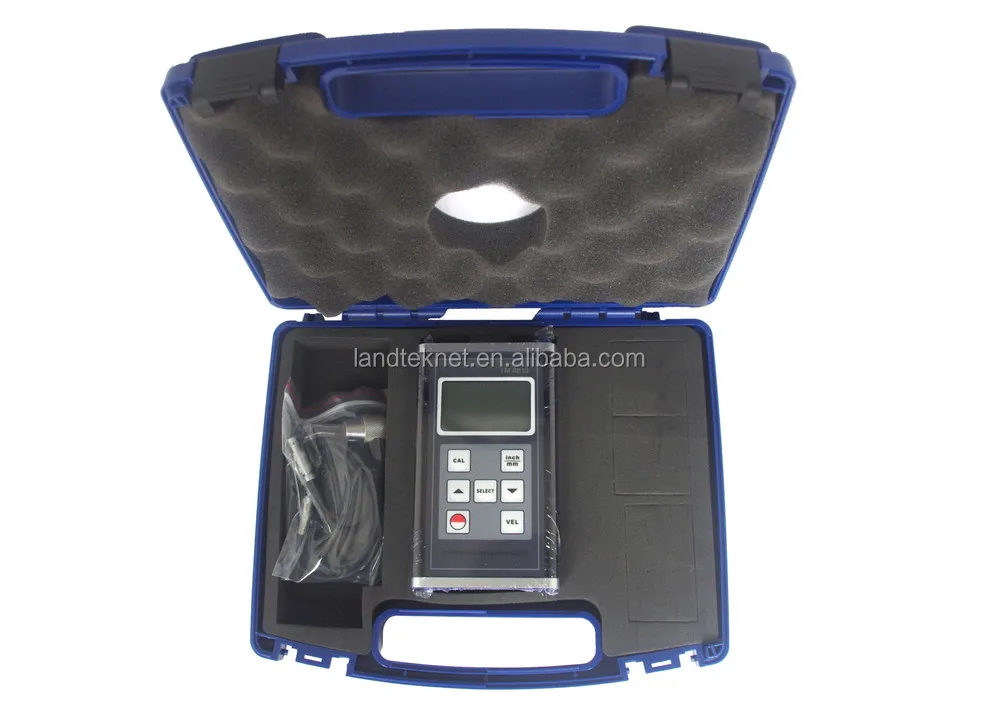

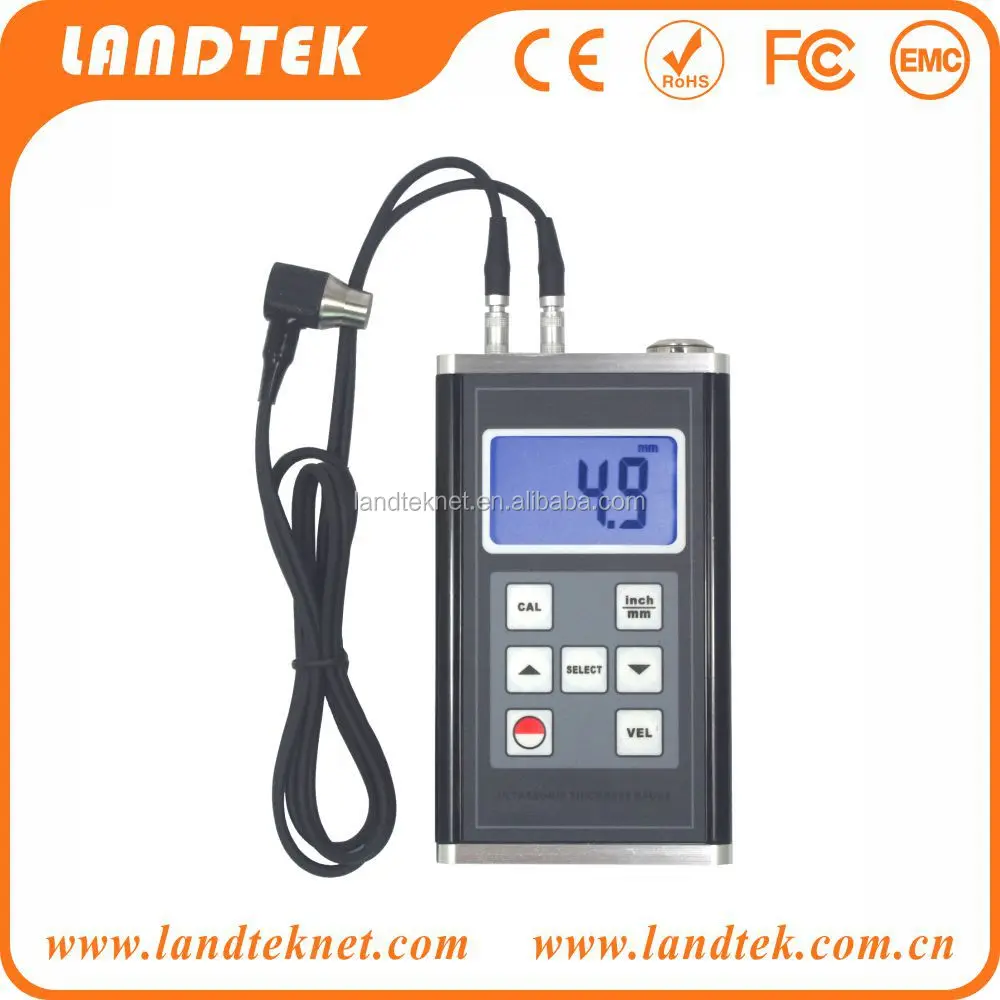

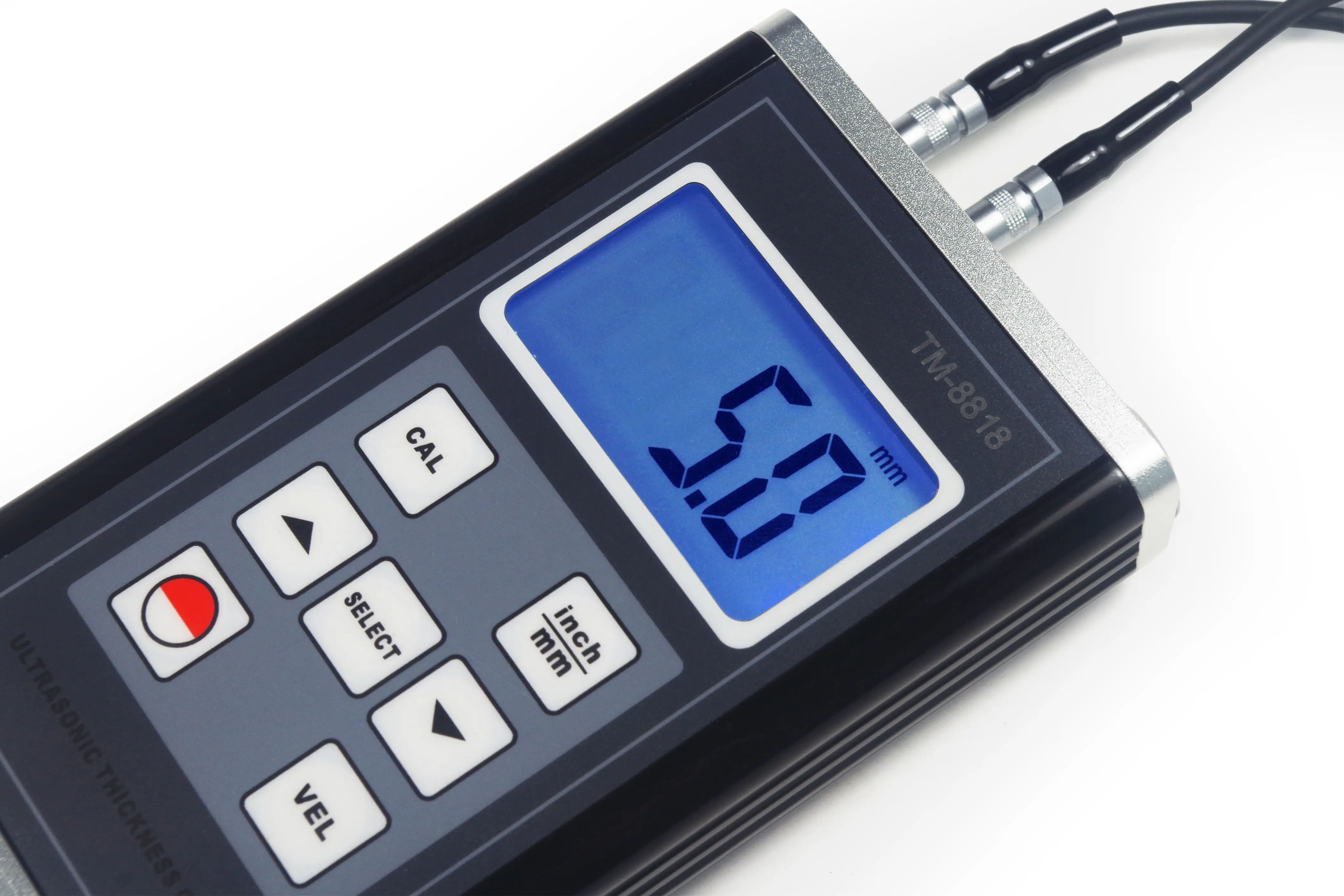

Ultrasonic Thickness Meter TM-8818
Applications:
Used for measuring thickness and corrosion of:
*Pressure vessels,chemical equipment.
*Boilers,oil storage tanks,etc.in industries of petroleum.
*Shipbuilding,power station,and machine manufacturing.
*Measture the cast iron thickness,aluminum thickness,quartz glass thickness,PVC thickness,PE thickness,red copper thickness etc.
Features:
* Using the latest high performance and low power consumption microprocessor technology.
* Bidirectional measurement, for materials within measurement range, thickness is measurable with know velocity, Conversely velocity is measurable with know thickness.
* Automatic memory material code and sound velocity value, convenient to use.
* Coupling symbol indication.
* Automatic power off to conserve power.

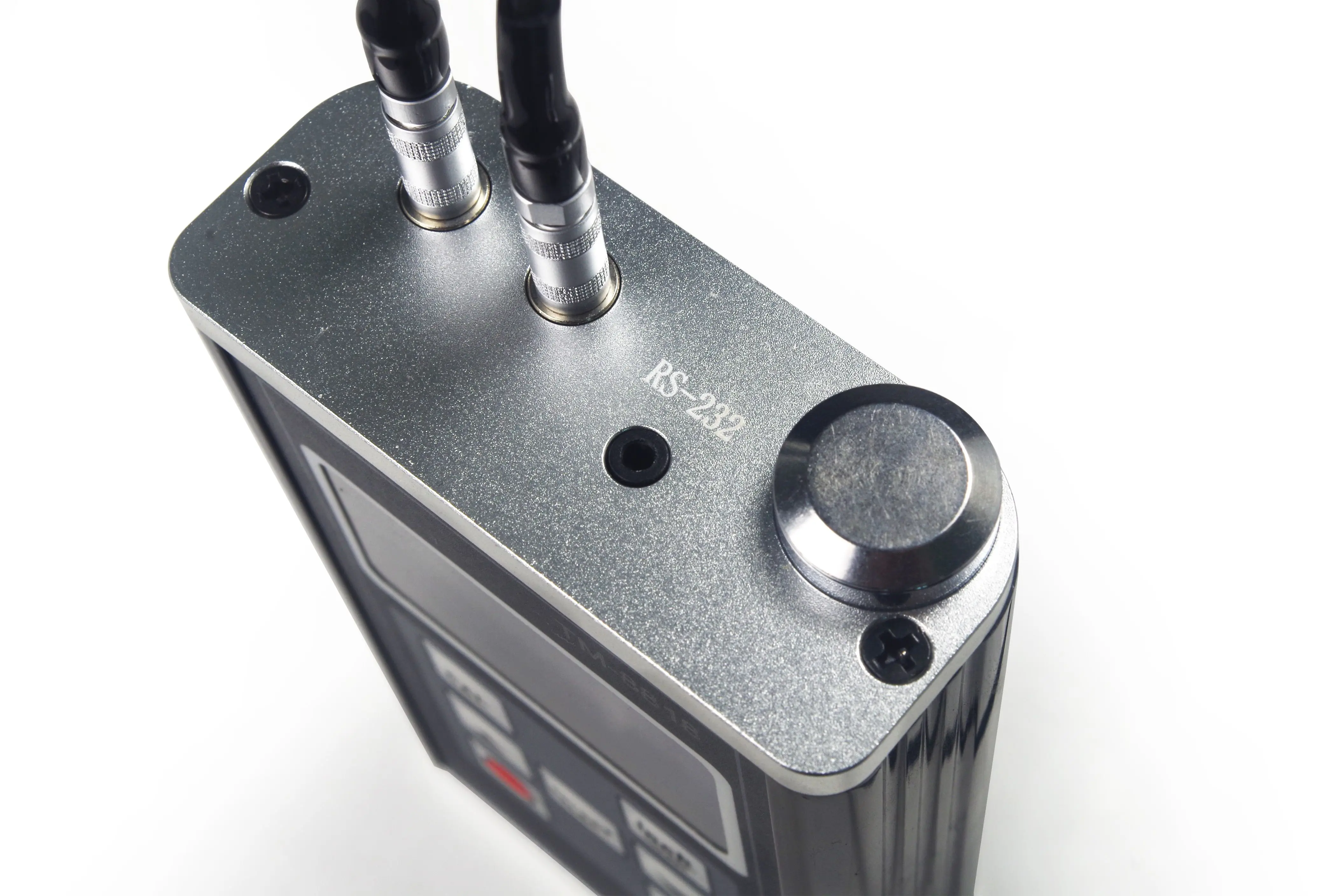

* Use USB data output and RS-232 data output to connect with PC.
Details:
| Case Material | Aluminum Alloy |
| Display | 4 Digit LCD |
| Operating Principle | Ultrasonic |
| Measuring Range (metric / Imperial) | 0.75~400 mm ( 45 # steel, Depend on Probe ) |
| Battery Indication | Low Battery Indication |
| Sound Velocity | 500~9,990 m/s |
| Lower Limit Steel Pipes | Φ20 x 3.0 mm |
| Calibration Block | Included |
| Resolution | 0.01 mm / 0.1 mm |
| Accuracy | ± (0.5%n + 0.05) |
| Automatic memory material code and the value of sound velocity | |
| Power off | Auto Power off & Manual Power Off |
| Operating Conditions | Temperature: 0~40 °C, Humidity: < 85 %RH |
| Power Supply | 2 x 1.5 V AA (UM-3) Battery |
| Dimensions | 130 x 76 x 31 mm |
| Weight | 340 g (Not Including Batteries) |
Packaging & Shipping
1 unit, the gross weight is 1.5kg. carton size: 27*23*8cm , the volume weight is 1.0kg.
10pcs, the gross weight is 12.0kg. carton size: 45*28*33cm , the volume weight is 9.0kg.
20pcs, the gross weight is 22.0kg. carton size: 45*28*58cm , the volume weight is 16.0kg.
ship by DHL, FEDEX , UPS, AIR, SEA
Our Services
Quality assurance for one year,and forever maintainence.
