Product Overview

Description

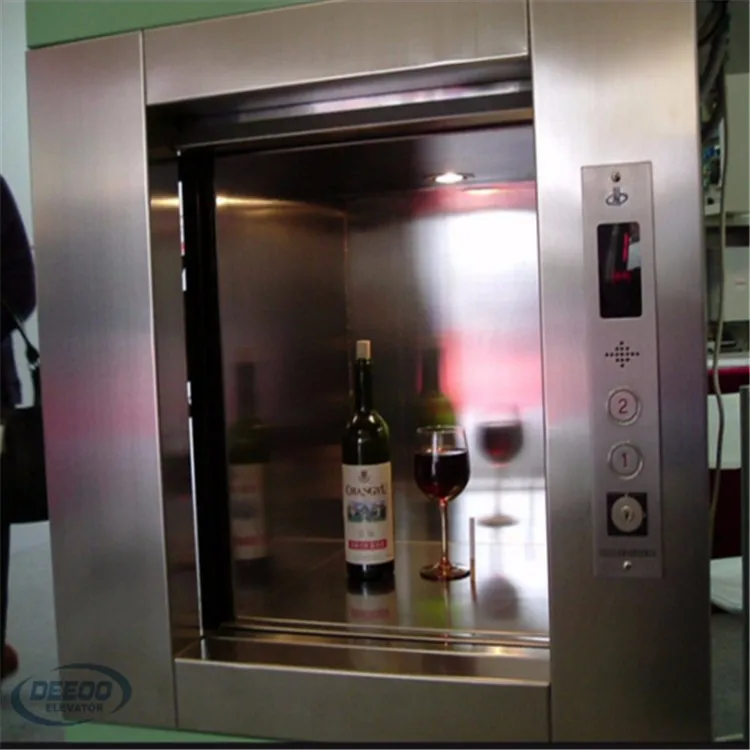

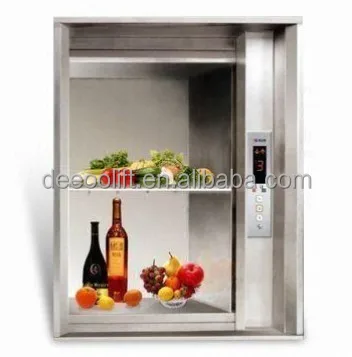

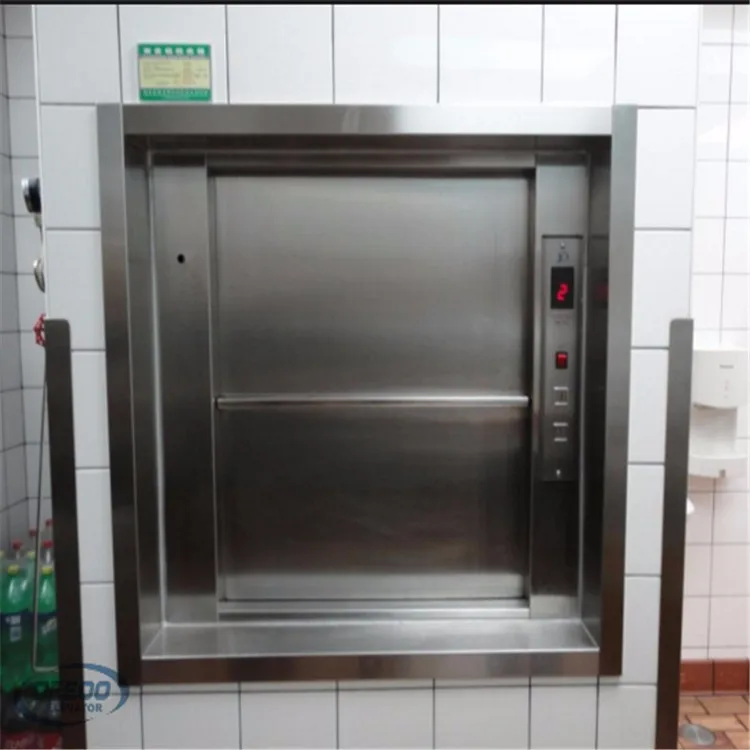

mimi food service elevator restaurant dumbwaiter lift



1. DEEOO elevator restaurant dumbwaiter lift Features

Firm and solid in framework, exquisite and strong in use.

Applies the industrial-level PLC computer control system.

Loading range 100kg~300kg is widely applicable for up and down transport the materials.

Optional door opening types is convenient for goods display.



Personalized car design & door opening types for elevator restaurant dumbwaiter lift

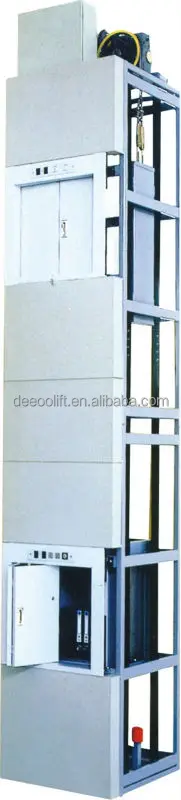

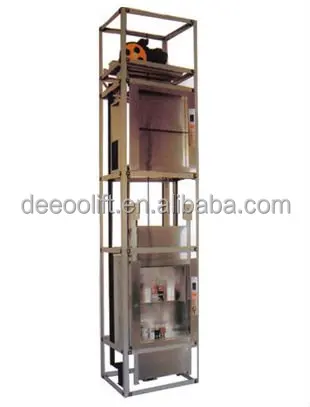

2. DEEOO elevator restaurant dumbwaiter lift Shaft Dimension Figure



Model	Load(kg)	Motor of traction machine(kw)	Area of car (m²)	Car dimension			side counter weight shaft dimension		Back counter weight shaft dimension		Reserved door hole size		Window type C	Floor type D
				Width A	Depth B	Height C	Width A2	Dept B2	Width A2	Dept B2	Width A3	Height H3	Top height H/ Load height P	Top height H/ Pit depth Q
TWJ100/0.4-F	100	1.1	≤0.75	600	600	800	1200	850(900)	1000	1050(1050)	900	1000	3200(3400)/700(700)	2500(2700)/ 700(700)
				700	700	800	1300	950(1000)	1100	1150(1150)	1000	1000	3200(3400)/700(700)
				800	800	800	1400	1050(1100)	1200	1250(1250)	1100	1000	3200(3400)/700(700)
TWJ200/0.4-F	200	1.5	≤1	800	800	800	1400	1050(1050)	1200	1250(1250)	1100	1000	3600(3800)/700(700)	2900(2900)/700(700)
				900	900	900	1500	1150(1200)	1300	1350(1350)	1200	1100	3300(3400)/700(700)	2600(2800)/700(700)
				1000	1000	1000	1600	1250(1350)	1400	1450(1450)	1300	1200	3400(3500)/700(700)	2700(2800)/700(700)
TWJ250/0.4-F TWJ300/0.4-F	250     300	2.2         3.0	≤1	1000	900	1000	1500	1150(1200)	1300	1350(1350)	1200	1200	3900(4100)/700(700)	3400(3500)/700(700)
				1000	1000	1000	1600	1250(1300)	1400	1450(1450)	1300	1200	3300(3500)/700(700)	2600(2800)/700(700)
				1100	1000	1150	1600	1250(1300)	1400	1450(1450)	1300	1350	3400(3900)/700(800)	2700(3200)/700(800)



3. Packaged by Plywood box Package for elevator restaurant dumbwaiter lift.



 4. Deeoo  Certification

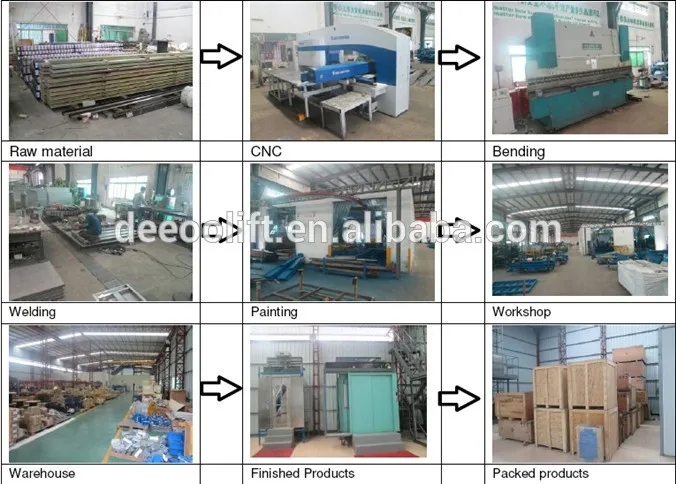

5.  Deeoo Factory Information



FAQ

1, The estimate FOB price will quote after you finish below information

Order quantity(set/sets) :
Capacity (kg) & Speed (m/s) :
Travel floors :
Shaft size (widthXdepth) :
Machine room (Yes or no) :



2, How long is the quality guarantee for the elevator restaurant dumbwaiter lift ?

18monuths since the elevator ex-factory.



3, Would you offer the installation and maintenance the elevator restaurant dumbwaiter lift?

We will provide manuals and technology support. The local elevator technician can manage well by the guidance. Also we can send our engineers to do the job but the cost will pay on your side.
