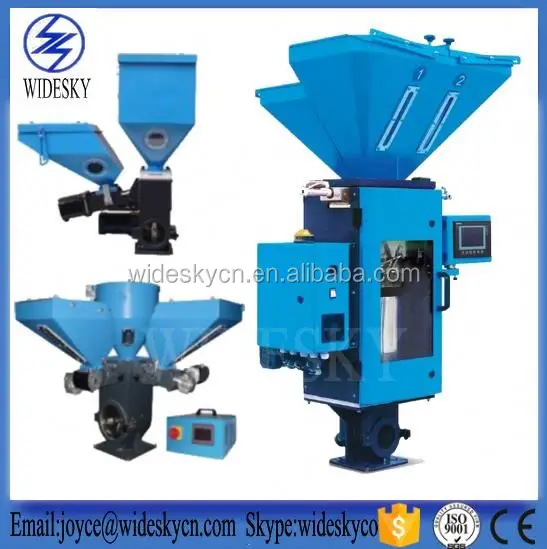

50kg 100kg 150kg 200kg 300kg capacity low noise industrial plastic color mixer
- Category: >>>
- Supplier: Shenzhen Widesky Machinery Co. Ltd. [Guangdong China]Shenzhen
Share on (60471379491):
Product Overview
Description
Product Description
BIG VERTICAL COLOR MIXER
*Thickness of big bucket is from 1.2 to 2.5mm,screwing leaves thickness is 3mm
*Screwing pole diameter is 76mm.

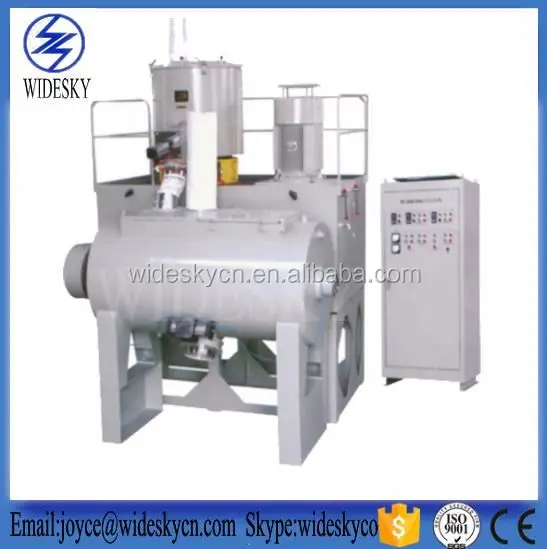

COOLING MIXER
SRR series mixed unit is applicable for mixture, coloring and cooling of various resin such as polyethylene,polypropylene, polyvinyl, chloride etc. And in the process of drying and volatilization of engineering plastic such as ABS, polycarbonate etc. Before forming and processing as well as in the mixture of phenolic resin.
Uses:
plastic used for a variety of ingredients, mixing, cooling, coloring, CaCO3 activating and other technology.
Production profile, ideal for tube equipment.
Spindle seal by national patent.
lid sealed dual Road. Also the use of cold mix arched lid, not easy to deformation.
has a compact structure, beautiful appearance and so on.
blades through static and dynamic balance test.

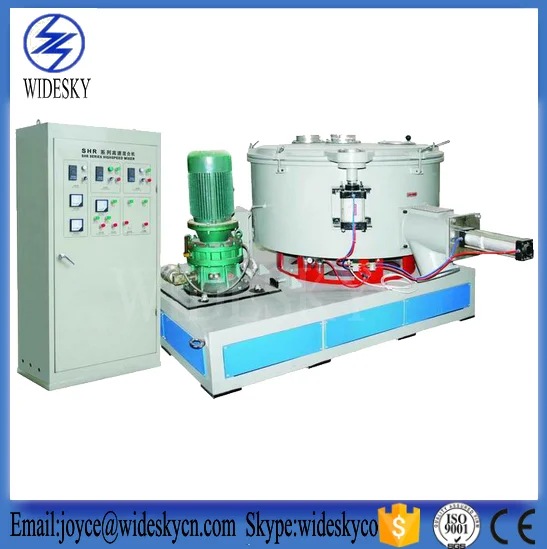

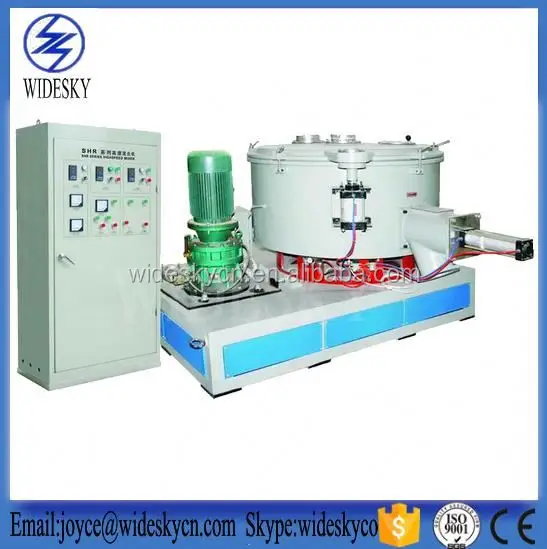

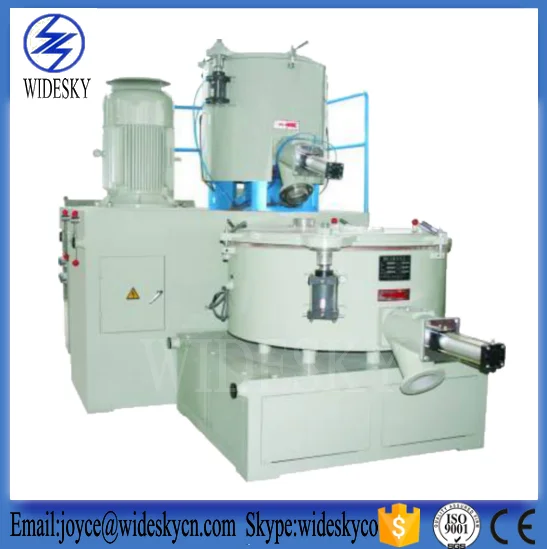

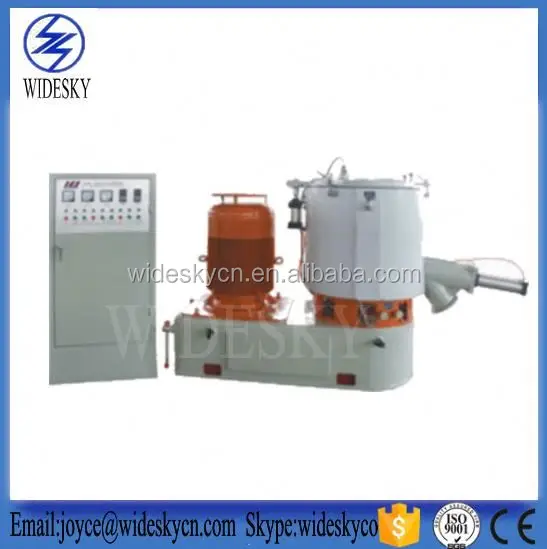

HIGH SPEED MIXER WITH COOLER

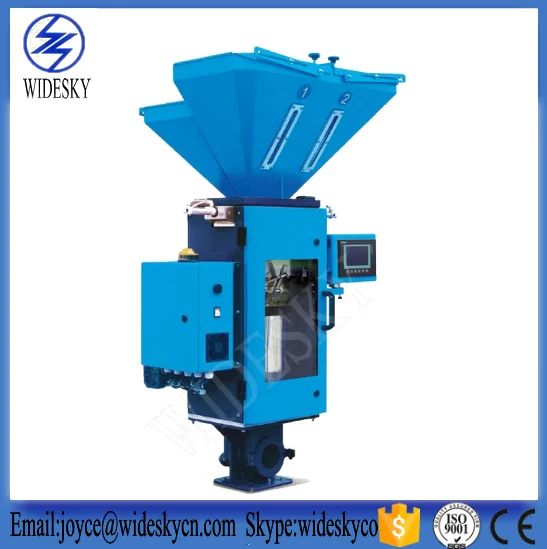

Gravimetric mixer
1.Description
SGB series gravimetric mixer can be used in the fields of injection moulding machine, blow moulding machine and extrusion lines for proportionally precise mixing of several types of material. The series machines adopt siemens PLC controller and lastest ingredients calculation methodes. the machine is controlled by an adnabce microprocessor with a digital display that is simple to calibrate.
2.Feature
①Evenly mixing of the material after accurately weighing.
②Auto calibration after each material weighting ensures accuracy.
③Up to 100 recipes can be stored for later use.
④Alarm log function
⑤All parts detachable for easy cleaning.

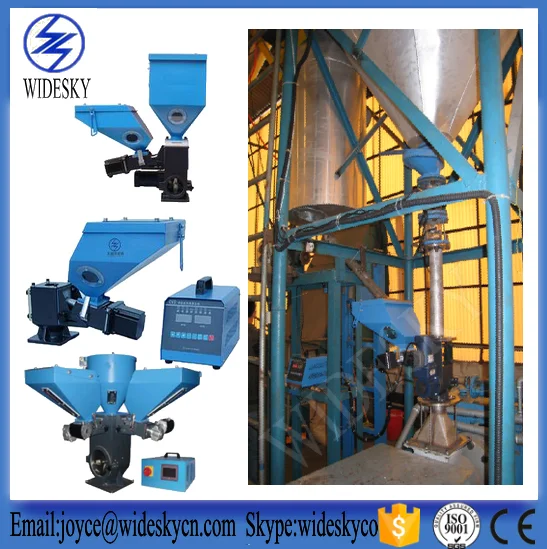

Volumetric Dosers (Plastic Volumetric Flask )
CVD-D-MX SERIAL
Introduction

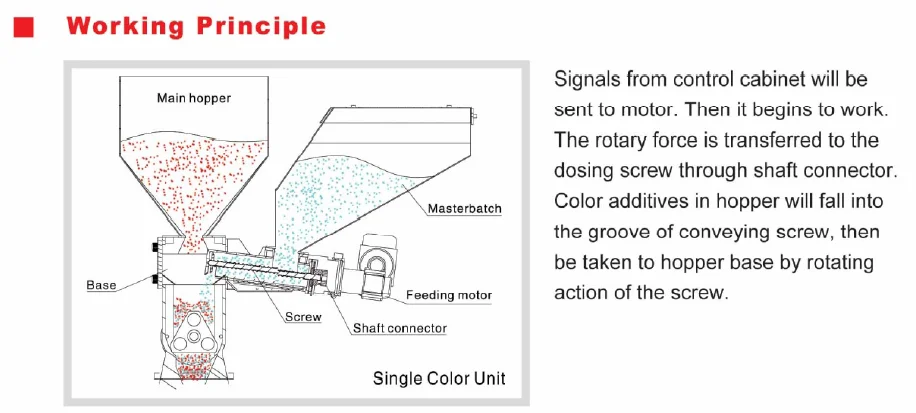

CVD series volumetric dosers are suitable for auto-proportional mixing of virgin materials, regrinds, master- batch or additives. A gear motor with gear ratio of 38 : 1 or 75:1 is coupled to a dosing screw of 12,14 or 16mm diameter to give a total of six models with output. ranging from 0.1~32kg/hr. Double color dosers can be assembled from two single color dosers if required. Five components automatic mixing can be realized if customers adopt four color dosers.
Features
Dosing screws are chrome plated for durability.
Unit is comprised of standard modules for ease of cleaning, disassembly and interchangeability.
Three-tube hopper magnet is equipped at the base of single color doser to absorb metal impurities so to prevent screw of moulding machine from damage.
Blender is a standard equipment for double color doser to make the material evenly mixed, while also a optional equipment for single color doser to do so.
Main material hopper is a standard equipment for double color doser. It is optional for single color doser.
External signals can be directly interfaced with control box.
The current operation mode can be recorded, unaffected by power failure so operation would be returned to normal when power is on.
Forced material cleaning is convenient to replace masterbatch.
Applicable on extrusion machines, just need to make a few wire replacements.
Rotating speed can be automatically adjusted according to extruder processing speed, which maintains the fixed proportion of masterbatch.
50units of parameter recipes are available for permanently recording the period of material discharging &finished products weight
Use brushless DC motor and free from maintenance.
Both master blockage and overload can be detected, then machine will halt and sound alarm.
Based on customers demand, some mold cycles can be set to add additives periodically so that micro-metering can be achieved.
Packaging & Shipping
Package: The normal package is wooden box. If export to countries which have special standard , the wooden box will be fumigated. If container is too tight,we will use pe film for packing or pack it according to customers special request.
Delivery: 30 days
Our Service
Services of WIDESKY Machinery Co.,LTD
1.Delivery in time;
2.15 moths warranty;
3.24 hours online service;
4.Sales department and warehouse in Dubai to provide good ;
5.Oversea engineers service team, can supply the professional technology support .
During the guarantee period, WIDESKY will provide spare parts without any charge in case of quality discrepancy caused by us, In the middle east,we have aftersales team, who can service the middle east customers directly.
We will charge the buyer cost price of spare parts beyond guarantee time and provide lifelong service.
