--Products Description--

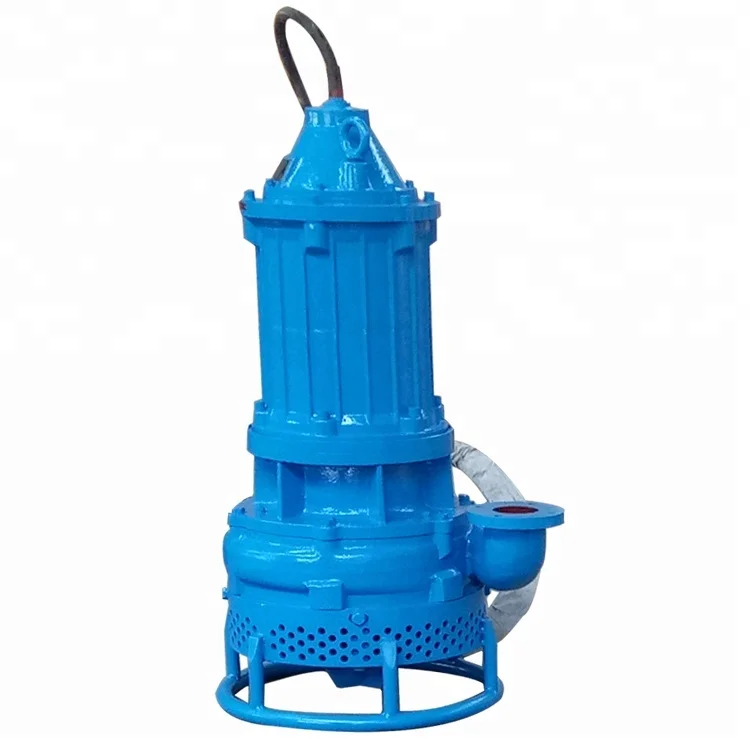

This Submersible Slurry Pump is a vertical single-stage and single-suction cantilever type centrifugal pump. The impeller is a semi-open impeller and is equipped with stirring blade at the edge extension of the impeller suction. It is mainly used in environmental protection, municipal engineering, thermal power plant, gas coking plant,and other industries.


Features


-It adopts vertical cantilever type and single pump shell structure.

-Simple bearing assembly, high capacity bearing design and wear resistance.

-The gap between the impeller and the guard plate can be adjusted to ensure the efficient operation of the pump.

-The motor is anti over-loaded motor with water-proof function.

-Low rotation speed ,980rpm, better wear resistance and long service life.

-No limited by suction lift. sand suction efficiency is high, dredging is more thorough.

1.Higher efficiency and wear resistance.


--Product Paramenters--




Model
Outlet Dia. (mm)
Capacity (m³/h)
Head (m)
Power (Kw)
Speed (r/min)
Max.Dia.of Solid (mm)
Pump Weight (kg)
SS45-15-5.5
80
45
15
5.5
1460
13
100
SS15-20-5.5
80
15
20
5.5
1460
13
100
SS30-30-7.5
80
30
30
7.5
1460
13
114
SS50-26-11
80
50
26
11
1460
13
165
SS75-25-15
100
75
25
15
1460
13
220
SS150-18-18.5
150
150
18
18.5
980
32
550
SS200-12-22
150
200
15
22
980
45
580
SS60-46-30
150
60
46
30
980
21
700
SS150-30-30
150
150
30
30
980
21
550
SS300-20-37
200
300
20
37
980
28
775
SS200-30-45
150
200
30
45
980
36
1000
SS500-15-45
250
500
15
45
980
46
1100
SS250-35-55
150
250
35
55
980
36
1140
SS600-15-55
250
600
15
55
980
46
1140
SS350-35-75
200
350
35
75
980
28
1550
SS500-20-75
200
500
20
75
980
25
1550
SS200-60-90
150
200
60
90
980
14
1550
SS400-40-90
200
400
40
90
980
28
1550
SS600-30-110
200
600
30
110
980
28
1970
SS1000-18-110
300
1000
18
110
980
50
1970
SS500-45-132
200
500
45
132
980
28
2000
SS1000-22-132
300
1000
22
132
980
50
2000
SS650-52-160
200
650
52
160
980
28
2650
SS780-50-185
300
780
50
185
980
38
3330
SS800-55-220
300
800
55
220
980
38
3400
SS1250-35-220
350
1250
35
220
980
45
3400
SS1750-30-250
350
1750
30
250
980
55
3500
SS2000-35-315
400
2000
35
315
980
60
3700

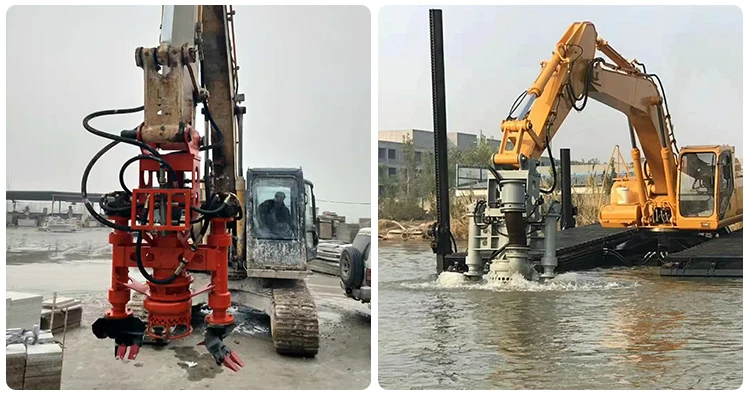

--Application--






--Our Company--










Our service - professional attentive
* Perfect Quality Control-- We own professional quality management and process inspection team
* Fast High Quality Service--In the process of service,the demands of all customers can be solved quickly and effectively.
* Supply Support Capacity--We ensures the products with good quality,suffcient quantity and diversification.
* Excellent Cost Performance--Provide the most excellent products,the most favorable price and the most perfect service to all customers.


--FAQ--


Q1: What is your product range?
A:Centrifugal pump includes slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, self-priming pump and diesel engine pump.

Q2: What’s your MOQ , payment term and lead time?
A:MOQ for centrifugal pump is 1 set.

Q3: What payment methods are supported?
A: Payment Term: T/T, L/C, Western Union, Paypal and Trade assurance.

Q4: How long is the lead time?
A:In general 7 working days for slurry pump, 15 working days for water pump.

Q5: What information I need to offer for quotation?
A: Liquid:___ ; Pump Capacity___m3/h ; PH:_____ ; Pump Head: ___m ; Specific of gravity___ ; Voltage ___V ; Frequency ___Hz

Q6: Is OEM parts available ?
A:Yes, please send me the detailed drawing. Different materials is available.
