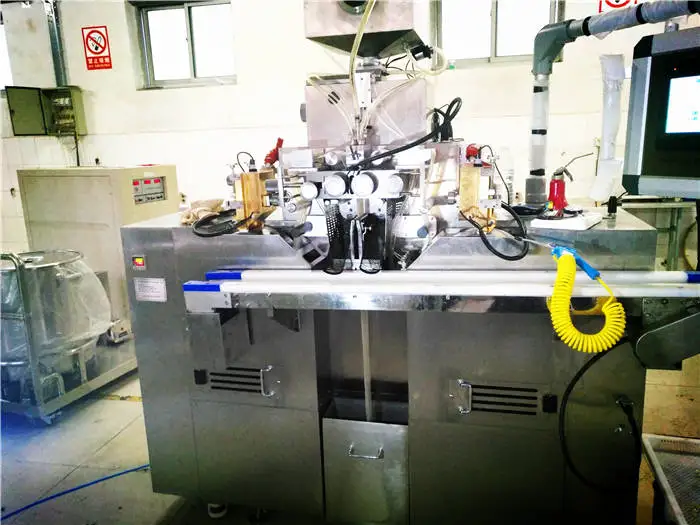

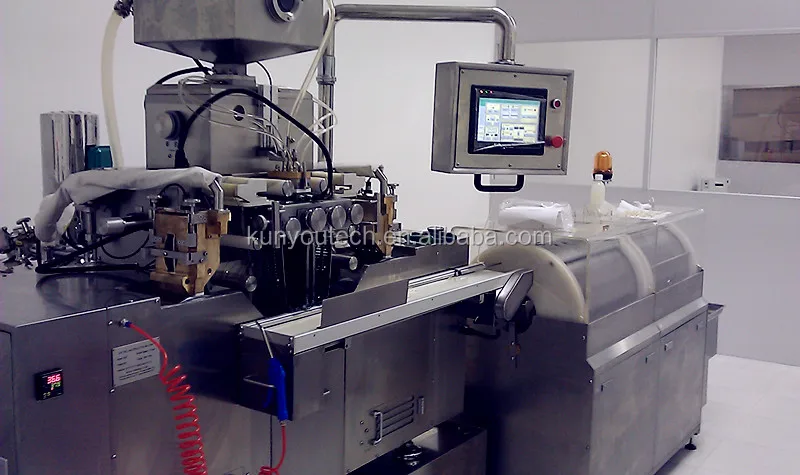

S403 R&D Laboratory is an experimental softgel encapuslation machine designed especially for R&D department of laboratories, pharmaceutical factories in the universities and plant health products and Research Institutes.
Characteristics:
Pneumatic die press system, pneumatic wedge up and down, independent driven capsule stripper.
Important parts use aviation grade high wear-resisting material
Main shaft run out and parellelism within 0.02mm
All bearing use well know brand
Medicine pump dosing deviation less than 1.5%
Worm gear, gear and shaft adopt special material with high accuracy and long service life
Gelatin ribbon micro lubrication system
Main shaft, mangle roller, colling drum driven by independent motor, speed controlled viafrequency inverter.
Precision PID temperature control of the medicine hopper, injection wedge and spreader box.
Medicine hopper adopts thermal insulation design.
PLC and touch screen control, with functions of failure diagnosis.
Specification
Model
S403
Die roll size
Ø80X100mm
Die roll speed
0~5rpm
Overall dimension
1650×800×2050mm
weight
600kg
Power supply
380V/240V,50/60HZ
Power consumption
3kw
Control model
PLC+Touch Screen/switch
Company Information
Beijing Kun You Pharmatech Co., Ltd. devotes itself to manufacture softgel encapsulation line, tumble dryer, softgel mould, softgel sorting machine, softgel auxiliary equipment, paintball production line, and related technique R&D.
We also accumulated rich experience of softgel encapsulation technique. We have many sets of high-precision CNC and auxiliary equipments, and our professional design, technology, production and service personnel, enable us to produce high performance equipment, mould and top quality service. We are not only a equipment and mould supplier, but also a turn-key solution and formula provider.Easpcially in veggie gel capsule.
Kun You is keeping good cooperation relationship with companies from USA,Swissland, Germany, Canada, Russia, Mexcio, Vietnam, Turkey, Brasil, India, etc., in the meantime, our products and service have been exported to those regions too.
FAQ
Q1:Are you factory or trading company?
A: We are factory and manufacture.
Q2: Where is your factory located? How can I visit your factory?
A: We are located in Beijing, you can fly toBeijingairport or Nanyuan airport. Wecan pick you up from the airport or your hotel.Welcome to visit us!
Q3:How to place my order?
A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q4 : What is the payment term?
A: 30% T/T deposit and 70% T/T balance payment before shipping.
