12v 230V ac thermal electric linear actuator

1. Long service life of 100,000 hours.

2. High degree of safety,  the housing material of anti-flammable PC at grade of V0 and its inside parts by using special material of PA66+30%GF,Nylon+30%fiber, with its anti-flammable at grade of V0(the highest level) for heat resistant and anti-deformation,as well as anti-cracking while heat and cold transfer.

3. High quality of cable---heat resistant & cold resistant.The thermo bulb is possible to reach temperature of 85 ℃ max. ,our cable temperature range of -20~125 ℃ in case short-circuit due to over heat. It is very safe to use and with long service life.

4. Low power of 2W.

5. Working theory:mechanical therory

Voltage: AC230|V

Power consumption: 2W

Force: 110N

Stroke: 3.5~4.0mm

Running time: 3.5--4.0min

Valve interface: Cap nut M30X1.5mm

Housing material: anti-flammable PC Grade of V0(the highest level)

Inside parts material: PA66+30%GF,Nylon+30%fiber, anti-flammable at grade of V0(the highest level).
Length of cable: 1000mm.

Power:2W

Force: 110N

Ambient termperature: -5℃~60℃

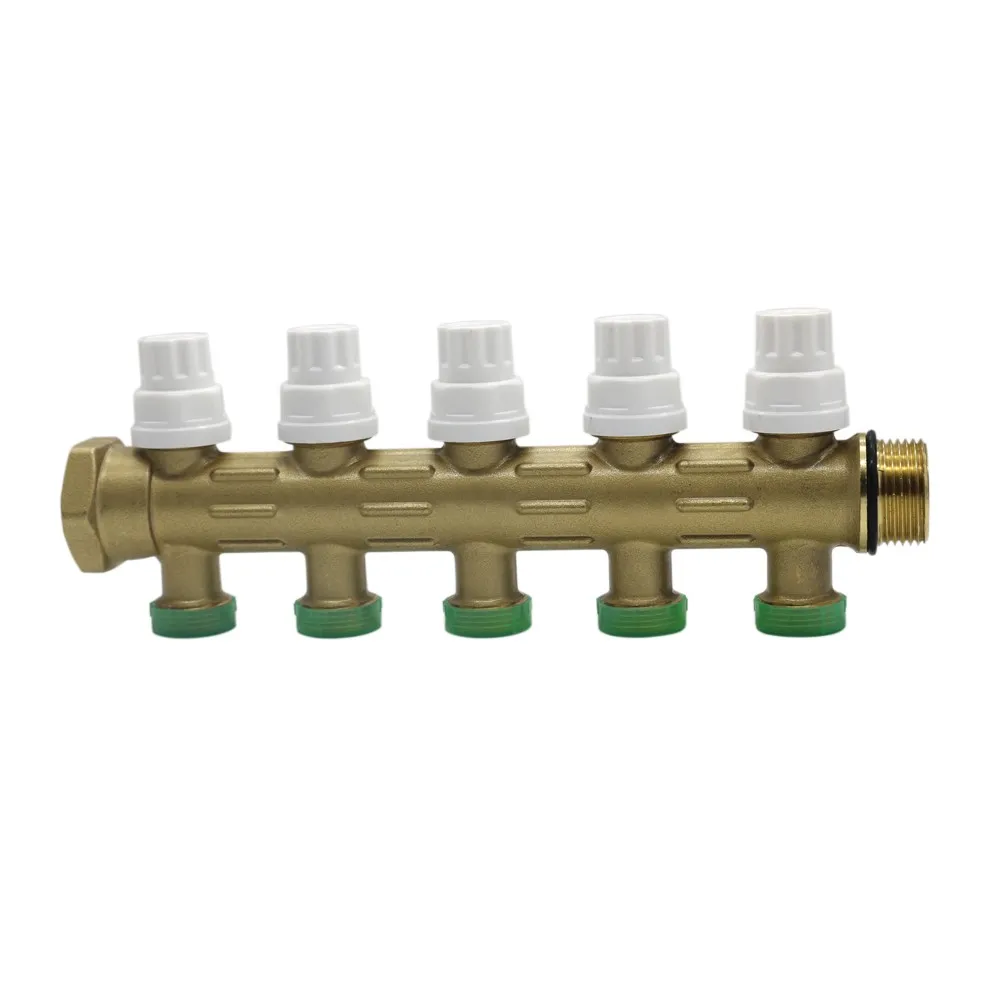

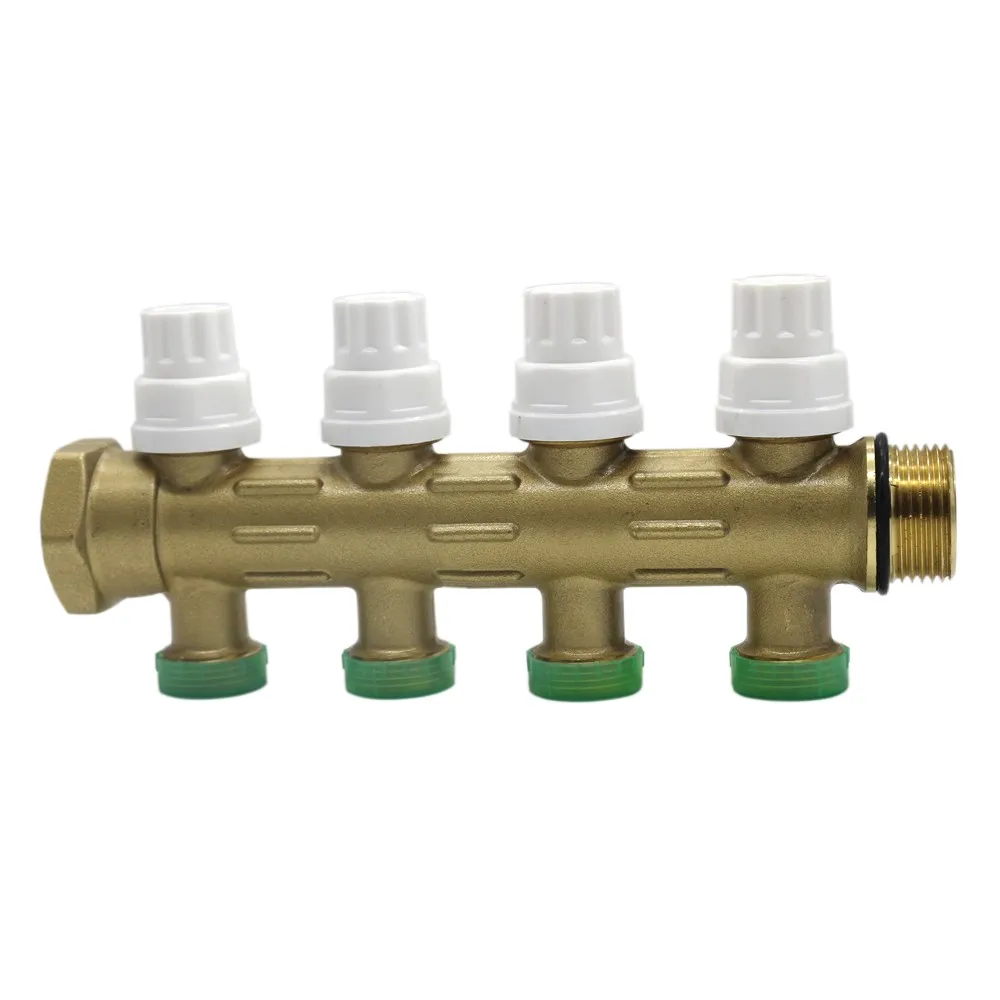

Product display
