Share on (60471591766):


Price:RUB 286,284.02

Quantity:


Product Overview

Description

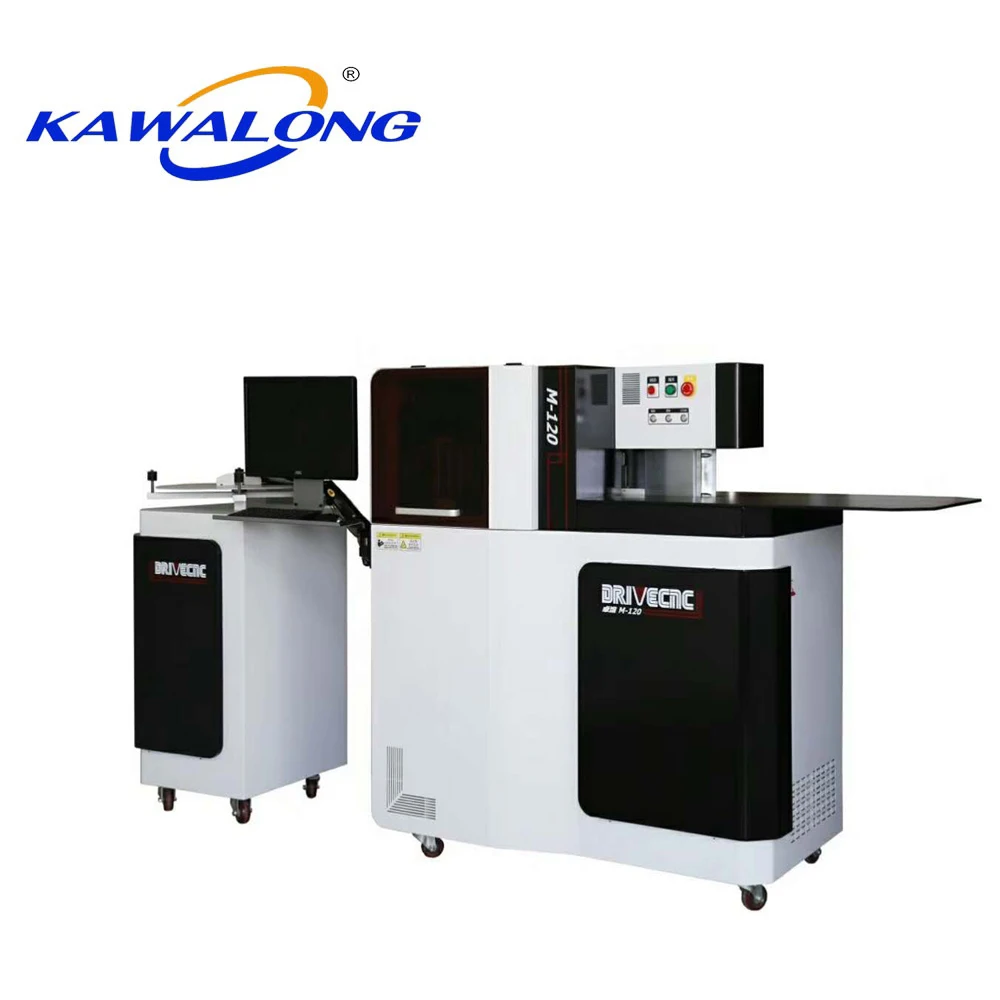

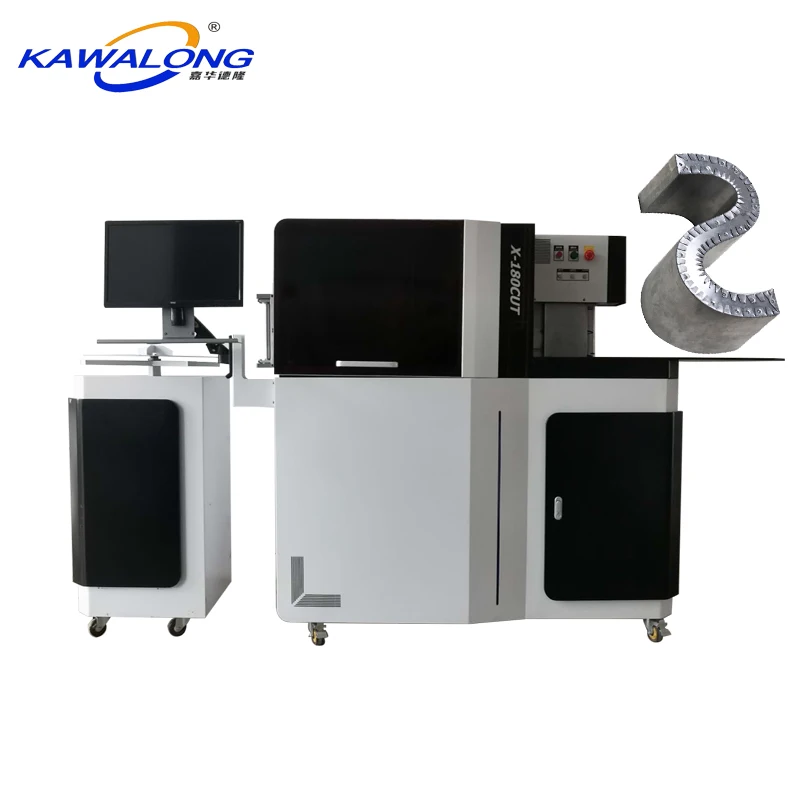

X180CUT Channel Letter Flanging Bending Machine

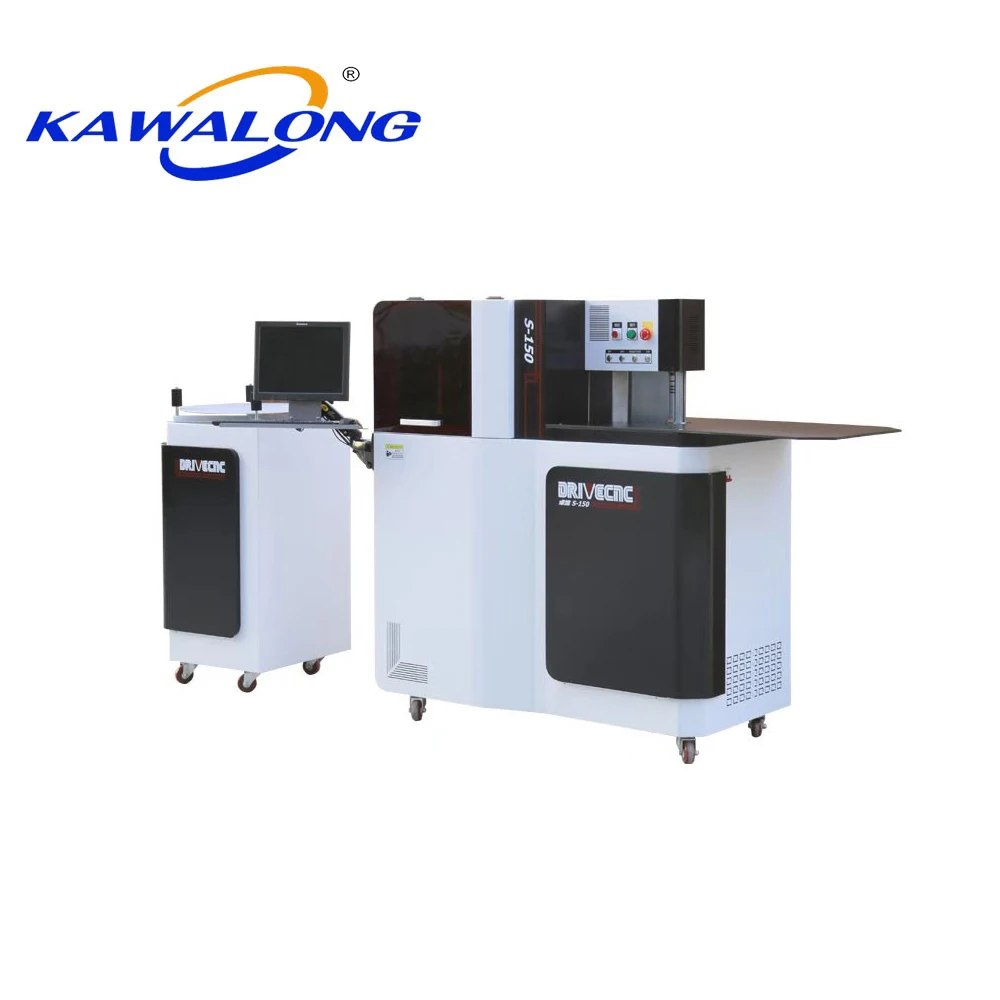

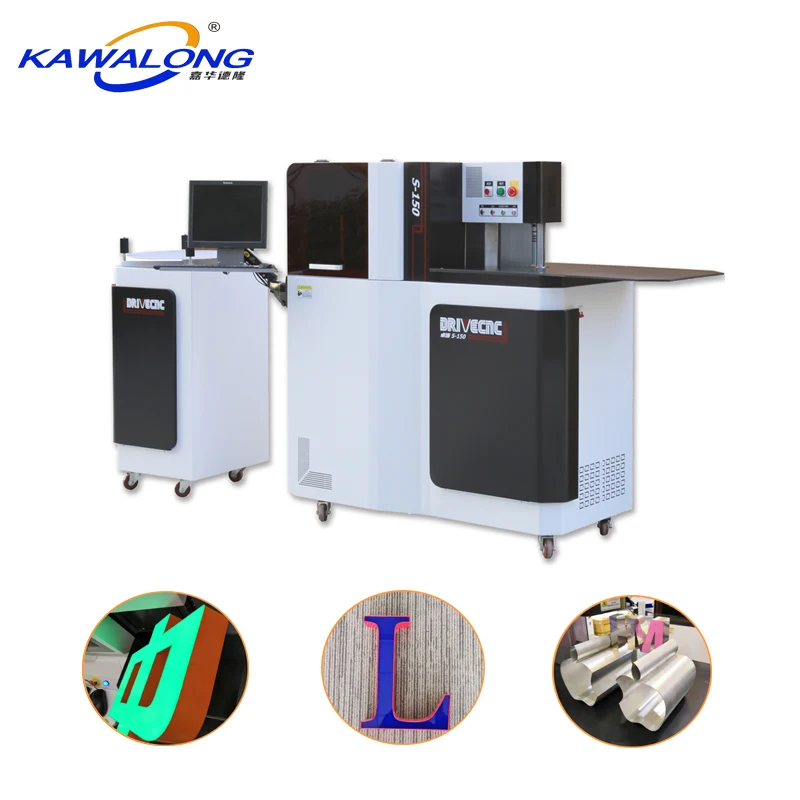

SS and Aluminum 3d Signage All in one Channel Letter Bending Machine S150
Specification
S-150  Technology Parameter
Function
Automatic feeding,Automatic slotting and Automatic bending
Applicable Materials
Folded aluminum, flat aluminum, profile aluminum ,stainless steel and galvanized
Material Width
20-150mm
Materials Thickness
stainless steel(0.3-1.0mm)
aluminum (0.6-1.5mm)
galvanized iron (0.4-1.0)

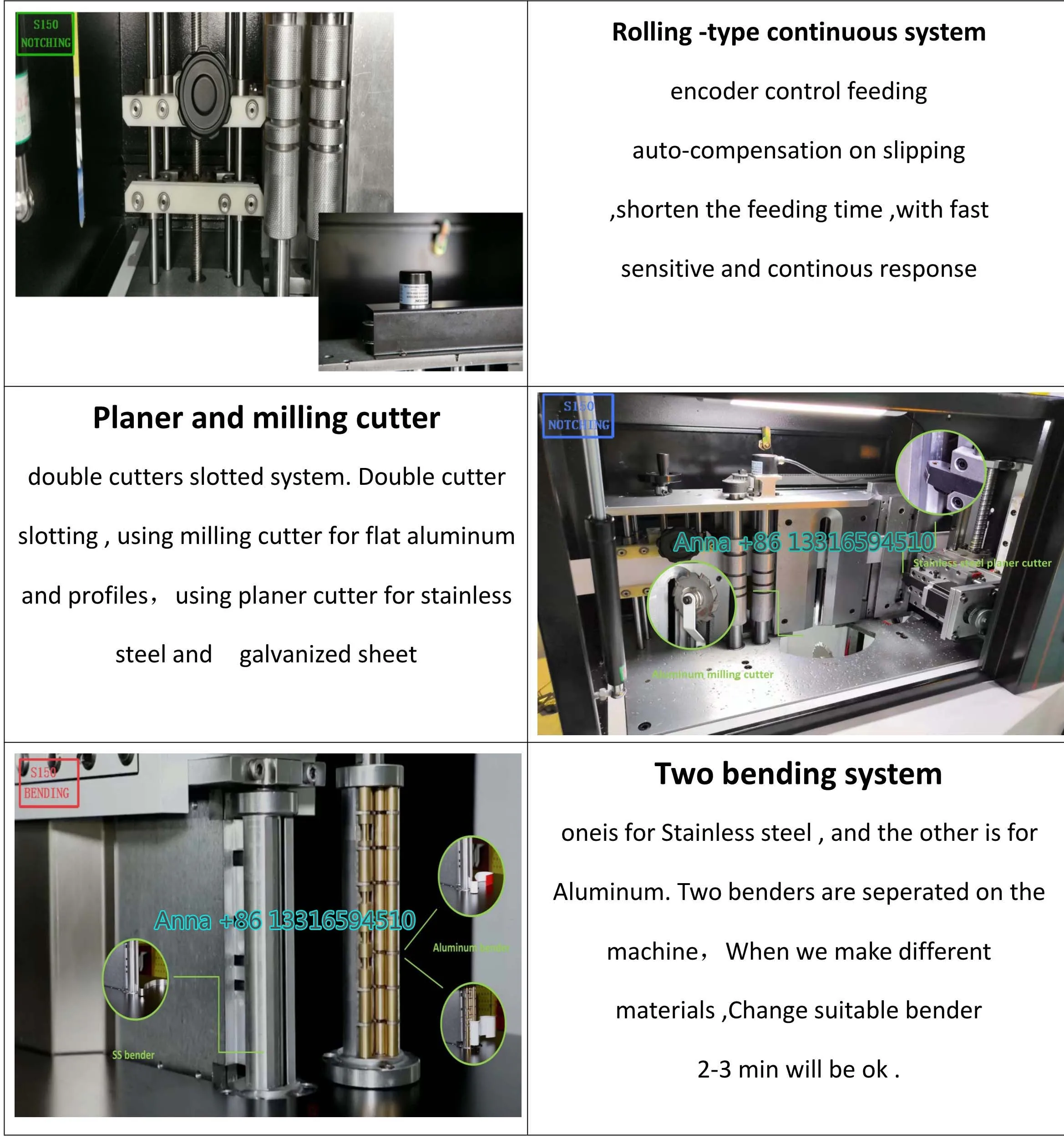

Feeding system
Rolling -typed continuous feeding system
Slotting system
Plane&Milling cutter slotting system
Bending system
Double roller bearing extruding bending system for SS and alu
Accuracy
±0.1mm
Bending Radius
≥10 mm
Input file format
PLT,DXF,AI,
Power
AC 220V/50HZ/ 3.5KW
Air supply
0.6-0.8MPa
Control system
Leetro CBS4
Weight
350kgs
Packing size-mm
L2100*W800*H1600
X180 CUT Technology Parameter









Hardware
Feeding system
Precision screw transmission and mechanical arm alternatively feeding structure (closed loop self-test system)
Slotting system
Hard alloy planer
Notching structure
Notching by air cylinder
Flanging structure
Pneumatic flanging by air cylinder
Bending system
Double -pole alternate part-arc institution and patented alternative arc-extrusion structure
Driving motor
Servo motor 3 set; stepper motor 1 set
Weight
800kg
Dimensions
Body:L2140mm*W700mm*H1560mm;Feeding tableL500mm*W500mm*H1100mm





Performance
Material category
Flat aluminum /Stainless steel / Galvanized plate (height: 20-180mm)
Material thickness
Flat aluminum :0.6 -1.5 mm/ SS : 0.3-1.2mm / Galvanized sheet: 0.4-1.2mm
Flanging thickness
Flat aluminum 0.8mm
Notching angle
30° / 120°
Flanging width
10mm
Support format
Al / PLT / DXF / NC
Feeding accuracy
Length j+0.1mm Radius > 4mm


Software
Control card
Leetro Four -axis motion control card
Software system
Auto drive / CBS4 auto bending system
Input voltage
220V 50Hz 3Kw
Air pressure
0.6-0.8Mpa

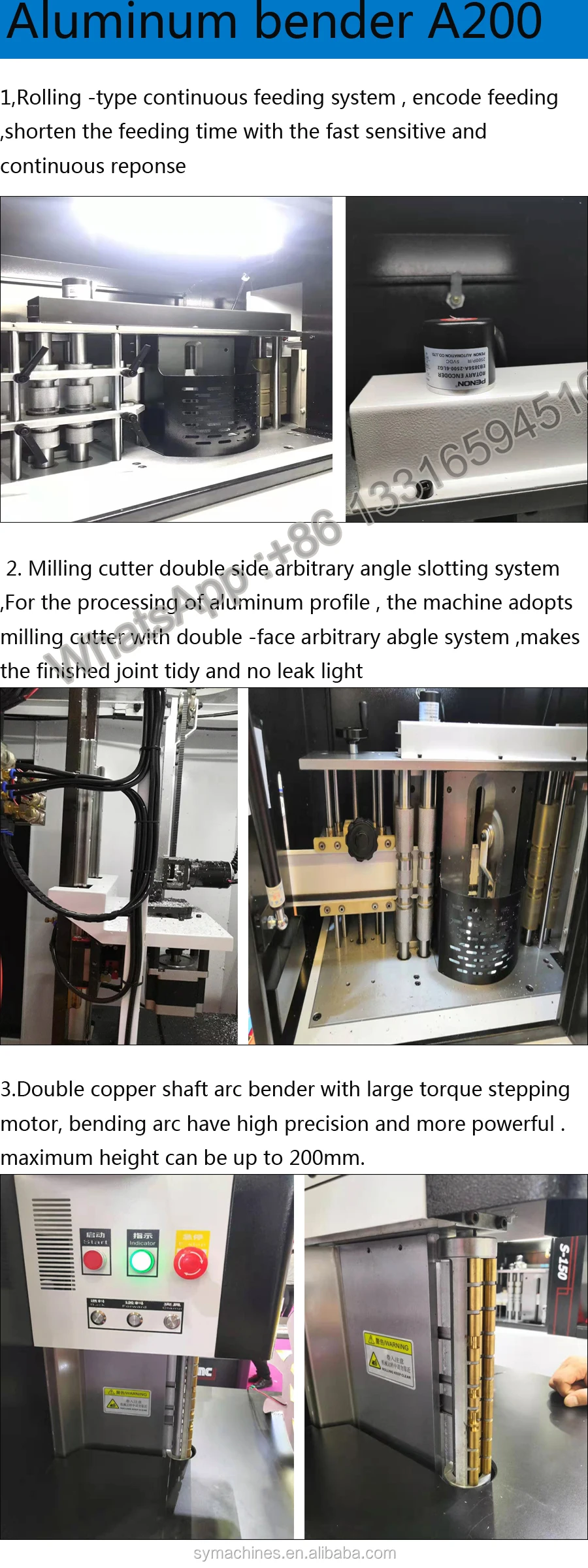

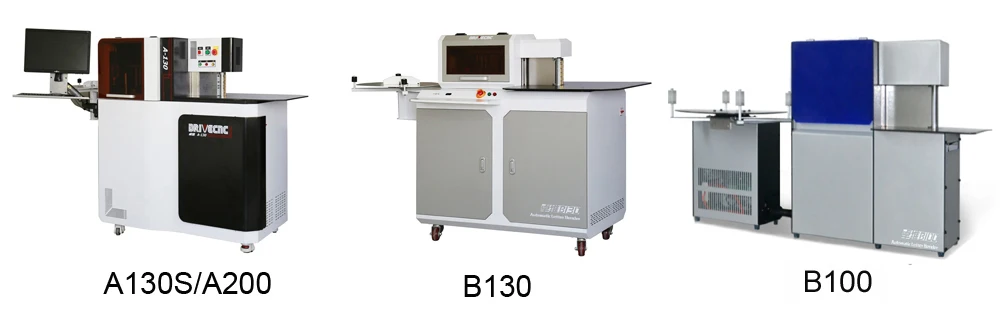

Aluminum Letter Bending Machine
MODEL
A-200
A-130S
B-130
Function
Automatic feeding,slotting and bending
Applicable Materials
Alu= aluminum
Folded alu , flat alu , profile alu and profile with PVC and foam
Folded alu , flat alu , profile alu

Folded alu , flat alu
Material Width
20-200mm
20-130mm
20-130mm
Materials Thickness
0.5-1.2mm
0.5-1.2mm
0.5-1.2mm
Feeding system
Rolling -typed continuous feeding system
Slotting system
Milling cutter double side arbitrary angle slotting system
Bending system
Double roller bearing extruding bending system
Accuracy
±0.1mm
Bending Radius
≥7 mm
≥4mm
≥7mm
Input file format
PLT,DXF,AI,
PLT,DXF,AI,
PLT,DXF,AI,
Power
AC 220V/50HZ/ 3KW
AC 220V/50HZ/ 3KW
AC 220V/50HZ/ 3KW
Packing & Delivery
Machine Feature

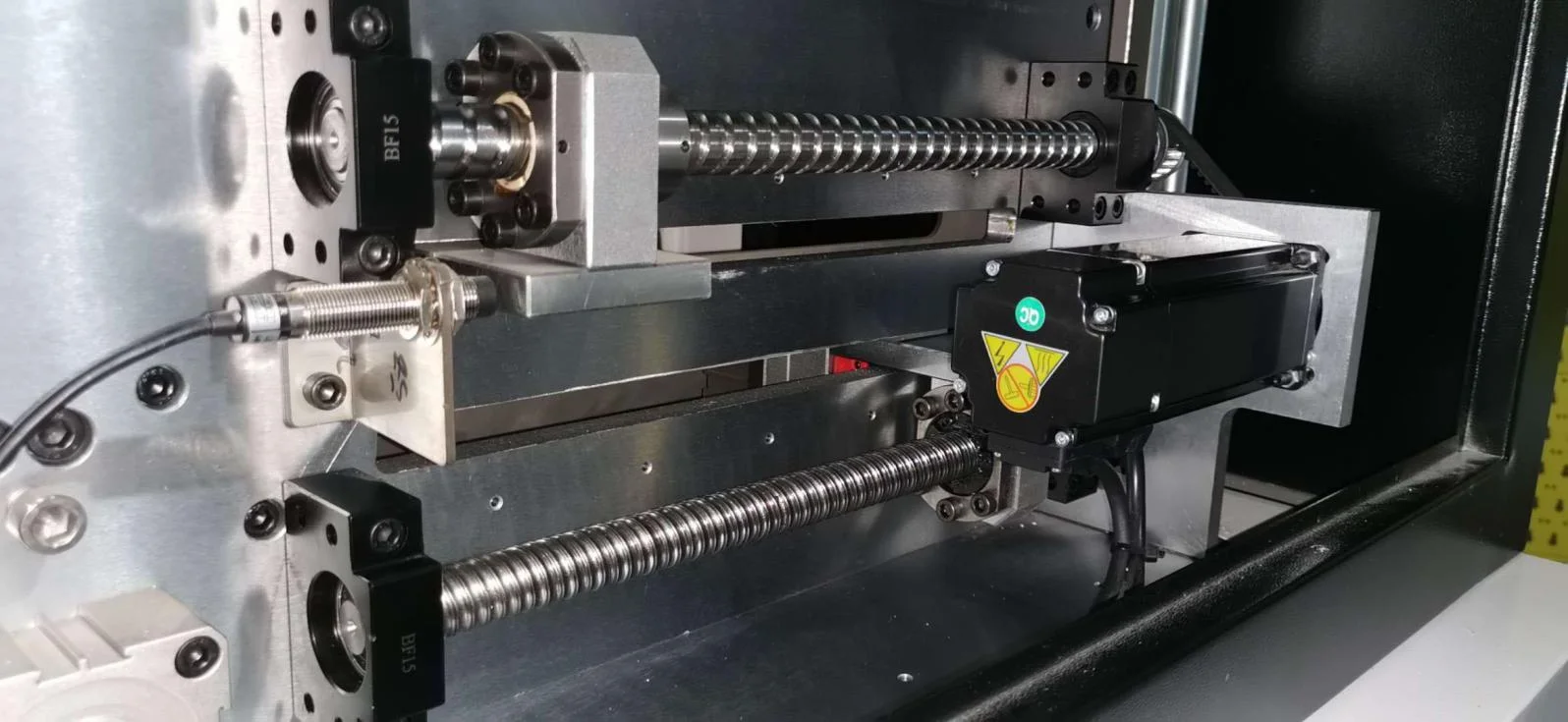

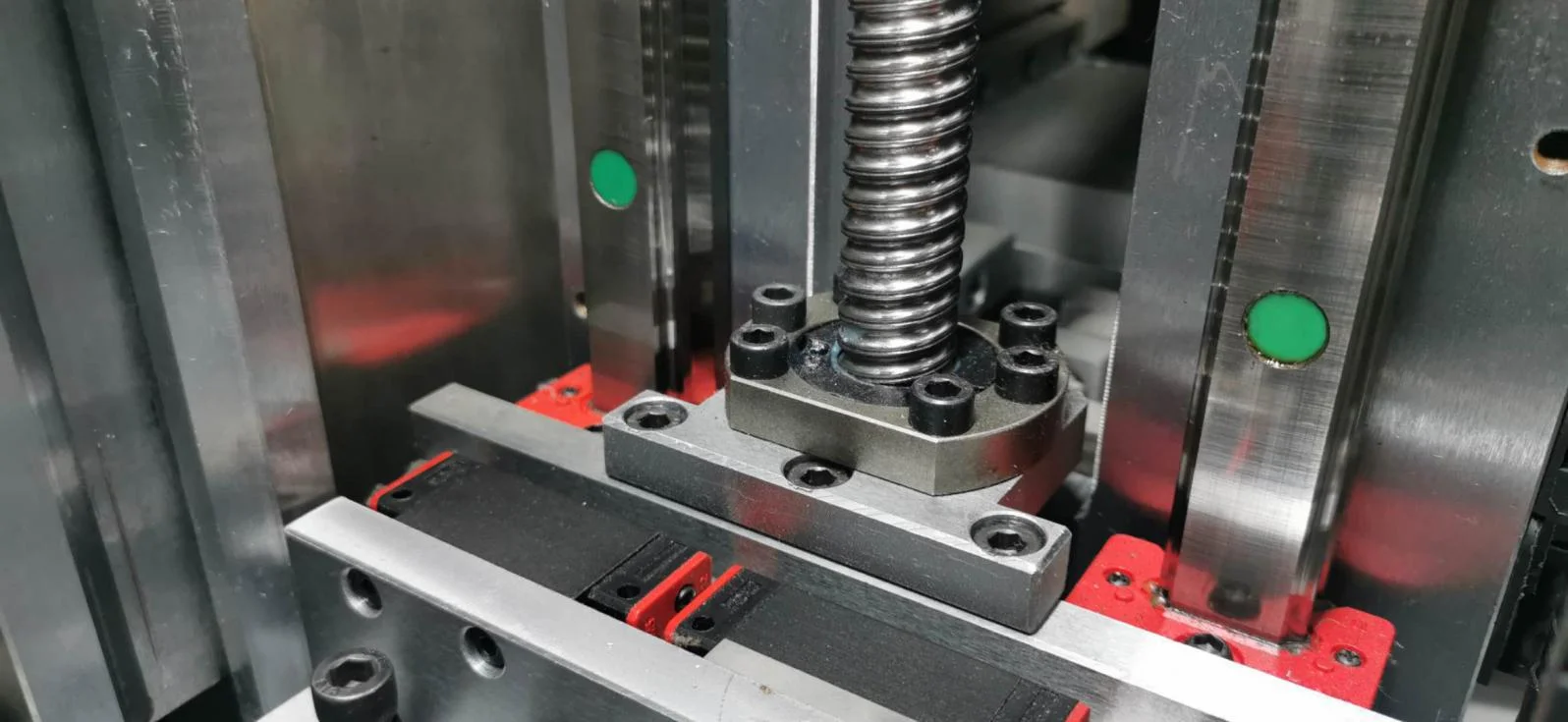

（1）Feeding system
Precision screw transmission and mechanical arm alternatively feeding structure

Use grinding screw，more precision， more stabilization

High quality encoder (closed loop self-test system)

Splice Reminding structure
(2) Slotting system

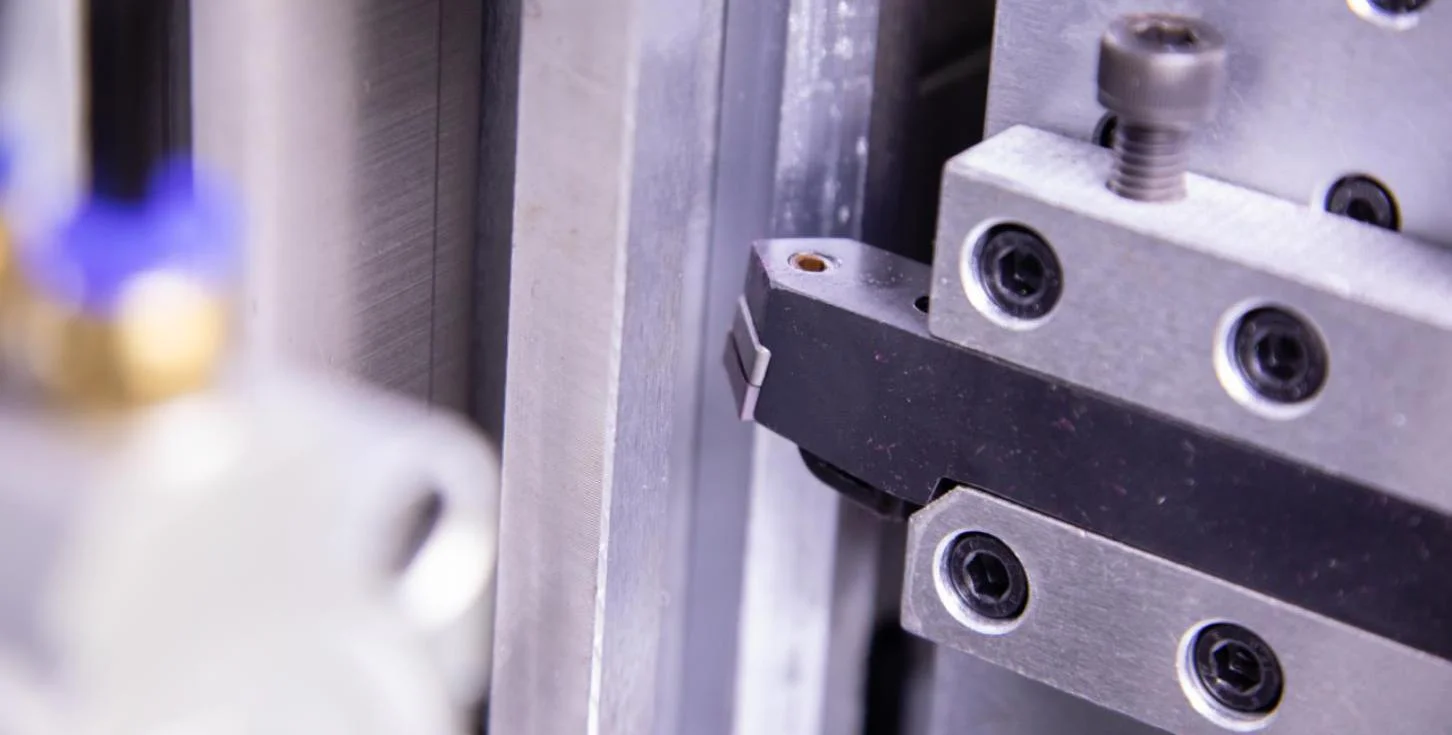

Hard alloy planer tool

Circular progressive slotting structure

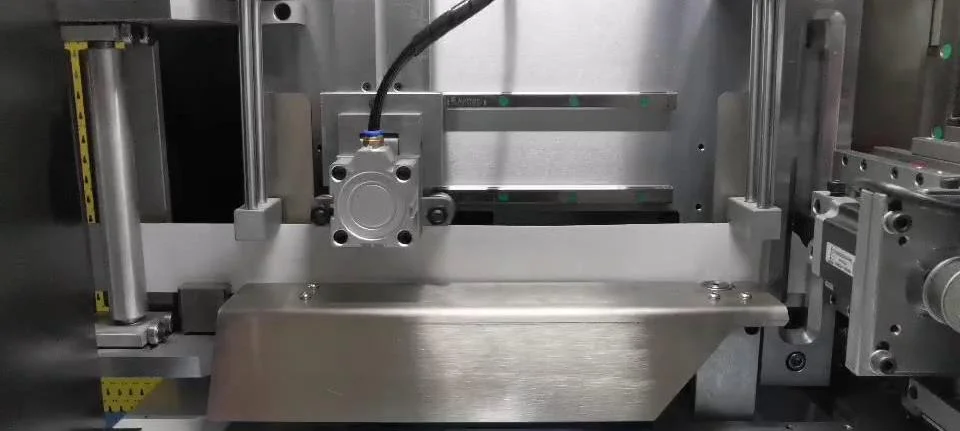

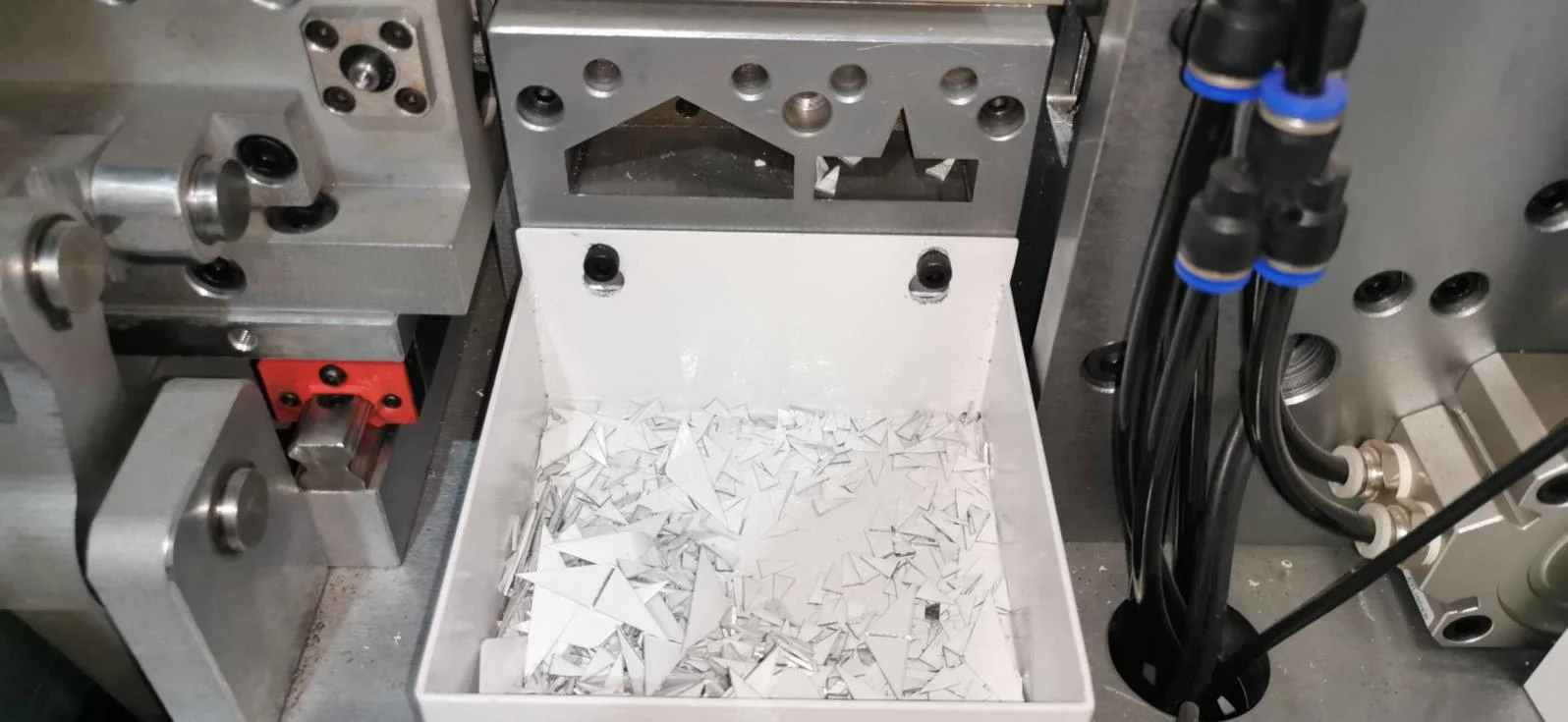

(3) Notching structure +Flanging structure

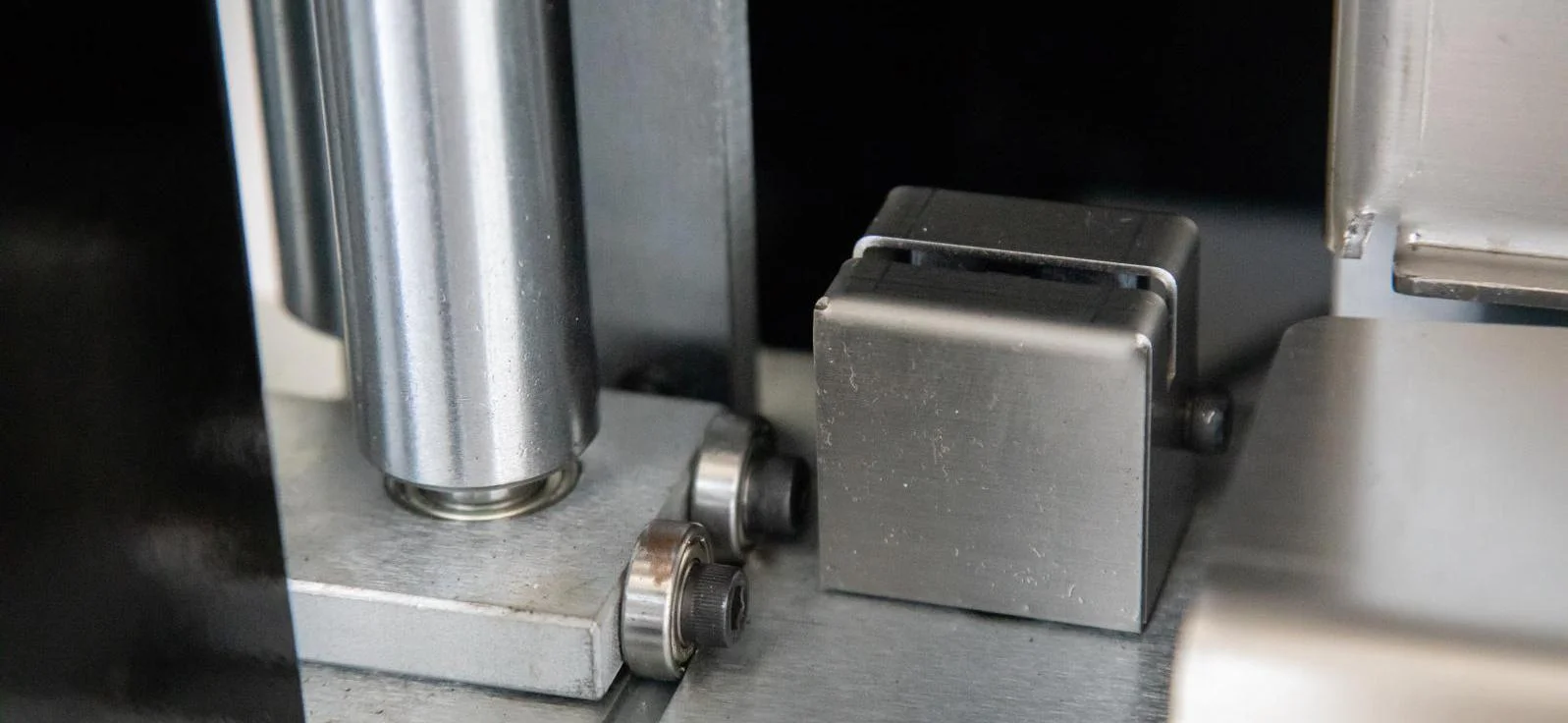

Pneumatic Notching structure

Special scrap box

Flanging structure

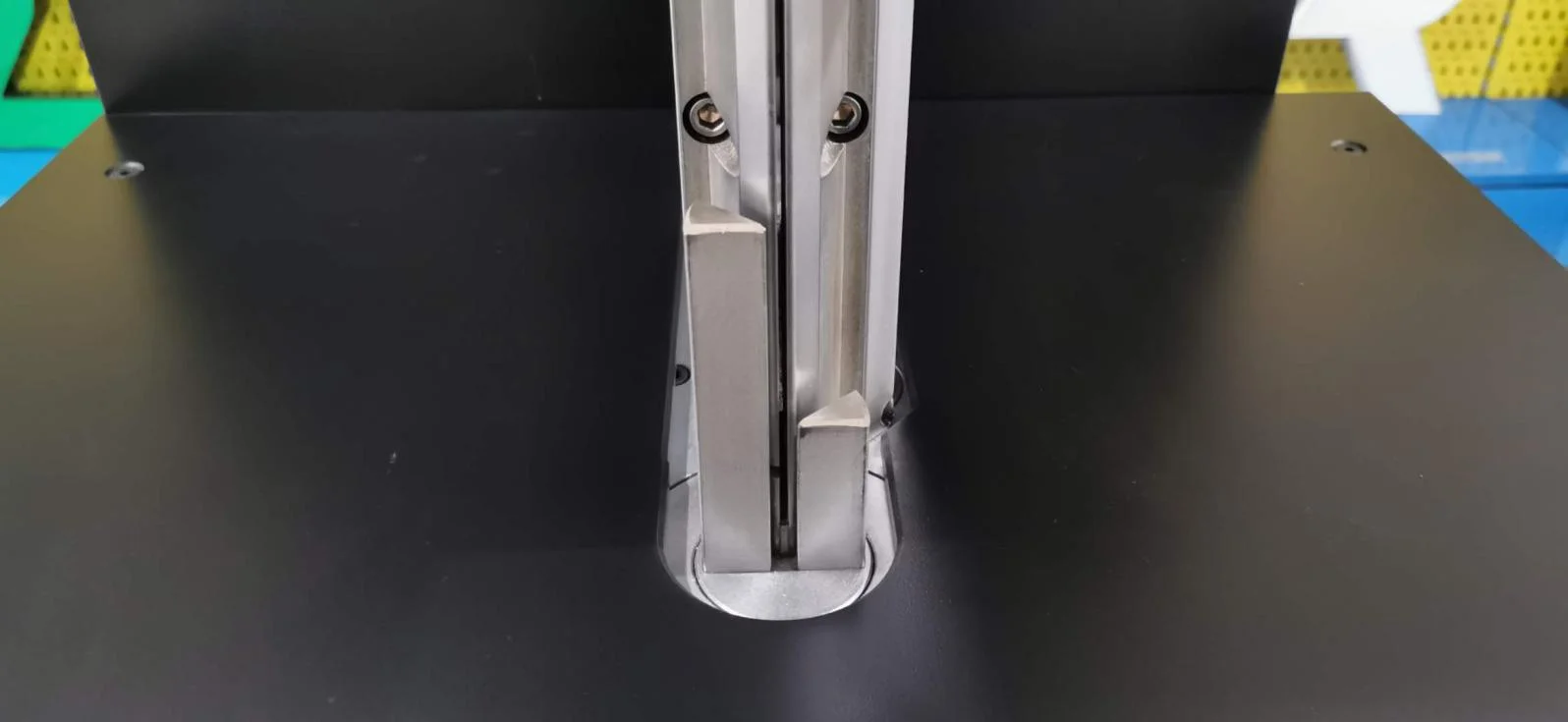

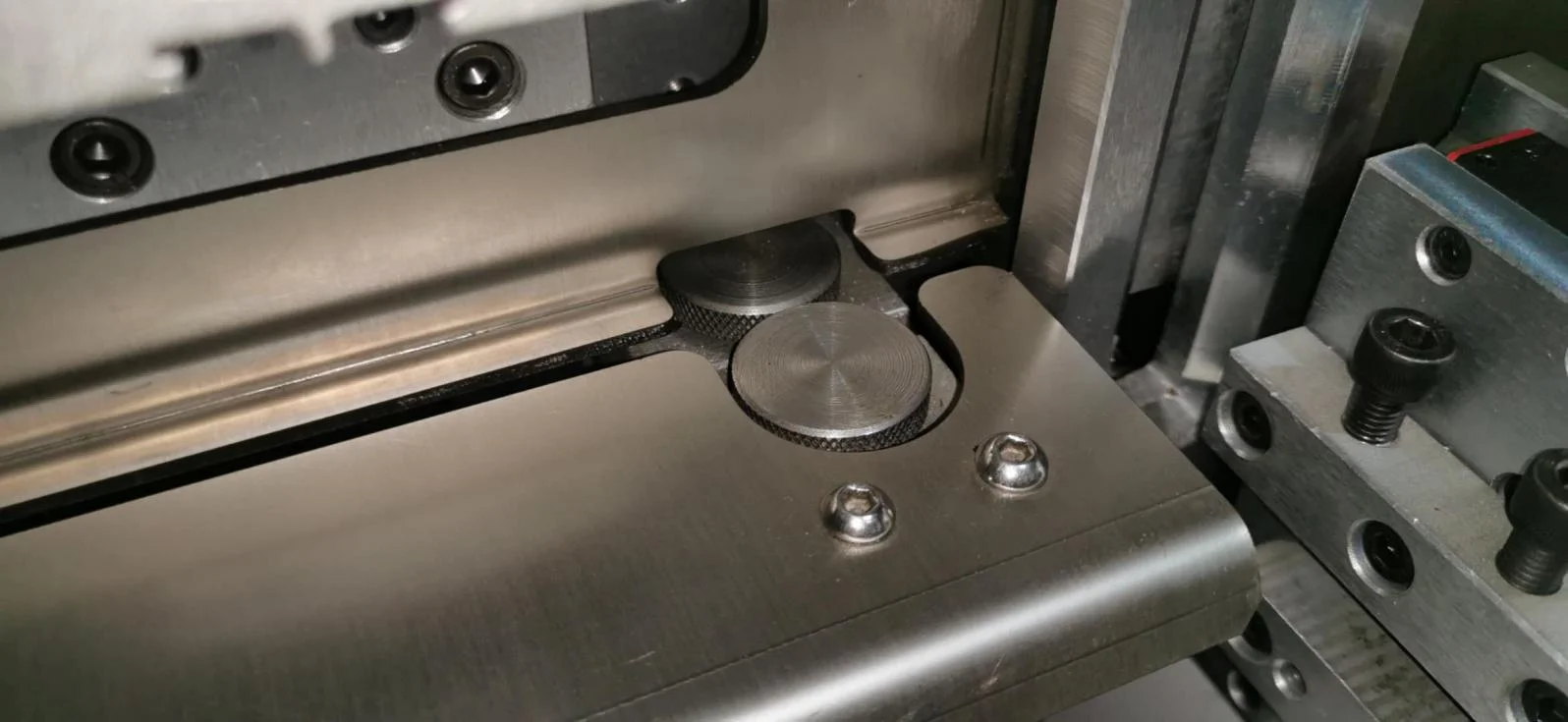

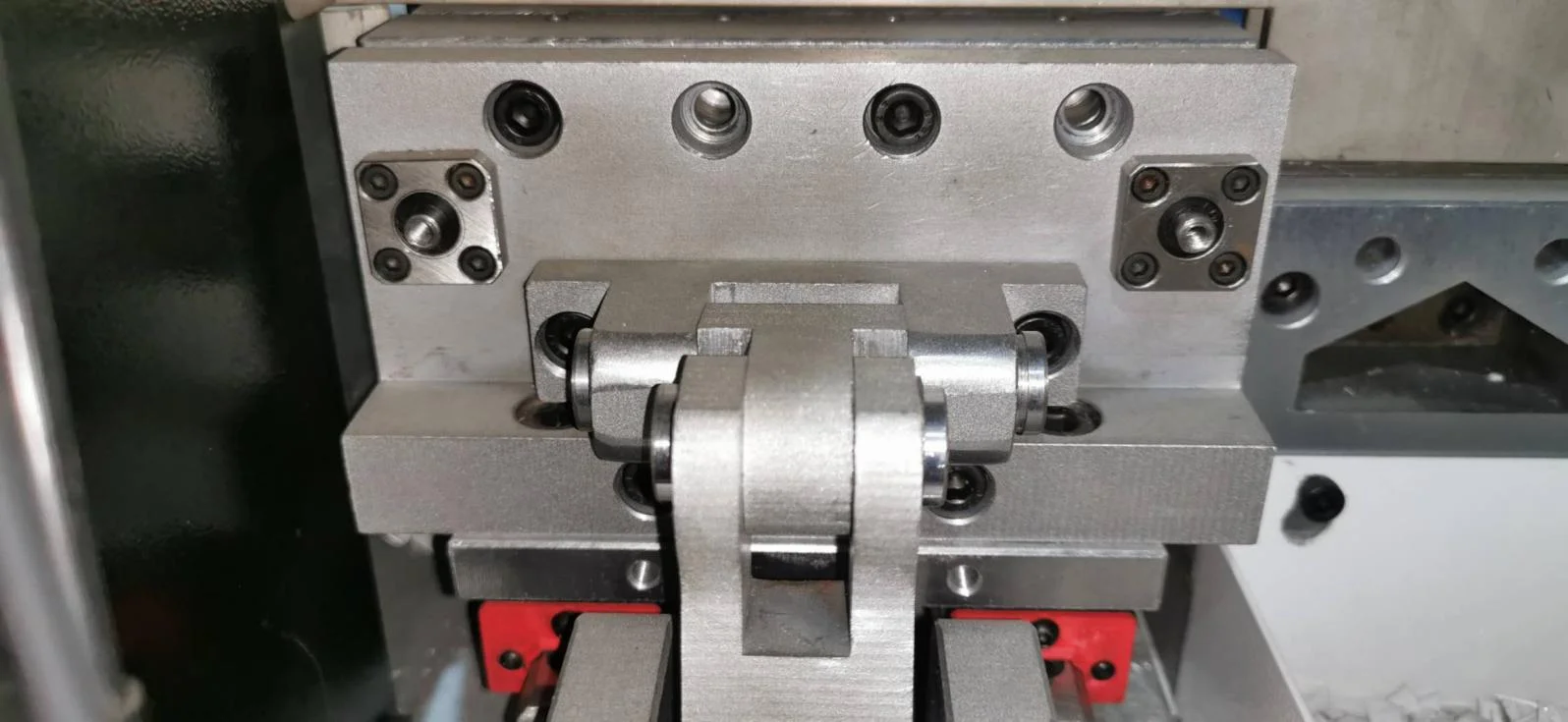

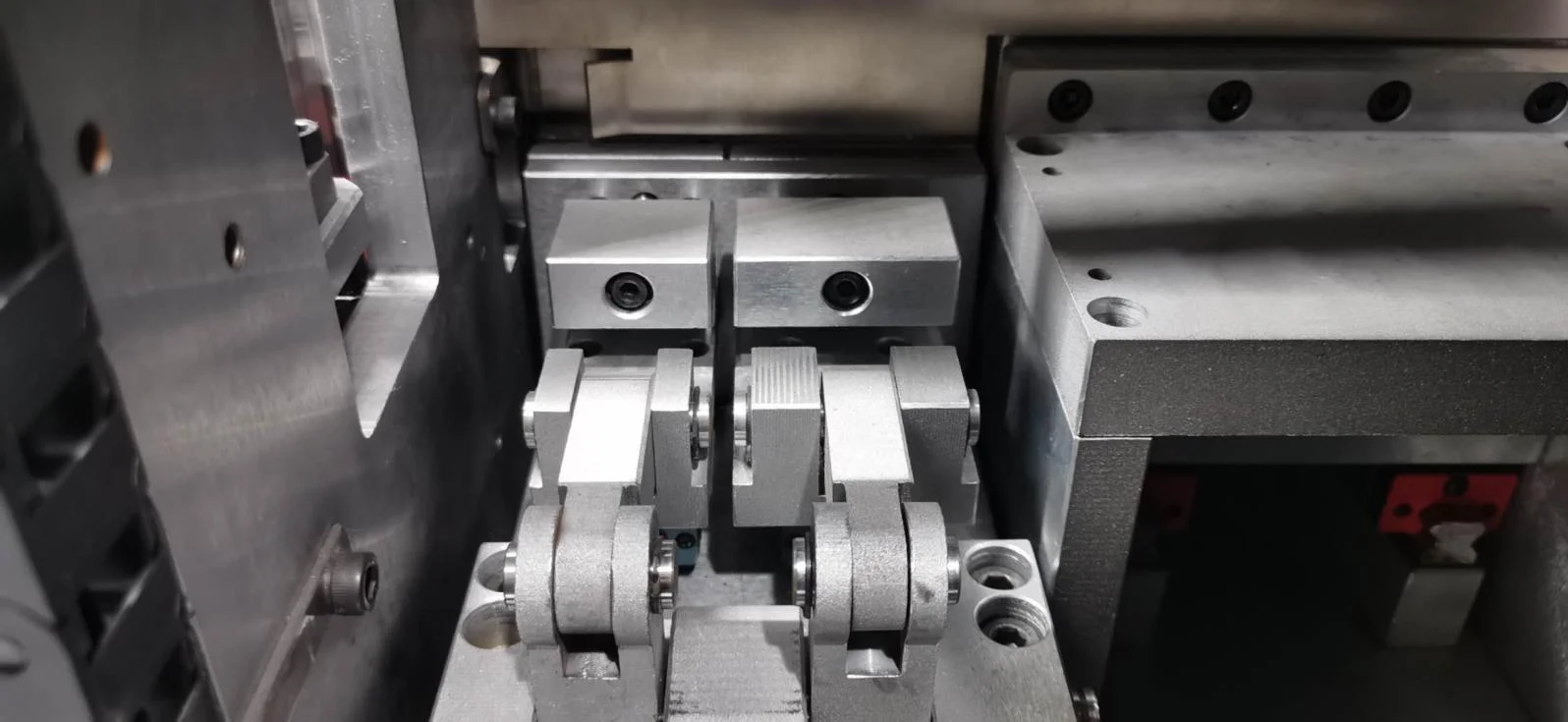

（4）Bending system

Double -pole alternate part-arc institution and patented alternative
arc-extrusion structure

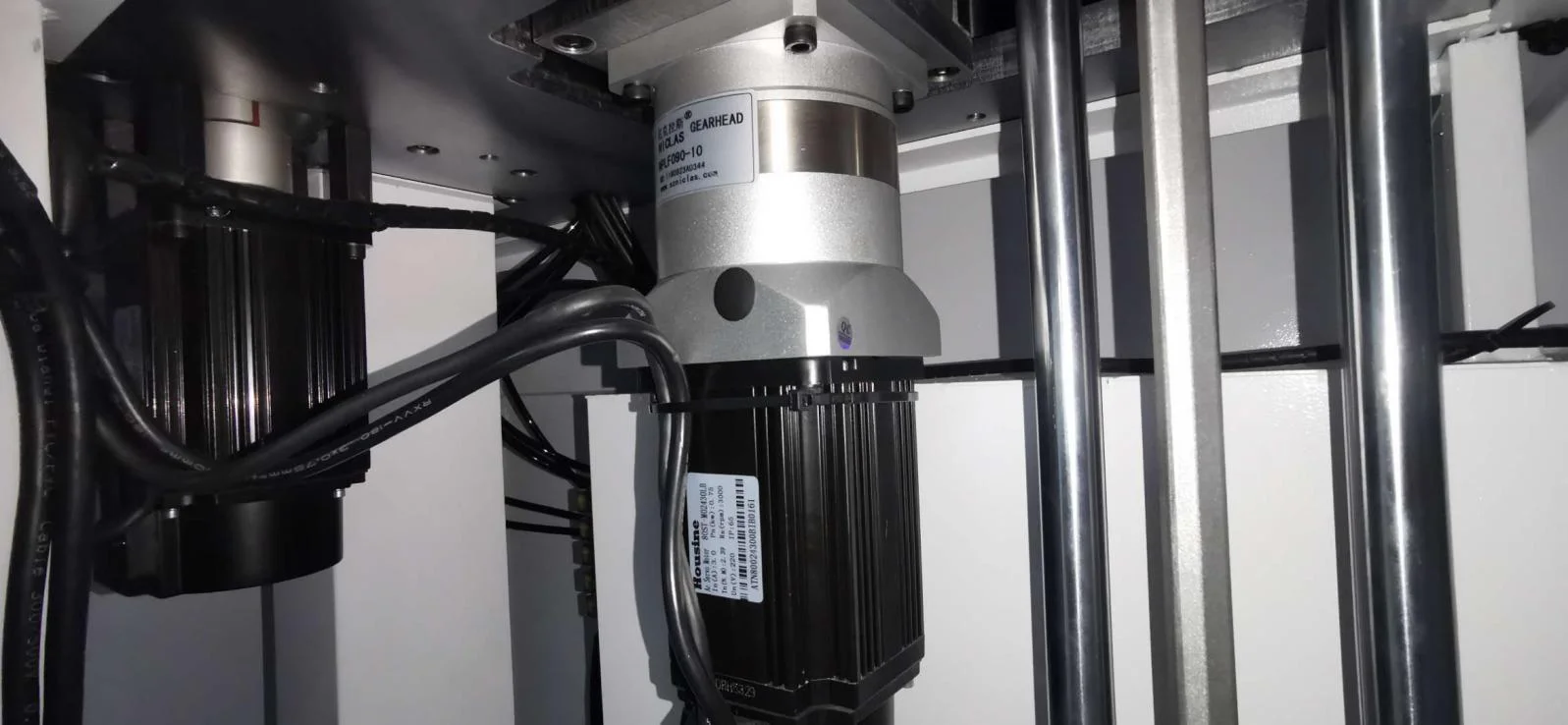

High quality Servo motor

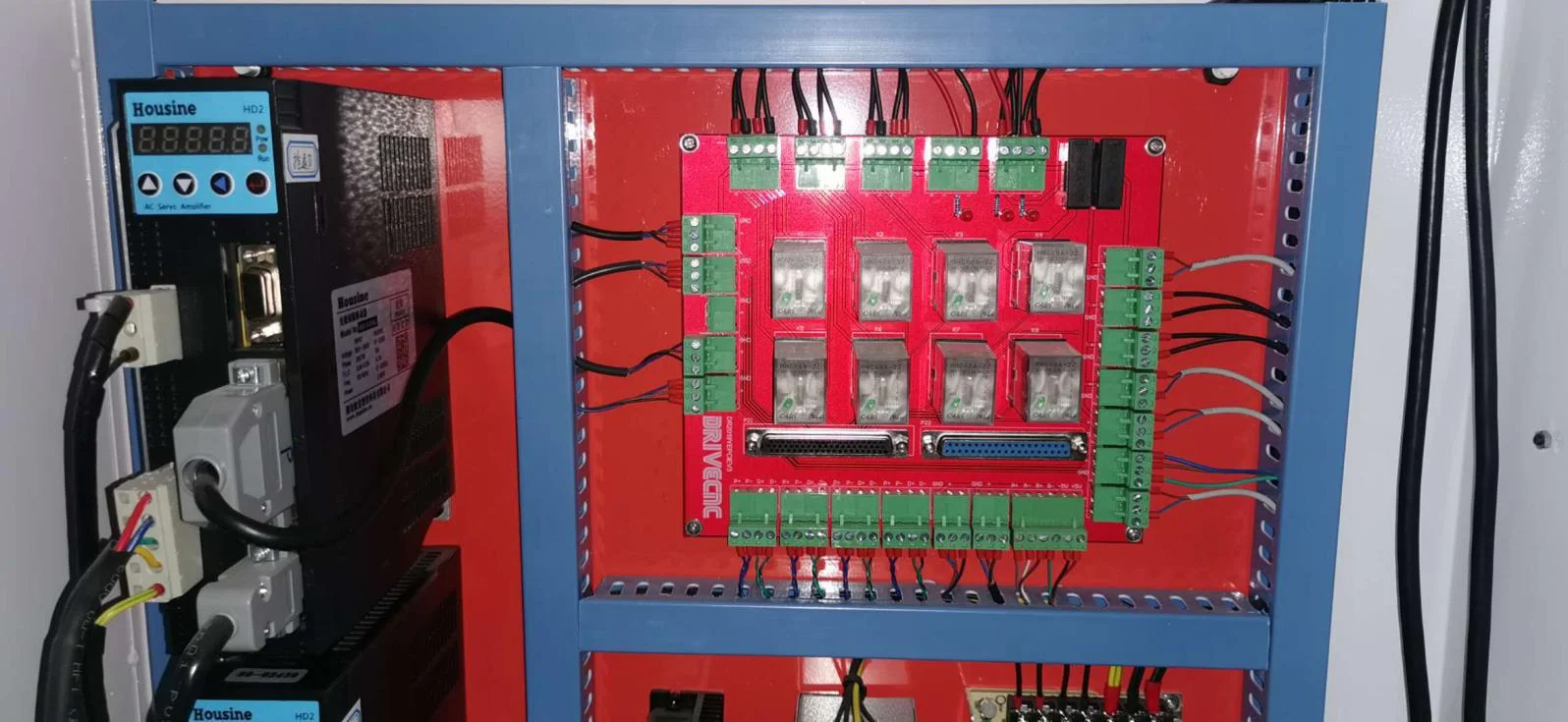

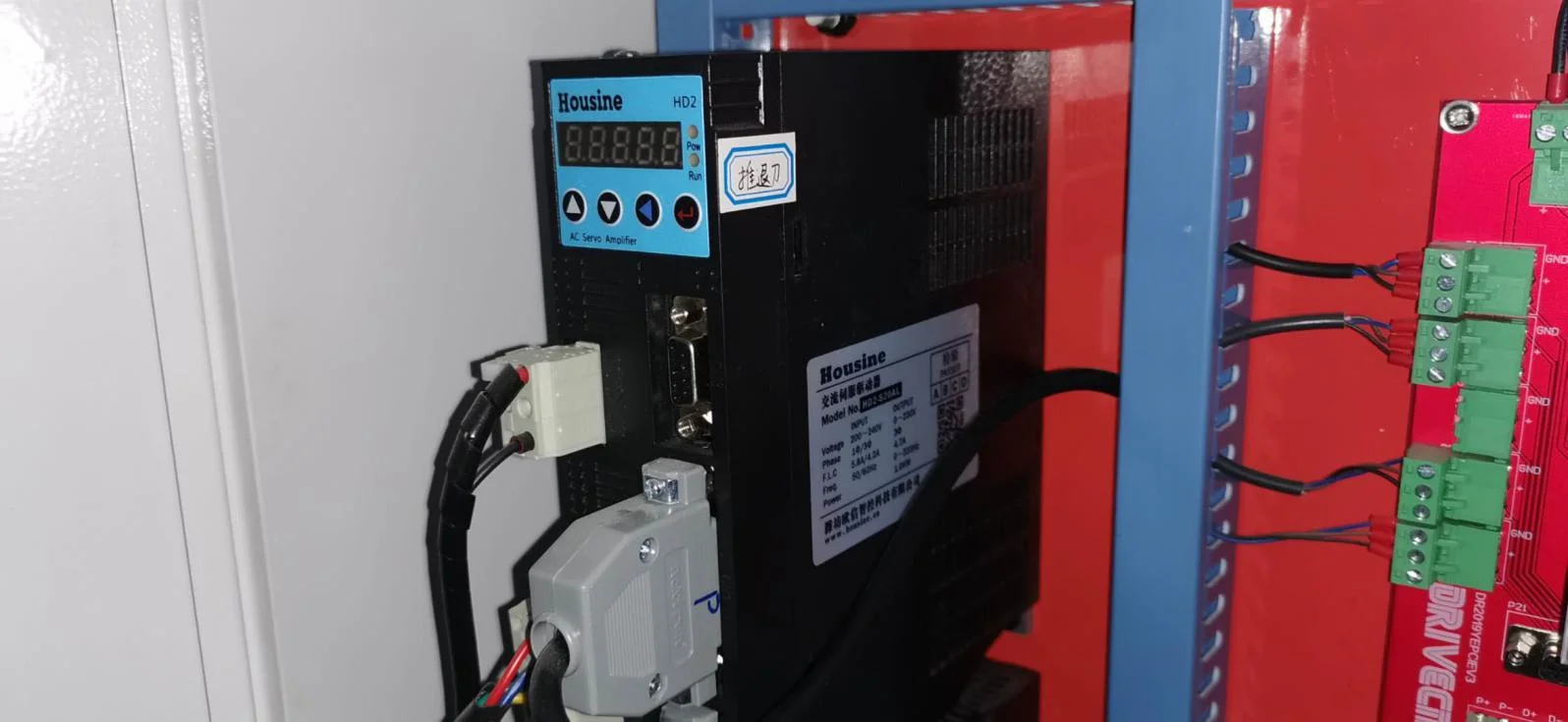

（5）Electric system
High quality servo drivers

Push-in IO integrated PCB board
Sample
FAQ
Front-lit Channel Letters Sign Bender Machine For 3d Luminous letter
The most common channel letter signs are front-lit, or standard, characters. They have an acrylic face, aluminum returns and
backs, and trim caps. These signs are completely customizable and have LED modules hidden on the interior of each letter. Since
they can be seen from greater distances, front-lit channel letters work well if you want to attract the attention of drivers
passing your business. Choose brilliant LED illumination and thick letters to make them easier to read from far away.
Why choose Us
When it comes to automated channel letter fabrication machines and CNC router tables, no one in the world comes close to the
productivity, quality, or reliability offered by The Channel Letter Bender. We sell the world’s only machine that lays out and
automatically bends channel letters.Our Channel Letter Bender is also on the cutting edge providing the industry with the latest virtual software controllers available on all of its router tables. If you are ready to fully automate your company and take it to the next level, you are in the right place!
