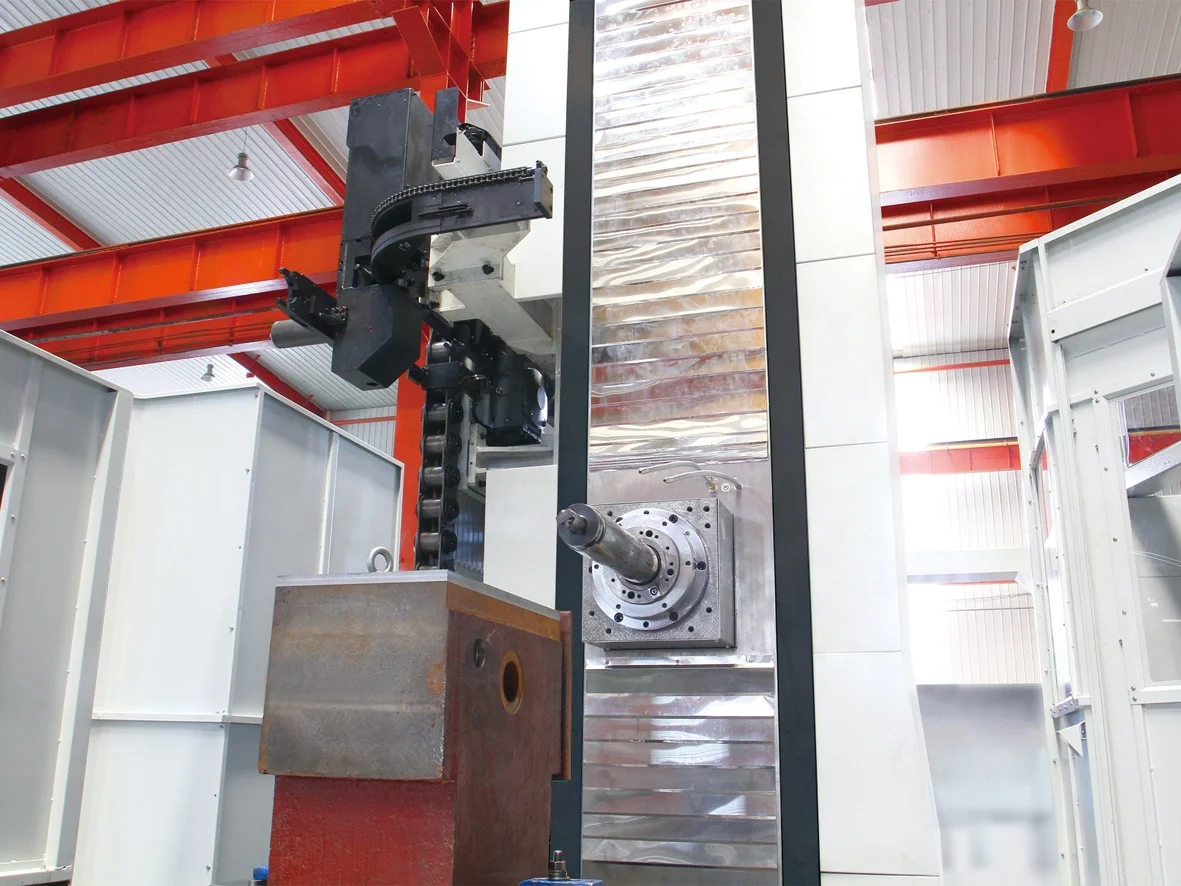

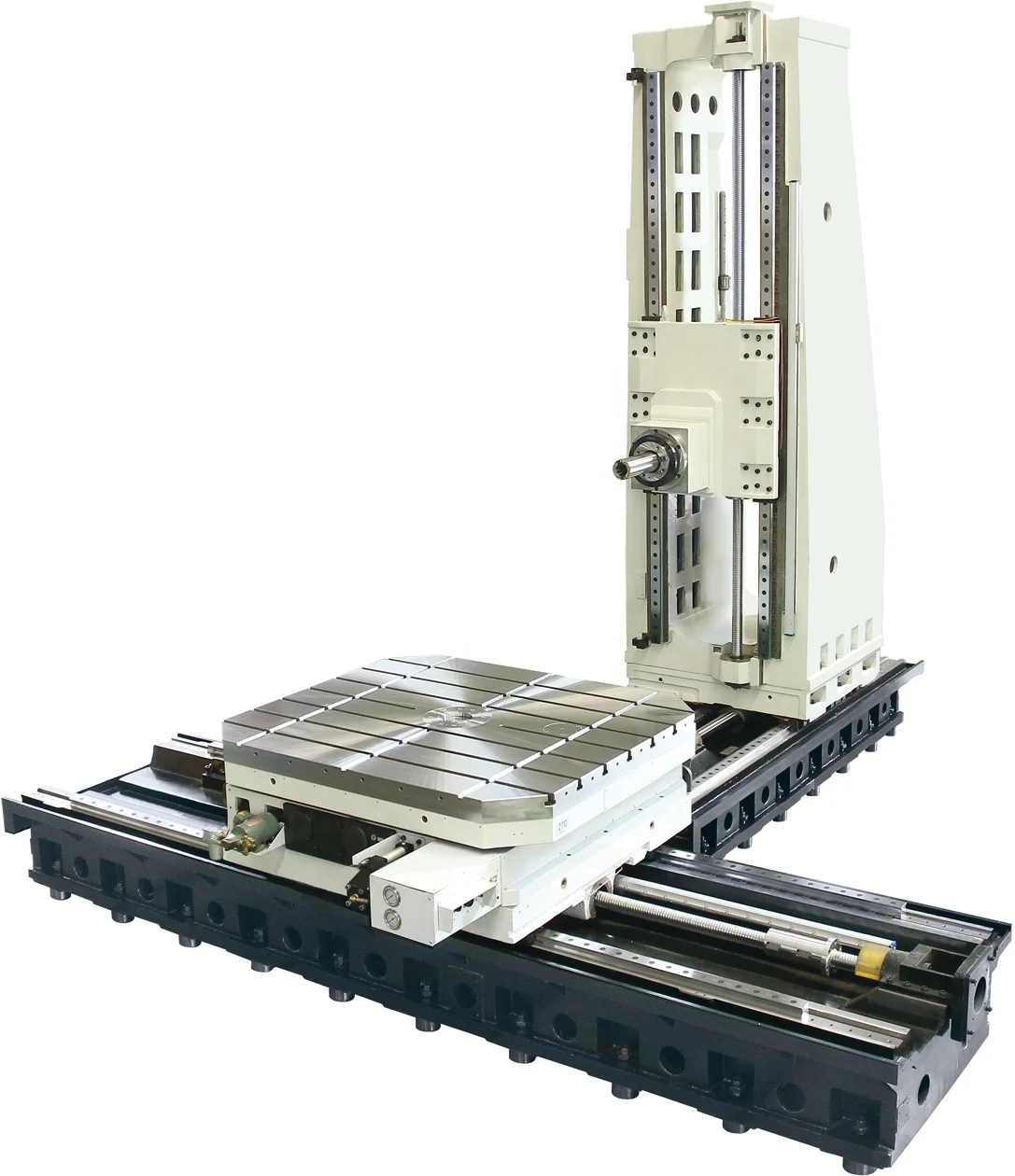

DBM110A 5 Axis cnc bench horizontal boring milling machine center
- Category: Boring Machines >>>
- Supplier: Nantong Guosheng Intelligence Technology Group Co. Ltd.
Share on (60471611534):
Product Overview
Description
Product Description
Details Images

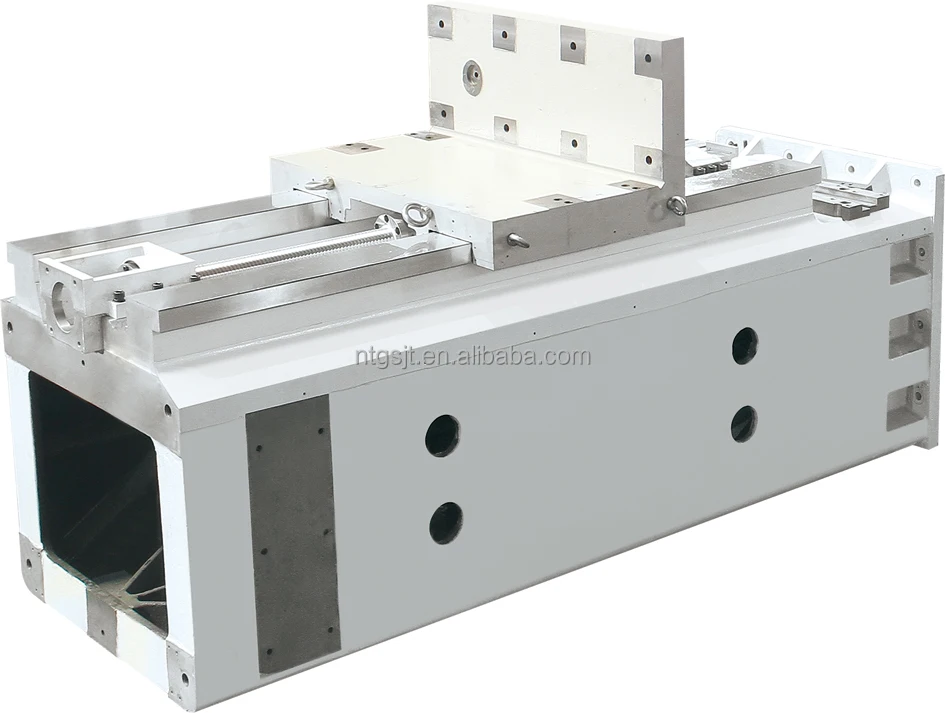

1. Mihana casting, one - piece casting molding, high earthquake resistance.

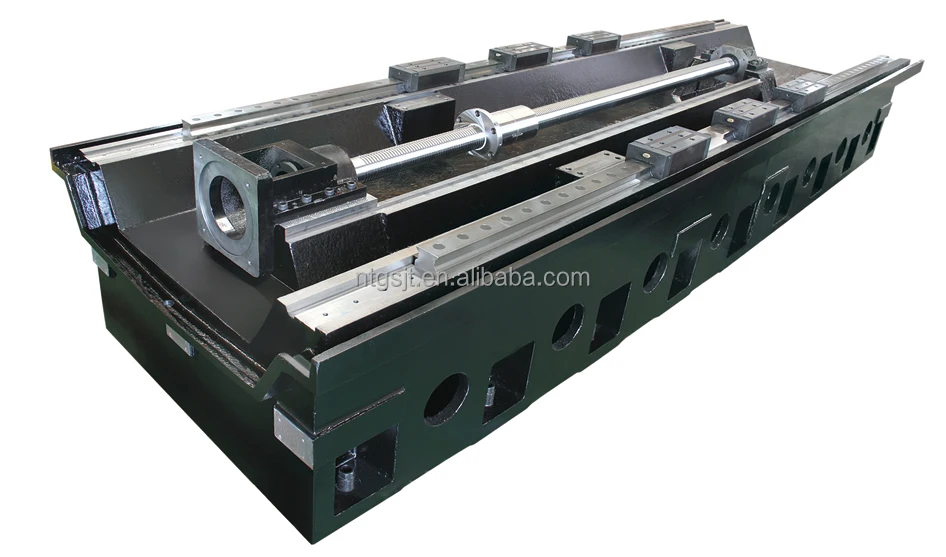

2. High precision C3 class ball screw and heavy load P class roller linear slide rail, to ensure the axial and radial heavy cutting force.

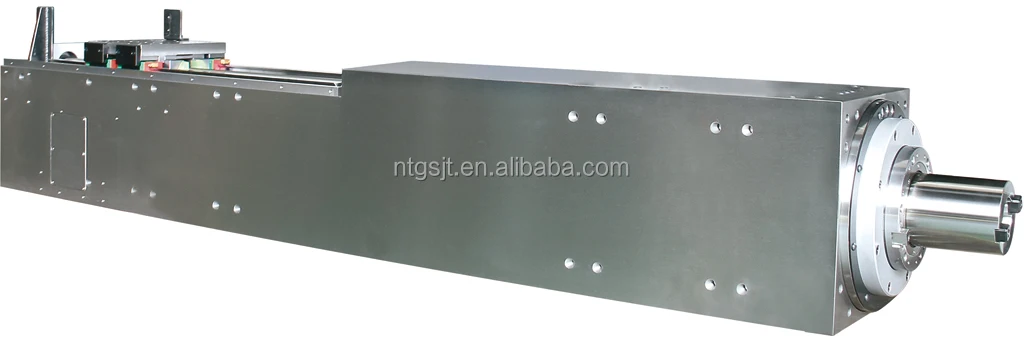

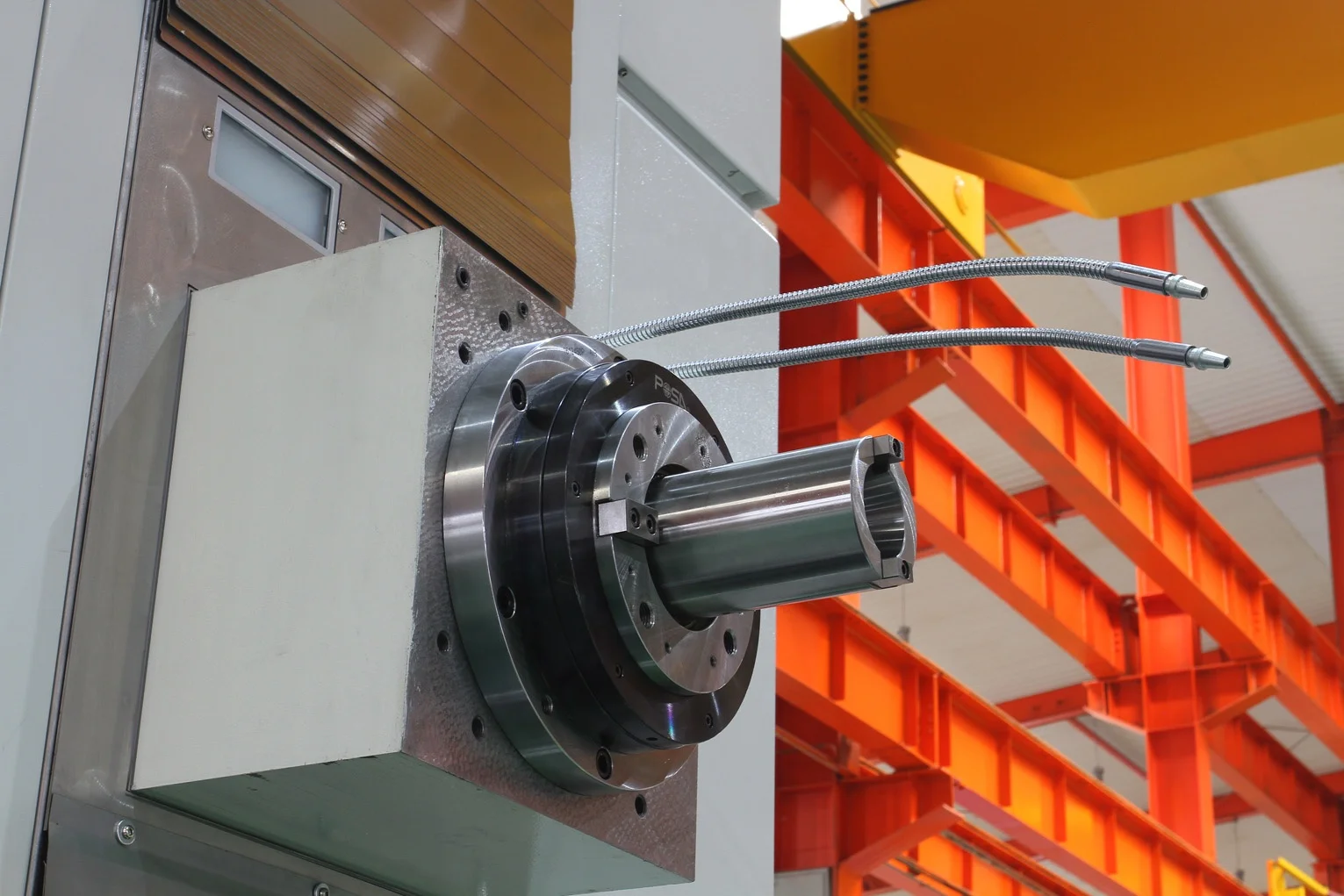

3. The gear spindle head is cast in one piece. The spindle uses cylindrical double row roller bearings with large spacing, high precision and high rigidity NN to ensure stronger rigidity and machinability.
Title goes here.

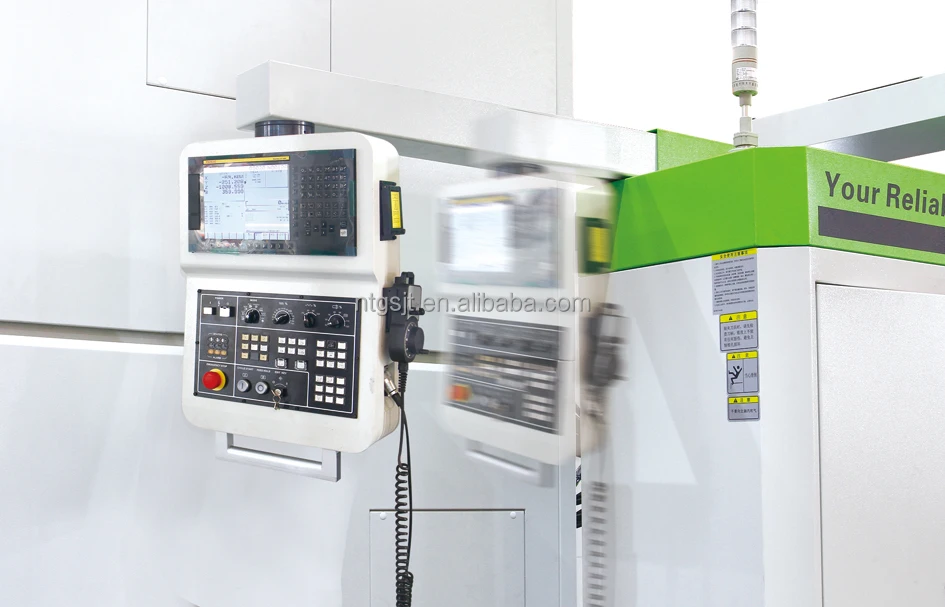

4. Humanized design of control system, movable operation panel.
Specification
Model | Unit | DBM-110A | ||
Travel | Travel | |||
X-axis | mm | 2000mm | ||
Y-axis | mm | 1600mm | ||
Z-axis | mm | 1500mm | ||
W-axis | mm | 550mm | ||
Number of Axes | 5 | |||
Table | ||||
Table Size | mm | 1250*1250 | ||
Max. Table Load | kg | 5000 | ||
Division angle | deg | 1° | ||
Reference aperture | mm | Φ140H7 | ||
T-shot | mm | 22H7*160*7 | ||
Spindle | Spindle | |||
Spindle center to worktable surface | mm | 205~1805 | ||
Spindle nose to worktable center | mm | -125~1925 | ||
Spinde diameter | mm | 110 | ||
Spindle taper | BT50 | |||
Rotating spindle speed | rpm/min | 35~3500 | ||
Number of steps of rotating speed of spindle | 2 Steps | |||
Spindle motor | kw | Fanuc 18.5/22 | ||
Max.torque of spindle | Nm | 965/1165 | ||
Precision | ||||
Positioning accuracy of rotary table | arc-sec | 4″ | ||
Repeated Positioning accuracy of rotary table | arc-sec | ±1″ | ||
Positioning accuracy | mm | 0.015 | ||
Repeated Positioning accuracy | mm | 0.01 | ||
Feed | ||||
Cutting speed X/Y/Z/W | m/min | 10/10/10/6 | ||
Rapid traverse speed X/Y/Z/W | m/min | 10/10/10/8 | ||
Tool magazine（Optional） | ||||
Capacity of tool magazine | 40 | |||
Max. tool weight | kg | 25 | ||
Max. tool length | mm | 500 | ||
Max. tool diameter (no adjacent tool) | mm | Φ125/250 | ||
Others | ||||
Air pressure | kgf/cm² | 6 | ||
Voltage | kva | 65 | ||
Tank Capacity | L | 480 | ||
Floor area（length*width*height） | mm | 6425*5605*4800 | ||
Weight | kg | 30500 | ||

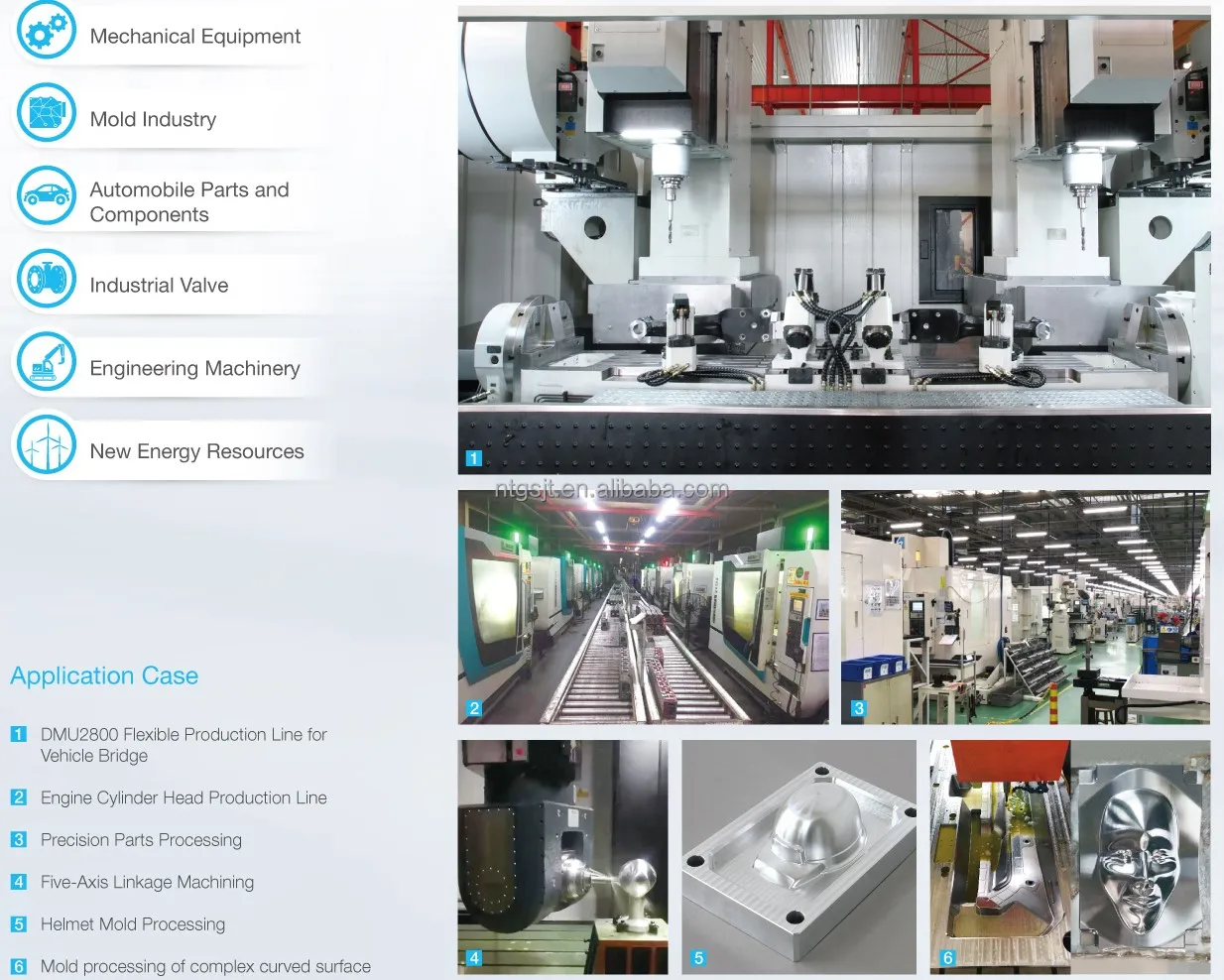

Application area
Process instance
