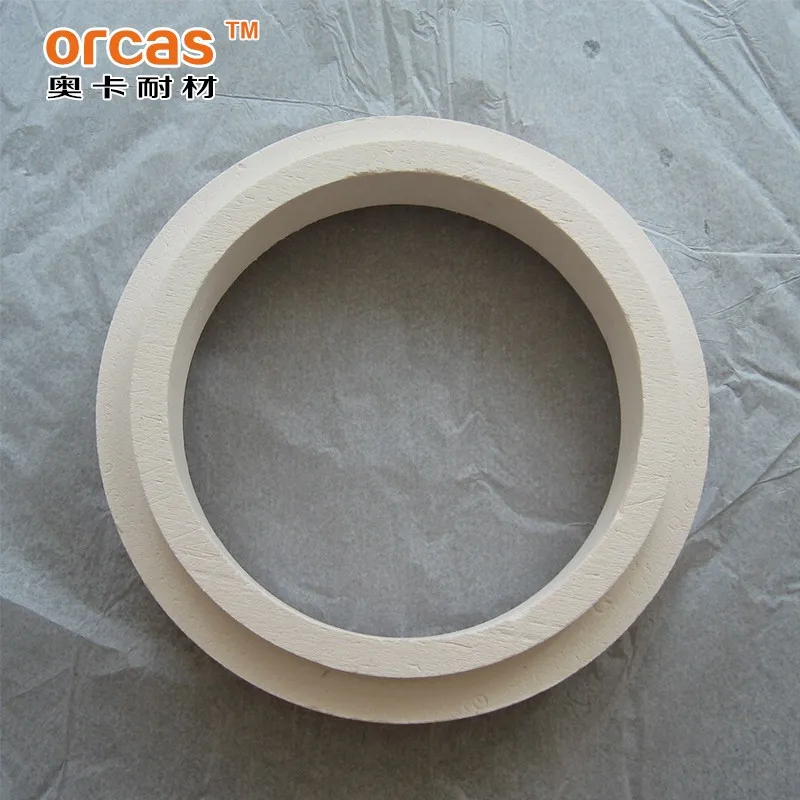

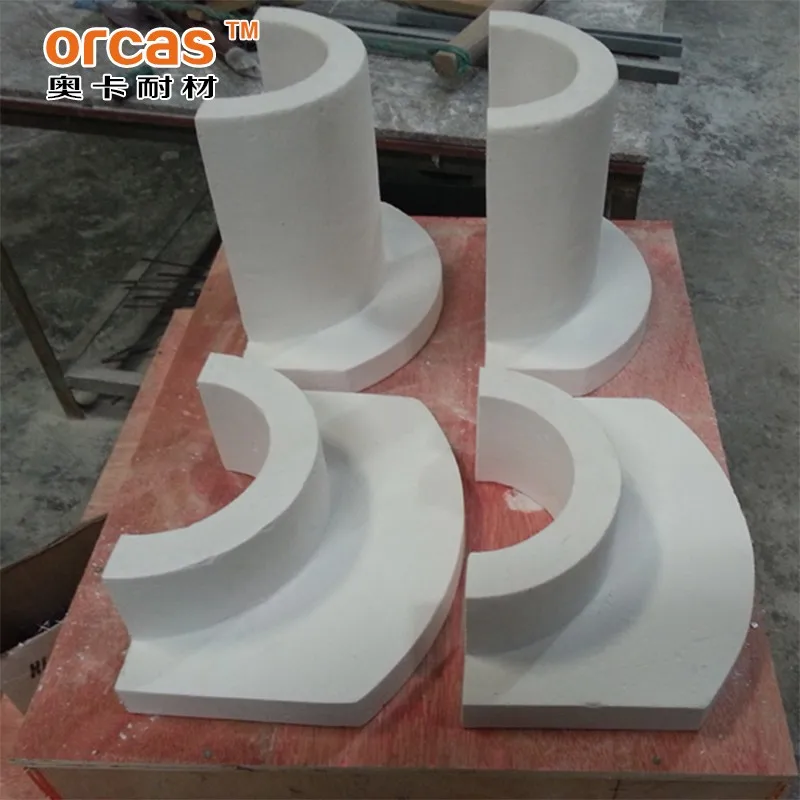

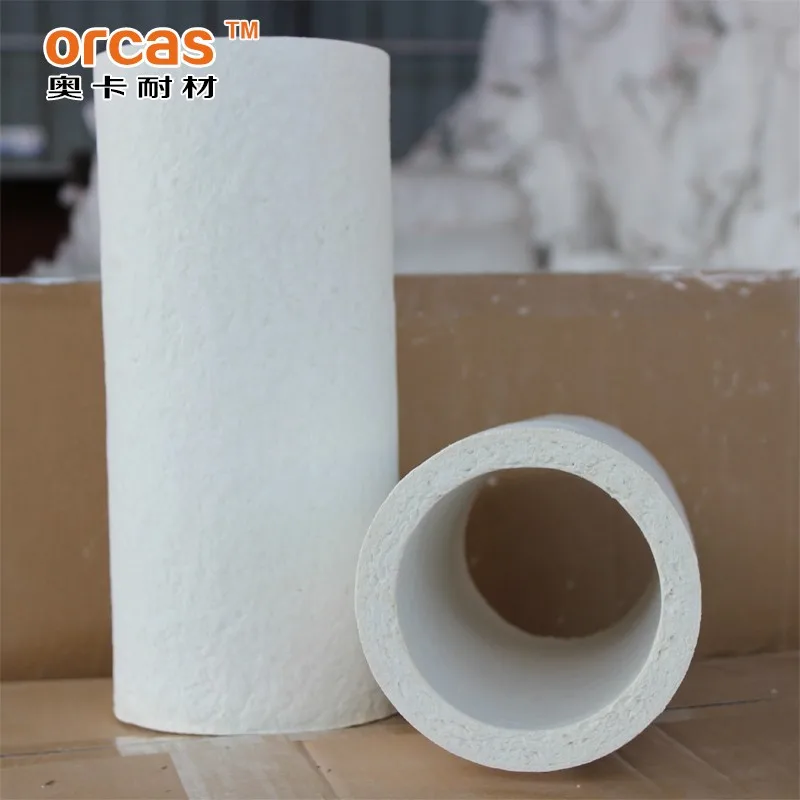

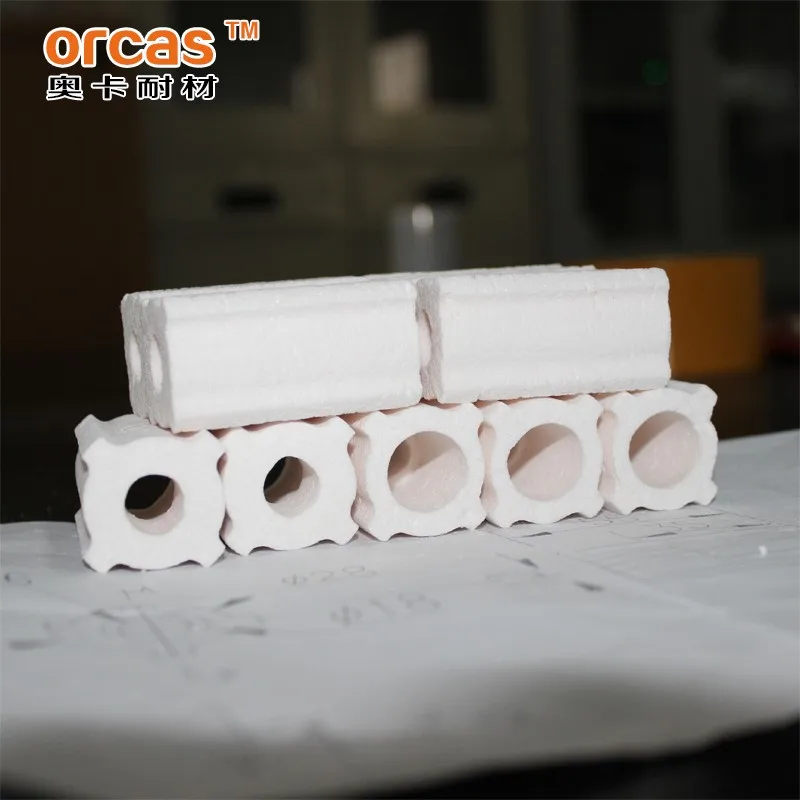

ORCAS AK 34 Ceramic fiber tube

Product Overview

Description



Product Introduction

     Ceramic fiber shaped products are designed according to user requirements, using loose cotton vacuum filter molding after drying by a wet, after calcination in which the density, size, model, various fiber products of varying performance. Because there are sophisticated production equipment and stable raw material protection products in addition to meet the user a variety of complex thermal requirements, each product also as exquisite handicrafts.

Product Features

Excellent compressive and flexural strength

Low thermal conductivity

Thermal shock resistance

High dimensional accuracy

Heating, cooling rapidly

Anti-air scour

Resistance to thermal shock

Applications

Special parts industry hot surface thermal equipment, burner blocks, observation hole, electric heating element holder, riser, chute, masonry wall, hanging roof, and replace imported foreign high-grade refractory materials, aluminum industry aluminum water block sets.

Physical & Chemical Data

TYPE		AK-24	AK-34	AK-44	AK-54	AK-64	AK-74	AK-84
Classification temperature(℃)		1260	1400	1430	1500	1600	1700	1800
Recommended temperature(℃)		≤950	≤1150	≤1250	≤1300	≤1450	≤1550	≤1650℃
Density(Kg/m3)		260-400	300-450	300-450	300-450	300-500	400-550	500-600
linear shrinkage(%)		(1000℃×24h)<1	(1100℃×24h)<1	(1200℃×24h)<1	(1200℃×24h)<1	(1400℃×6h)<1	(1500℃×6h)<1	(1600℃×6h)<1
Chemical composition	Al2O3	42	50	35	60	72	78	85
	Al2O3+ SiO2	98	99	85	99.5	99.5	99.6	99.8
	Fe2O3	0.2	0.2	0.2	0.1	-	-	-
	ZrO2	-	-	15	-	-	-	-



Specifications and packaging

(1) Specifications

Click to processing according to customer demand

(2) Packaging

Cartons or wooden packaging shipped
