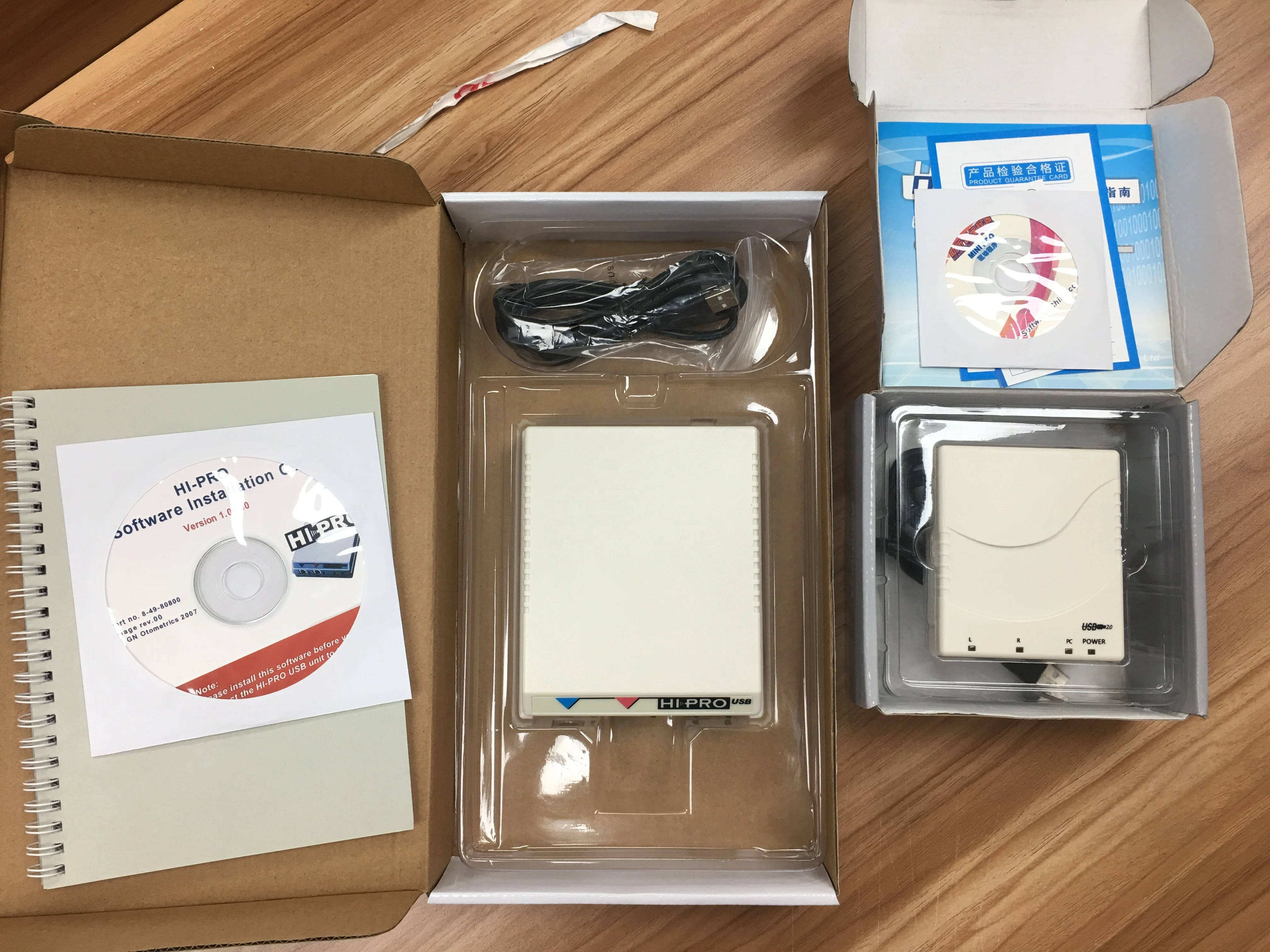

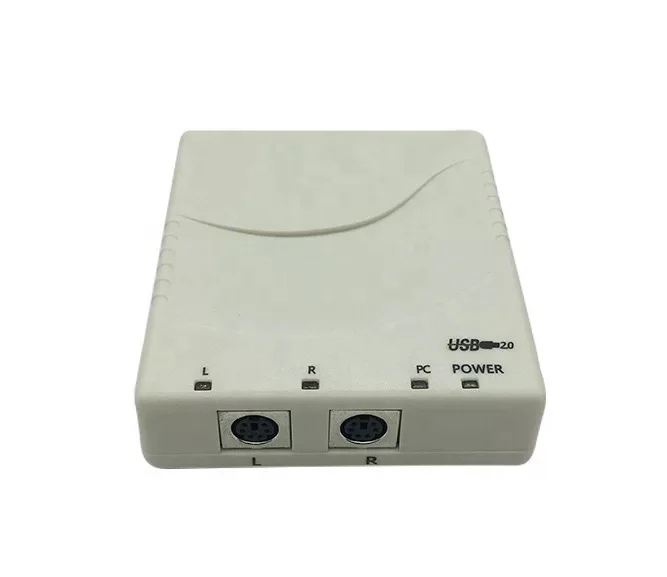

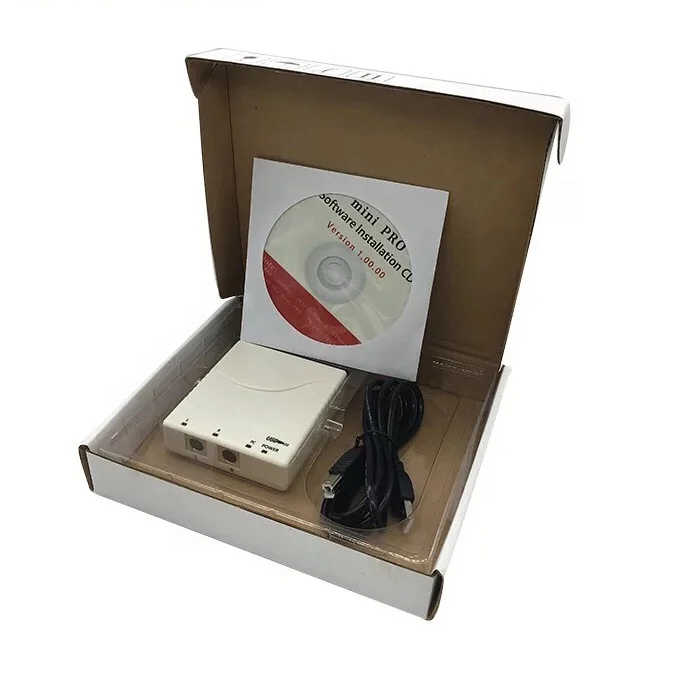

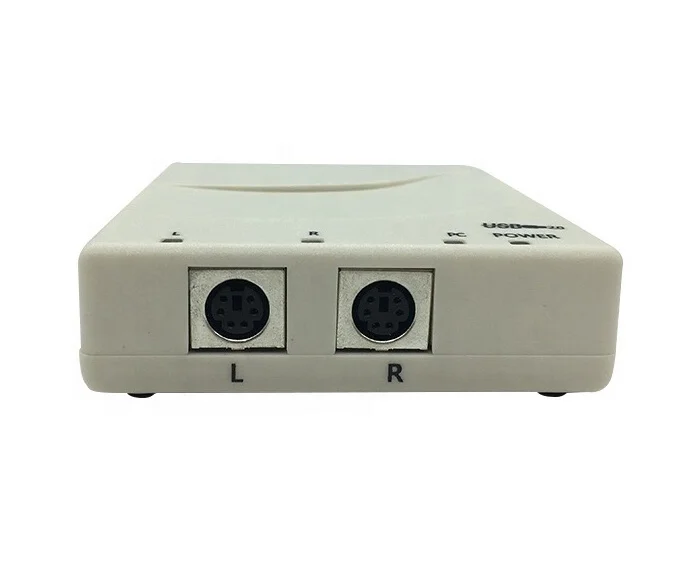

Mini Pro Hearing Aid programmer

Model

mini pro

PC computer

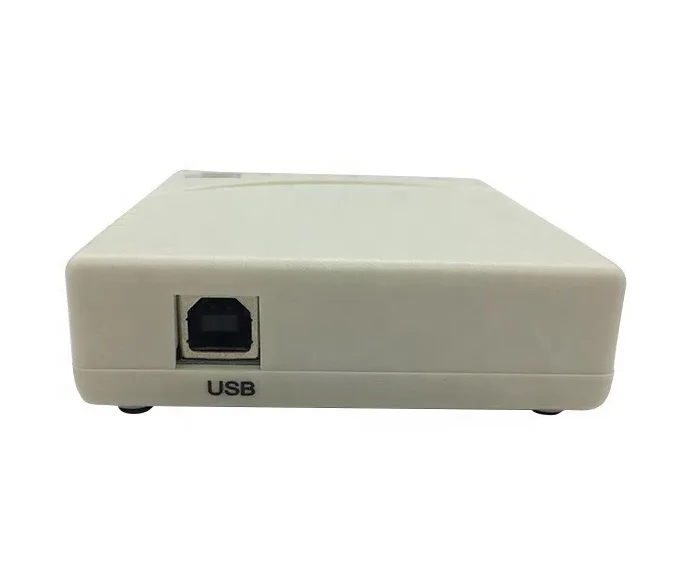

USB communication: USB 2.0 full speed (USB 1.1 compatible)

HP equipment

Rated Voltage: 3.8V - 9V

Maximum current consumption: <500 mA(2.5W)

Minimum current consumption: <500μA(2.5mW)

Rated output

Fixed battery supply(PIN1), left and right side

1.35V, 10/50 mA (Rated current control fitting software)

Programmable battery power supply (PIN5) for the left and the right

-3.50V - ±3.50V, 30 mA (Voltage control fitting software)

Working environment
Temperature: +5℃  -  + 40℃

Relative humidity: 30% - 90%, non-condensing

Preheating time: <20 seconds

Air pressure: 600hPa - 1060hPa

Permanent damage may be caused when operating <-20℃ or >+60℃

Store:

Temperature: -25℃ - +70℃

Relative humidity: <90%,non-condensing

Air pressure: 500hPa - 1060 hPa

Size and weight

Size(L*W*H)94mm×82 mm×25mm

Net weight: 120g ±5%

Product using period
10 years

Warranty period

1 year

Standard

Safety and System: GB9706. 15-1999

Radiation: GB9706. 12-1997

Electromagnetic compatibility: YY0505-2005

1. Are you a manufacturer?

Yes , we are manufacturer and exporter, we have our own factory for more than 10years.

2. What’s the warranty for the products?

As usual, it should be 1year guarantee.

3. Can I got the free sample?

Sample is available, but not free, the client have to pay for it.

4. What’s the payment term for orders?

We accept the payment as T/T, Western union, Paypal.

5. What’s the lead time for the order?

As usual, the order should be delivery in 1 week after the payment received.

6. Do you accept the OEM order?

Yes, OEM is available, but the mini order should be 200sets.

7. Do you have CE certificate?

Yes, we have the ISO13485 and CE certification.

8. What are your shipping ways?

By sea, by air and by Express(DHL, Fedex, UPS, TNT, EMS etc)

9. Will you provide the after-sale service?

Yes, of course, we offering the professional maintenance service and ensure the quality.
