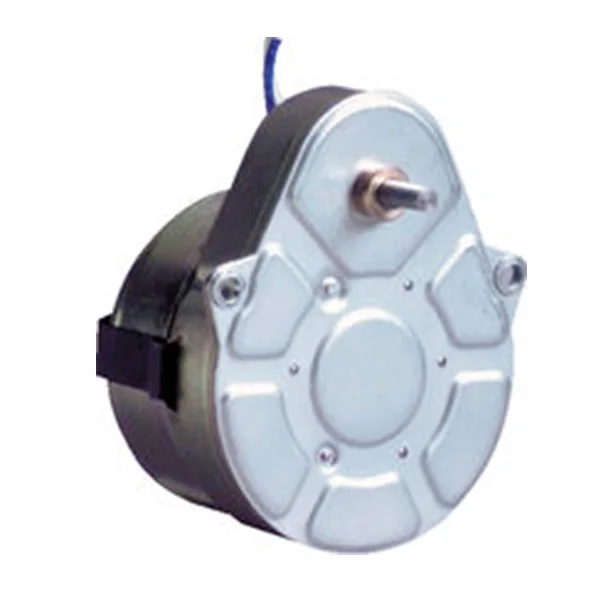

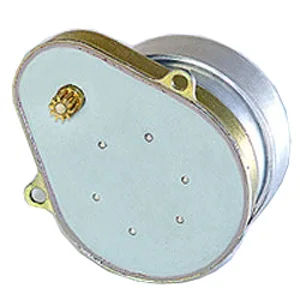

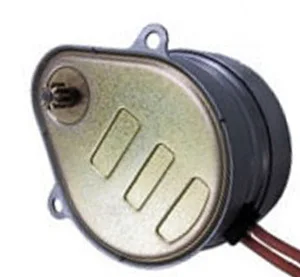

49Tyj Synchronous Motor
- Category: >>>
- Supplier: Ningbo Jigu Motor Technology Co. Ltd.
Share on (60471936375):
Product Overview
Description
49Tyj Synchronous Motor
Product Overview
Datasheet Download
Overall Feature:An inherently constant speed, are very smooth and quiet in operation and have the ability to run at stall continuously.
| Product Name | Synchronous Motor |
| Voltage Available | 3~230VDC |
| Speed | 1/10RPM to 15RPM. |
| Motor Rotation option | CW or CCW. |
| Applications | Pump, Motorized Valve, Timer, Ice maker, Chart Recorder, etcs |
| Note: | Ratios and shaft configurations can be designed. |
Product Description
| Model | Voltage(V) | Frequency(HZ) | Power(W) | Input Current(mH) | Speed(Rpm) | Direction of Rotation | Temp Rise(K) | Pull-out Torque |
| 71661 | 120 | 60 | 3 | 23 | 1/60 | CW | 45 | >200oz.in |
| 71660 | 24 | 60 | 3 | 140 | 1/60 | CW | 45 | >200oz.in |
| 71663 | 24 | 50 | 3 | 140 | 1/60 | CW | 45 | >200oz.in |
| 71665 | 220 | 50 | 3 | 6.5 | 1/60 | CW | 45 | >200oz.in |
| 70951 | 24 | 60 | 3 | 140 | 1/36 | CW | 45 | >200oz.in |
| 70952 | 120 | 60 | 3 | 23 | 1/36 | CW | 45 | >200oz.in |
| 70953 | 24 | 50 | 3 | 140 | 1/36 | CW | 45 | >200oz.in |
| 70954 | 220 | 50 | 3 | 6.5 | 1/36 | CW | 45 | >200oz.in |
|

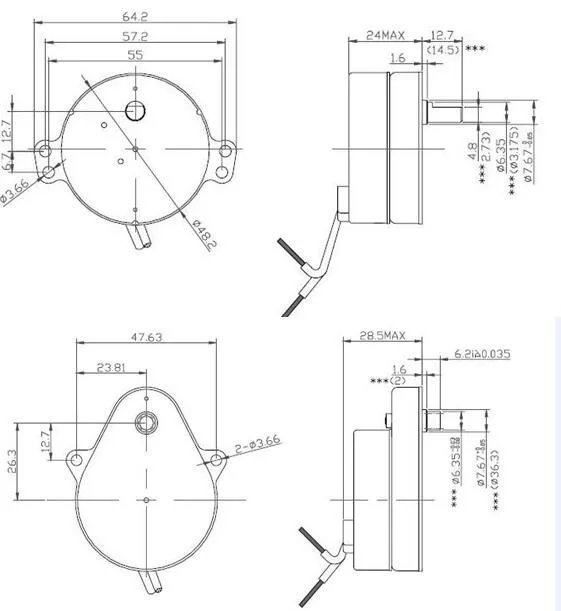

Outline Drawing |
|||||||||
|
|
Applications
Customized Solutions
Our Services
GP Motor has been a sophisticated designer and manufacturer of topnotch custom EC motors, DC motors, Brushless Motors, Gear Motors, Pump motors, AC motors, electromechanical motor assemblies and components in the industry since 1991.All of our custom electric motors are engineered and manufactured in our 120,000 square foot state-of-the-art manufacturing plant located in Ningbo, Zhejiang.
