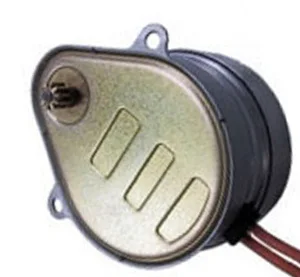

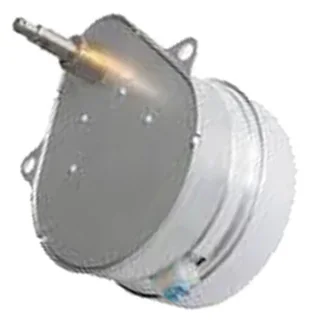

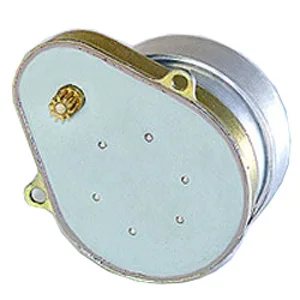

Tyc50 12 Synchronous Motor
Product Overview
Datasheet Download
Overall Feature:An inherently constant speed, are very smooth and quiet in operation and have the ability to run at stall continuously.
| Product Name | Synchronous Motor |
| Voltage Available | 3~230VDC |
| Speed | 1/10RPM to 15RPM. |
| Motor Rotation option | CW or CCW. |
| Applications | Pump, Motorized Valve, Timer, Ice maker, Chart Recorder, etcs |
| Note: | Ratios and shaft configurations can be designed. |
Product Description
| Model | Voltage(V) | Frequency(HZ) | Power(W) | Input Current(mH) | Speed(Rpm) | Direction of Rotation | Temp Rise(K) | Pull-out Torque |
| 71661 | 120 | 60 | 3 | 23 | 1/60 | CW | 45 | >200oz.in |
| 71660 | 24 | 60 | 3 | 140 | 1/60 | CW | 45 | >200oz.in |
| 71663 | 24 | 50 | 3 | 140 | 1/60 | CW | 45 | >200oz.in |
| 71665 | 220 | 50 | 3 | 6.5 | 1/60 | CW | 45 | >200oz.in |
| 70951 | 24 | 60 | 3 | 140 | 1/36 | CW | 45 | >200oz.in |
| 70952 | 120 | 60 | 3 | 23 | 1/36 | CW | 45 | >200oz.in |
| 70953 | 24 | 50 | 3 | 140 | 1/36 | CW | 45 | >200oz.in |
| 70954 | 220 | 50 | 3 | 6.5 | 1/36 | CW | 45 | >200oz.in |
Outline Drawing | |||||||||
|
