Product Overview

Description

 Product  Categories

Push-In Wire Connectors
  • Unik Push in connector PC35 Series
  • Push in connector PC15 Series Economy Type
  • Push in connector PC225 Series Compact Type
  • Push in connector PC25 Series Standard Type
  • Push in connector - Releasable Type

 Unik Push-in Wire Connectors PC35 Series

Unik-Push-in Wire connector.jpg



Characters



  • For use with rigid/solid and flexible/stranded conductors.
  • Polycarbonate, UL 94V-0 flame-retardant shell.
  • Spring force connector constructed from tinned copper plate, spring steel and steel frame
  • Rated to 600V max. for building wiring and 1000V max.lighting fixtures and signs.
  • Color-coded for quick and easy identification.
  • Hardened stainless steel insert restrict pull-out, requires a very low insertion force.





Model No. Color Poles Electrical Ratings Clamping Area Wire Range Packing
PC352 Yellow 2 24 A, 450 V, T110 0,5-2,5 mm², Rigid 500 Pcs/Bag
600 V, 105°C (221°F) 22-12 AWG, Sol/Str Cu 5,000 Pcs/Ctn
PC353 Orange 3 24 A, 450 V, T110 0,5-2,5 mm², Rigid 400 Pcs/Bag
600 V, 105°C (221°F) 22-12 AWG, Sol/Str Cu 4,000 Pcs/Ctn
PC354 Clear 4 24 A, 450 V, T110 0,5-2,5 mm², Rigid 300 Pcs/Bag
600 V, 105°C (221°F) 22-12 AWG, Sol/Str Cu 3,000 Pcs/Ctn
PC355 Blue 5 24 A, 450 V, T110 0,5-2,5 mm², Rigid 300 Pcs/Bag
600 V, 105°C (221°F) 22-12 AWG, Sol/Str Cu 3,000 Pcs/Ctn
PC356 Purple 6 24 A, 450 V, T110 0,5-2,5 mm², Rigid 250 Pcs/Bag
600 V, 105°C (221°F) 22-12 AWG, Sol/Str Cu 2,500 Pcs/Ctn
PC358 Black 8 24 A, 450 V, T110 0,5-2,5 mm², Rigid 200 Pcs/Bag
600 V, 105°C (221°F) 22-12 AWG, Sol/Str Cu 2,000 Pcs/Ctn



Push in connector PC15 Series Economy Type

Characters(For use with rigid/solid conductors)




  • Accpet conductors 0.5 - 1.5 Square MM
  • For use with rigid / solid conductors.
  • Polyamide 66, UL 94V-2 flame-retardant shell.
  • Spring force connector constructed from tinned steel with copper plates.
  • Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.
  • Compact size design perfect for tight spaces.



Model No. Color Poles Electrical Ratings Clamping Area Wire Range Packing
PC153 Grey 3 17.5 A, 450 V, T110 0,5-1,5 mm², Rigid 500 Pcs/Bag
600 V, 105°C (221°F) 20-16 AWG, Sol Cu 5,000 Pcs/Ctn
PC155 Grey 5 17.5 A, 450 V, T110 0,5-1,5 mm², Rigid 500 Pcs/Bag
600 V, 105°C (221°F) 20-16 AWG, Sol Cu 5,000 Pcs/Ctn
PC158 Grey 8 17.5 A, 450 V, T110 0,5-1,5 mm², Rigid 500 Pcs/Bag
600 V, 105°C (221°F) 20-16 AWG, Sol Cu 2,500 Pcs/Ctn



Push in connector PC225 Series Compact Type

PC225 series.jpg



Characters-PC225 Series



  • 25% more compact in size than original types with cost-saving effectiveness.
  • For use with rigid / solid conductors.
  • Polycarbonate and Polyamide 66, UL 94V-0 flame-retardant shell.
  • Spring force connector constructed from tinned steel plate with copper strip and spring steel.
  • Color-coded for quick and easy identification.





Model No. Color Poles Electrical Ratings Clamping Area Wire Range Packing
PC2252 Red 2 24 A, 450 V, T110 1 - 2,5 mm²  1,000 Pcs/Bag
Ridid Single-core 10,000 Pcs/Ctn
Rigid Multi-core
PC2253 Orange 3 24 A, 450 V, T110 1 - 2,5 mm² 1,000 Pcs/Bag
Ridid Single-core 8,000 Pcs/Ctn
Rigid Multi-core
PC2254 Yellow 4 24 A, 450 V, T110 1 - 2,5 mm² 500 Pcs/Bag
Ridid Single-core 5,000 Pcs/Ctn
Rigid Multi-core
PC2255 Grey 5 24 A, 450 V, T110 1 - 2,5 mm² 500 Pcs/Bag
Ridid Single-core 5,000 Pcs/Ctn
Rigid Multi-core
PC2258 Black 8 24 A, 450 V, T110 1 - 2,5 mm² 400 Pcs/Bag
Ridid Single-core 4,000 Pcs/Ctn
Rigid Multi-core





Push in connector PC25 Series Standard Type

PC25 series.jpg

Characters-PC25 Series



  • For use with 1 - 2,5 square mm solid conductors.
  • Polycarbonate and/or Polyamide 66, UL 94V-2 or 94V-0 flame-retardant shell.
  • Spring force connector constructed from tinned copper or steel plate with copper strip and spring steel.
  • Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.
  • Color-coded for quick and easy identification.



Model No. Color Poles Electrical Ratings Clamping Area Wire Range Packing
PC252 Red 2 24 A, 450 V, T110  1-2,5 mm², Sol 500Pcs/Bag
PC252X 600 V, 105°C 22-12 AWG, Sol Cu 5,000 Pcs/Ctn
PC253 Orange 3 24 A, 450 V, T110  1-2,5 mm², Sol 500Pcs/Bag
PC253X 600 V, 105°C 22-12 AWG, Sol Cu 5,000 Pcs/Ctn
PC254 Yellow 4 24 A, 450 V, T110  1-2,5 mm², Sol 500Pcs/Bag
PC254X 600 V, 105°C 22-12 AWG, Sol Cu 5,000 Pcs/Ctn
PC255 Grey 5 24 A, 450 V, T110  1-2,5 mm², Sol 500Pcs/Bag
PC255X 600 V, 105°C 22-12 AWG, Sol Cu 5,000 Pcs/Ctn
PC2258 Black 8 24 A, 450 V, T110  1-2,5 mm², Sol 400Pcs/Bag
600 V, 105°C 22-12 AWG, Sol Cu 4,000 Pcs/Ctn
PC252-CL Clear 2 24 A, 450 V, T110  1-2,5 mm², Sol 500Pcs/Bag
PC252X-CL 600 V, 105°C 22-12 AWG, Sol Cu 5,000 Pcs/Ctn
PC253-CL Clear 3 24 A, 450 V, T110  1-2,5 mm², Sol 500Pcs/Bag
PC253X-CL 600 V, 105°C 22-12 AWG, Sol Cu 5,000 Pcs/Ctn
PC254-CL Clear 4 24 A, 450 V, T110  1-2,5 mm², Sol 500Pcs/Bag
PC254X-CL 600 V, 105°C 22-12 AWG, Sol Cu 5,000 Pcs/Ctn
PC255-CL Clear 5 24 A, 450 V, T110  1-2,5 mm², Sol 500Pcs/Bag
PC255X-CL 600 V, 105°C 22-12 AWG, Sol Cu 5,000 Pcs/Ctn

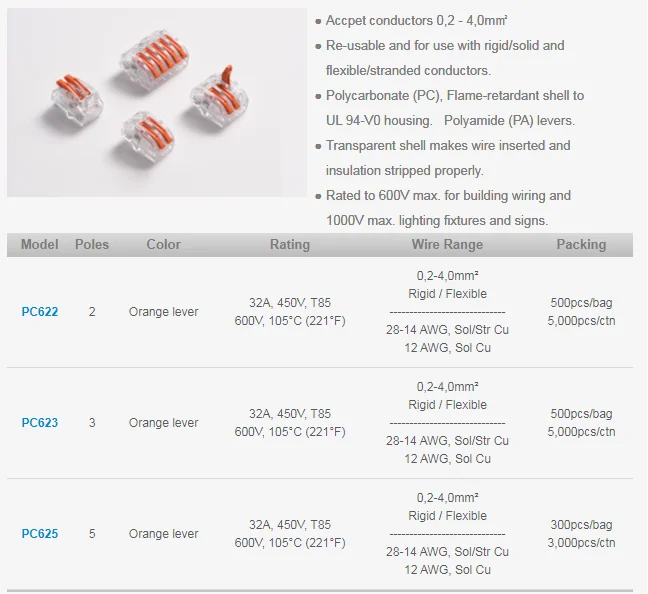

 Push in connector - Releasable Type



Releasable wire connectors-1.jpg

Characters-Releasable type

  • Accept conductors up to 4 square mm / 12 AWG.
  • For use with rigid/solid and flexible/stranded conductors.
  • Polycarbonate and Polyamide 66, UL 94V-0 flame-retardant shell.
  • Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.
  • 0.5 square mm/ 18AWG and larger solid conductors are not required the operating tool.
  • Can be reused.



Model No. Color Poles Electrical Ratings Clamping Area / Wire Range Packing
PC883 Orange 3 32 A, 450 V, T110 0,5-4,0 mm²,  400 Pcs/Bag
600 V, 105°C (221°F) Rigid/Flexible 4,000 Pcs/Ctn
  22-12 AWG, Sol Cu
  22-16 AWG, Str Cu
