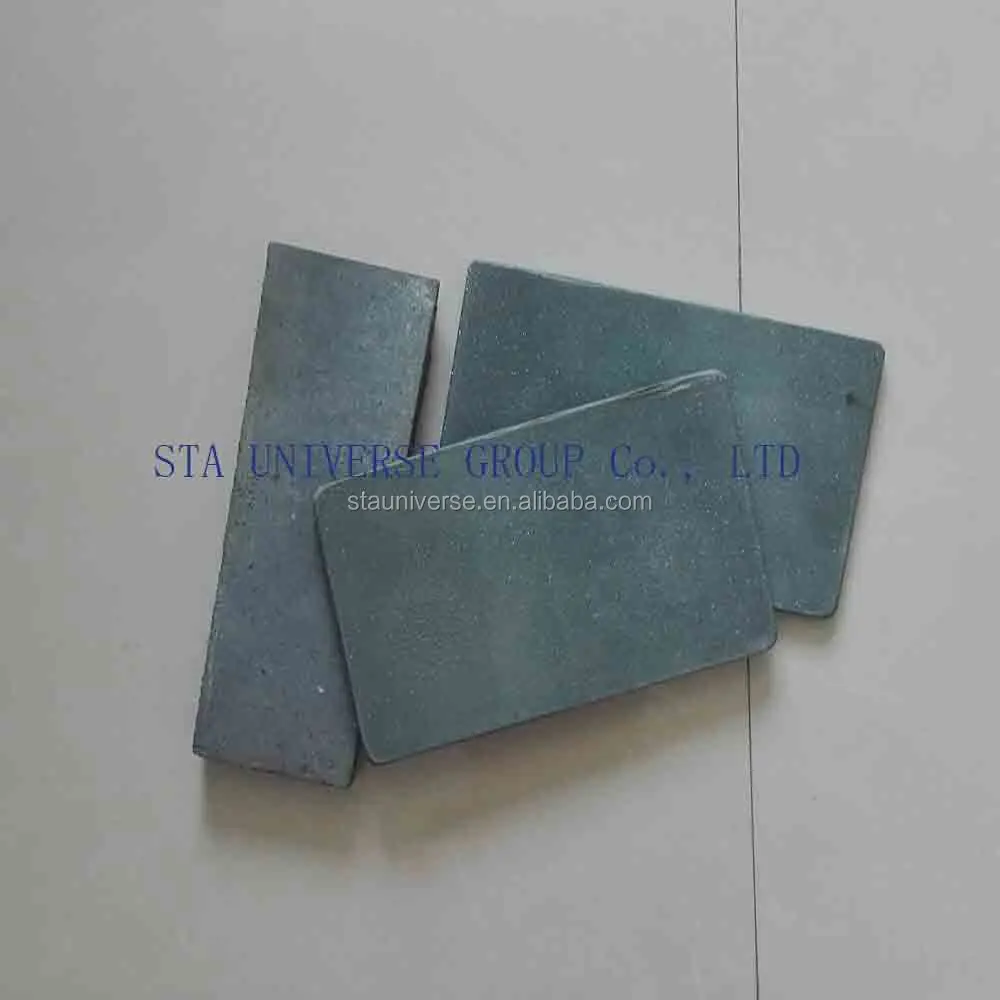

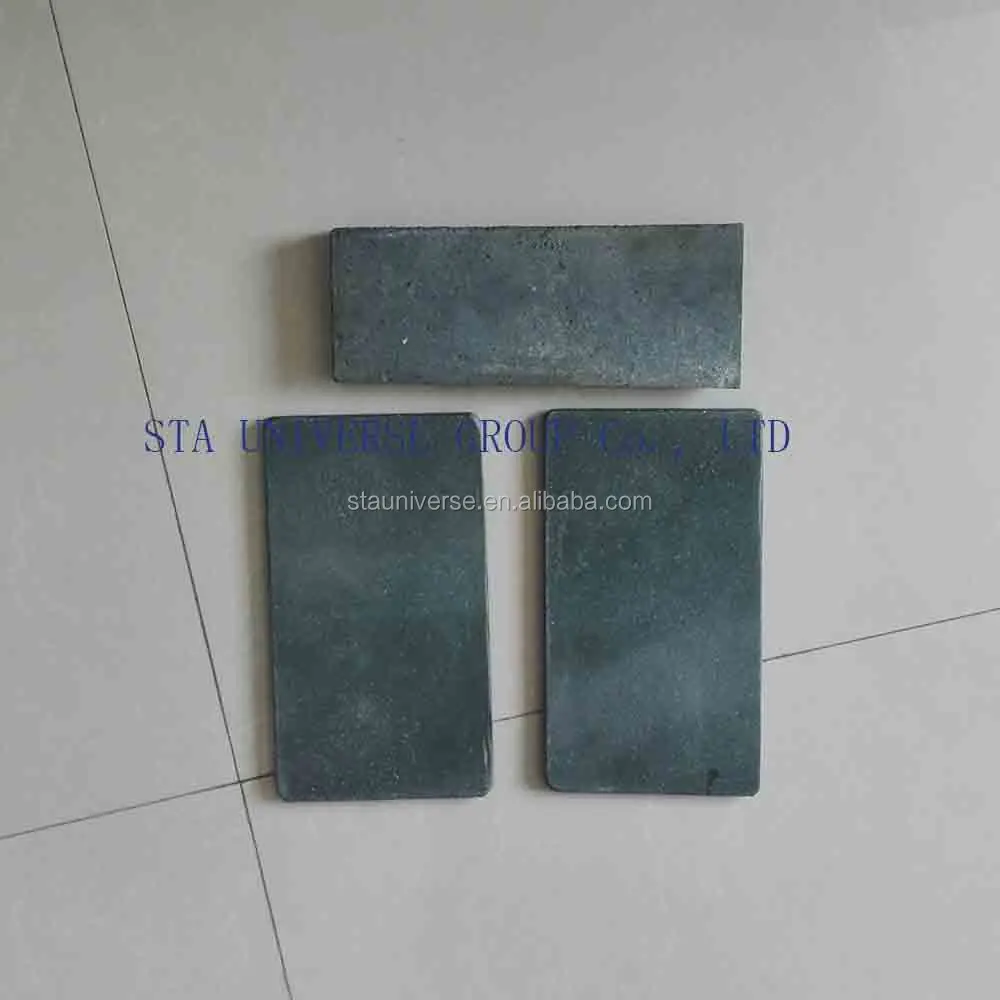

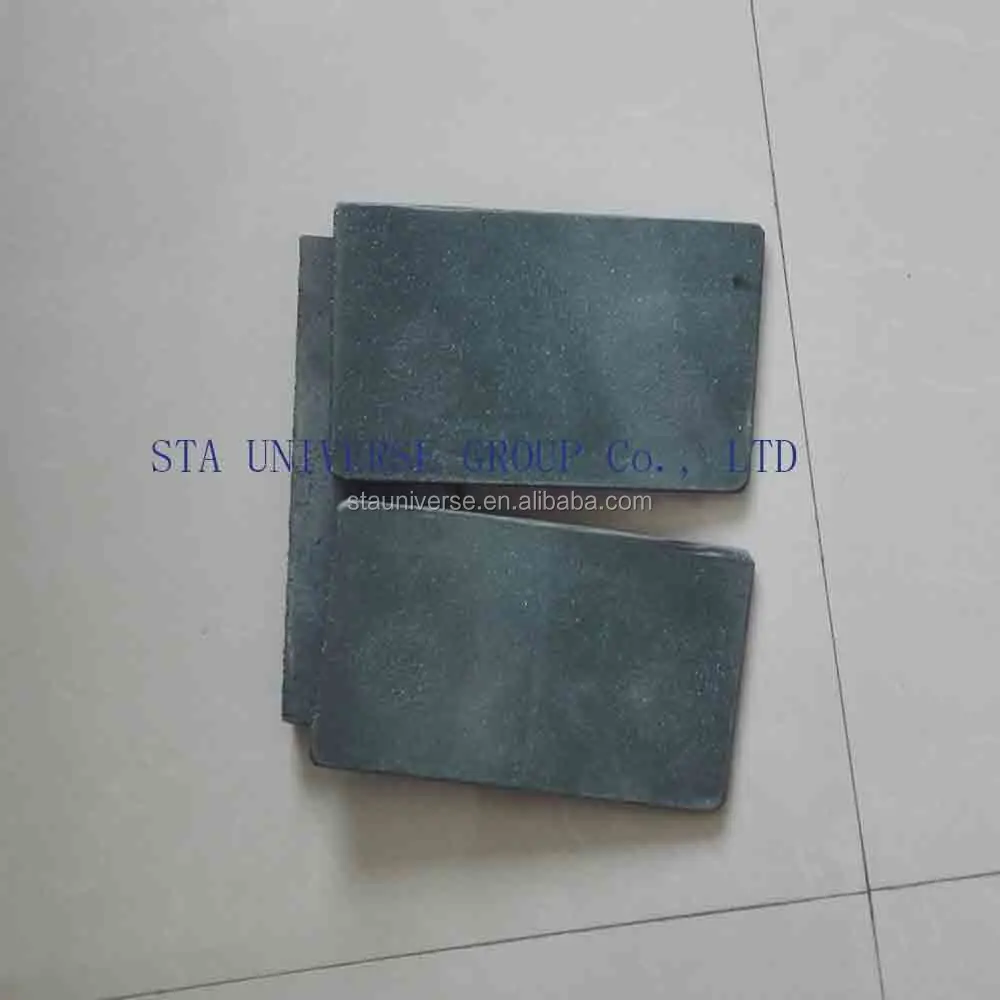

STA Top quality Refractory Silicon Carbide (SiC) ceramic plate / kiln plate/ ceramic shelves
- Category: >>>
- Supplier: Sta Refractory (zhengzhou) Co. Ltd.
Share on (60472002987):
Product Overview
Description

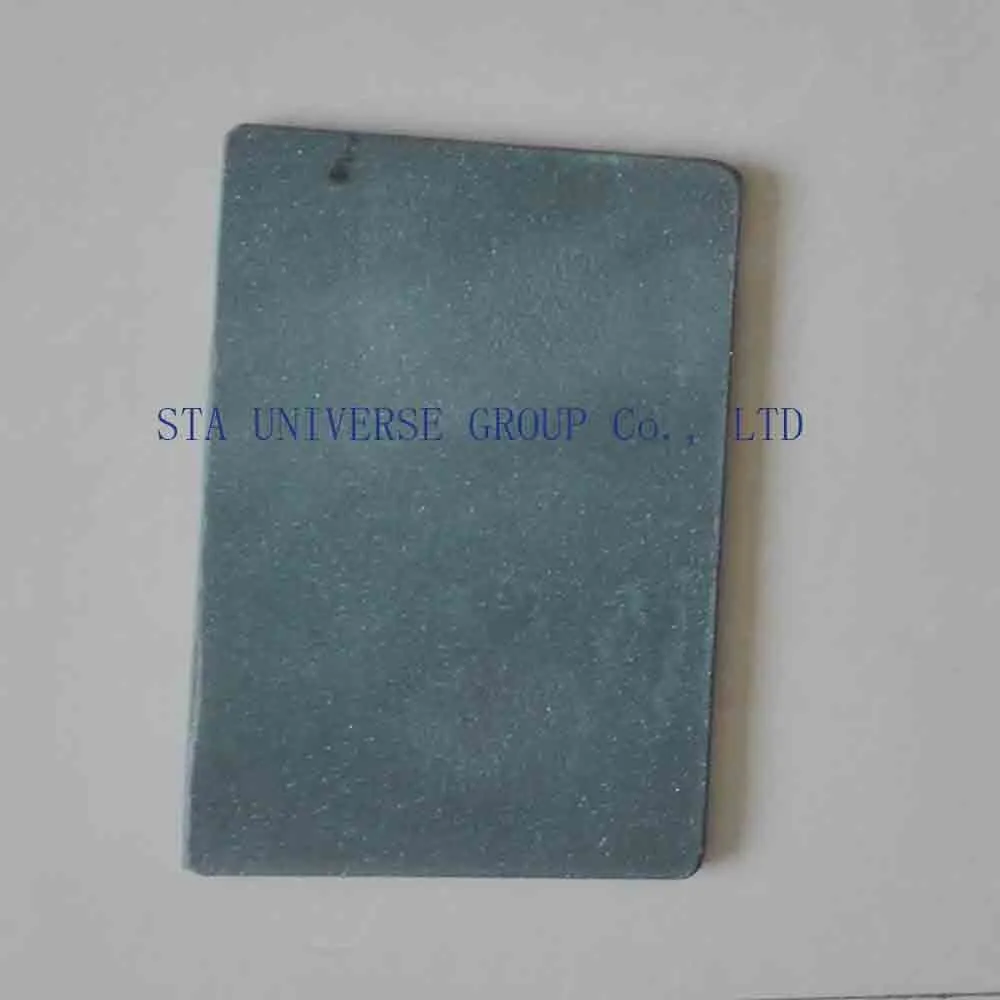

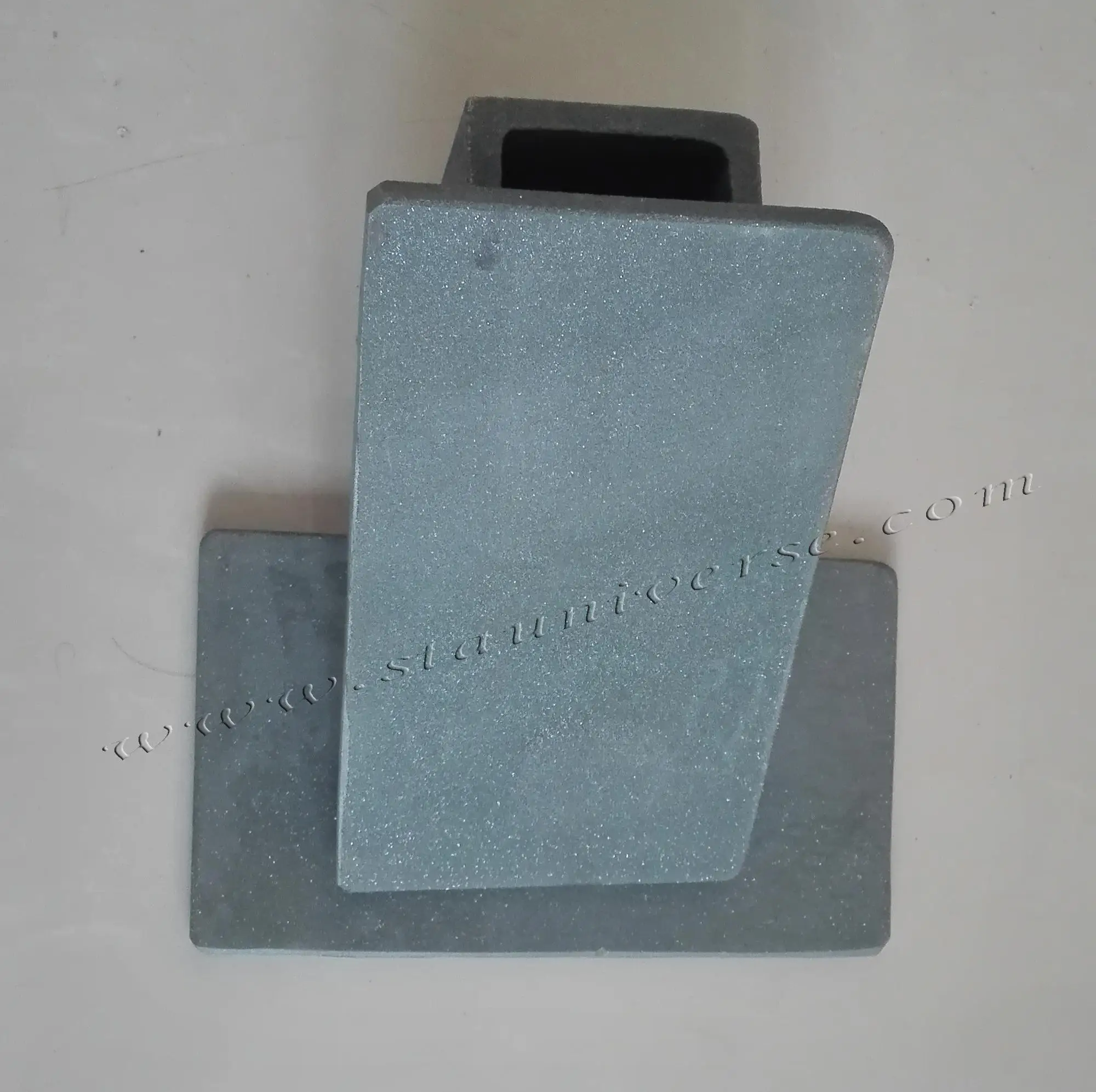

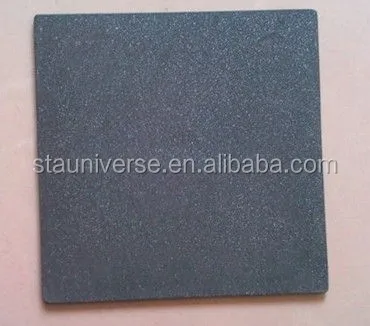

Top quality Refractory Silicon Carbide (SiC) ceramic plate
Specifications
Silicaon Carbon Plate, also known as carborundum, is a compound of silicon and carbon with a chemical formula SiC. is made through high temperature sintering, adopting the higher quality raw materials. It has characteristics of stable performance, excellent thermal shock resistance, oxidation resistance, long life, thin volume but high bulk density. Its good thermal conductivity can assure to save energy at maximum level.
Product Description

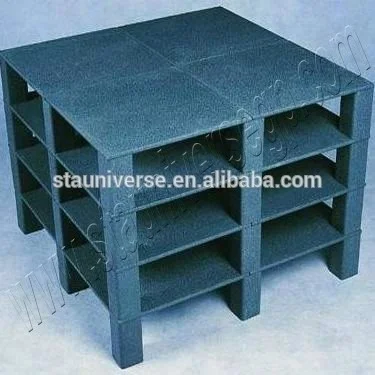

Silicon carbide sic plates applied to ceramics for daily use Kiln and furnace as kiln furniture.
The silicon carbide product belongs to the high-quality fire-proof material, it has the fine thermal conductivity, the high heat shock stability, the high load capacity softening point and the very good wear-resisting performance, widely uses in each kind having the special request profession. Company product: The chamber, the furnace tube, the wear-resisting guide rail, the silicon carbide chest earthen bowl, receives burns the board, the push pedal, the awning board, the kiln stove burner nozzle and so on. The quality is stable, the size is precise, could make as special request and make surface polish.
Characteristics:
Max temperature tolerance 1650 degree
High thermal conductivity and shock resistance
High mechanical strength and abrasion resistance
Excellent energy efficiency and corrosion resistance
Relevant Recommendation:
Silicon Nitride Ceramics
Oxide bonded SiC (OSIC)

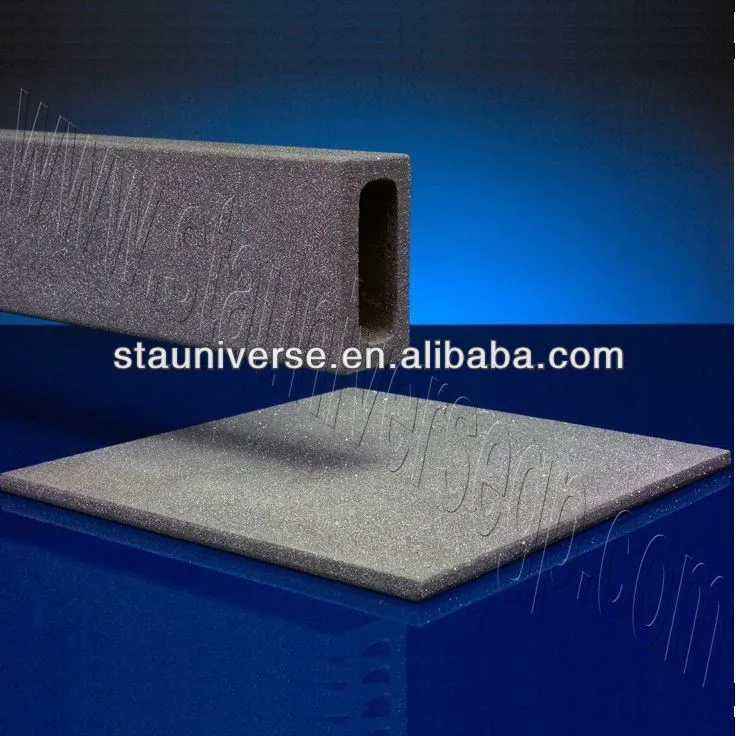

Recrystallizde SiC (Re-SiC)
Reaction Bonded SiC (SiSiC)
Specifications:
| Chemical Composition SIC ≥ | % | 90 |
| Max. Service Temp | ºC | 1400 |
| Refractoriness ≥ | SK | 39 |
| 2kg/cm2 Refractoriness under load T2 ≥ | ºC | 1790 |
| Modulus of Rupturt at room temp ≥ | Kg/cm2 | 500 |
| Modulus of Rupture at 1400ºC ≥ | Kg/cm2 | 550 |
| Compressive strenght ≥ | Kg/cm2 | 1300 |
| Thermal Expansion at 1000ºC | % | 0.42-0.48 |
| Apparent Porosity | % | ≤20 |
| Bulk Density | g/cm3 | 2.55-2.7 |
| Thermal Conductivity at 1000ºC | Kcal/m.hr.ºC | 13.5-14.5 |
Packaging & Shipping
Our Services
Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 12 hours and help you to settle your problem controller freely.
FAQ
Q: What's the payment term?
A: T/T, L/C, Western Union and other payment terms could be negotiated.
Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard size SIC plate, but also customized product according to your request. Don't hesitate to tell us your requirements, we will try our best to meet your needs.
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from Airport.
Q:How about the packing, is it safely protected during transportation?
A: Our ceramic products are packed by standard export wooden box for outside package and foam for inner package, it won't be damaged. We've delivered many ceramic goods abroad by Sea or Air without damage.
