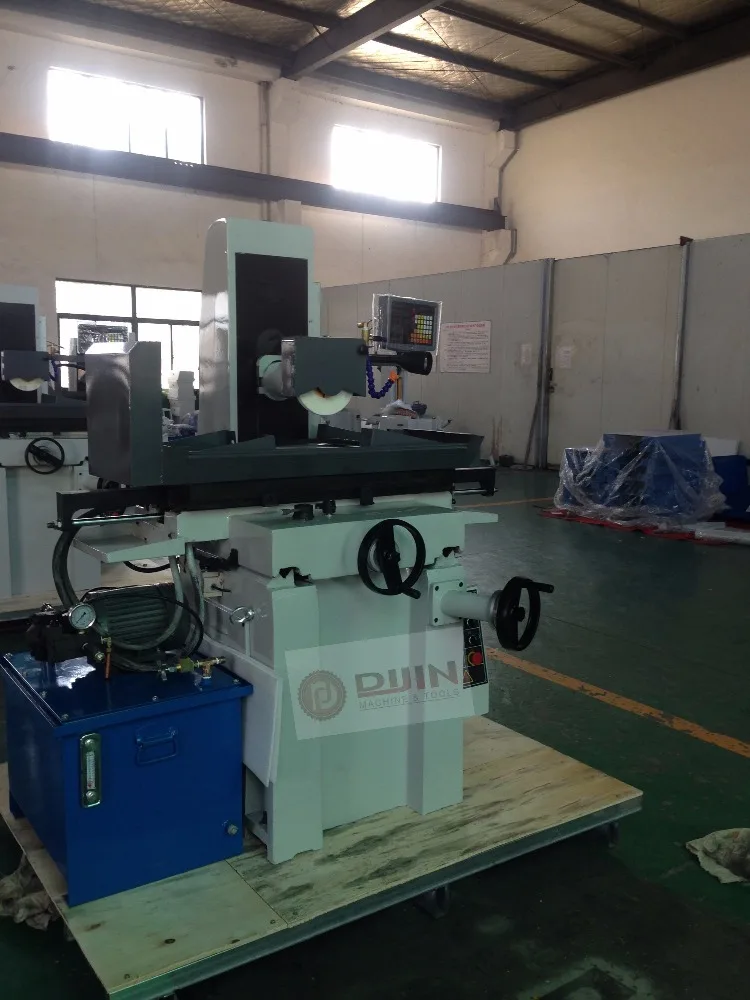

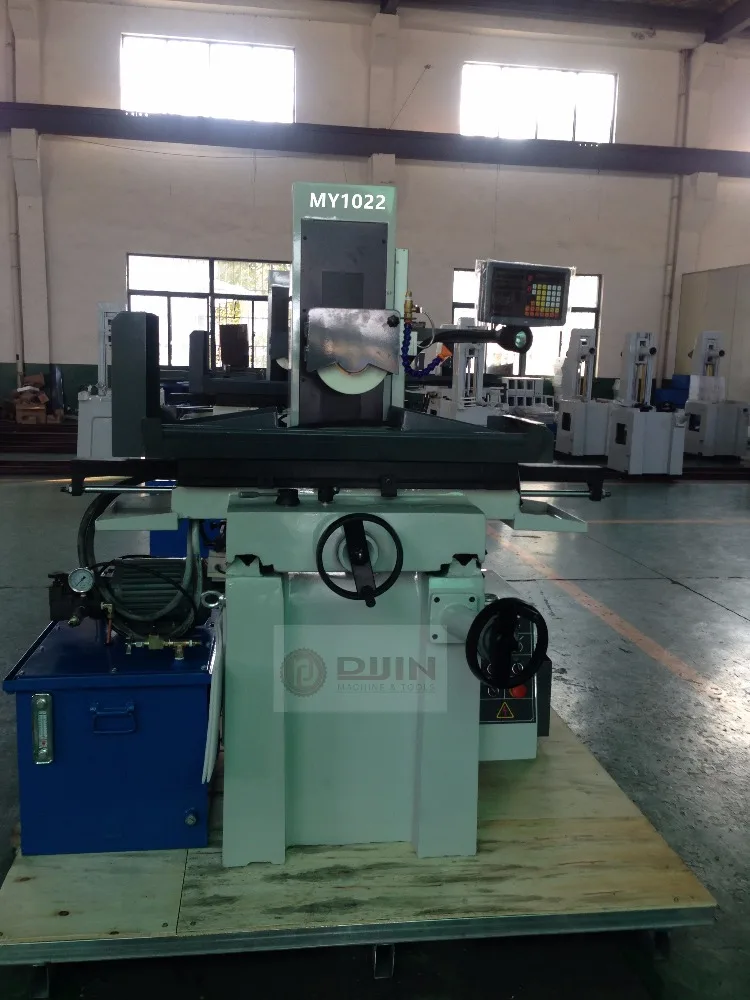

Metal surface grinder machine MY1022 Hydraulic surface grinding Machine for sale
- Category: >>>
- Supplier: Shenzhen Dijin Machine Equipment Co. Ltd.
Share on (60472213138):
Product Overview
Description
Manual surface grinder MY1022
Features:
1,Compact structure and easy operate.

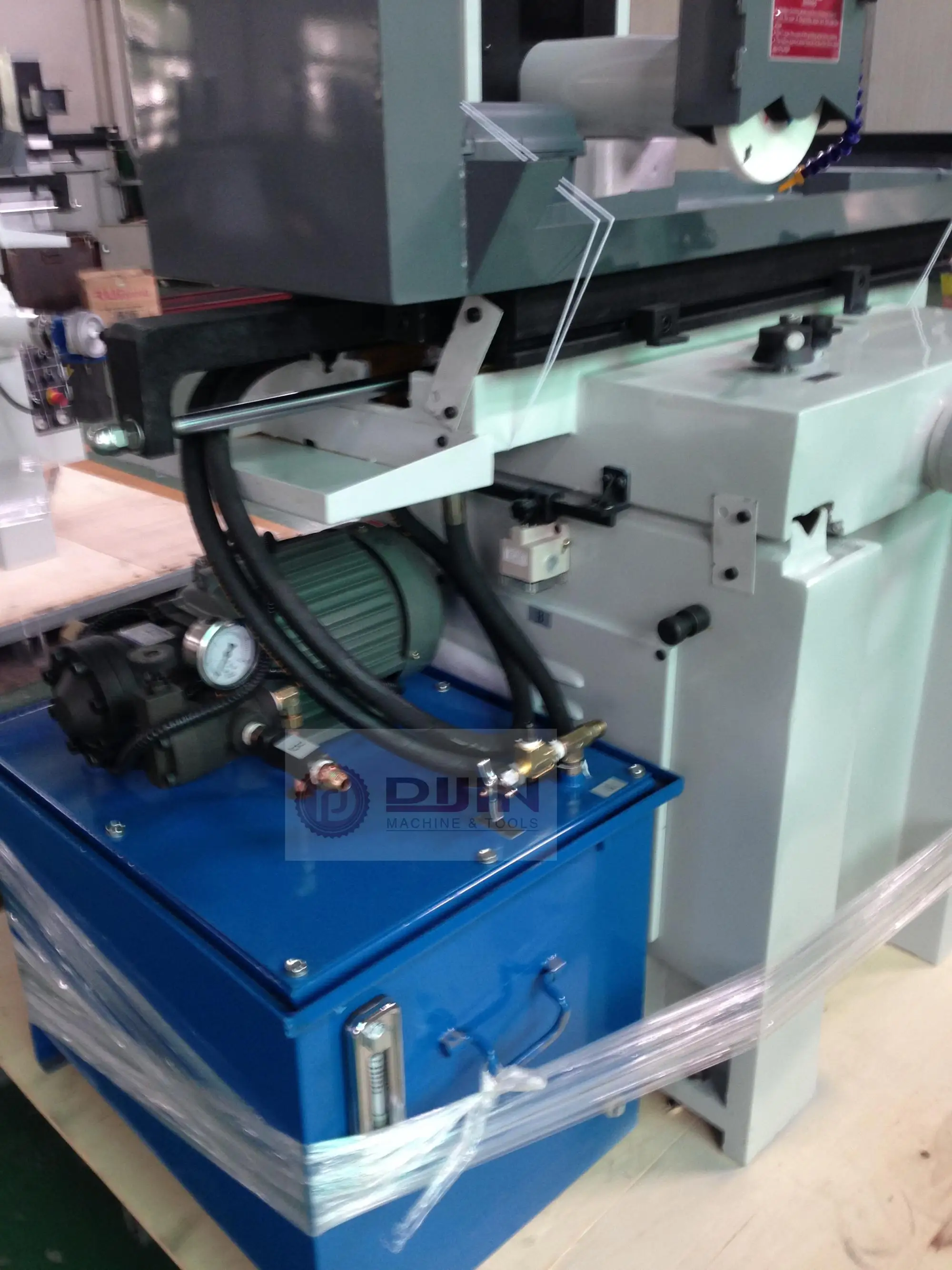

2,Table longitudinal movement by hydraulic.
3,Table trantsverse feed by automation operate or by handle.
4,Grinding head vertical move can be adopted with power rapid movement or hand micro feed.
Technical Parameters | Unit | M1022 | MY1022 | |
Max.workpiece to be Ground | mm | 600×250×490 | 600×250×490 | |
Max. Grinding Length | mm | 600 | 600 | |
Max. Grinding Width | mm | 250 | 250 | |
Distance From Table Surface To Spindle Center | mm | 490 | 490 | |
Slide way |
| V-type rail with Steel-ball | V-type rail with Steel-ball | |
V-type rail with Steel-ball | Kg | 250 | 250 | |
Table Size (L×W) | mm | 550×260 | 550×260 | |
Number of T -Slot | mm×n | 12×1 | 12×1 | |
Speed OF Working Table | m/min | 3-23 | 3-23 | |
Cross Feed On Handwheel | mm | 0.02/Graduation 2.5/revolution | 0.02/Graduation 2.5/revolution | |
Vertical Feed On Handwheel | mm | 0.01/Graduation 1.25/revolution | 0.01/Graduation 1.25/revolution | |
Wheel Size (dia.×width×bore ) | mm | 200×16×31.75 | 200×16×31.75 | |
Spindle Speeds | 50Hz | rpm | 2850 | 2850 |
0-6000 | 30-6000 | |||
Spindle Motor | Kw | 1.1 | 1.1 | |

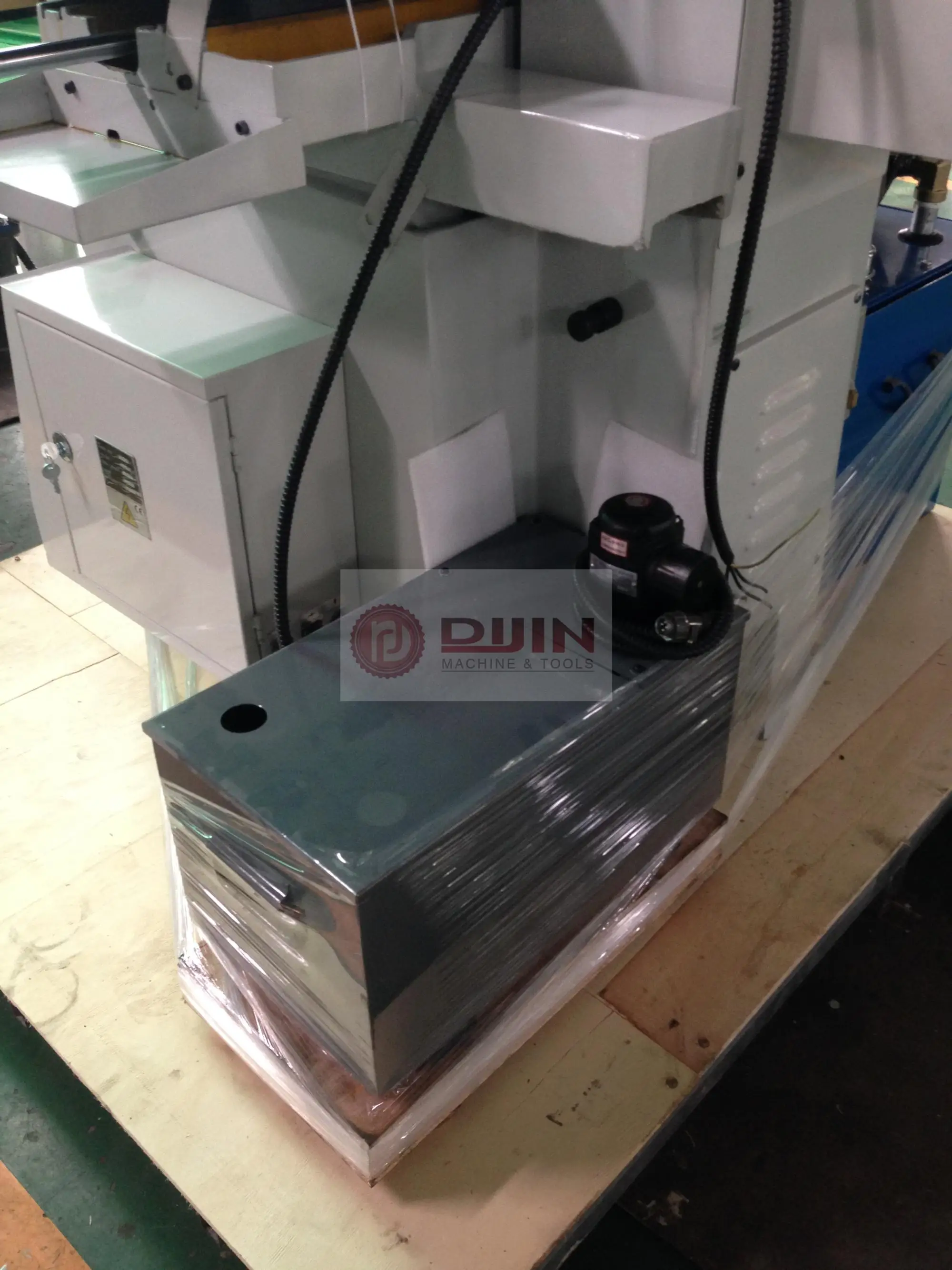

Coolant Pump | Kw | 0.4 | 0.4 | |
Minimum of Numerical Display | mm |
| 0.001-0.005 | |
Machine Size (L×W×H) | mm | 1800×1400×1800 | 1800×1400×1800 | |
Packing Size (L×W×H) | mm | 1200×1340×1960 | 1200×1340×1960 | |
Gross,Net | T | O.85, 0.90 | O.86, 0.91 | |
