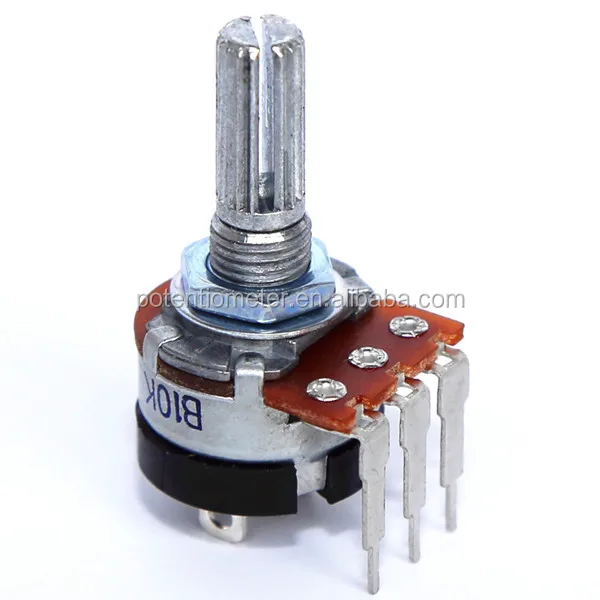

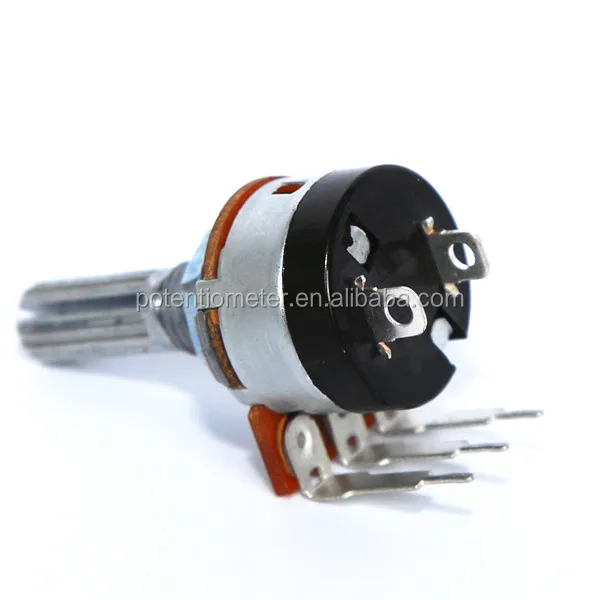

16mm linear potentiometer with switch 10k rotary potentiometer with switch

Item

Content

Specification

1.1

Total Resistance

500K

1.2

Total Resistance Tolerance

± 10 %

1.3

Resistance Taper

B taper

1.4

Power Rating

Curve B:0.2W;other than B:0.1W

1.5

Max. operating Voltage

150V AC

1.6

Residual Resistance

R1-2≤  10  W; R2-3 ≤  20   W

1.7

Rotational Noise

≤47mV

1.8

Insulation Resistance

≥100 MΩ at DC 500V

1.9

Withstanding Voltage

1 Minute at AC 500V

2.1

Dimensions

Refer to the separate product chart

2.2

Total Rotational Angle

300

2.3

Rotational Torque

20~250 gf.cm

2.4

Shaft Stop Strength

≥6kgf.cm

2.5

Shaft Push & Pull Strength

≥8kgf.cm

2.6

Bushing nut tighting strength

7kgf.cm

2.7

Shaft Wobble (mm p-p)

≤0.7 x L/30mm(p-p) L=shaft Length

3.1

Rotational Life

≥10,000 cycles

3.3

Working Temperature

-10℃~ +70℃

3.4

Soldering Heat Characteristic

Auto Soldering:  260℃±10℃;time:5±1 sec

Manual Soldering:300℃±5℃ ;time:3±1 sec
