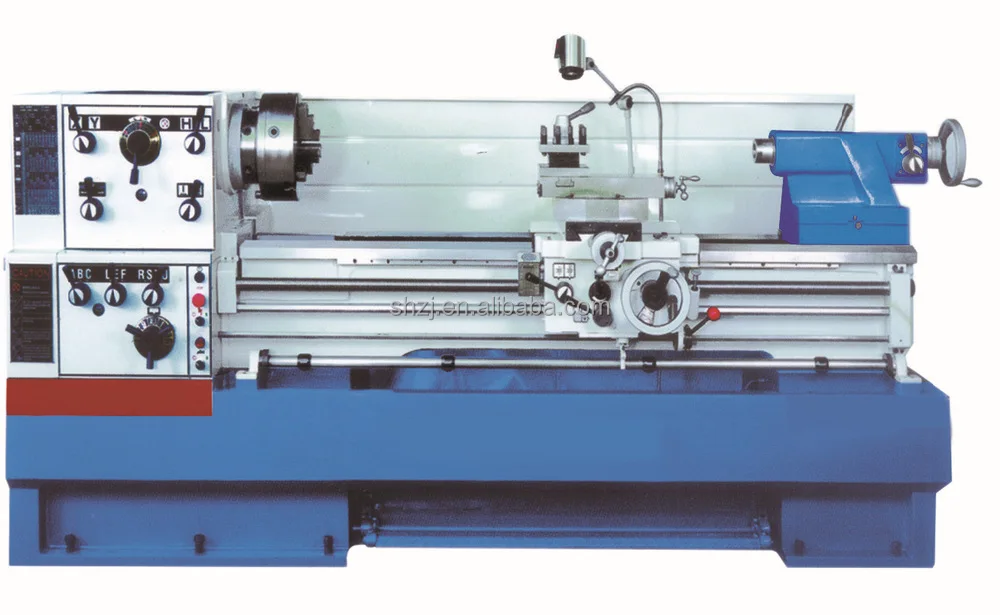

C6241x2000 heavy duty manual lathe machine
- Category: >>>
- Supplier: Shanghai Zhong Jing Imp. & Exp. Corporation
Share on (60472496114):
Product Overview
Description
Heavy duty industrial lathe machine price
Feature:
1.Precision ground and supersonic frequency hardened bed ways is designed in double wall structure, giving superb rigidity
2.The spindle system is high in rigidity and accuracy
3.The design of the main drive is optimized and the gears in the headstock are precision ground
4.The noise of machine is low
5.No need for change gears
6.CE standard
Specification:
|
Model |
C6241 |
|
Max. swing over bed |
410mm |
|
Max. swing over cross slide |
224mm |
|
Max. swing over gap |
640mm |
|
Length of gap |
155mm |
|
Max. distance between center |
2000mm |
|
Bed width |
300mm |
|
Spindle nose |
D1-6 |
|
Spindle bore |
58mm |
|
Spindle bore taper |
MT6 |
|
Range of spindle speed |
12 changes 25-2000r/min |
|
Cross slide travel |
290mm |
|
Tool size |
25mmx25mm |
|
Tailstock sleeve taper |
MT4 |
|
Travel of tailstock sleeve |
120mm |
|
Dia. of tailstock sleeve |
60mm |
|
Range of metric thread |
41kinds 0.1-14mm |
|
Range of diametrical thread |
50kinds 4-112D.P |
|
Range of inch thread |
60kinds 2-112T.P.I |
|
Range of module thread |
34kinds 0.1-7M.P |
|
Longitudinal feed range in metric lead screw |
42kinds 0.031-1.7mm/rev |
|
Cross feed range in metric lead screw |
42kinds 0.014-0.784mm/rev |
|
Motor power |
4/5.5kW |
|
Overall dimension |
3300x1120x1700mm |
|
N.W/G.W |
2180/2520kg |
Standard accessories:
-3-jaw chuck
-4-jaw chuck
-Steady rest
-Follow rest
-Face plate
-Coolant system
-Work light
-Dead center
-Stand
-Tool box and tools
Optional accessories:
-Taper device
-Tool post cover
-Chuck cover
-Leadscrew cover
-Digital readout
