One set MP83mm hub motor with vesc sina wave controller and 2.4g wireless remote controller for electric skateboard

Product Overview

Description

New arrival  new version 83mm hub motor with 3000w power for electric skateboard



Spec:

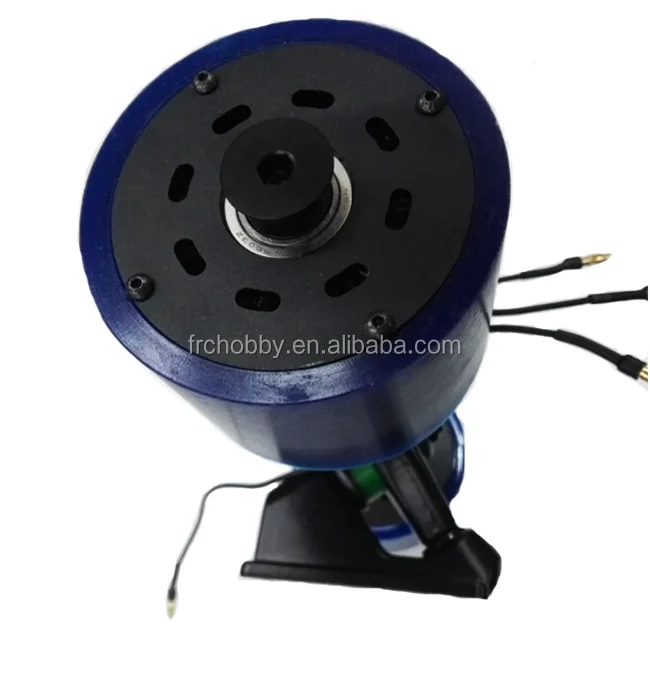

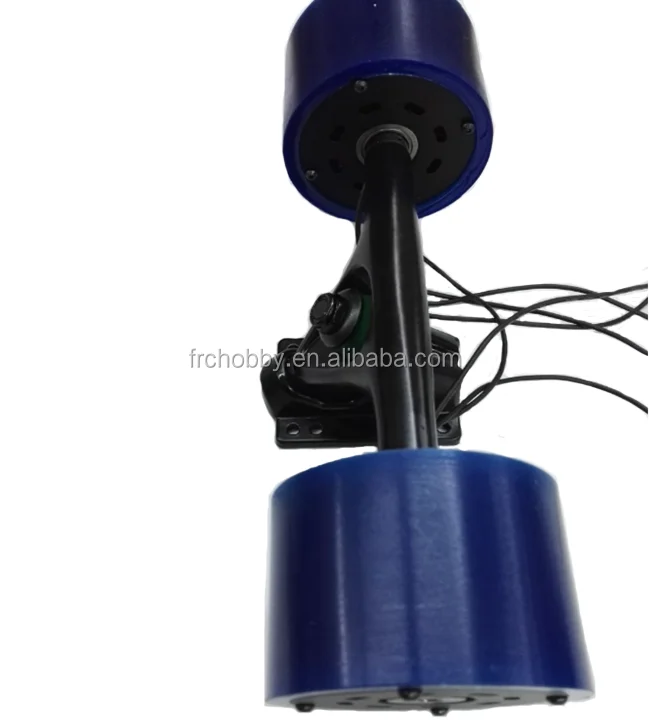

MP 83mm wheel hub motor. can be single or dual motors

Motor specs:
60A peak 30a constant
50.4v peak
3000w peak
1500w constant

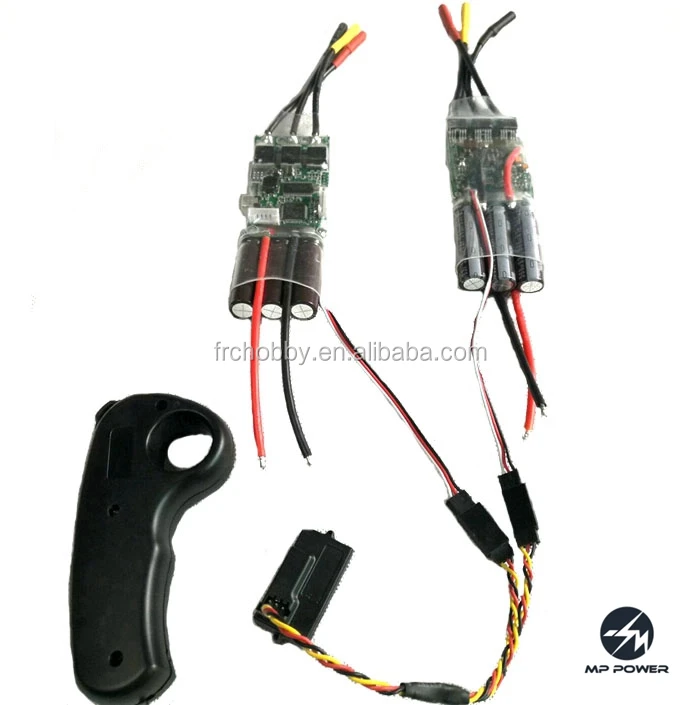

Our sina wave controller spec:

5V 1A output for external electronics from the buck converter integrated on the DRV8302.
Voltage: 8V - 60V (Safe for 3S to 12S LiPo).
Current: Up to 240A for a couple of seconds or about 50A continuous depending on the temperature and air circulation around the PCB.
Firmware based on ChibiOS/RT.
PCB size: slightly less than 40mm x 60mm.
Current and voltage measurement on all phases.
Regenerative braking.
DC motors are also supported.
Sensored or sensorless operation.
