Capacitor For welding machine 30uF 40uF 1250V DC link capacitor welding machine MKP LS

Share on (60472606426):


Price:

Quantity:


Product Overview

Description


Product Description

Name:

LS series DC link capacitor for welding machine


Application:

Inverter welding machine/Power supply etc


Related products:

S series snubber capacitor / SB series snubber capacitor / LS series DC link capacitor / R series resonance capacitor

\t
Series
\t
LS series
\t
Capacitance
\t
30uF,40uF
\t
Capacitance  Tolr.
\t
±5%(J)
\t
Rated Voltage
\t
1250VDC
\t
Terminals
\t
Tinned copper nuts
\t
Encapsulation
\t
plastic case/epoxy resin
\t
Brand
\t
CABO
\t
Application
\t
dc link
Electrical Parameter
\t
Capacitance
\t
30uF,40uF
\t
Temperature
\t
-40℃~+85℃
\t
Capacitance Tolerance
\t
±5%(J)
\t
Rated Voltage
\t
1250V DC
\t
Test Voltage between terminals
\t
1.75Un 60s
\t
Dissipation factor
\t
Tgθ≤0.0020(1KHz,20℃)
\t
Insulation Resistance
\t
CxRs≥5000S(20℃,100VDC,1min)
\t
Flame Resistance
\t
UL 94V-0
\t
Max Torque of terminals
\t
6Nm
\t
Lifetime Expectancy
\t
≥30,000Hours (Un,≤70℃)
Typical Circuit



It can be widely used in:
Power supply | Induction heater | welding machine

For Dc link application.

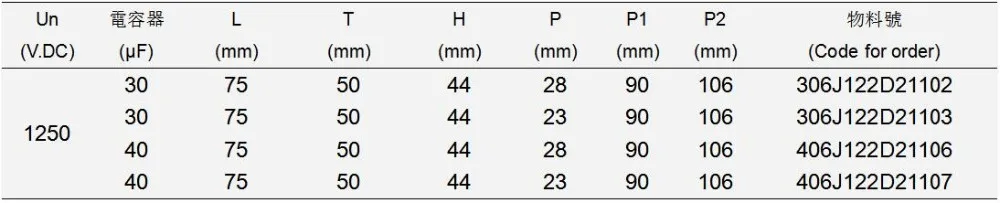

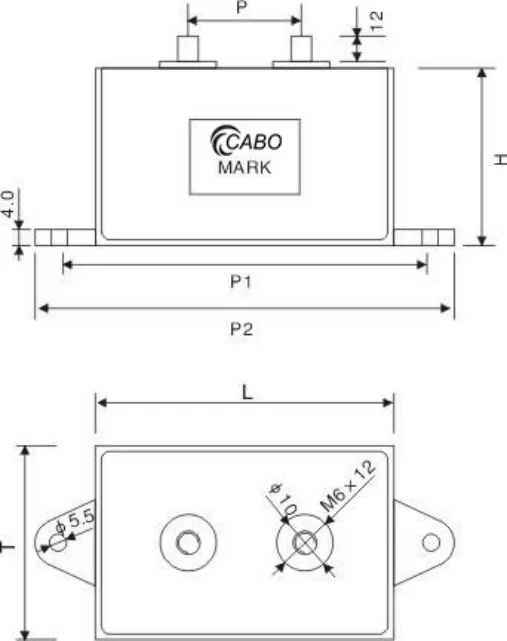

Outline Drawings

More installation leads please contact your customer manager

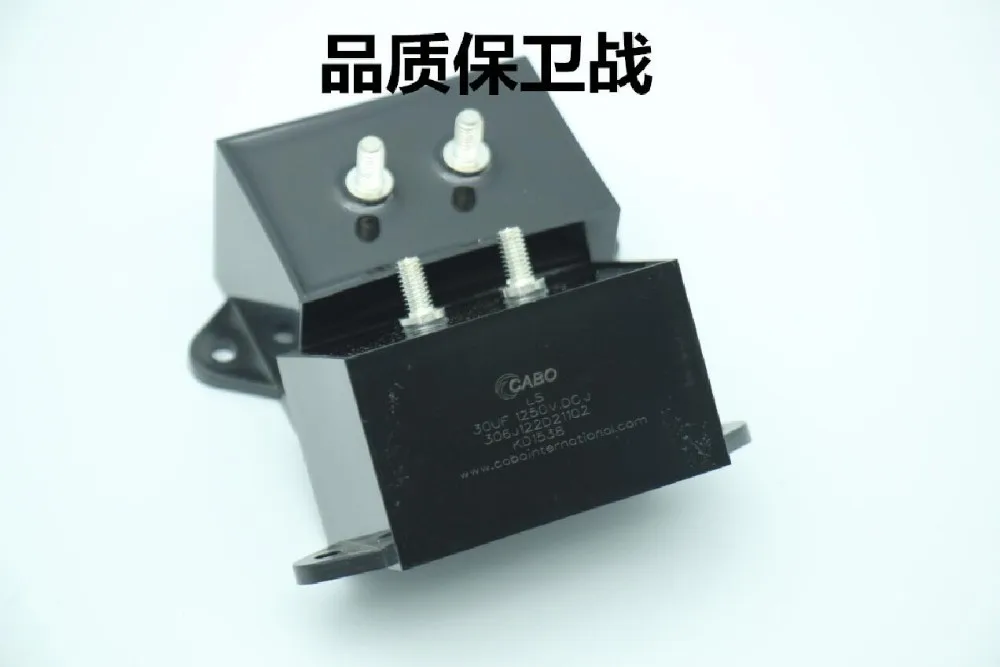

Detailed Images
Packing & Delivery

Be a environment friendly enterprise, CABO under control of IS0 9001 and ISO 14001 quality and environment standard.

All of our packing materials are environmentally friendly.


CABO is a leading manufacturer of electric & electronic components in China. As a popular brand in China,its products widely used for electric & electronic industry.


We have  4 factories in China: Nantong city, Shenzhen city, Dongguang city and Foshan city,all of our factories are under control of ISO9001 quality control standard.
