power mini slide switch 1p2t 7pin push swiitch smd slide switch LY SK 02

Product Overview

Description

power mini slide switch 1p2t 7pin push swiitch smd slide switch LY-SK-02

Specification:



Items	standard	Items	Standard
Rating	300MA 4V DC	Operating temerature rage	-10℃ to +70℃
Insulation resistance	100MΩ min.100V DC	Lifetime	10,000Cycles min.
Dielectric strength	250V AC for 1min	Operating force	120±50gf 2c-2p:200±50gf
Contact resistance	70mΩ max	Travel	1.5±0.2mm 2±0.2mm





Features:



• Thin type 1.5mm in height
• SMT type and reflow-soldering for surface mounting.
• Available for tape and reel package.



Applications:

 Function and band selector switches for headphone stereo sets,liquid-crystal TV sets,car radios,camera VCRs,MP3,MEMORY CARDS,etc.

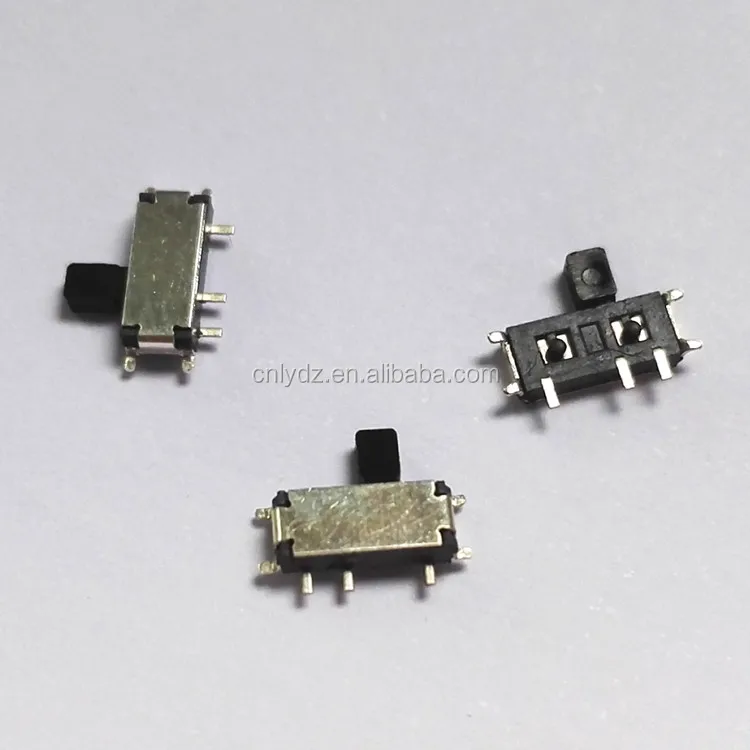

PRODUCT IMAGE:













 Packing detail



WHY CHOOSE US ?



1.Since 1989,more than 20years’experience of manufacture .

2.Variety of type.provide professional products with more than 2000 types .

3.High standard management for quality control.

4.Small order acceptable:1000pcs

5.Safe payment terms:T/T and paypal are available .

6.Prompt delivery and lowest shipping cost:we can get low discount from DHL,Fedex,UPS,TNT,EMS,etc.

7.OEM,ODM available.

8.Got good reputation both at home and abroad.longterm supplier for customers reference.

9.Excellent After-sales service.when you found promblem about the products ,contact us and we will respond in the first time.

10.We cherish and respect every each client ,so give us a chance to cooperation ,we will try our best to satisfy you .
