Оборудование для бетонной решетки без усадки, вторичное заземление основы

Product Overview

Description

non shrink concrete grout Equipment foundation secondary grouting

Introduction:

High-strength non-shrink grout material is high strength material as aggregate, cement as binder, with high flow, micro expansion, made from materials such as anti segregation. At the construction site to join a certain amount of water, stir well after use.

Feature:

A:Non-toxic, tasteless, non-polluting groundwater and the environment , is environmentally friendly filling material.
B:The slurry no shrinkage upon curing phenomenon , high stone strength, durability , aging, good barrier properties .
C:The slurry flow is good , than the material of the surface area of 800 square meters / kg , the average particle diameter of 5μm or less, so its high stability and can be irrigated .
D:The slurry setting time : according to the project needs to be adjusted.
E:The slurry construction process is simple , easy to operate , can be large-scale use .

Application:
Anchor bolts, steel reinforcement and foundation interfaces, machine base reinforcement, based on secondary grouting equipment, electrical and mechanical equipment installation, static piling engineering seal piles, reinforced concrete structure and transformation of the old concrete structure of governance cracks, wall thickening and leakage of water repair construction, road and bridge engineering reinforcement, grouting collapse of various infrastructure projects and a variety of repair projects.

Technical Date:

Items	Fluidity(mm)		Vertical Expansion Rate(%)		Compressive Strength(Mpa)				Resin to iron Bar	Bleeding Rate(%)
	Initial	After30min	3h	3h-24h	2h	1d	3d	28d	N/A	0
CGM/HGM-1	≥300	≥270	0.1-3.5	0.02-0.5	-	≥25	≥42	≥62	N/A	0
CGM/HGM-2	≥340	≥270	0.1-3.5	0.02-0.5	-	≥25	≥42	≥62
CGM/HGM-3	≥300	-	≥0.02	-	≥25	≥38	≥51	≥65
CGM/HGM-4	≥270	-	≥0.02	-	≥20	≥38	≥51	≥62	Setting Time	20min

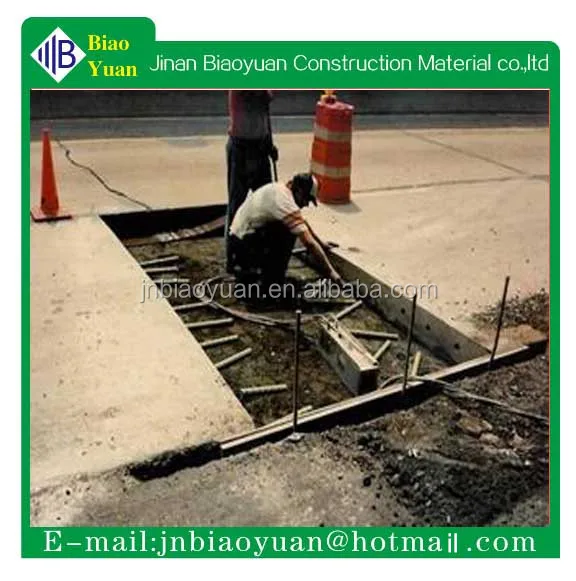

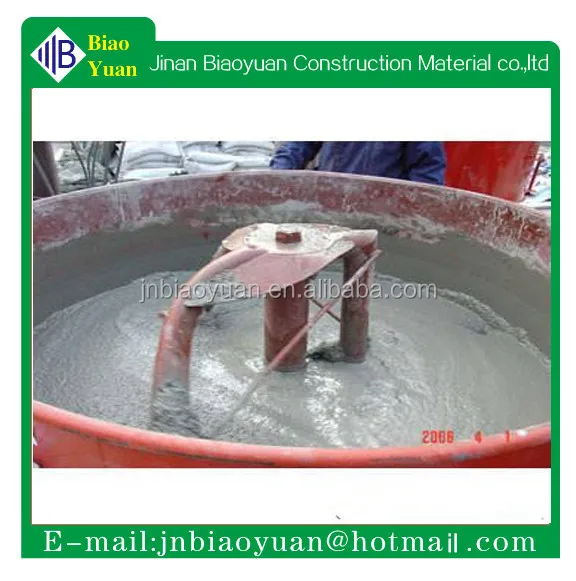

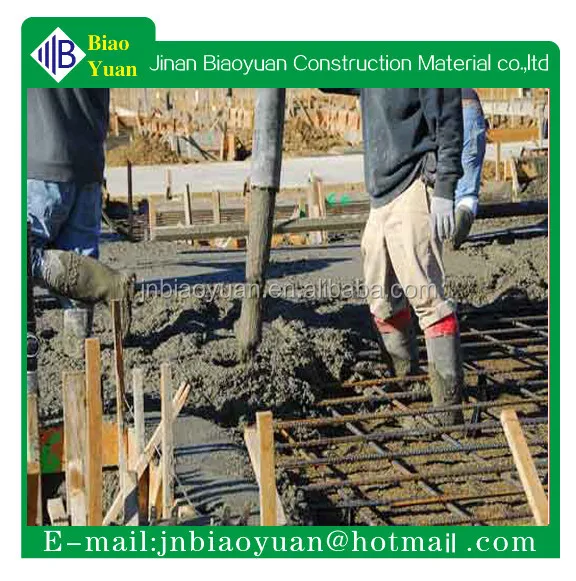

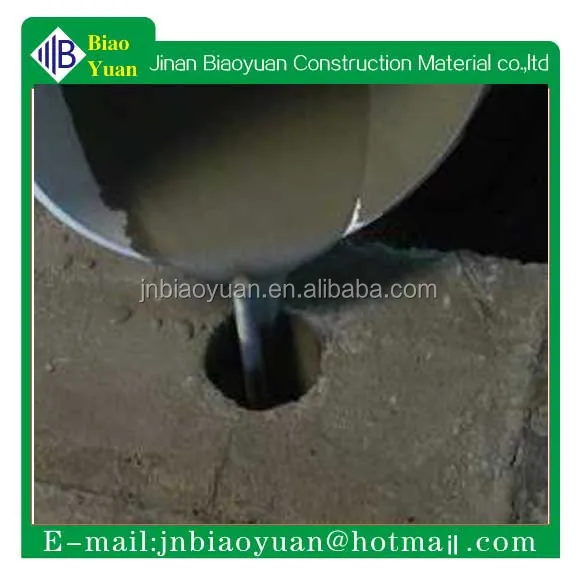

Application Picture:







Packing Picture:
