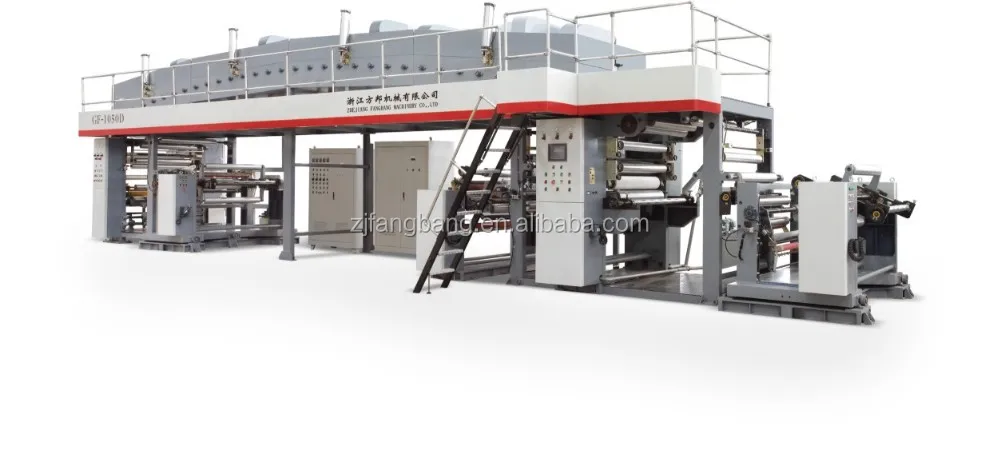

Non woven.paper,film High Speed Laminating Machine
- Category: >>>
- Supplier: Zhejiang Fangbang Machinery Co. Ltd. [Zhejiang China]Zhejiang
Share on (60472758089):
Product Overview
Description
Product Description
Product Application
This machine is suitable for the double-layer or multiple-layer lamination of such roll film material as BOPP, PET, nylon, CPP, CPE, aluminum foil and paper, etc.
| SPECIFICATIONS FOR GF-D SERIES HIGH SPEED LAMINATING MACHIEN | |||
| Type | GF-1050D | GF-1250D | |
| Max. Laminating Width | 1000mm | 1200mm | |
| Max. Web Width | 1050mm | 1250mm | |
| Max. Laminating Speed | 180m/min | 180m/min | |
| Max. Mechnanical Speed | 200m/min | 200m/min | |
| Max.Diameter of Material Roll | ø600mm | ø600mm | |
| Max. Diameter of Rewinding | ø800mm | ø800mm | |
| Internal Diameter of Roll Core | ø76mm | ø76mm | |
| Length of Drying Chamber | 12000mm | 12000mm | |
| Power for Drying Chamber | 180kw | 180kw | |
| Total Power | 263kw | 268kw | |
| Weight of Machine | 20000kg | 22000kg | |
| Overall Dimension | L12500*W4750*H4200mm | L16700*W4950*H4200mm | |
Main Features
1. Whole machine controlled by PLC, with high running reliability and stability.
2. In-touch screen man-machine interface, 10.4"
3. Imported nine vector motor closed loop auto-tension synchronous control system
4. Anilox roller with doctor blade for coating, various of anilox rollers available for different coating amount.
5. Turret type unwinding station with EPC and auto splicing system, high speed non-stop shaft exchange (special separated single shaft available for aluminum foil laminating).
6. Turret type rewinding station with EPC and auto splicing system with pre-driver, high speed non-stop shaft exchange.
7. Movable doctor blade with pneumatic back pressure
8. Four independent constant temperature section drying system with separated heating station and hot air in feeding. Temperature is controlled automatically.
9. Pneumatic lifting drying chamber and operating platform for web passing, active synchronous running leading roller inside drying chamber.
10. Pre-heating before laminating, water cooling roller for laminated web.
11. Inflatable Air Shaft for web loading/unloading.
12. Three rollers nip laminating method, laminating pressure more even to ensure higher peel strength.

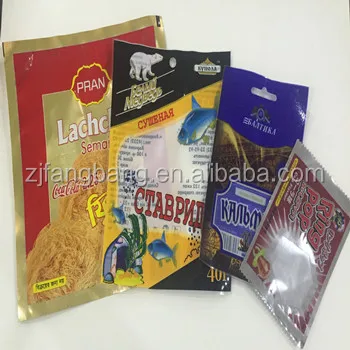

Samples

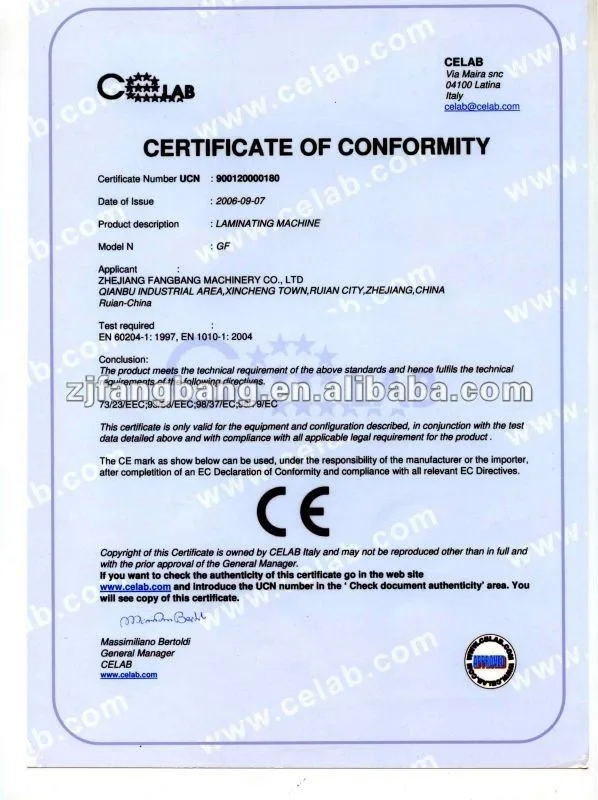

Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
