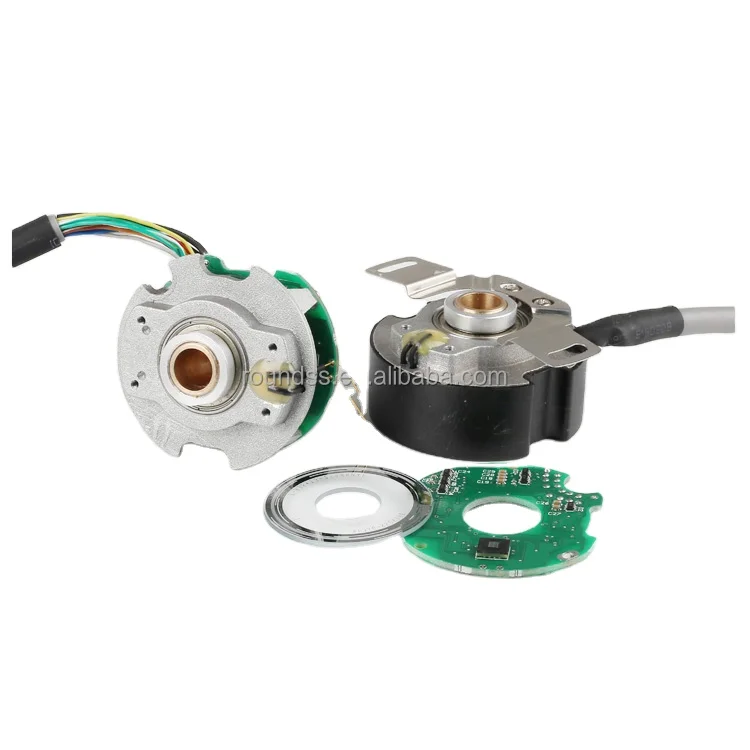

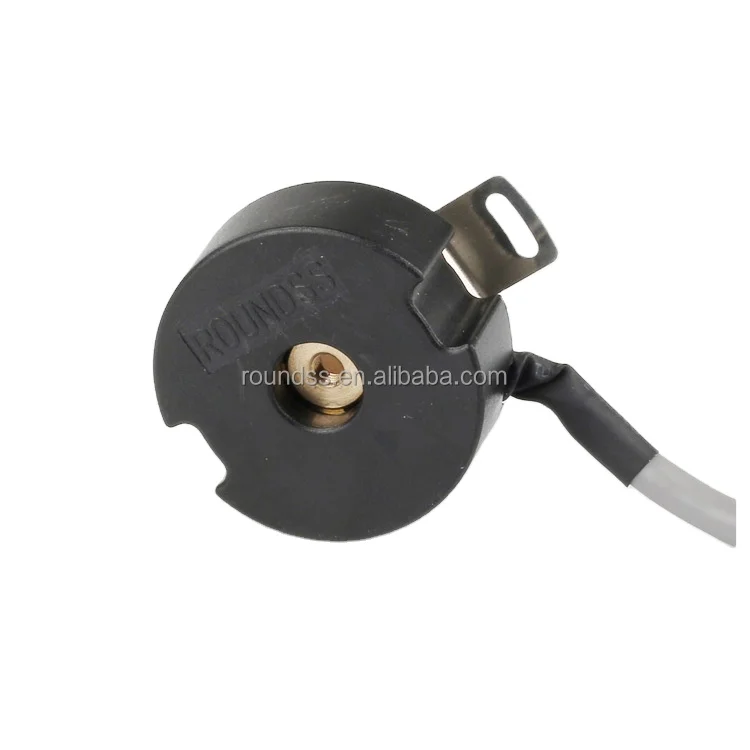

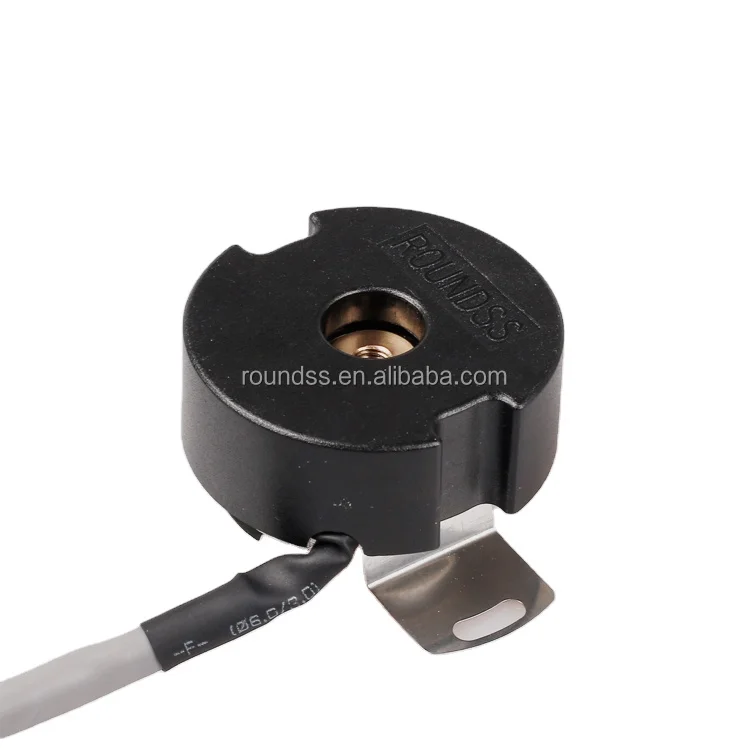

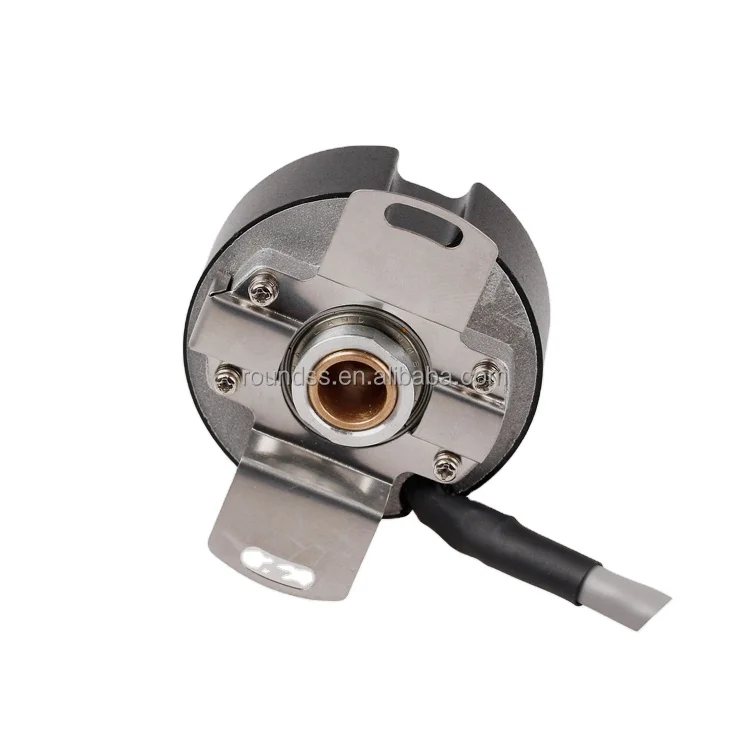

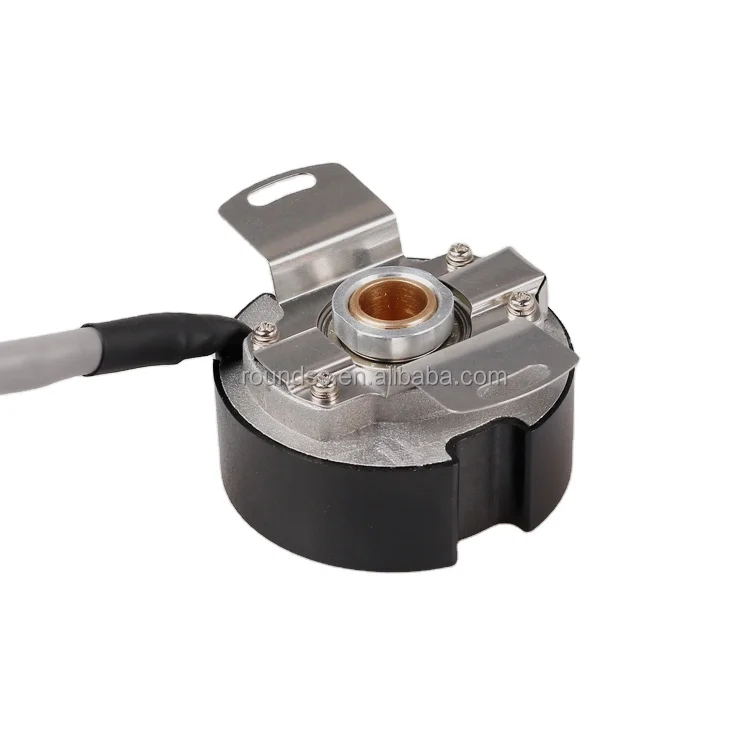

8192 PPR Rotary DC 5V Line Driver 8 poles Incremental Servo Motor Encoder

Product Overview

Description



Feature:

1. DVC48T is specially designed for dc uvw motor control.

2. The design of shaft sleeve saves the mounting space and cost.

3. The special tapering shaft is easy for installation

4. The level of Hall signal can reach level 8.

5. Resolution is up to 8192 ppr

6. Certification: CE & ISO9001 & RoHS.

7. Feature: sturdy and durable, easy to install, optional various output mode, etc.

8. Manufacturer: quality control, better delivery control and better cost control.



MECHANICAL SPECIFICATIONS
External Diameter	48mm
Shaft Diameter	8(straight hole)/9mm(1:10taper hole)
Slew Speed	8000r/min
Shaft Load	≤10N
Operating Temperature	-20 °C(-40 °C)- +85°C
Protection Class	IP50
Termination	Side Entry Cable/Rear Entry Plug



ELECTRICAL SPECIFICATIONS
Supply Voltage	DC5V
Output Model	Line driver or according to user requirement
Output Pulse No.	1000,1024,2000,2500,3000,5000,6000,8192
Frequency Response	0-200kHz,300kHz
Index Length	1T
Current Requirement	≤60mA
Output Phase	A,B,Z,-A,-B,-Z,U,-U,V,-V,W,-W
Motor Pole Number	2P,3P,4P,5P



















ROUNDSS encoder specializes in speed and position sensors for extreme applications. Serving the industrial, military, aerospace and off-highway markets, ROUNDSS encoder provides an extensive range of products from standard rotary encoder to completely customized solutions for any challenging application. Backed by over 10 years of experience, Roundss designs encoders that offer uncompromising quality, performance, and reliability. The comprehensive product line includes optical and magnetic encoders, string potentiometers (draw wire sensor), manual pulse generator,handwheel units, rotary band switches,couplings. Specialized products for extreme applications include those for extended operating temperatures, high shock and vibration, wet and dirty operations and products certified for hazardous area use.

Roundss encoder upholds a standard of excellence in our products, customer service experience, and commitment to being a global leader in speed and position sensor technology.











1. The questions about the encoder will be answered within 24 hours.

2. One-stop solution will offer to meet all your requirements on budget, designing and shipment.

3. We can offer the information of dealer in your market if you want to contact them directly.

4. Update the procession of manufacturing.

5. Warranty 18 months: Free replacement of defective products within 18 months.





Q1:What's the MOQ?

A: MOQ: 1 pc



Q2:How to place the order?

A: Please contact with our sales to get the detail datasheet and confirm the part number of the encoder you need, then you can place the order online or underline.



Q3:What's the payment term?

A: We can accept T/T, Western Union and PayPal. Also the online order is more convenient, as we have USD43000 trade assurance, it can by paid by credit card.



Q4:What's the lead time?

A: Standard encoder within 7 working days. Customized encoder need extra 2 weeks.



Q5:How to send the encoder ?

A: By express, like DHL, FedEx, TNT, UPS, EMS, etc. If you need, we can also arrange the shippment by air and by sea.



Q6: What's certificate do you have for encoder?

A: We have CE, ISO9001:2008 and RoHS certificate.



Q7: Can I get a customized encoder?

A: OEM, ODM service are available.



Q8:Can I have a sample encoder for testing?

A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-30 sets including the sample



Q9:How can i get the after-service?

A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare parts,but you should pay. For our range hood motors it is lifelong maintenance.



Q10:Do you have inspection procedures for encoder ?

A:100% self-inspection before packing



Q11:Can I have a visit to your factory before the order?

A: Sure,welcome to visit our factory.

Here is our factory address: No.1666, Ya’an Road, Beihu District, Chanchun, China

We can pick you up in the airport.
