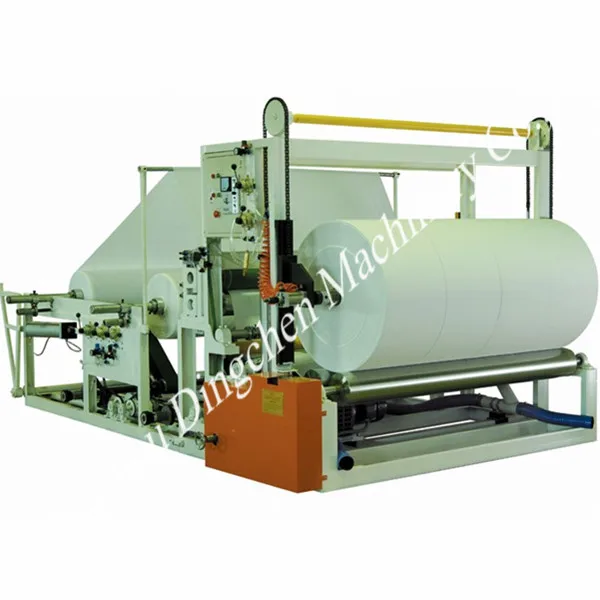

1575mm Kitchen Paper/Toilet Tissue Paper Perforation and Rewinding Machine, Paper Converting Machinery Made in China

Product Overview

Description

1575mm Kitchen Paper/Toilet Tissue Paper Perforation and Rewinding Machine, Paper Converting Machinery Made in China



Main Fuction of 1575mm Toilet Tissue Paper Rewinding Machine:

To make the jumbo roll paper to small diameter paper roll with perforating and embossing.



Technical Parameters:

Machine Model	1575mm
Raw material Width	1600mm
Operation	Easy
original paper size	1100 x 1800mm
Diameter of finished paper	Φ80~150mm(adjustable)
Finished Roll Core Diameter	as per the requirements of clients
Raw Material Diameter	≤1100 mm (Other sizes are available )
Raw material loading	Manual
Converting of raw material	1-3plys
Diameter of core tube	30-50mm
Control	PLC
Alarm system and Remote control (with Chinese Patent)	yes
Emergency stop system	Yes
Perforating distance	115-180mm(adjustable)
Gap of Perforating Pitch	Adjustable
Speed	140-180 m/min
Parameter Setting	speed adjusting
Embossing Roller	steel roll
Unwinding Paper Stand	1-3plys
Power	5.5kw
Dimension (L×W×H)	5500×2500×1450mm
Weight	About  3700 kg

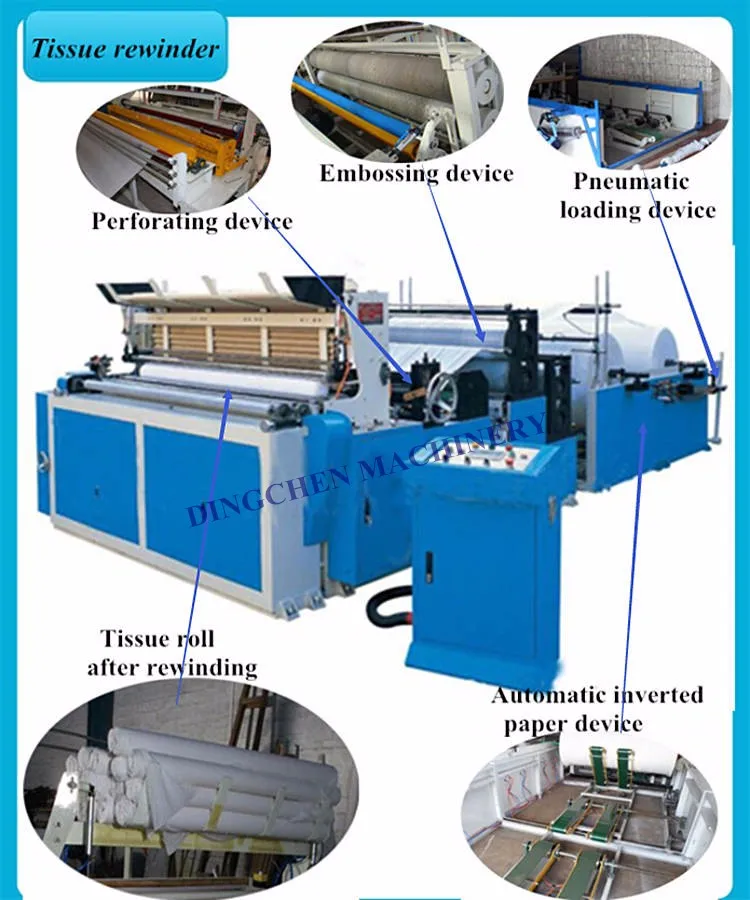

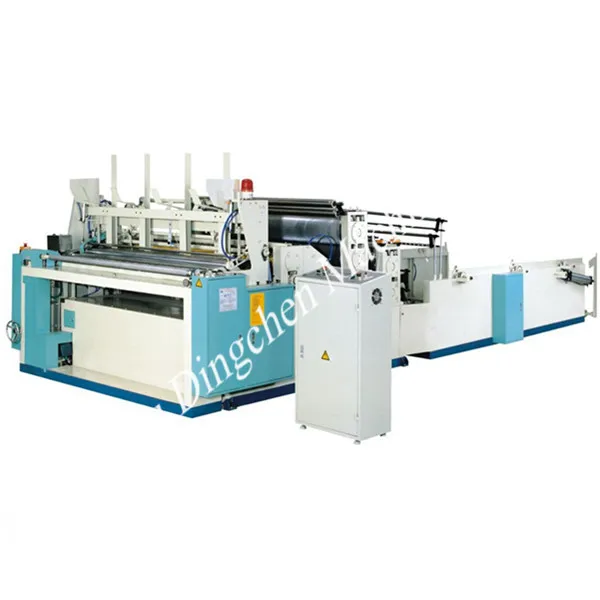

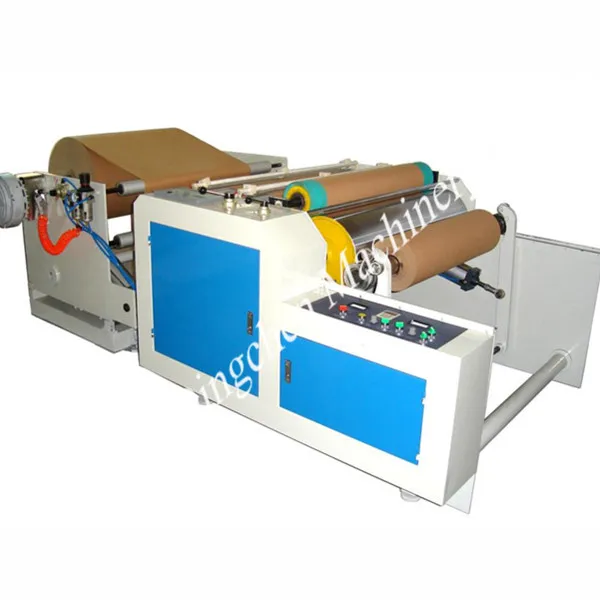

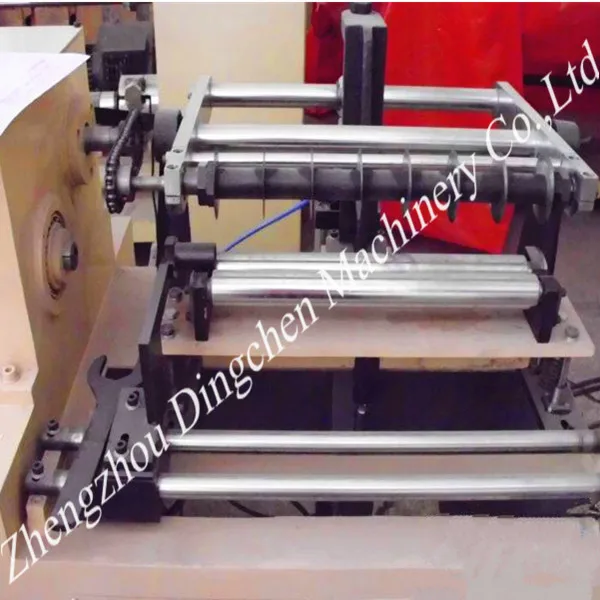

Picture of Toilet Tissue Paper Rewinding Machine:





Main Function of Paper Cutter:

The paper cutter machine can cut toilet roll with desired diamete  into different lengths. It is an  important part of paper deep processing machine. Its function is to cut toilet paper.

 The paper cutter could be matched with the rewinding,embossing, perforating machine on the basis of the required length, width, so as to cut into finished produt that meet requirements. It features stable operation and high production efficiency.

Technical Parameters of the Paper Cutter:

Name	paper cutter
model	FY-450
Max diameter of raw toilet paper	Φ200mm
Working speed	160-300m/min
power	2.5KW
Dimension	1170×780×1800mm(L×W×H);
weight	580kg







Related Toilet Tissue Paper Machinery Production Line:

Professional1575mm Tissue Paper/Bathroom Paper Making Production Line for Sale



I Technical Parameters:

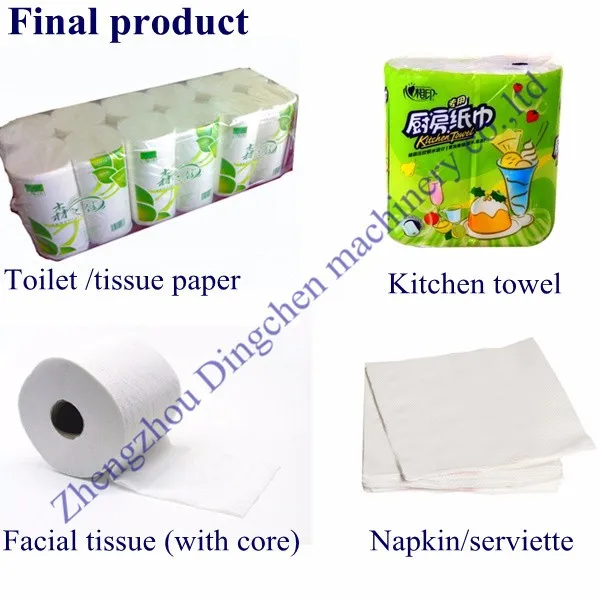

1. Output paper: serviette paper, tissue paper, toilet paper,bathroom paper

2. Raw material:Recycle paper, used paper

3. Capacity: 3 tons per day

4. Net paper width: 1600mm

5. Width of working face: 1950mm

6. Paper weight: 13-30g/m2

7. Working speed: 50-110m/min

8. Design working speed: 150m/min

9. Rail gauge: 2400mm

10. Drive way: AC frequency converter speed adjusting, section drive.

11.Layout type:left or right hand machine.

II Main Structure:

1. Cylinder mold part

1500mm×1950mm stainless steel cylinder mold 1 set , 400mm×1950mmmm couch roll 1 set , coated by rubber, rubber hardness 38±2. Cylinder vat is made from stainless steel plate.

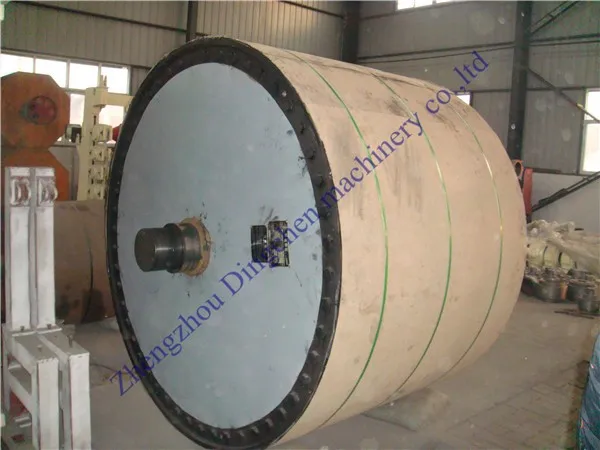

2. Dryer cylindr part

2000mm×1950mm alloy dryer cylinder 1 set  , 400mm×1950mm touch roll 1 set, coated by rubber,rubber hardness 90±2S, equipped with double layer exhaust hood, pneumatic loading device.

3. Winding part

700mm×1950mm×2400mm winding cylinder 1 set

4  Paper converting part

1575 rewinding machine with perforating and embossing 1 set

paper cutting machine 1 set  plastic bag sealing machine 1 set

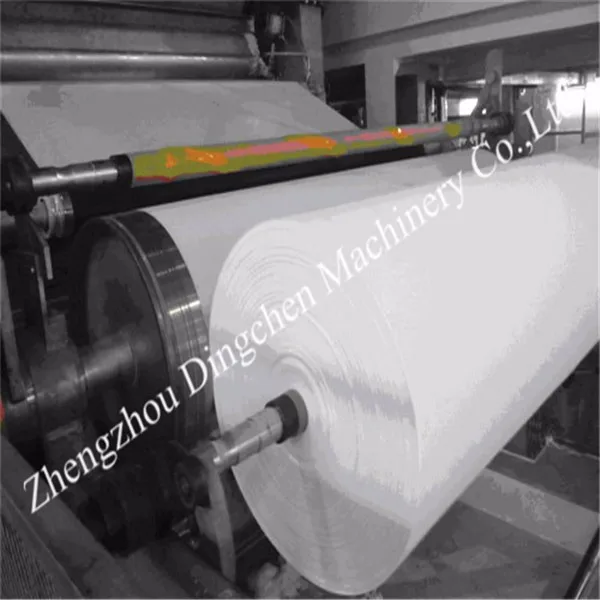

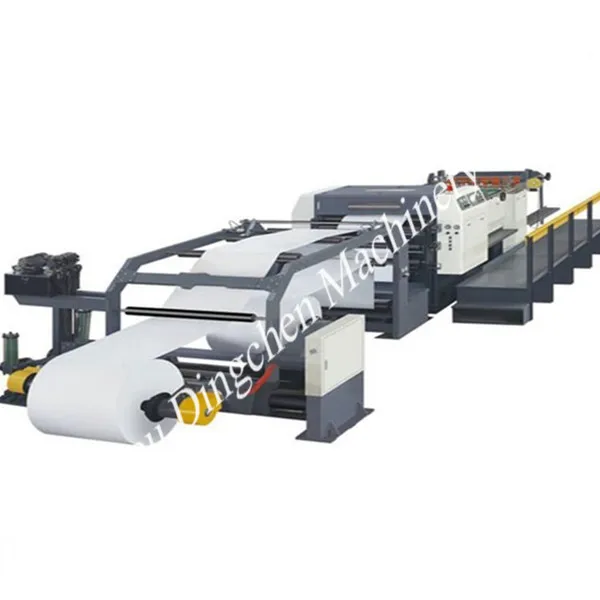

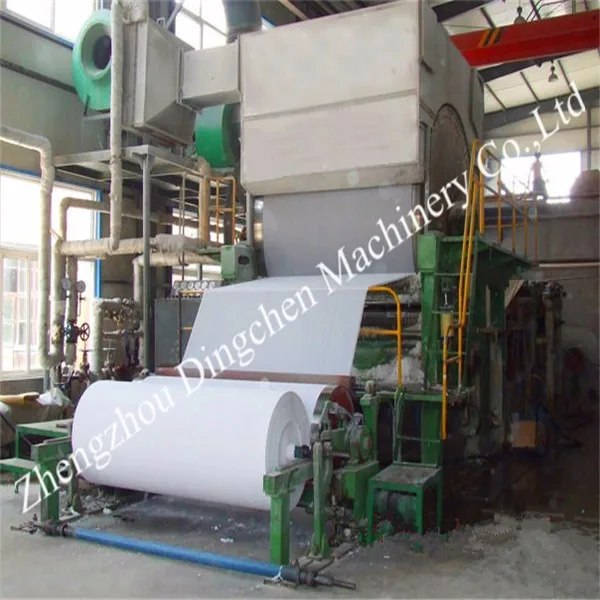

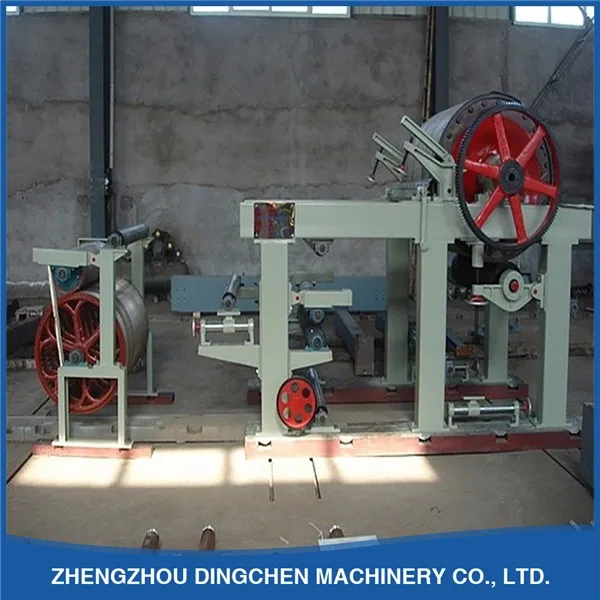

Pictures of Paper Machinery:







We are the professional Chinese manufacturer in the field of paper making machinery,  our products covers pulp making equipment, toilet paper machine, kraft paper machine, corrugated paper machine, A4 paper machine, paper coating paper, related spare parts, as well as paper deep processing machine.

We are able to design and work out the production line that meet customers' needs.



So, welcome to visit our factory and I'm looking forward to establish a long-term cooperation with you!



If you're interested in it, please don't hesitate to contact me.
