Product Overview

Description



Products Description

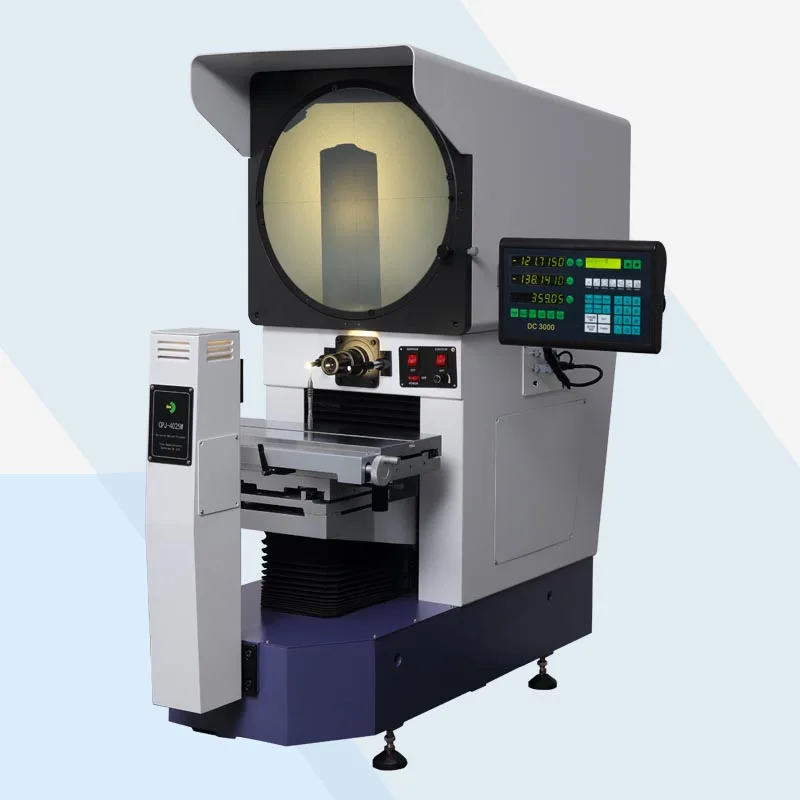

Vertical Profile Projector CPJ-3000 Series




I. Usage

CPJ-3000 series is a high cost performance, high efficiency, universal type vertical profile projector developed by Yihui.

It is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape，can inspect all kinds of surface and outline of complicated work-pieces, cam, screw thread, gear, perform milling cutter and so on, widely used in meter, electron, aerospace machinery, light industry, college, research institute and measurement-inspecting department.




II. Features

It has good quality optical system, imaging lens clear and accurate magnification. In the transmission of the illumination, the profile measurement error is less than 0.06%.Coordinate measurement deviation is ≤(3 + L/200) um, L be regarded as the length of measured parts (mm). Instrument equipped with a dedicated mini-printer and foot switch, DC-3000 Digital Readout, which makes display and measuring very handy.

P.S The Digital Readout has a function of interchange between mm and inches




III. Specification


Code
04175…
101
102
103
Model
CPJ-3015
CPJ-3020
CPJ-3025

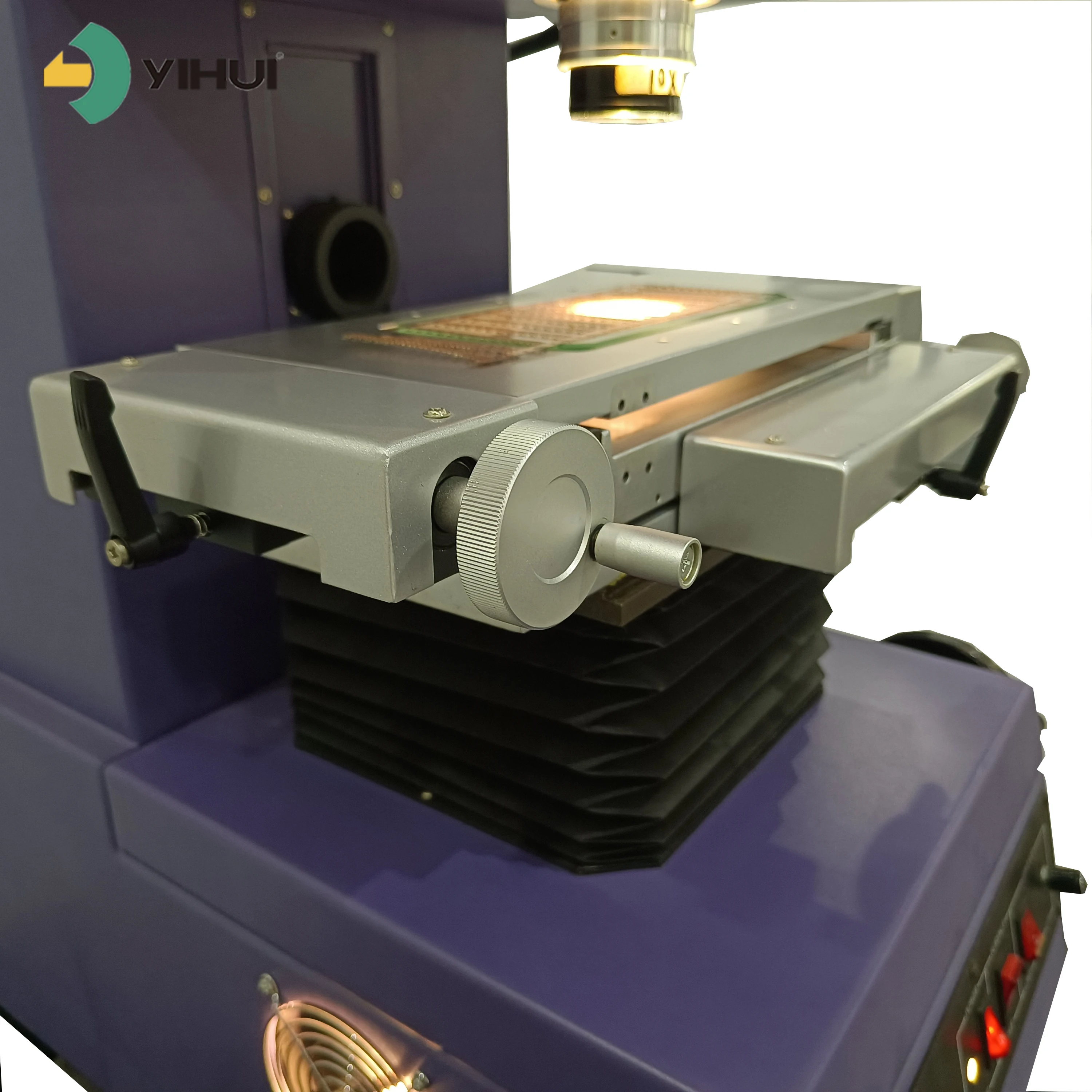

Table
Metal Table Size (mm)
340 x152
404 x 228
450 x 280
Glass Table Size (mm)
196 x 96
260 x 160
306 x 196
X-axis Stroke (mm)
150
200
250
Y-axis Stroke (mm)
50
100
150
Z-axis Stroke (mm)
90 for focus
90 for focus
Measuring Accuracy*
Ex, y ≤ (3.0+L/200)um
Ex, y ≤ (3.0+L/200)um
Resolution(X,Y)
0.0005 mm
0.0005 mm


Projector Screen
Screen Size (mm)
Ø 312 Used range>Ø 300(with the meter line)
Ø 312 Used range>Ø 300(with the meter line)
Screen Rotary Range
0°~360°
0°~360°
Rotary Angle Resolution
1´ or 0.01°
1´ or 0.01°
Projection Accuracy*
Contour: ≤±0.06%, Surface: ≤ ±0.06%
Contour: ≤±0.06%, Surface: ≤ ±0.06%

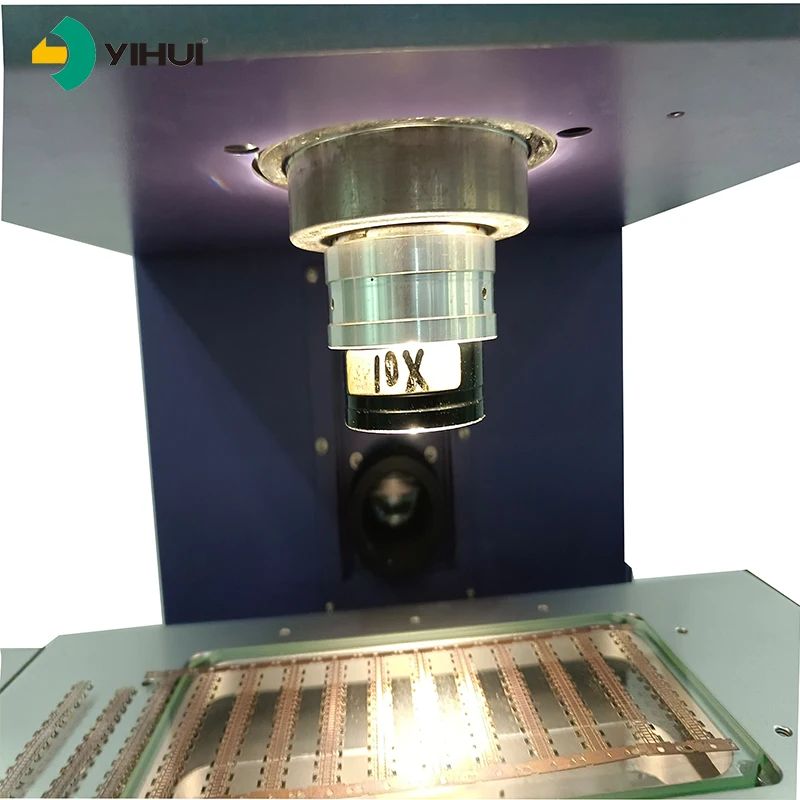

Lens
Magnification
10X (standard)
20X (option)
50X (option)
100X (option)
Object View
Ø30
Ø15
Ø6
Ø3
Working Distance
77.7mm
44.3mm
38.4mm
25.3mm
Max. work piece height
80mm
80mm
80mm
80mm
DRO
DC-3000 Digital Readout, appearing in English, can be used to gather dimension data and measure point ,line, circle, angle and distance, etc.
Cooling
By fans
Illumination
24V/150W halogen transmitted illumination, 21V/150W halogen reflecting illumination
Power
110V/220V(AC);50/60HZ; Total Power Consumption 400W
Dimension (L*W*H, mm)
770*550*1100
780*780*1100
810*780*1120
Weight (kg)
180
190
200

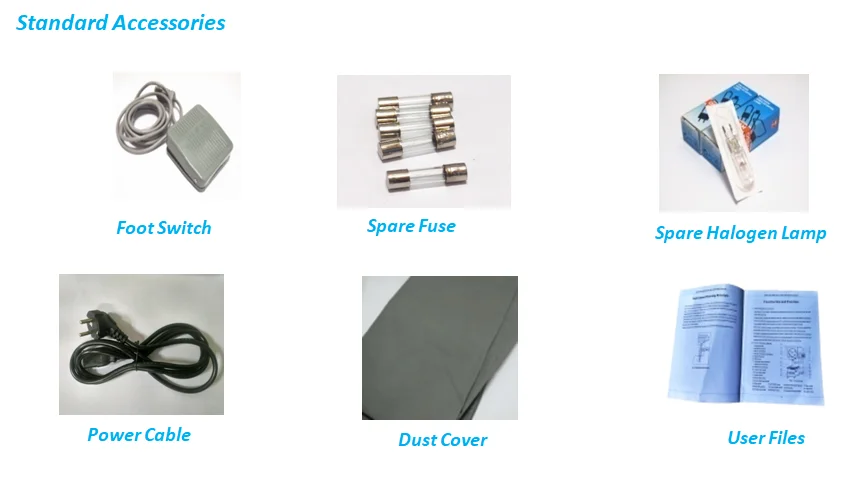

Option

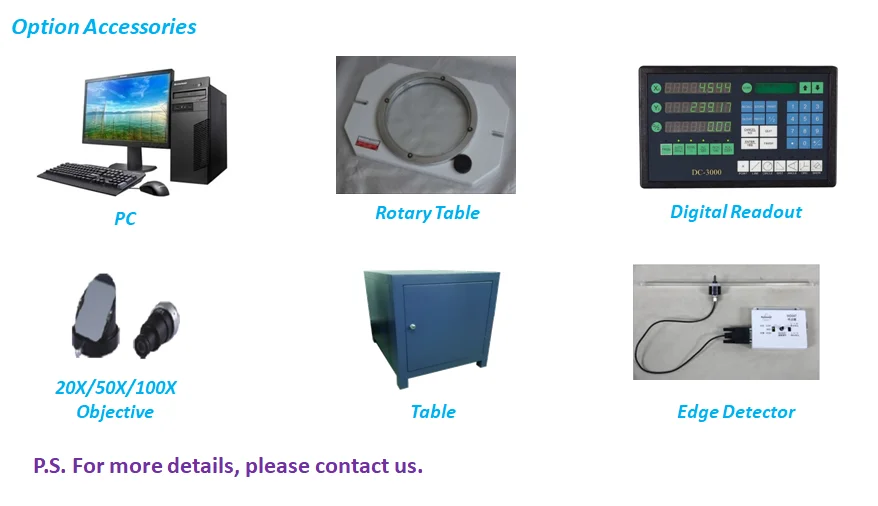

Mini-printer, Edge detector, Metrology software and so on, please refer to ‘Appendix’ for details.


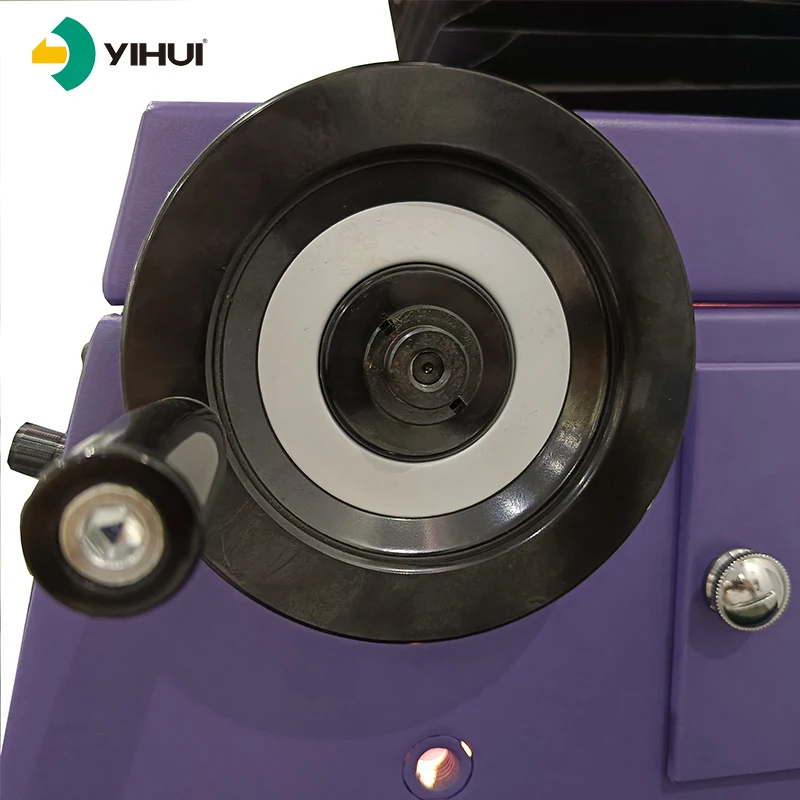

Structure








Product packaging




Company Profile








Dongguan Yihui Optoelectronics Technology Co., Ltd.
Established in 2003, has 18-year experience in manufacturing optical instrument and 13-year experience in trading overseas. It is a high-tech enterprise with the precision detection equipment R&D, production and sales. Our main products are: video measurement system, measurement profile projector, CMM, tool microscope, grating sensor, tensile testing machine, environmental testing machine ect. It is including 100 kinds of testing instrument. They are widely used in electronics, plastics, mold, machinery,hardware, clocks, connectors, mobile and other industries. Until 2022, our products have been exporting to 54 countries over the world, and we have formal distributors in TAIWAN, KOREA,IRAN, GERMANY and MALAYSIA.Customers from all over the world have been satisfied with our low cost, high efficiency, high quality metrology solutions.
Welcome to contact us for cooperation.




Customer Photos






Certificates




FAQ


Q: We don't know much about the machine but we need it, how to decide which model is the best?
A: Please send inquiry to our Sales telling what you need the machine to do.And then our team will work out best solutions for you by sending catalogues, demonstration video or testing of your sample.

Q: We want to protect our payment better, T/T is not accepted.Is there better way for business?
A: L/C, Paypal, Alipay etc. are available, we have many options for safe payment.

Q: After machine arrival, what will be the service for installation and training?
A: If you are close to our local agent, you can contact them directly for spot service.Usually we will send our engineer for overseas spot service to finish installation of the machine and operation training, which will take extra cost like air-ticket and accomodation.If spot service is not feasible, we will arrange online instruction of installation and online training by means of e-mail,phone,remote control, meeting software etc.
