Directselling, IBS 4 Zones Plastic Injection Mold Hot Runner Temperature Controller Manual
- Category: Mould Temperature Controller >>>
- Supplier: Shenzhen IBS Electronic Co. Ltd.
Share on (60472888875):
Product Overview
Description
Temperature Controller Manual
Product Details
- Pictures
- Description
| Power Input | AC 220V+/-20% |
| Output Power | 360W, 15A/240V |
| Power comsuption | 3W single card |
| Input resistance | 33MΩ |
| Temperature testing range | 0~535C, 32~999F |
| Working temperature range | 0~50C |
| Testing accuracy | +/-0.2% SPAN |
| Control accuracy | +/-0.2% SPAN |
| Operate humidity | 10~80%RH |
| Sensor type | J/K |
| Output drive componenet | SCR |
| SCR touch way | Auto-tuning+phase angel |
| Control arithmetic | FUZZY+PID |
| Fuse testing function | Yes |
| T/C Open and Reverse testing | Yes |
| Heater Open testing | Yes |
| Manual output function | Yes |
| External cooling compensation | Yes |
| Softstart dehumidity function | Yes |
| T/C short testing | Yes |
| Non touch transger | Yes |
| Inner testing circuit temperature compensation | Yes |
| SCR short testing | Yes |
| Currency timing detecting | Yes |
| Phasic reverse protection | Yes |
| Malposition of T/C and heater testing | Yes |
| Heater Open testing | No |
| Temperature record function | No |
| Control zones | 1-60 Zones |
| Temperature display way | Double 4 digitron |
| Heater dissipation | Internal radiator+cooling fan |
- Features
1. Contactless switch.
2. Auto-tuning+phase angle fired
3. Softstart function for smooth start-ups.
4. Mold doctor(troubleshoot user Mold).
5. All standard size design, fitted into 1-12zones and upon cabinet.
6. Low temperature inside the cabinet, even in bad working condition.

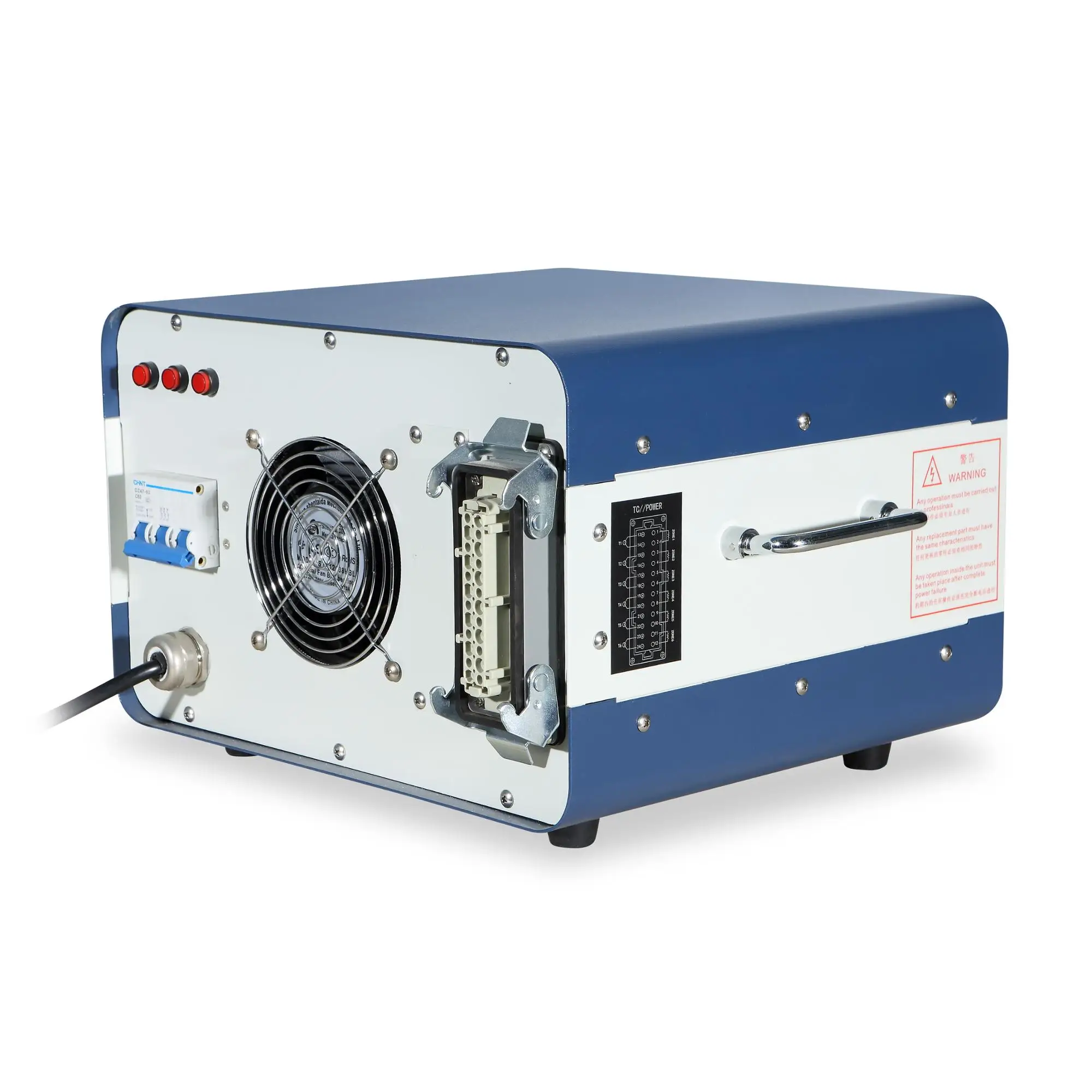

- Wiring option
- Procuct Packing
- Factory
- Contact us
Shenzhen IBS Eletronic Co.,Ltd
Add:12F Room 2, Bele Spring Building ,28 Xintang Road Xintang Community, Fuyong Stree Bao'an District, Shenzhen, China
Tel:86-755 33696296/33071961
FAX:86-755-81459022/33696196
