Grade 2 flexitank containers for crude degummed rapeseed oil with standard gear rotary oil pump and raspberry vg32 oil
- Category: >>>
- Supplier: Wuhan HDC Technology Co. Ltd.
Share on (60472894565):
Product Overview
Description
Grade 2 flexitank containers for crude degummed rapeseed oil with standard gear rotary oil pump and raspberry vg32 oil
Unique Features
Advantages:
Compared with the old equipment,the strengthness of spiral teaseed or camellia seed oil press:
(1).Rapeseed oil squeezing machine - Normal yield efficiency can be higher by 2 to 3%,100kg peanuts with more oil
yield by 2kg to 6kg.On average,the annual economic benefit is very considerable.
(2).Rapeseed oil pressing machine energy saving - equal oil production with 40% lower electric power consumption,
namely saving 6KWH per hour,Daily production can save $5USD for electric charge.
(3).Rapeseed oil milling machine saving labor - the same production can save Labor by 60%,1 to 2 people can
manage charging the pressing process.Thus it can save labor charge by about $7USD.
(4).Rapeseed oil plant - multiple use and wide application,it can not only squeeze peanuts,but also other more than
30 kinds of oil-bearing crops such as flax,sesame,rapeseed,cotton seed,soybean and so on.Multiple stage pressing
process,one refining process.
(5).Rapeseed oil mill with high quality pure oil - vacuum filter to get rid of the residue to guaranty the purity,conform to
the BV,ISO,CE standards.
(6).Rapeseed oil processing machine covering small mill area - 10-20 square meters can satisfy the use.
Product Description
Specifications of rapeseed oil press in pressing workshop:
| Style | 6YL-80 | 6YL-100 | 6YL-120 | 6YL-160 |
Spiral diameter | φ 81mm | φ 101mm | φ 120mm | φ 160mm |
Spiral speed | 47r/min | 38r/min | 37r/min | 32r/min |
Power | 5.5KW(Y132M-4) | 7.5KW(132M-4) | 11KW(Y132M-4) | 15KW(Y132M-4) |
Vacuum pump | 0.55KW(Y801-4) | 0.75KW(Y802-4) | 0.75KW(Y802-4) | 0.80KW(Y802-4) |
Heater | 2.2KW | 2.2KW | 2.2KW | 2.2KW |
Capacity | 65-130Kg/h | 140-280Kg/h | 250-400Kg/h | 300-550Kg/h |
Gross weight | 880Kg | 1250Kg | 1500Kg | 1800Kg |
Size(mm) | 1500×1200×1750 | 1700×1300×1850 | 2000×1300×1500 | 2100×1300×1600 |
Oil yield rate:
Description | Weight(kg) | oil yield(%) | production | oil cake |
Rapeseed | 200 | 42-53(generally 48%) | 96 | 102 |
Production Line

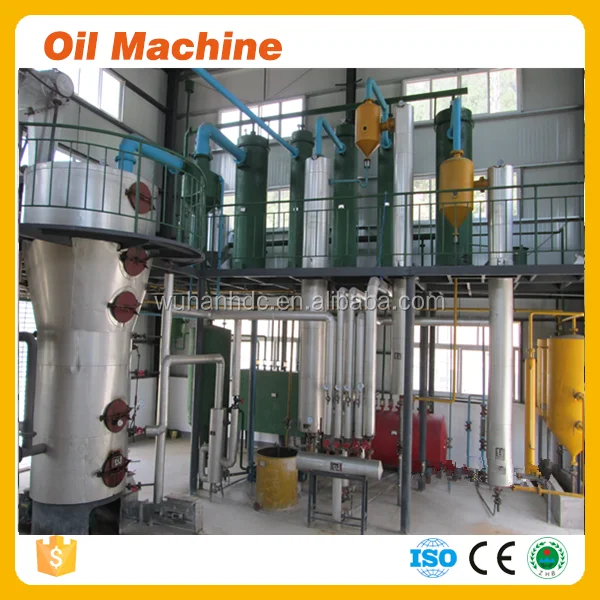

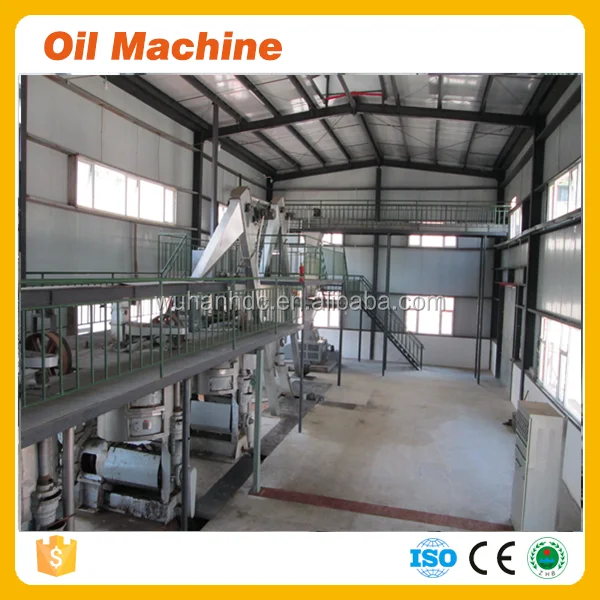

Rapeseed oil press workshop:
The working principle of rapeseed oil mill processing machine:
With the impetus slowing down shifted to the main shaft, the pressing bolt mounted on the spindle squeezer
constantly pushes rapeseed oil material forward between the threaded in the way of rotation.Due to the gradually
narrowed space between the pressing barrel and pressing bolt,the density of oil increases,so the pressure
increases as well.In the squeezing process,as the centrifugal filtering oil pressing machine is dynamic date hot,
and with the automatic temperature control device,the temperature of the main engine increase so as to reduce the
labor intensity and the wear and tear of the body of rapeseed oil pressing plant.Besides,it saves labor,power energy
and time.Among the oil materials particles,the oil materials rub with the oil milling machine equipment to produce
the heat.Thus it forms the two essential elements of oil processing process,namely pressure and heat.Then through
the destruction of fuel cells,the oil spills from the oil line,and oil cake is pushed out from between the head and the
mouth of the cake door.When spilled oil through the oil pan onto the filter oil drum,the vacuum pump extract out of
the air inside of the oil tank.Inside forms negative pressure,then the oil passes through the filter cloth, and pumped into the oil barrel, and the oil residue was isolated out on the filter cloth,then we can get the pure oil.
Rapeseed oil press oil processing production Line:
Rapeseed→cleaning and drying→shelling and screening→frying→cracking→roll flaking→oil pressing machine
→filter→crude oil→oil quality monitoring→refined oil products
Our Services
Quality and Service Commitment | |
Our company always put the interests of customers and product quality to the first place, and always adhere to the"no best,only better" as our purpose. We will be commitment to provide high quality products with perfect site services and after-sales service. Now the specific commitments are as follows: | |
1. | Ensure to timely provide complete sets of equipment and accessories. |
2. | Ensure that one-time installation debugging acceptance. |
3. | To provide high quality material with preferential price. palm oil press |
4. | Priority to provide customer our new craftworks and products. |
5. | Free training technological operator to ensure the trained staff can operation independently. |
6. | In the installation process,we will appoint a installation supervision staff on the spot. |
7. | we will offer an experienced project manager, organize a good installation team for the work of field installation debugging. |
8. | After the equipment field assembly and installation, we will be also responsible for the single equipment debugging, online debugging and Feeding trial operation,to ensure that equipments can normal operate in full load conditions. We will provide all kinds of information and records according to the requirements of the bid. The qualified completion files will be provided to customers according to their requirements withinone month after acceptance. |
9. | In the warranty period, all because of the quality of products has caused the damage or failure of equipment,suppliers will take the responsibility for the free repair and replacing spare part. Due to the damage caused by the customer,we only charge material costs for repair and replacement. After the receipt of customers notice,we will suggests the method to solve problem within six hours,or send specialist to the site to solve the problem within twenty four hours. |
Packaging & Shipping
How to deliver the palm oil plant?
1.Delivery: Ship
2.Port: Qingdao,Wuhan,Shanghai
3.Packaging Details: Plywood, international standard trade packing
What about the payment terms?
1. Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery,
2. MOQ: 1pcs,
3. Warranty : 1 years.
Company Information
Company view
Our certificates
FAQ
Frequently asked questions
Q1: What is the Warranty for the machines?
A1: 1 year for free.
Q2: What is the Material?
A2: Stainless steel and carbon steel.
Q3: When can I get the price?
A3: Within 24 hours, if urgent, please directly call us.
Q4: Whether the machine price can be more discount?
A4: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount.
Q5: How to ask quotation?
A5: Please note us what tpye of raw seeds , and how many tons of raw seeds you want to treat per day, then we will send you quotation as soon as we can.
Q6: Can we ask the oil plant for different types of oil?
A6: Yes, but we recommend no more than 3 different types.
Q7: Why need extraction?
A7: If only pressed, oil residue inside cake is very high at lease 6%. But after extraction, the oil residue will be less than 1%, which greatly increases the oil yield.
Q8: Vegetable oil plants require how large of a workspace?
A8: The land area typically depends on the capacity of the plant. We can suggest an appropriate space to prepare after given specifications, or, can design the oil plant in-house specifically to the amount of workspace available.
Q9: How long will it take to receive my products?
A9: As a general rule, it will take one Month for us to produce.
Q10: Do you offer oversea installation?
A10: We'll send professional installation engineer to help you install the equipment, as well as training your workers freely.
